MITSUBISHI ELECTRIC SPLIT INVERTER PANELS SF SERIES 9+9+12+12 with MXZ-4D72VA
MITSUBISHI ELECTRIC SPLIT INVERTER PANELS SF SERIES 9+9+12+12 with MXZ-4D72VA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Overview

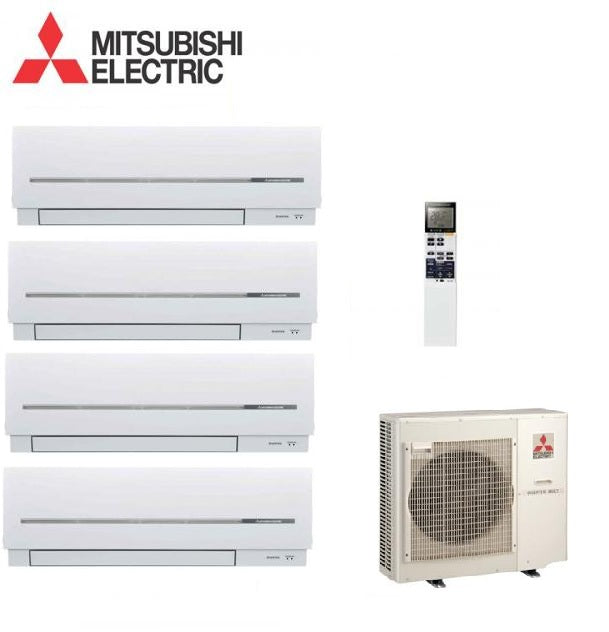

MITSUBISHI ELECTRIC AIR CONDITIONER SPLIT INVERTER SERIES SF 9+9+12+12, composed of 2 x MSZ-SF25VE + 2 x MSZ-SF35VE with external machine MXZ-4D72VA.
Technical specifications
Internal Units
1) Model:
Internal unit catalog code: 2 x MSZ-SF25VE
Nominal cooling/heating capacity: 2.5/3.2 kW
Indoor unit sound pressure (dB-A): 21/45
Dimensions HxWxD (mm): 299 x 798 x 195; 10kg
Power: 9000 btu
2) Model:
Internal unit catalog code: 2 x MSZ-SF35VE
Nominal cooling/heating capacity: 3.5/4.0 kW
Indoor unit sound pressure (dB-A): 21/46
Dimensions HxWxD (mm): 299 x 798 x 195; 10kg
Power: 12000 btu
External Unit
Model:
Catalog code: MXZ-4D72VA
External unit: 2/4 attacks
Energy efficiency:
SEER/SCOP (W/W): 5.7/3.9
Energy Efficiency Class (Cooled): A+
Energy Efficiency Class (Heating): A
ConsumenergeticannucoolingkWh/a: 443
Energy consumption annual heating kWh/a: 2516
Performance:
Nominal capacity Cooling (kW): 7.2
Nominal heating capacity (kW): 8.6
Power absorbed in Cooling (W): 2250
Power absorbed in heating (W): 2280
External unit sound pressure (dB-A): 50/53
Nominal sound power dB: 64
Electrical data:
Power (V/Hz/?): 230/50/1
Characteristics:
Refrigerant gas: R410A
Inverter: Yes
Dimensions:
External Unit HxWxD (mm): 710 x 840(+30) x 330(+66) ; 58kg
Main features
MSZ-SF SERIES
ErP compliant
Compact design
High seasonal energy efficiency for the entire range
Air filtration Nanoplatin/enzymes
Minimum sound level= 21 dBA
Weekly timer
Multisplit compatible
The new MSZ-SF indoor units have been specially designed to recreate the ideal climate in bedrooms in small rooms. The MSZ-SF units are characterized by ultra-compact dimensions, with only 2 dimensional levels for 6 different powers and by a refined "family design" common for the entire line. Thanks to DC Inverter technology you have maximum silence and energy efficiency combined with useful functions and advanced air filtration devices.
High Seasonal Efficiency
Economy of operation is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire new range of multi-split air conditioners (MXZ-D) achieves high efficiency values even on a seasonal basis.
Applications and Advantages
In small rooms and bedrooms, it is often difficult to adjust the air conditioning precisely, as the excessive power supplied causes sudden changes in temperature and unwanted cold air currents. The new MSZ-SF line was created to overcome these drawbacks: the delicate diffusion of the air and the adequate power supplied allow the creation of a comfortable environment even in small rooms, a pleasant coolness in summer and a pleasant warmth in winter, with a staggering amount of electricity consumption.
Filteranoplatinum
The great oxidizing power of the platinum nano-particles that constitute this new air filter allows you to neutralize bacteria, viruses, allergens and bad odors. The irregular surface of the filter itself is more effective in capturing dust and simple and regular cleaning keeps it in perfect efficiency for over 10 years
Weekly Timer
Programmable comfort: the desired temperature at the desired time. Thanks to the new weekly timer, equipped with 4 different programming on a daily cycle, it is possible not only to program the switching on and off, but also a different temperature during the day
The maximum of silence for the maximum of comfort
The DC Inverter multisplit units are characterized by the very low sound levels emitted. By activating the silent mode, this level can be further reduced automatically, when you need less sleep (e.g. during the night in cooling mode.
The quality of the environment in which you stay also depends on the perceived noise level. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort without even realizing they are working.
Dual Air Guides
Both horizontal deflectors are equipped with their own servomotor. Depending on the mode of use, the angle of each deflector can be adjusted individually to ensure maximum comfort
Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 100.0 kg
- costospedizionecad: IT54;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- marca: MITSUBISHI ELECTRIC
- modello: CLIMAT_820
