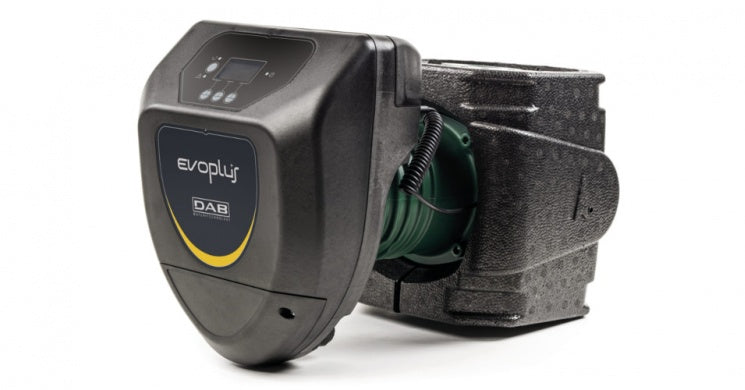

DAB Electronic Wet Rotor Circulator Model EvoPlus B 120/250.40 M

Dab EvoPlus B 120/250.40 M Electronic Circulator

EVOPLUS circulators

they can be used in heating, ventilation and air conditioning systems for residential and commercial buildings such as offices, condominiums, hospital and school facilities. The EVOPLUS line is made up of a complete range of circulators , with a maximum flow rate of up to 75.6 m3/h and a maximum head of up to 18 m3. they are equipped with flanged ports up to DN 100 in single and twin versions.

INTELLIGENT PRODUCT

Choosing Evoplus means saving while respecting the environment. Evoplus is an innovative product because it is designed to truly improve life: cutting-edge components and electronics guarantee high performance, low consumption and simple and immediate usability. The impact on the environment is significantly reduced, with a real reduction in consumption of over 70% compared to old circulators. Evoplus: technological intelligence and eco-friendly design at your service. Evoplus: technological intelligence and eco-friendly design at your service The technology and integrated electronics guarantee the constant optimization of the operating regime which eliminates waste and extends the life cycle of a product designed to last over time. Speed ​​and power are determined by the specific performance request, allowing an action that is always effective and efficient, personalized in all application contexts. Simple and usable technology Evoplus simplifies the installation, maintenance and control processes, with savings in terms of time and costs which confirm the competitiveness of the entire range. • ease of installation thanks to the elimination of the by-pass in the system
• clear and intuitive interface guaranteed by an easy and clear display for viewing the operating status, which facilitates the practical selection of the regulation mode
• constant control ensured by the remote control function which allows interactive, easy and immediate management, at any time and from any location

SUSTAINABLE

Eco-compatibility is a strategic choice and a mandatory requirement, thanks to the Ecodesign Erp Directive. Evoplus circulators with efficiency technology oriented towards respect for the environment, today propose a safe change, with a view to sustainable and conscious development. The ERP “Eco-design” regulation 2009/125/EC: involves all “energy-related products” and aims in various steps to orient the market towards the diffusion of high-efficiency “intelligent” products. Implementation steps of the Regulation:
• From 1 August 2015: the EEI limit value will be further lowered to 0.23 also for pumps integrated into heat generators and solar stations.
• From 1 January 2020: the validity of the EEI 0.23 limit value will also be applied to the replacement of pumps integrated into existing heat generators

TECHNICAL DATA

• Operating range: from 3 to 75.6 m³/h with head up to 18 metres;
• Liquid temperature range: -10 °C to +110 °C
• Pumped liquid: clean, free from solid substances and mineral oils, non-viscous, chemically neutral, close to the characteristics of water. (glycol
• max 30%)
• Maximum working pressure: 16 bar (1600 kPa)
• Standard flanging: DN 32, DN 40, DN 50, DN 65, PN 6 / PN 10 / PN 16
• (4 slots), DN 80 and DN 100, PN 6 (4 slots)
• Maximum ambient temperature: + 40°C.
• Minimum head pressure: the values ​​are shown in the relevant tables.
• Special executions on request: DN 80, DN 100 PN 10 / PN 16 (8 holes)
• Accessories (Counterflanges): PN 10 DN 32 - DN 40 - DN 50 - DN 65
• PN 6 DN 80 - DN 100
• Electromagnetic compatibility: EVOPLUS circulators respect the
• EN 61800-3 standard, in category C2, for electromagnetic compatibility.
• Electromagnetic emissions: residential environment (in some cases containment measures may be required).
• Conducted emissions: residential environment (in some cases they can be
• containment measures required)

APPLICATIONS
The EVOPLUS electronic circulation pumps can be used in heating, ventilation and air conditioning systems for buildings for residential and commercial use such as: - Large residential buildings - Condominiums and apartment buildings - Homes - Clinics and hospitals - Schools - Office buildings - Real estate All models are available in both single and twin versions. Execution with bronze pump body for the recirculation of domestic water, available in a single version with flanged ports DN 32, DN 40, DN 50 and DN 65. Prepared as standard for control via external 0-10 v signal. or PWM and for connection to ModBus system management systems (LonBus with specific optional communication module). It is possible to remotely control the single version thanks to the Dconnect service (with Dconnect Box supplied separately)

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 11.0 kg
• marca: DAB
• modello: 99362966
