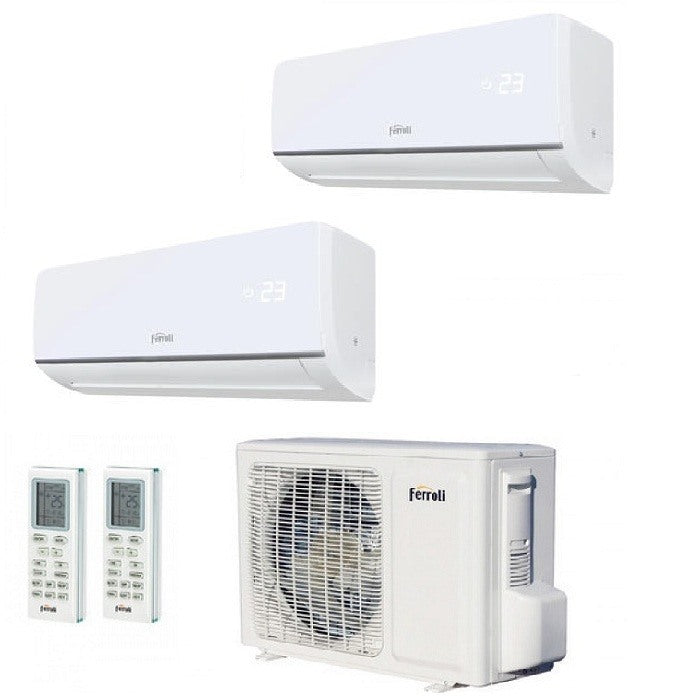

Ferroli Dual Split Inverter Air Conditioner R32 ASTER M 3.2 series 7000+7000 with 18-2 7+7

IN THE ABSENCE OF THE ASTER S 3.2 PRODUCT THE NEXT 2020 FERROLI DIAMANT M MODEL WILL BE SHIPPED

For further information regarding the product --------> Click Here

---

Technical features

Internal Units

1) Model:

• Indoor unit: 2 x 7000 btu/h
• Cooling output: 2.1 kW
• Thermal output: 2.3 kW
• Indoor unit air flow (S.Max-Max-med-min) m3/h 480/440/380/330
• Indoor unit sound pressure* (S.Max-Max-med-min) dB(A) 37/33/31/26
• Liquid/gas line connections inch 1/4" 3/8"

Dimensions:

• WxHxD: 792 x 279 x 195 mm
• Net weight: 9.5 kg

External Unit

• Outdoor unit code: 18-2
• Type: heat pump
• Refrigerant gas: R-32
• Energy efficiency:
• SEER (W/W): 6.2
• SCOP (W\W): 4.0
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+

Performance:

• Nominal cooling capacity (kW): 4.6
• Nominal heat output (kW): 4.7
• Total power absorbed when cold (W): 1190
• Total power absorbed when hot (W): 1130
• Air flow m3/h 3000
• Sound pressure dB(A) 54

Electrical data:

• Power (V/Hz/Φ): 230/50/1
• Liquid line connections (Q.ty x Diameter) inch 2x1/4""
• Gas line connections (Q.ty x Diameter) inch 2x3/8"
• Maximum total length 30 m
• Maximum single unit length 15 m
• Maximum height difference 5 m

Dimensions:

• External Unit WxHxD (mm): 960 x 700 x 340; 51kg

---

ASTER M 3.2 series

Multisplit DC inverter in heat pump.

The innovative Aster M 3.2 system allows you to create different combinations for air conditioning rooms, combining the external unit with internal wall-mounted, cassette and ducted units of different powers. This equipment perfectly combines respect for the environment with the importance of energy saving where, Ferroli has always been at the forefront.

Characteristics:

• Ecological refrigerant R32
• Efficiency Class A++ / A+
• Wide range of combinable powers
• Equipped with direct current inverter technology
• External unit combinable with different types of internal units
• External unit equipped with connection cover and sound-absorbing hood
• Automatic recovery in the event of a power failure
• Night operating mode
• “AUTOMATIC” mode
• Timer function
• Units equipped with remote control (wall-mounted and cassette units) and wired control (ducted units)
• Outdoor unit treated with anti-rust protective substances

---

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
• gas: R-32
• marca: Ferroli
• metri quadri : 20/20
• modello: 7+7Aster3.2_18-2
• potenza btu: 7000+7000
• superficie riscaldabile mq: 20/20
