Garanzia Italiana 24 mesi
Heating energy class: A+++
Cooling energy class: A+++
Fujitsu  |  SKU: ASYG07KGTE

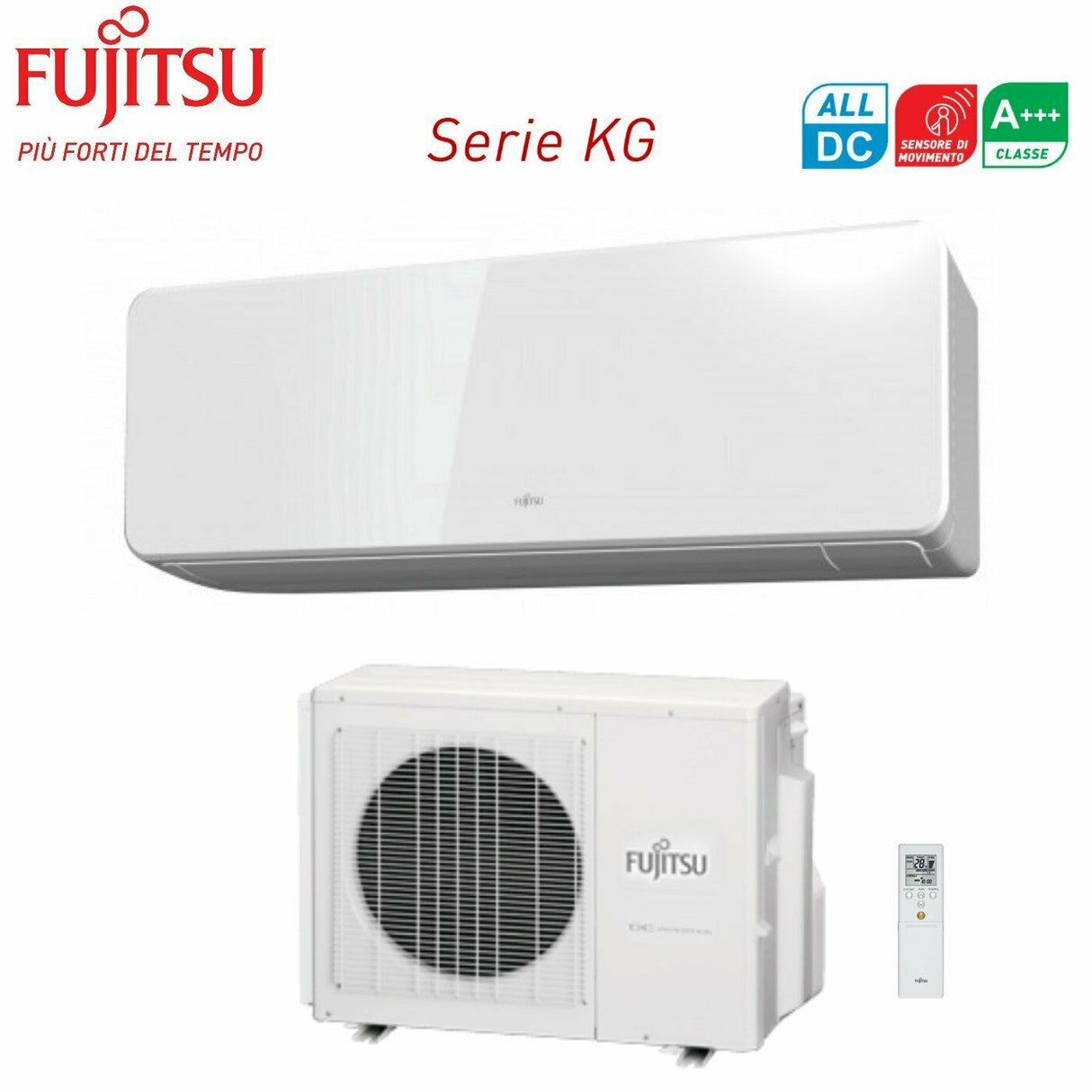

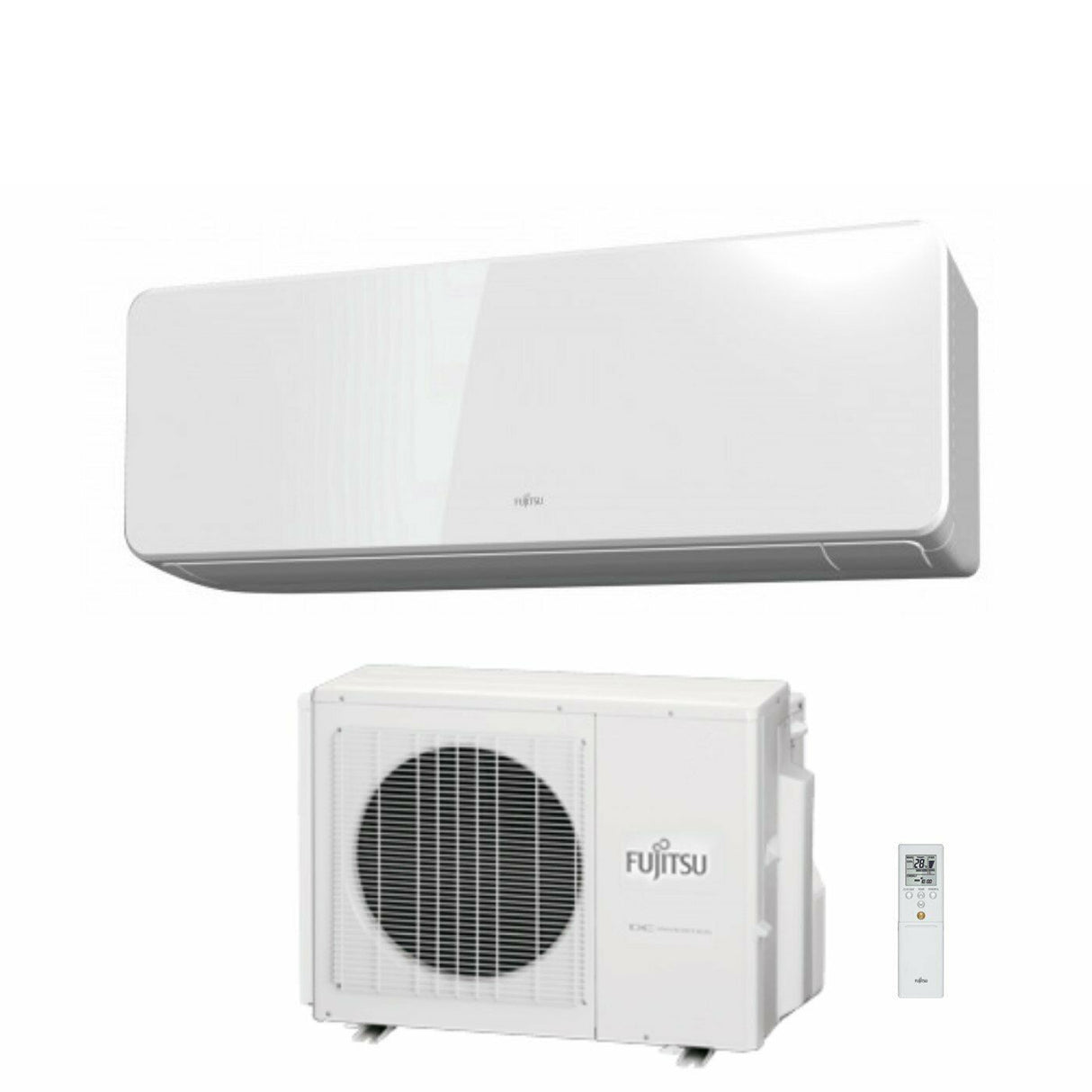

Fujitsu Inverter Air Conditioning KG series 7000 Btu ASYG07KGTE Code 3NGF7145 R-32 Wi-Fi Optional Class A+++

€705,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of the order.

Our shipping services

Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours

Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.


For further details on Premium Shipping, please see the Premium Shipping page.

Customer service

Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.

Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.

Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.

Description

Technical features

  • Indoor unit catalog code: ASYG07KGTE
  • Outdoor unit catalog code: AOYG07KGCA
  • Kit code: 3NGF7145
  • Power: 7000 Btu
  • Wi-Fi Optional: UTY-TFSXF2 / 3IVN9133

Energy efficiency

  • SEER: 8.52
  • SCOP: 5.12
  • Cooling energy efficiency class: A+++
  • Heating energy efficiency class: A+++
  • Annual energy consumption in cooling: 82 kWh/a
  • Annual energy consumption in heating: 628 kWh/a
Performance
  • Cooling capacity: 2.0 kW
  • Heating capacity: 2.5 kW
  • Cooling absorption: 0.400 kW
  • Heating absorption: 0.500 kW
  • Indoor unit air flow: 650 m 3 /h
  • Indoor unit sound power level: 54~56 dB(A)
  • External unit sound power level: 61~62 dB(A)
  • Indoor unit sound pressure level: 19~29~33~38 dB(A)
  • External unit sound pressure level: 46 dB(A)

Electrical data

  • Power supply (V,Hz, Ø): 230/50/1
  • Maximum current absorbed: 6.5 A
  • Refrigerant gas: R32
  • Operating range
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24°C
Installation data
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum pipe length: 20 m
  • Maximum internal unit / external unit height difference: 15 m

Dimensions and weight

  • Indoor unit dimensions (HxWxD): 270x834x215 mm
  • Internal unit weight: 10 kg
  • External unit dimensions (HxWxD): 542x799x290 mm
  • External unit weight: 30 kg

Fujitsu wall-mounted air conditioner KG series

High energy saving

High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant.

Energy saving

Comfortable ventilation and quiet operation

The large baffle and new diffusion structure allow for comfortable airflow that spreads wider to the user's feet and quiet operation. Comfortable ventilation

Hybrid heat exchanger

The heat exchange efficiency has been significantly improved thanks to the new hybrid heat exchanger, reaching the highest SEER and SCOP levels in the category.

Ø 107 large fan

Thanks to the large diameter fan, it is possible to obtain an efficient air volume even at low powers.

Motion sensor

 The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.

Motion sensor

Simple and intuitive remote control, even with smartphones and PCs The most advanced solution for remotely managing your air conditioner

Fujitsu uses an interface that supports all major building automation programming languages. In this way the user can manage and control their air conditioning system quickly and easily.

Wireless LAN interface

It is the most advanced solution for remotely managing an air conditioning system using all types of mobile devices, such as smartphones and tablets.

• No separate external power supply is required

• Can be used for a single monosplit or multisplit outdoor unit.

UTY-TFSXW1

Basic controls

• Turning the units on and off

• Choice of mode (Heat (warm), Cool (cold), dry (dehumidification), Auto, Fan (ventilation)

• Fan speed setting

• Blade position (air flow direction setting)

• Weekly timer

• Economy mode

Control of multiple air conditioning systems

Control of air conditioning systems installed in different buildings

Controllo di più sistemi

Error display and notification email notification

• Alarm notification via email

• Climate control anomalies display

• Enables rapid service response when an error occurs

Visualizzazione

Functions

  • Presence sensor The sensor detects the presence of people inside the room
  • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
  • Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns
  • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
  • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling
  • Energy saving Control system for energy saving
  • Maximum power Function that allows you to activate the air conditioning at maximum power for rapid comfort
  • Silent mode Reduce external machine noise
  • Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
  • Automatic switch-off Sleep Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
  • Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows control of filter cleaning
R32 a proposal for the new generation of refrigerant for GWP reduction
It is a tested refrigerant because it is already present, as a percentage, in the current HFC refrigerant called R410A. It is also an excellent refrigerant that provides significant benefits in terms of environmental compatibility, performance, safety and efficiency
Inverter technology Twin rotary DC compressor
Twin rotary DC is the high efficiency compressor used in all our product ranges. Its innovative design guarantees greater energy efficiency than normal compressors. The DC fan motor supports the high efficiencies required in all our air conditioners.
Optimized inverter control
The I-PAM Inverter control technology improves the efficiency of the air conditioner by reaching comfort temperatures in less time and with considerable energy savings.
Multi-path high density heat exchanger. Fujitsu has improved the performance of air conditioners thanks to the innovative geometry of the high-efficiency heat exchanger. The exchanger has greater performance thanks to the presence of a sub-cooling system.
Heat exchanger
Working temperature settings
It is possible to set the maximum and minimum operating temperatures to optimize consumption
Working temperatures
Auto-off timer
The air conditioner can be programmed, on and off, to be activated several times within 24 hours, based on the desired level of comfort.
Auto off timer
Economy
In Economy mode the air conditioner reduces energy consumption ensuring significant savings in consumption.
Economy
Auto return function
By activating the Auto return function, the air conditioner, set for a certain time at a different temperature, automatically restores the previous temperature.
Auto return function
Rapid achievement of comfort
The exceptional air distribution system allows you to quickly reach optimal comfort conditions in air-conditioned environments.
Powerful mode
This mode brings the air conditioner to maximum power, for a maximum of 20 minutes, in order to quickly reach the comfort condition required inside the room
Maintenance temperature 10°C
The 10°C temperature maintenance mode prevents the temperature of unoccupied rooms from dropping excessively.
Silent mode for external unit
For particular acoustic quality needs, the user can further reduce the noise of the external unit by activating this specific function.
Automatic switching function
The air conditioner automatically switches from heating to cooling, and vice versa, based on the temperature required in the room.

Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Specifications
  • peso: 35.0 kg
  • classe energetica raffreddamento: A+++
  • classe energetica riscaldamento: A+++
  • costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
  • gas: R-32
  • marca: Fujitsu
  • metri quadri : 10-15 m2
  • modello: ASYG07KGTE_1
  • potenza btu: 7000
  • superficie riscaldabile mq: 20
