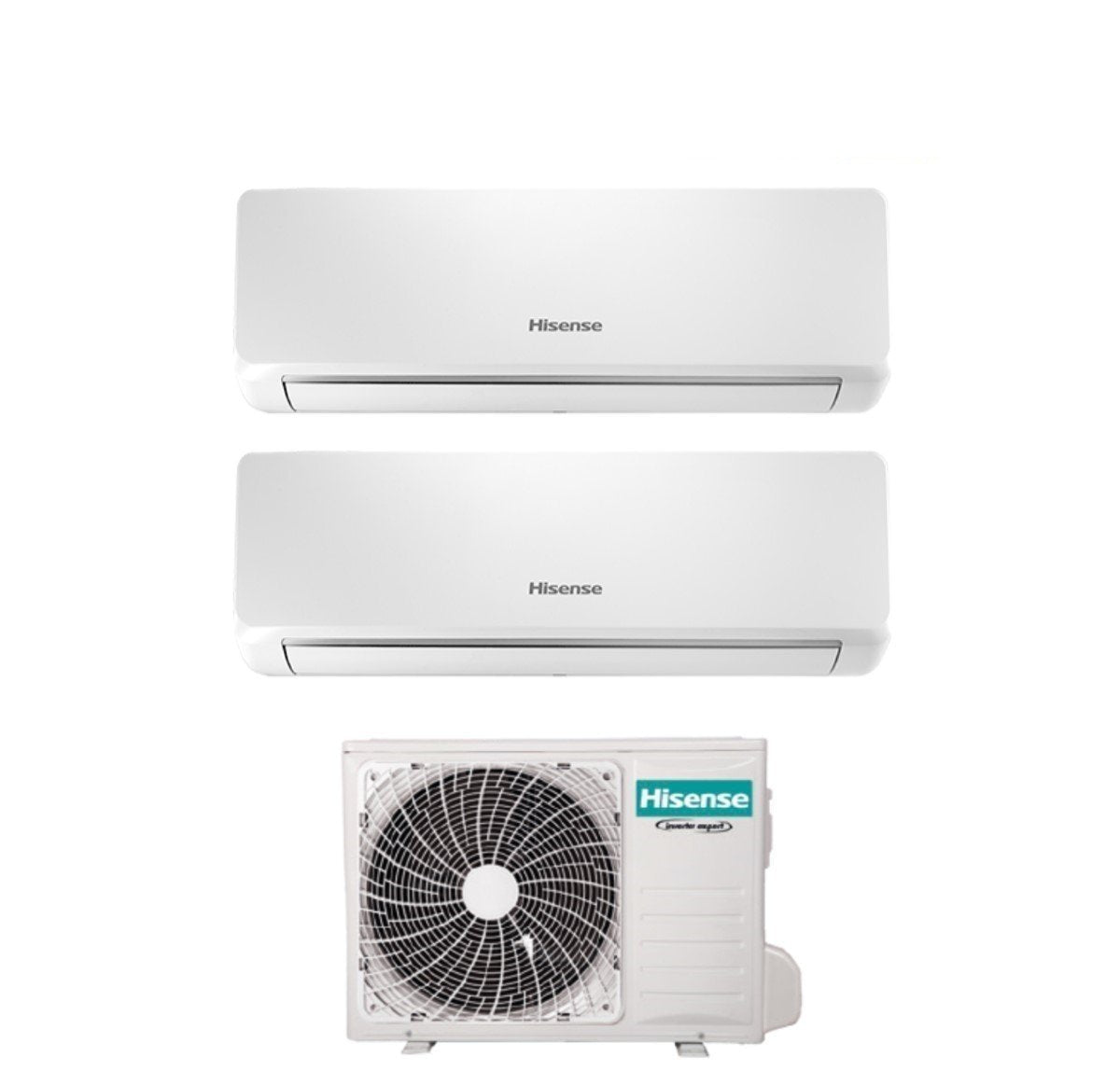

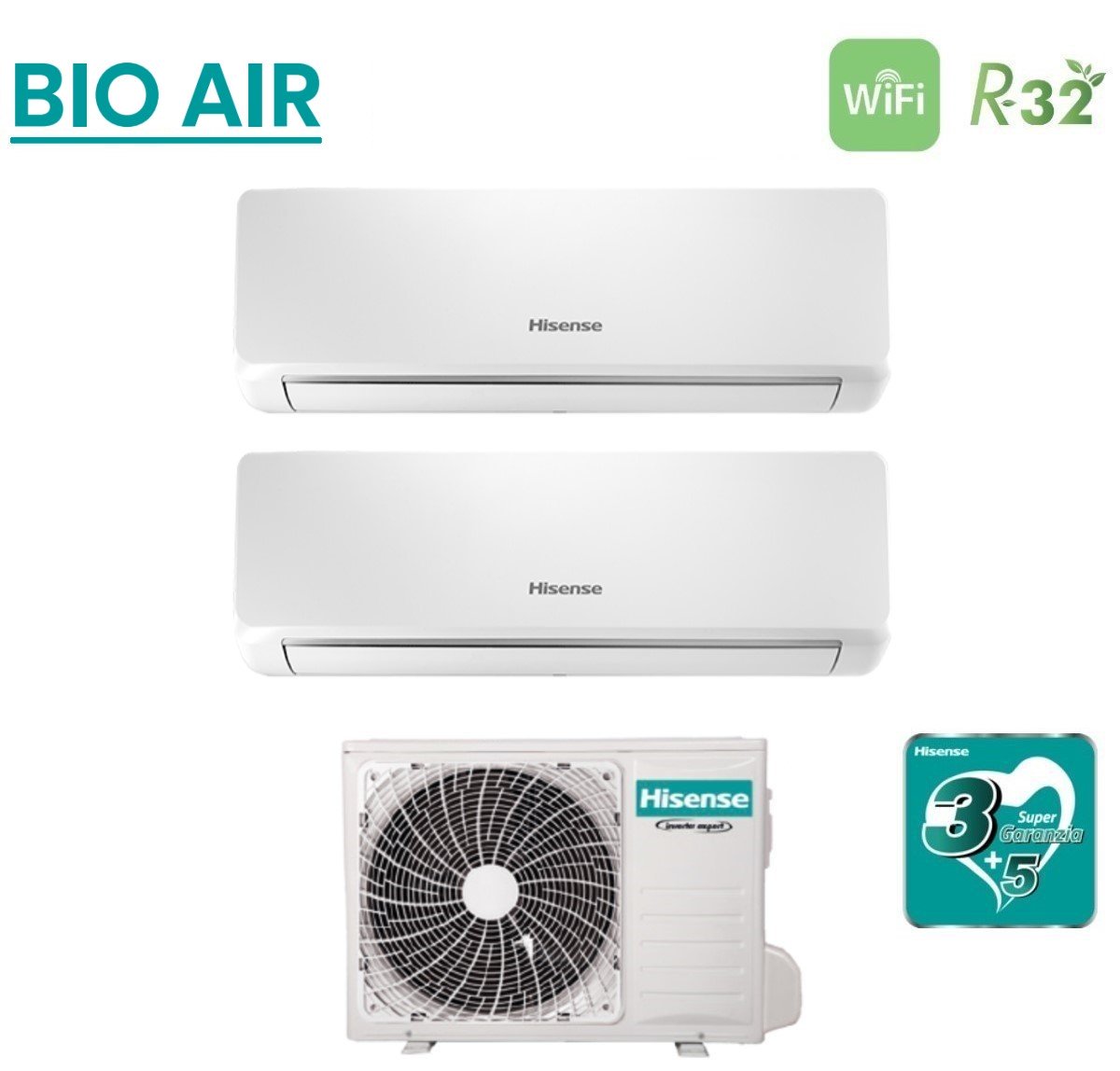

External unit
- Outdoor unit catalog code: 2AMW35U4RGC
- Number of connectable internal units: 2
Energy efficiency
- SEER: 7.8
- SCOP : 4.1
- Cooling energy efficiency class: A++
- Heating energy efficiency class: A+
- Annual energy consumption in cooling: 157 kWh/a
- Annual energy consumption in heating: 1195 kWh/a
Performance
- Cooling capacity: 3.5 kW
- Heating capacity: 4.0 kW
- Cooling absorption: 0.82 kW
- Heating absorption: 0.90 kW
- Sound power level: 58 dB(A)
- Sound pressure level: 47~53 dB(A)
Characteristics
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 50° C
- - Heating: -20° ~ 24° C
Installation data
- Liquid tube diameter: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 30 m
- Maximum piping length per unit: 15 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (WxHxD): 715x540x240 mm
- External unit weight: 28.5 kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase at http://www.hisenseitalia.it/clima/supporto
Multisplit Outdoor Unit Technologies
High Efficiency DC Twin Rotary Inverter Compressor
The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.
DC drive technology with 180° sine wave
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.
Curve control
Compressor with rubidium magnet
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption
Electronic expansion valve
The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .
Wide voltage range operation
The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve its efficiency
The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.
Ecological refrigerant
R32 has zero ozone depletion potential (OPD) and lower global warming potential (GWP), which contributes to the prevention of global warming
Hisense BioAir
Hisense air conditioners are becoming more and more functional. The new line opens up to increasingly sophisticated technologies to create the ideal climate in the home and office.
Wi-Fi control
Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple to use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android.
After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, ventilation speed and air flow. From the «Smart function» section you can also set daily or weekly timers.
Smart Voice Control
The new HiSmart Life app is compatible with Alexa and Google Assistant: thanks to voice interaction, it is possible to turn it on, off, adjust the temperature and set the desired operating mode (cooling or heating).
You can find HiSmart Life in the Alexa Skills and in the Google Assistant catalogue.
Optimal airflow
The new Hisense air conditioners guarantee an ideal air flow based on the operating mode or based on the type of activity carried out by people in the environment.
You can select the airflow direction directly from the remote control
HI-NANO
Self-Clean: Antibacterial Treatment
The evaporator and condenser of Hisense air conditioners have a hydrophilic coating that allows the removal of microorganisms and dust. By activating the Self-Clean function directly from the remote control, the air conditioner starts the self-cleaning process through the frosting, defrosting and battery drying phases. Thanks to the Self-Clean function, the air released into the room is always clean and the performance of the air conditioner remains optimal
