Hisense
Garanzia Italiana 24 mesi
SKU: ADT 9+9+9+12 105

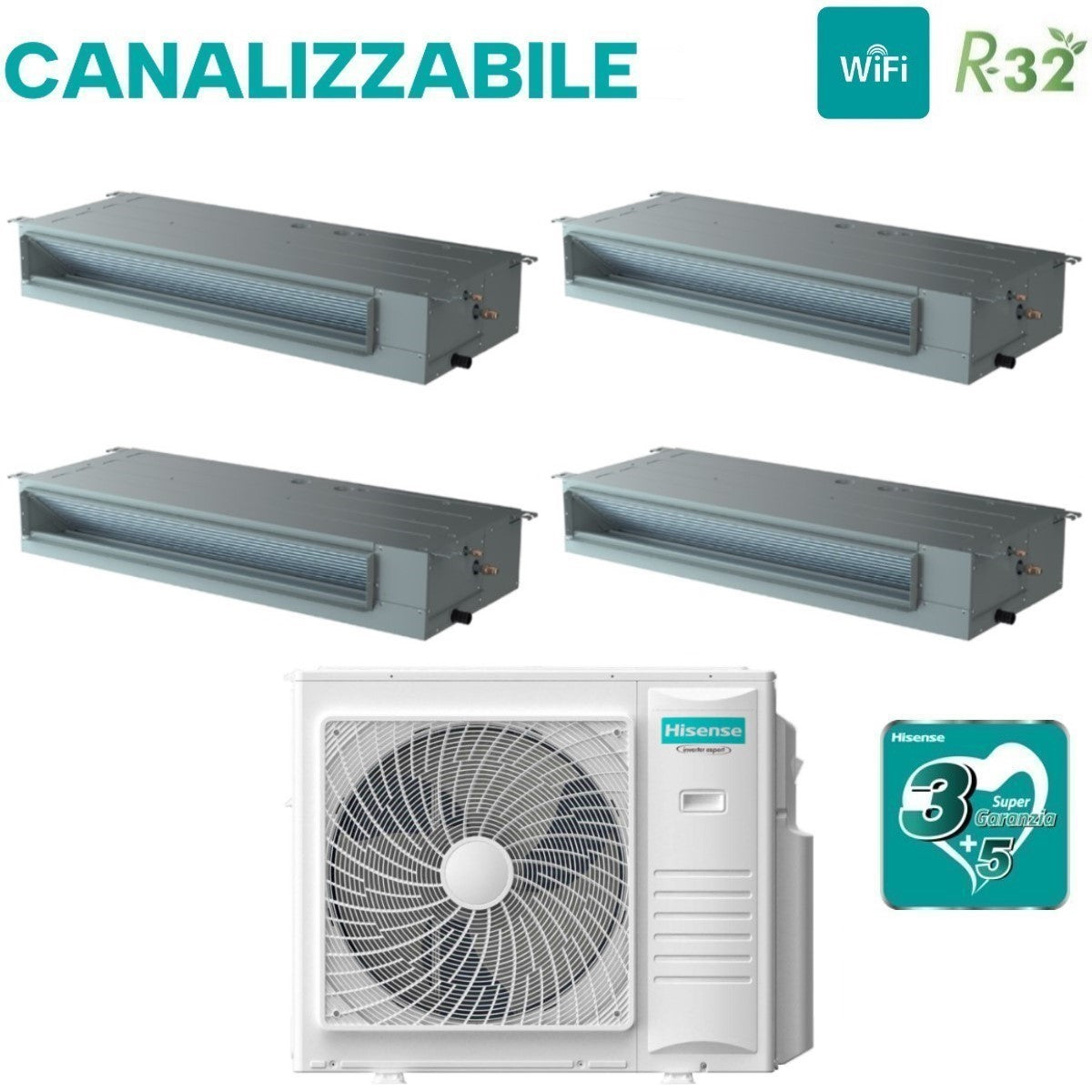

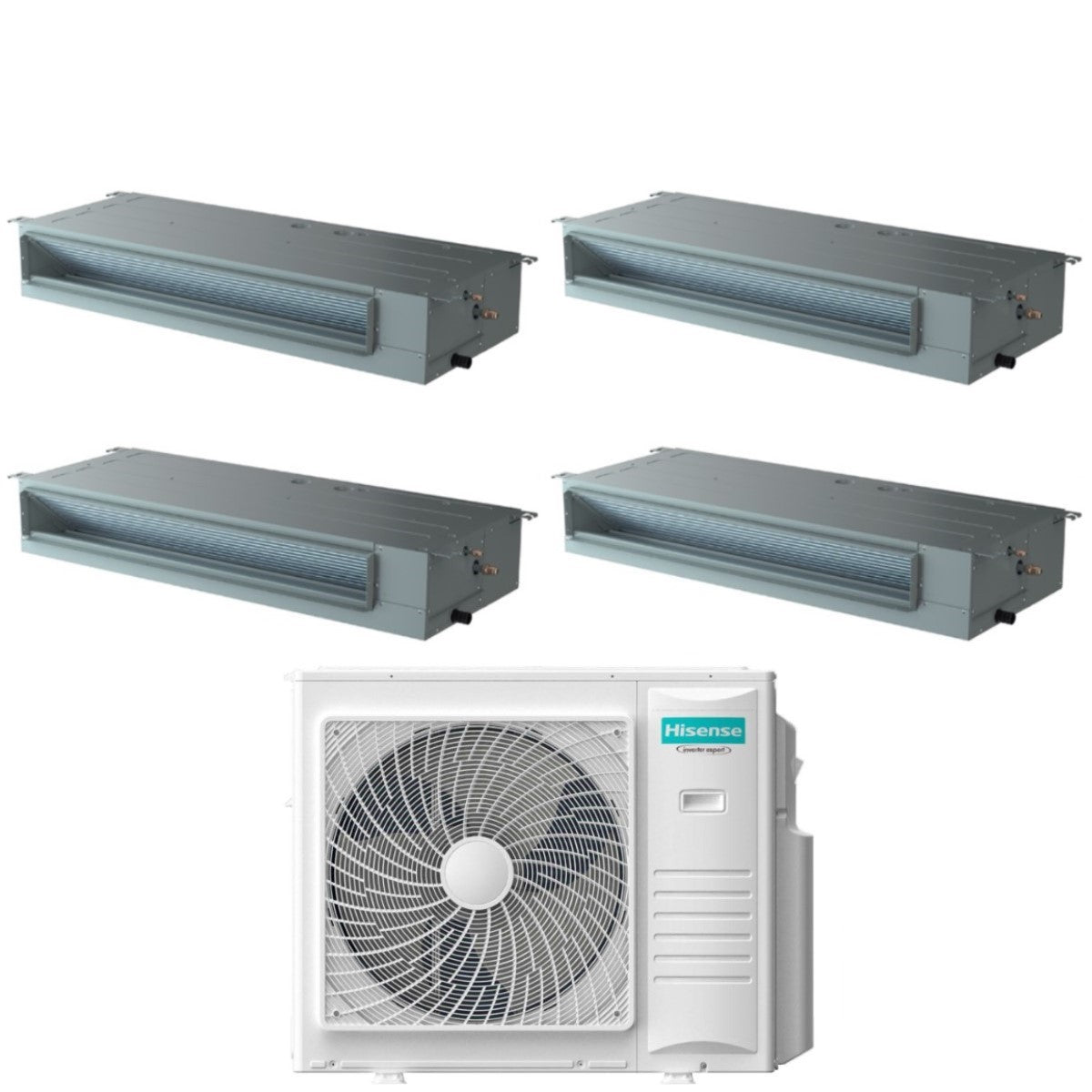

Hisense Air Conditioner Split Inverter Panels Ducted 9+9+9+12 with 4AMW105U4RAA R-32 Wi-Fi Optional 9000+9000+9000+12000 With Standard and Wired Remote Control Included

€2.520,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

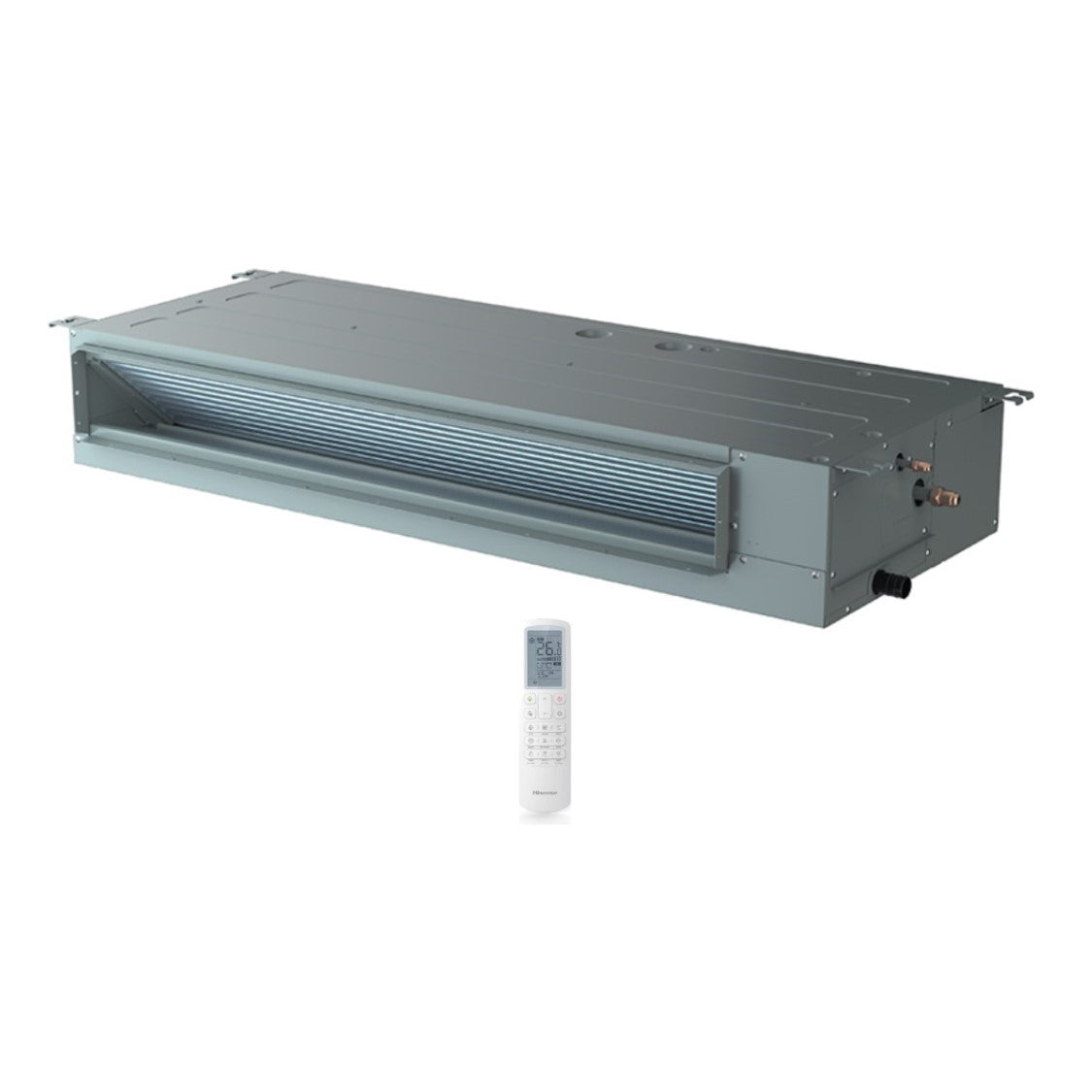

Internal units

1) Model

  • Indoor unit catalog code: ADT26UX4RBL8
  • Power: 9000 Btu
  • Cooling capacity: 2.6 kW
  • Heating capacity: 3.2
  • Treated air: 10 m 3 /min
  • Sound power level: 53 dB(A)
  • Sound pressure level: 30~36 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (WxHxD): 910x190x447 mm
  • Weight: 18.0 kg
  • Optional Wi-Fi: AEH-W4GX
2) Model
  • Indoor unit catalog code: 1x ADT35UX4RBL8
  • Power: 12000 Btu
  • Cooling capacity: 3.5 kW
  • Heating capacity: 4.0 kW
  • Treated air: 10 m 3 /min
  • Sound power level: 53 dB(A)
  • Sound pressure level: 30~36 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (WxHxD): 910x190x447 mm
  • Weight: 18.0 kg
  • Optional Wi-Fi: AEH-W4GX

External unit

  • Outdoor unit catalog code: 4AMW81U4RAA
  • Maximum number of internal units that can be connected: Up to 4 internal units

Energy efficiency

  • SEER : 7.01
  • SCOP: 4.05
  • Cooling energy efficiency class: A++
  • Heating energy efficiency class: A+
  • Annual cooling energy consumption: 399 kWh/a
  • Annual heating energy consumption: 2765 kWh/a

Performance

  • Cooling capacity: 8.0 kW
  • Heating capacity: 9.0 kW
  • Cooling absorption: 2.25 kW
  • Heating absorption: 2.25 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level: 54~60 dB(A)

Electrical data

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 48° C
  • - Heating: -15° ~ 24° C
Installation data
  • Liquid tube diameter: 6.35 mm (1/4") x4
  • Gas pipe diameter: 9.52 mm (3/8") x4
  • Maximum pipe length: 60 m
  • Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

  • External unit dimensions (WxHxD): 950×840×340 mm
  • External unit weight: 73.0 kg

3 year warranty (5 on the compressor)

Warranty

The Hisense Italia warranty can be activated within 1 month from the date of purchase at http://www.hisenseitalia.it/clima/supporto


Multi-split outdoor unit technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.


DC drive technology with 180° sine wave

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Driver della curva Hisense


Compressor with rubidium magnet

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption

Compressore


Ecological refrigerant R-32

R32 has zero ozone depletion potential (OPD) and lower global warming potential (GWP), which contributes to the prevention of global warming

R-32 Hisense


Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve its efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.


New ducted Hisense R-32 Variable static pressure

On the entire range of ducted models it is possible to set the static pressure to guarantee greater installation flexibility.

Pressione


Dual air inlet modes

Advantages: If the distance between the unit and the wall is limited, then you can choose the lower air inlet by removing the lower panel of the unit, it will be much easier and more flexible. The noise level produced by a lower air inlet can increase by up to 5dB compared to using a rear air inlet. We therefore recommend opting for the latter solution.

Modalità


ON/OFF contact for hotel room control, ON/OFF contact for fire control

Hisense


Slim design

With a height of 190 mm, it can be easily installed in residential false ceilings.

design sottile


Float and integrated condensate drain pump

If the level of condensation water inside the drainage tray increases due to a malfunction of the drain pump, the unit will automatically turn off and display the alarm to avoid damage.

galleggiante e pompa scarico


Smart Wi-Fi Control

Controllo Wi-Fi intelligente

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. ConnectLife is the simple to use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android.

Operation in Wi-Fi mode requires cards to be installed on each indoor unit .


After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, ventilation speed and air flow. From the «Automation» section it is also possible to set daily or weekly timers


Smart Voice Control

The new ConnectLife app is compatible with Alexa and Google assistant, thanks to voice interaction, it is possible to turn it on, off, adjust the temperature and set the operating mode (cooling or heating). You can find ConnectLife in the Alexa Skills and in the Google Assistant catalogue.

Smart Voice


Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 100.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Hisense
  • modello: ADT 9+9+9+12 105_1
  • potenza btu: 9000+9000+9000+12000
  • superficie riscaldabile mq: 25/25/25/35
