Description
Description

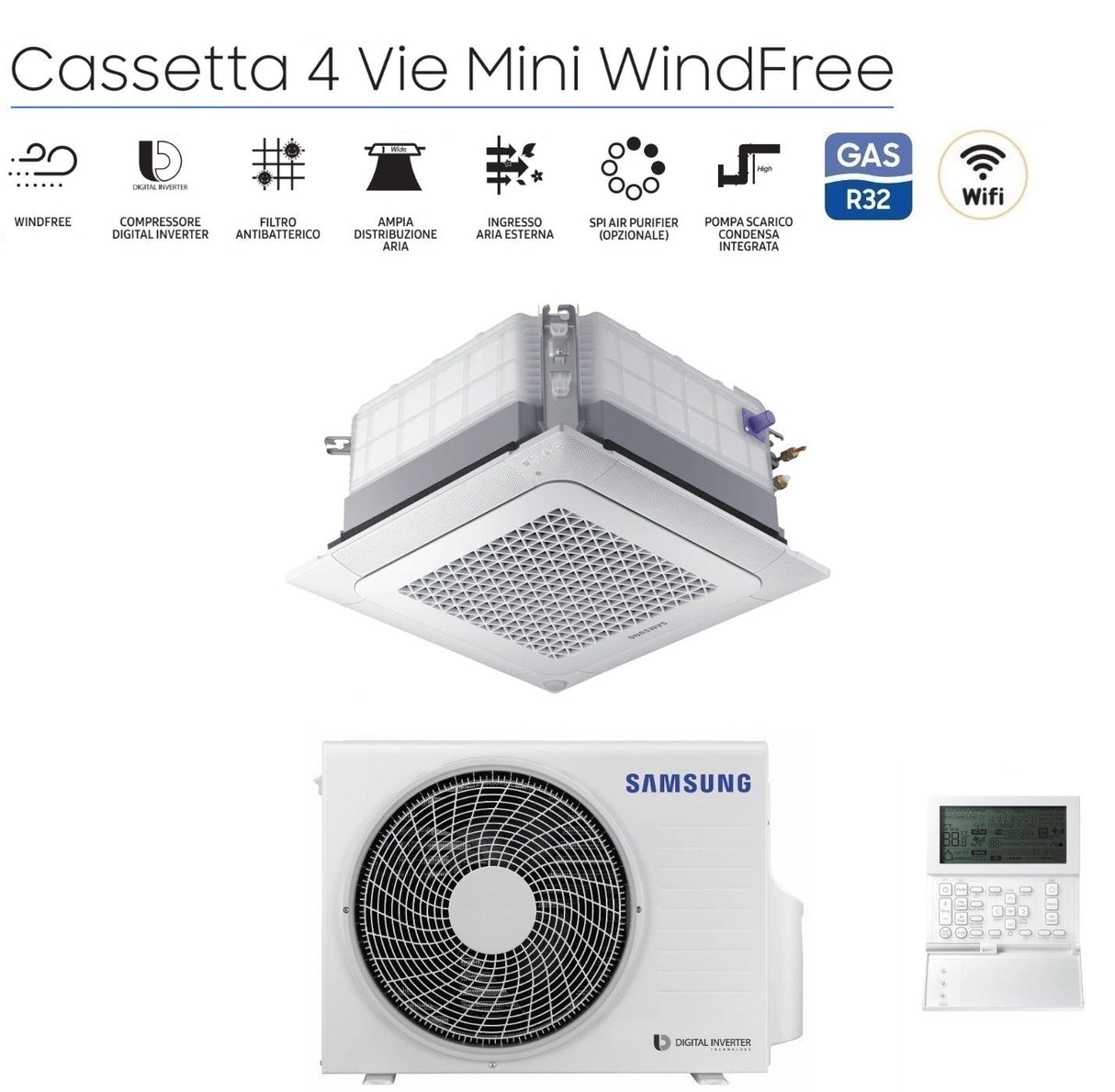

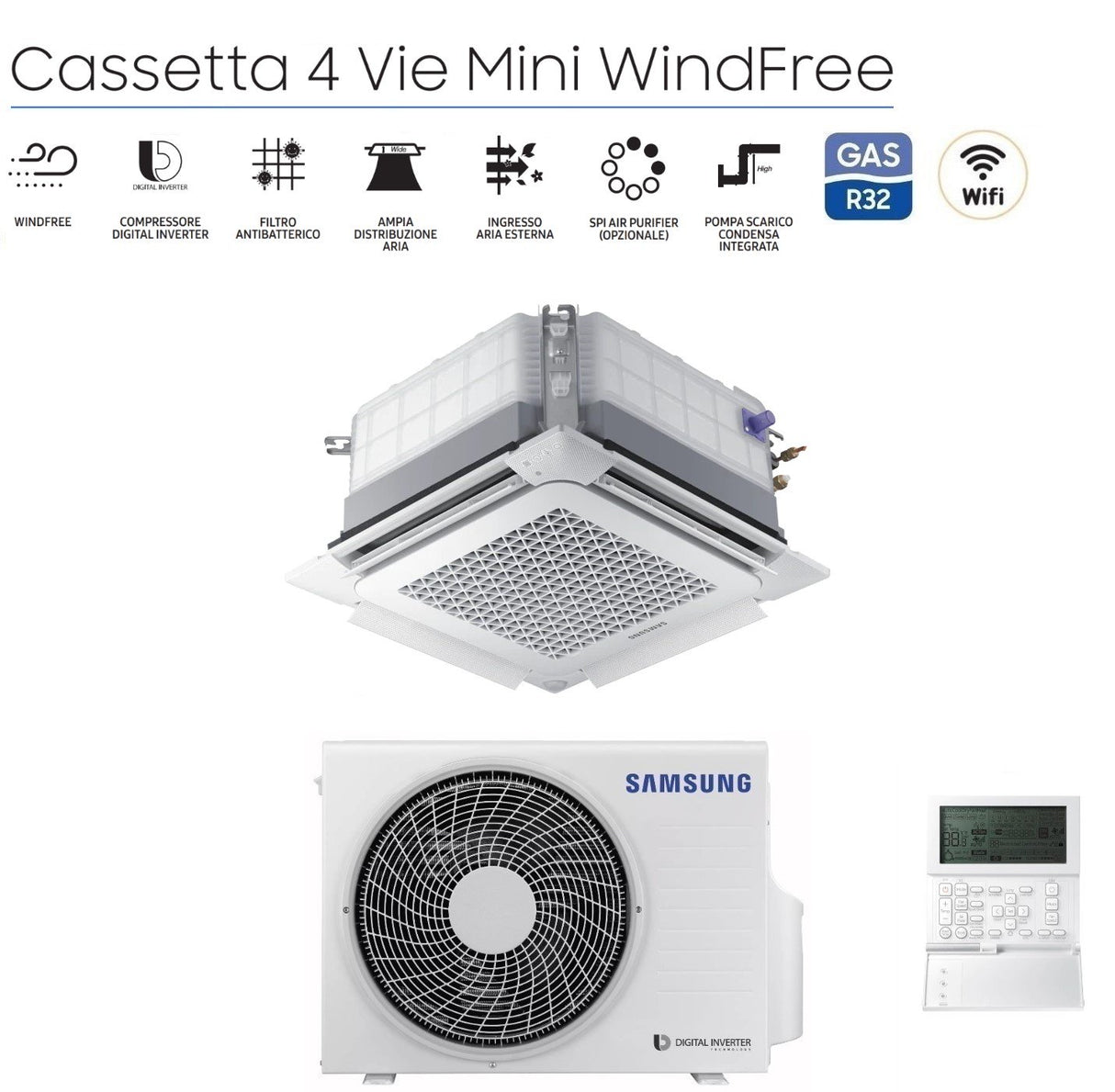

Samsung Inverter Air Conditioning Cassette 4 Way Mini Windfree 24000 btu R-32 AC071RNNDKG with panel and wired control - NEW
Model:
- Indoor unit model: AC071RNNDKG/EU
- Outdoor unit model: AC071RXADKG/EU
- Ceiling panel code: PC4SUFMAN
- Wired Control: MWR-WG00KN
Energy efficiency:
- Seasonal efficiency:
- SEER: 6.0
- SCOP: 3.8 - Energy Efficiency Class (Cooling): A+
- Energy Efficiency Class (Heating): A
Characteristics:
- Power (Ø, V, Hz): 1, 220-240, 50
- Refrigerant gas: R-32
- Liquid / Gas Pipe Diameter (inch): (1/4") / (5/8")
Dimensions and weight:
-
Internal Unit WxHxD (mm): 575x 250 x 575; 12.0kg
- Panel dimensions WxHxD (mm): 620x46x620; 2.7 kg
- External Unit WxHxD (mm): 880 x 638 x 310; 51kg
- Cooling/heating operating range EU °C -15-50/-20-24
WindFree CASSETTE
- WindFree mode to avoid direct air jets thanks to 9,000 microholes
- Comfort guaranteed thanks to the humidity sensor
- New fins with a depth of 66 mm, increased air throw
- Air delivery with guide vane individually adjustable between 32° and 75°
- Pre-cut for external air inlet; Fan with inverter motor; Turbo Mode available
- Built-in condensate drain pump (750 mmH2O); Antibacterial fi lter included
- Communication with "Nasa" protocol; manageable via app via smartphone and tablet

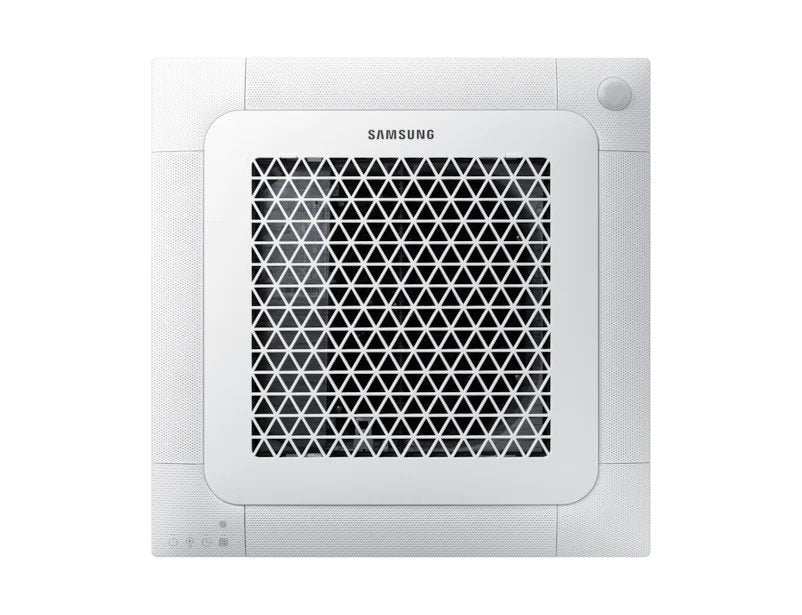

- Panel with small dimensions 620x620
- Power supply: Single phase 220 V - 50 Hz
- Twin Rotary Inverter outdoor unit compressor (except 2.6/3.5kW Single Rotary models)
Compact and lightweight external units
The new external drives are lighter and more compact than conventional products. The external ones have 1 or 2 fans based on the power produced
Installation flexibility
The pipe can be installed in 4 different directions making the installation extremely flexible.
Operating limit extensions
The extended temperature limits allow the machine to operate in cooling from -15°C to 50°C externally and in heating from -20°C to 24°C.
Comfort temperature
The Smart Inverter system adapts to keep the set temperature constant, so that it does not suffer high fluctuations.
High Efficiency Unit Range
The commercial range of high-efficiency units ensures high performance in all conditions.
CHARACTERISTICS:
- Equipped with Twin Rotary BLDC Compressors which maintain high performance while reducing vibrations and noise.
- High seasonal efficiency in heating and cooling with units reaching class A++*
- Increased operating range up to -20 °C in cold and -25 °C in heat.
- The units can be managed remotely using the MIM-H04EN Wi-Fi kit.
- Availability of internal units with 4-way cassette type Mini and 90x90, wall-mounted units, ducted.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 80.0 kg
- classe energetica raffreddamento: A+
- classe energetica riscaldamento: A
- costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Samsung
- metri quadri : 60 - 80 m2
- modello: AC071RNNDKG Cassetta_1
- potenza btu: 24000
- superficie riscaldabile mq: 70
