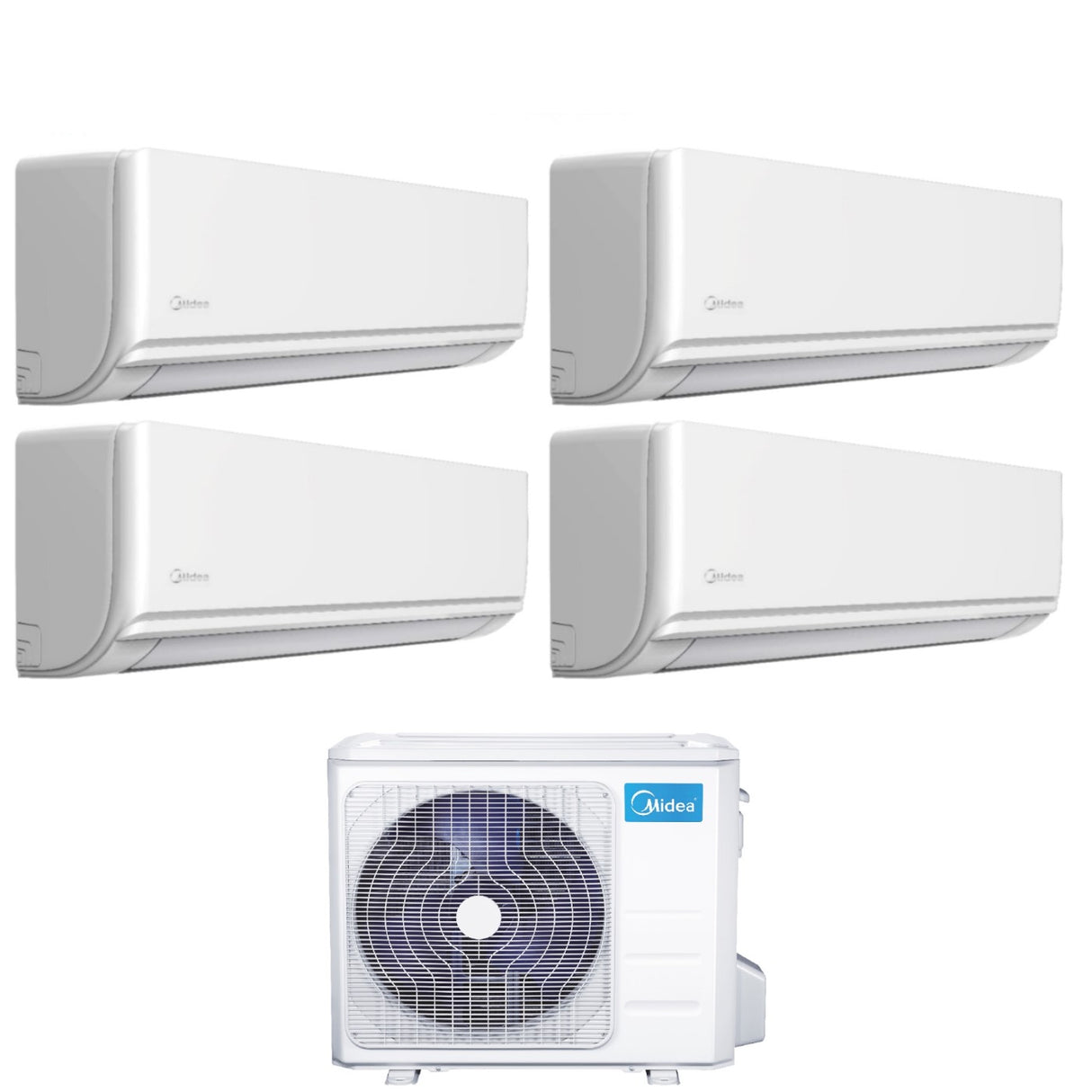

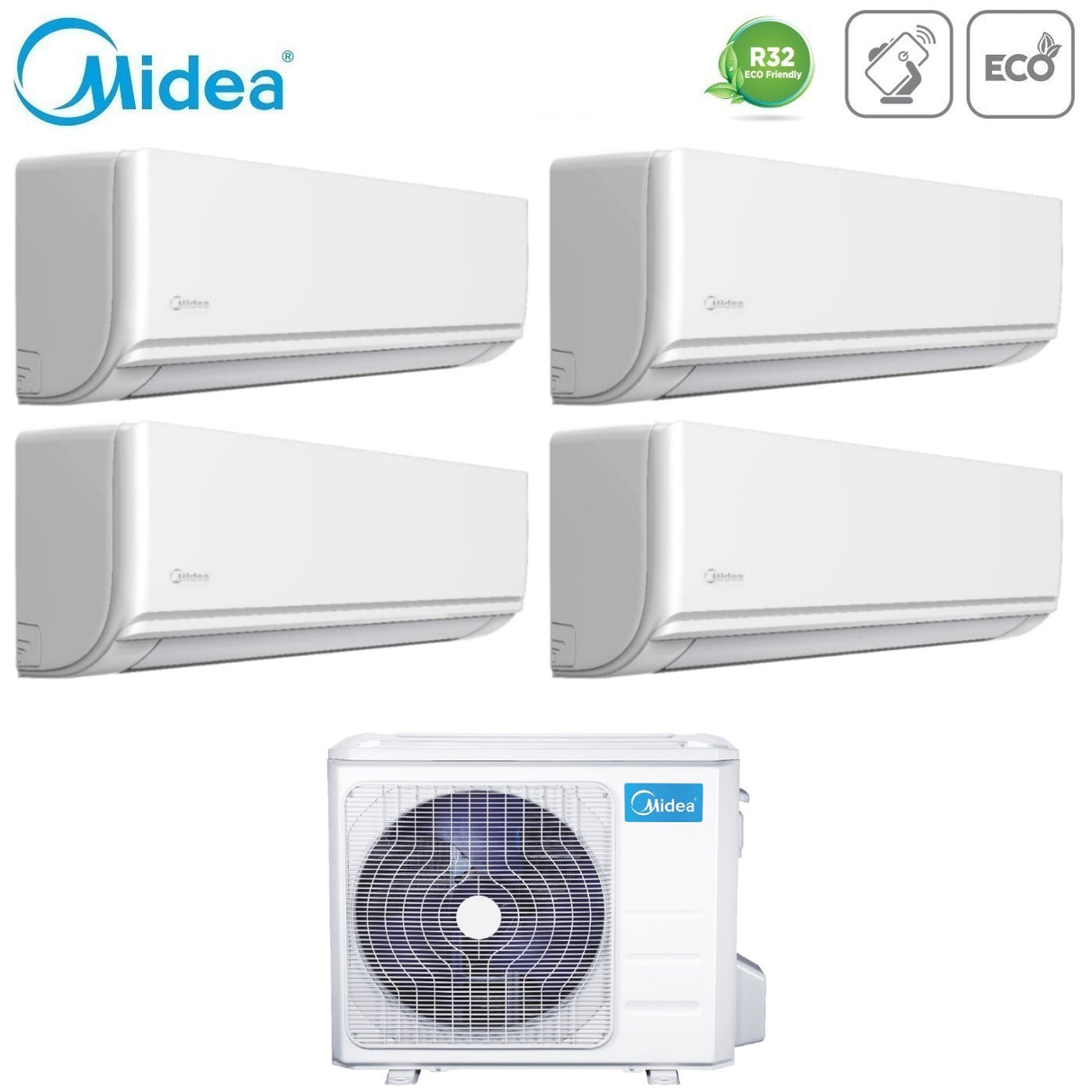

Midea Quadri Split Inverter Air Conditioner EXCLUSIVE series 9+9+9+12 with M4O-36FN8-Q R-32 Wi-Fi Optional 9000+9000+9000+12000
Midea Quadri Split Inverter Air Conditioner EXCLUSIVE series 9+9+9+12 with M4O-36FN8-Q R-32 Wi-Fi Optional 9000+9000+9000+12000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features

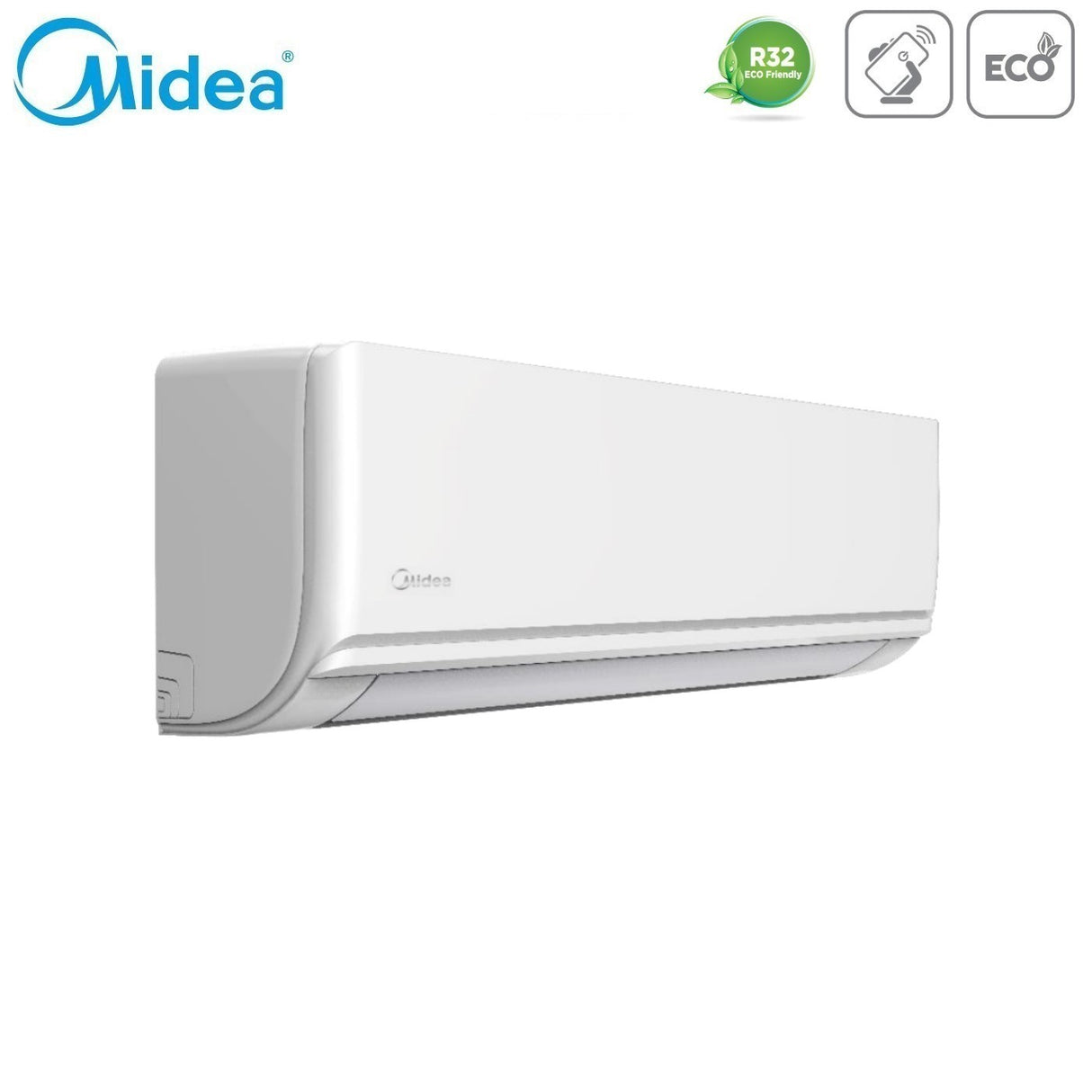

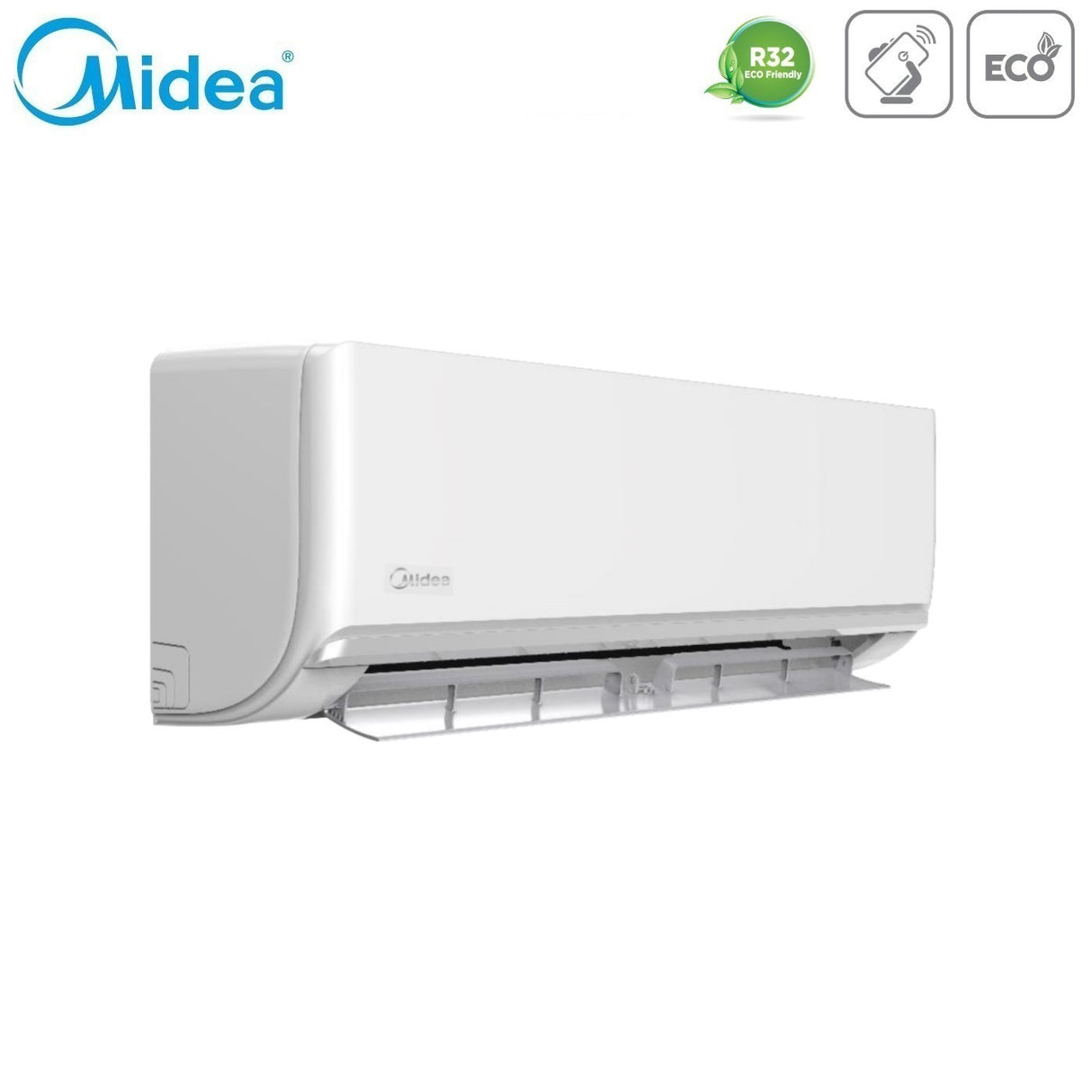

Internal units
- Indoor unit catalog code: 3x MSAGWAU-09HRDN8
- EAN: 8052705163308
- Power: 9000 Btu
- Cooling capacity: 2.64 kW
- Heating capacity: 2.93 kW
- Sound power level: 54 dB(A)
- Sound pressure level: 20~37 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Dimensions (WxDxH): 726x210x291 mm
- Weight: 8.0 kg
- Wi-Fi Optional: OSK103
1) Model
- Indoor unit catalog code: 1x MSAGWBU-12HRDN8
- EAN: 8052705165180
- Power: 12000 Btu
- Cooling capacity: 3.52 kW
- Heating capacity: 3.81 kW
- Sound power level: 56 dB(A)
- Sound pressure level: 21~37 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Dimensions (WxDxH): 835x208x295 mm
- Weight: 8.7 kg
- Wi-Fi Optional: OSK103
External unit
- Outdoor unit catalog code: M4O-36FN8-Q
- EAN: 8033638102428
- Number of connectable internal units: 4
Energy efficiency
- SEER : 6.5
- SCOP : 4.0
- Cooling energy efficiency class: A++
- Heating energy efficiency class: A
- Annual energy consumption in cooling: 565 kWh/a
- Annual energy consumption in heating: 3226 kWh/a
Performance
- Cooling capacity: 10.55 kW
- Heating capacity: 10.55 kW
- Cooling absorption: 3,517 kW
- Heating absorption: 2,880 kW
- Sound power level: 68 dB(A)
- Sound pressure level: 62 dB(A)
Electrical data
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 50°C
- - Heating: -15° ~ 24°C
- Liquid tube diameter: 6.35 mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x3 + 12.70 mm (1/2")
- Maximum pipe length: 80 m
- Maximum internal unit / external unit height difference: 10 m External unit in position higher than internal units
- Maximum internal unit / external unit height difference: 15 m External unit positioned lower than internal units
Dimensions and weight
- External unit dimensions (WxDxH): 946x410x810 mm
- External unit weight: 68.8 kg
The evolution of technology. With the Midea air conditioner you can maintain control of your home consumption thanks to the iECO and GearShift functions, discover true comfort by setting the air conditioner in Follow Me, Breeze Away and Super Cool modes and enjoy your home safely thanks to the sterilization function of the air for deep cleaning and rapid disinfection. Furthermore, thanks to a special anti-corrosion treatment, the heat exchanger of the outdoor unit will be resistant to salt and external atmospheric pollutants.
Self-diagnosis
In the event of a failure, a fault code system allows users to be notified of defects in a simple and clear manner to quickly activate the assistance service
1W Stand By
The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, reducing electricity consumption in the Stand-By phase
Fan linear regulation
The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values 1-100%.
Condensation control
The units can operate in cooling mode even at low external temperatures to air-condition technical rooms
Eco function
This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode
Refrigerant leak alarm
If the temperatures of the refrigeration circuit are irregular due to refrigerant leaks, a specific fault code (EL-0C) allows you to identify this condition
GEAR function
The SMART units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product
Control your climate with your voice
The air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.
Controlling the comfort in your home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you will be able to "ask" your air conditioner for the best for you, with Midea.
Midea Smart Kit (Optional)
The internal units can be equipped with the OSK103 accessory to be managed by a dedicated APP via Wlan connection
Single and Multi Internal Units
The internal units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add further units in the future.
Follow Me function
The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise detection
Emergency function
In the event of a failure of one of the product's sensors, operation can continue in Emergency mode until the faulty part is replaced
Deflector orientation memory
At each restart, the vertical air deflector automatically positions itself in the last used angle
Midea Mutlisplit Outdoor Unit
Midea external units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the top panel allows for greater strength and stability
Free Combination
The units of the Multi range can be combined with different types of internal units of different sizes, in order to obtain the most correct configuration for the installation environment
Condensation control
The units of the Multi line can operate in cooling mode even at low external temperatures to air condition all environments where cooling is necessary even in the winter season
Low noise
The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent
Electronically controlled expansion valves
The flow of refrigerant directed towards each indoor unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in managing the refrigerant flow
High length of pipes
The outdoor units of the multi range allow a long pipe length and a very high difference in height
Diamond Design Outdoor Unit
Innovative diamond cut shape with no sharp edges and no visible screws. The air exhaust grille contains a newly designed fan to reduce noise to a minimum.
Diagnostic monitor
On the units there is an alphanumeric display which, in addition to indicating the fault codes, allows you to read all the operating parameters of the system to simplify maintenance and assistance operations
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Scheda Tecnica
Scheda Tecnica
- peso: 100.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A
- gas: R-32
- marca: Midea
- metri quadri : 25/25/25/35 m2
- modello: EXCLUSIVE 9+9+9+12 36_1
- potenza btu: 9000+9000+9000+12000
- superficie riscaldabile mq: 25/25/25/35
