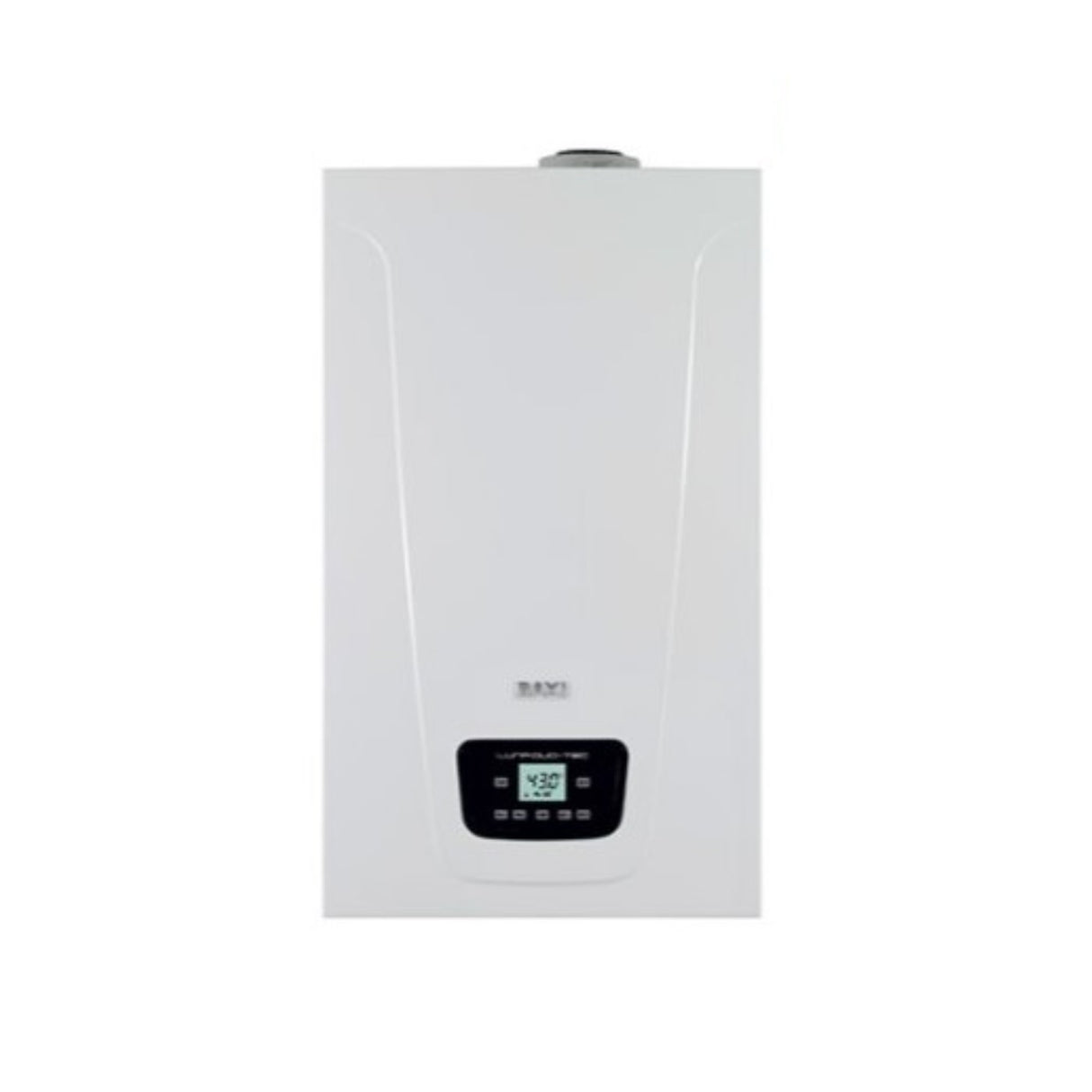

Baxi Luna Duo-tec E 33 Low NOx Methane/LPG Condensing Boiler Complete with Fume Exhaust Kit
Baxi Luna Duo-tec E 33 Low NOx Methane/LPG Condensing Boiler Complete with Fume Exhaust Kit - Coaxial Flue Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
ATTENTION THE BOILER IS SUPPLIED WITH METHANE. LPG OPERATION THROUGH ADJUSTMENT BY THE AUTHORIZED ASSISTANCE CENTER. FOR INFORMATION, CONTACT YOUR LOCAL BAXI ASSISTANCE IN ADVANCE
Baxi Luna Duo-tec E 33 Low NOx condensing boiler complete with methane or LPG fume exhaust kit
Technical features
- Type: Wall-mounted condensing boiler;
- Model: Luna Duo-Tech Compact E;
- Energy efficiency class: A;
- Load Profile: XXL;
- Fuel: Methane/LPG Gas Adaptive Control;
Heating Performance:
- Nominal heating heat input: 28.9 kW;
- Reduced heat input: 4.8 kW;
- Useful heat output at nom. heat output and high temp. regime* P4: 28 kW;
- Useful thermal power at 30% thermal power. name and low temp. regime** P1: 9.4 kW; Minimum operating temperature: -5°C;
- Expansion vessel capacity: 10 l;
- Heating circuit water temperature adjustment: 25-80°C;
- Min/max heating circuit water pressure: 0.5/3 bar;
Performance in Healthcare:
- DHW nominal heat input: 34 kW;
- Nominal domestic hot water heat output: 33 kW;
- Domestic water temperature adjustment: 35-60 °C;
- Domestic water production ?T 25°C: 18.9 l/min;
- Minimum domestic hot water flow rate: 2 l/min;
Yields:
- Useful efficiency at nominal heat output. and high temp regime: 88.1%;
- Useful efficiency at 30% thermal power. name and low temp regime: 98.1%;
- Useful efficiency (pci) Pn - average temperature 70°C: 97.8 %;
- Useful efficiency (pci) at 30% - return temperature 30°C: 108.9%;
- Intermediate useful efficiency (pci) - average temperature 70°C: 98.2%;
- Rated electrical power: 106W;
- Auxiliary electricity consumption stand-by mode: 0.003 kW;
- Nitrogen oxide emissions NOx: 15 mg/kWh;
- Sound power level, indoors: 53 dB;
Dimensions:
- (HxWxD): 763x450x345 mm; Weight: 39.5 kg;
Luna Duo-tec
General characteristics
- New modern and elegant design for the entire range
- Wide modulation range up to 1:7 (1:6 mod. 1.12)
- greater efficiency and silence
- GAC (gas adaptive control): automatic combustion control
- Digital control panel with large backlit LCD display
- Prepared for combination with the Baxi integrated solar system
- Connection to a rigid and flexible Ø50 mm exhaust pipe: solution for renovating flues - for the mod. 24 kW
- total length 40 meters (intake+exhaust)
hydraulic system
- Electric three-way diverter valve
- (also heating only models)
- Stainless steel premix burner
- Stainless steel water/fume exchanger
- Oversized stainless steel sanitary exchanger
- which allows the boiler to also condense
- in sanitary operation
- Modulating fan with electronic variation
- of speed
- Automatic by-pass
- High efficiency circulation pump
- with total modulation
- Pump and three-way valve anti-blocking system
- which intervenes every 24 hours
- 3 bar heating circuit safety valve
Thermoregulation system
- Standard climate control (with external probe
- available as optional)
- Predisposition for connection to a
- zone system
- Control system
- safety thermostat against
- overtemperatures of the water/fume exchanger
- Hydraulic pressure switch that blocks the gas in case
- of lack of water
- NTC safety probe against
- fume overtemperatures
- Temperature control using NTC probes
- Total anti-freeze device
- Electronic thermometer
- Heating circuit digital pressure gauge
Product Warranty The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 35.0 kg
- classe efficienza energetica: A
- classe energetica produzione acs: A
- classe energetica riscaldamento: A
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- gas: Methane/LPG
- marca: Baxi
- metri quadri : 220
- modello: LUNA_DUOTEC_E33
- potenza in kw: 33
- potenza nominale: 33
- superficie riscaldabile mq: 220
