Description
Description
ATTENTION THE BOILER IS SUPPLIED WITH METHANE. LPG OPERATION THROUGH ADJUSTMENT BY THE AUTHORIZED ASSISTANCE CENTER. FOR INFORMATION, CONTACT YOUR LOCAL BAXI ASSISTANCE IN ADVANCE

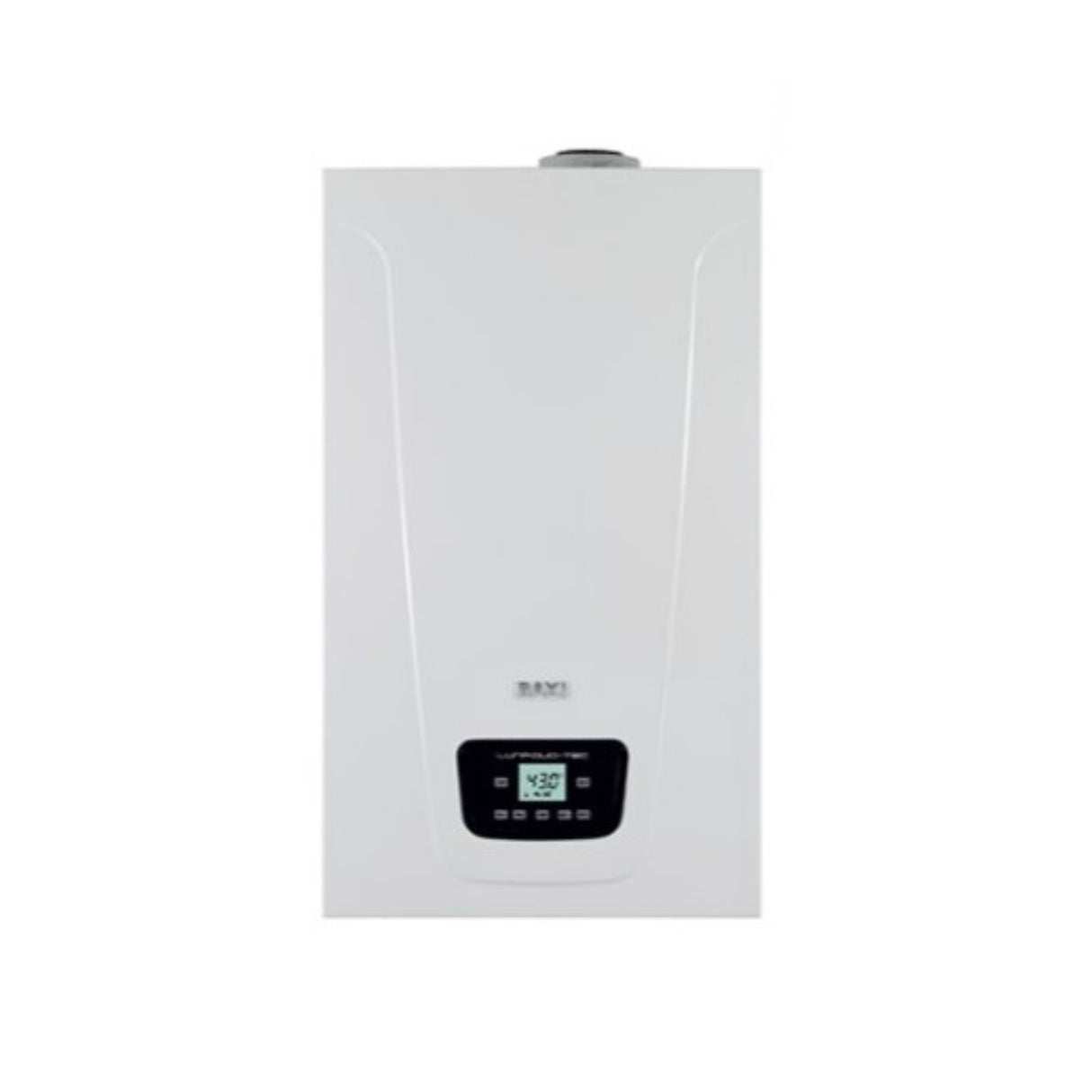

Baxi Luna Duo-tec E 33 Low NOx condensing boiler complete with methane or LPG fume exhaust kit
Technical features
- Type: Wall-mounted condensing boiler;
- Model: Luna Duo-Tech Compact E;
- Energy efficiency class: A;
- Load Profile: XXL;
- Fuel: Methane/LPG Gas Adaptive Control;
Heating Performance:
- Nominal heating heat input: 28.9 kW;
- Reduced heat input: 4.8 kW;
- Useful heat output at nom. heat output and high temp. regime* P4: 28 kW;
- Useful thermal power at 30% thermal power. name and low temp. regime** P1: 9.4 kW; Minimum operating temperature: -5°C;
- Expansion vessel capacity: 10 l;
- Heating circuit water temperature adjustment: 25-80°C;
- Min/max heating circuit water pressure: 0.5/3 bar;
Performance in Healthcare:
- DHW nominal heat input: 34 kW;
- Nominal domestic hot water heat output: 33 kW;
- Domestic water temperature adjustment: 35-60 °C;
- Domestic water production ?T 25°C: 18.9 l/min;
- Minimum domestic hot water flow rate: 2 l/min;
Yields:
- Useful efficiency at nominal heat output. and high temp regime: 88.1%;
- Useful efficiency at 30% thermal power. name and low temp regime: 98.1%;
- Useful efficiency (pci) Pn - average temperature 70°C: 97.8 %;
- Useful efficiency (pci) at 30% - return temperature 30°C: 108.9%;
- Intermediate useful efficiency (pci) - average temperature 70°C: 98.2%;
- Rated electrical power: 106W;
- Auxiliary electricity consumption stand-by mode: 0.003 kW;
- Nitrogen oxide emissions NOx: 15 mg/kWh;
- Sound power level, indoors: 53 dB;
Dimensions:
- (HxWxD): 763x450x345 mm; Weight: 39.5 kg;
Luna Duo-tec
General characteristics
- New modern and elegant design for the entire range
- Wide modulation range up to 1:7 (1:6 mod. 1.12)
- greater efficiency and silence
- GAC (gas adaptive control): automatic combustion control
- Digital control panel with large backlit LCD display
- Prepared for combination with the Baxi integrated solar system
- Connection to a rigid and flexible Ø50 mm exhaust pipe: solution for renovating flues - for the mod. 24 kW
- total length 40 meters (intake+exhaust)
hydraulic system
- Electric three-way diverter valve
- (also heating only models)
- Stainless steel premix burner
- Stainless steel water/fume exchanger
- Oversized stainless steel sanitary exchanger
- which allows the boiler to also condense
- in sanitary operation
- Modulating fan with electronic variation
- of speed
- Automatic by-pass
- High efficiency circulation pump
- with total modulation
- Pump and three-way valve anti-blocking system
- which intervenes every 24 hours
- 3 bar heating circuit safety valve
Thermoregulation system
- Standard climate control (with external probe
- available as optional)
- Predisposition for connection to a
- zone system
- Control system
- safety thermostat against
- overtemperatures of the water/fume exchanger
- Hydraulic pressure switch that blocks the gas in case
- of lack of water
- NTC safety probe against
- fume overtemperatures
- Temperature control using NTC probes
- Total anti-freeze device
- Electronic thermometer
- Heating circuit digital pressure gauge
Product Warranty The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 35.0 kg
- classe energetica produzione acs: A
- classe energetica riscaldamento: A
- gas: Methane/LPG
- marca: BAXI
- metri quadri : 220
- modello: LUNA_DUOTEC_E33
- potenza in kw: 33
- potenza nominale: 33
- superficie riscaldabile mq: 220
