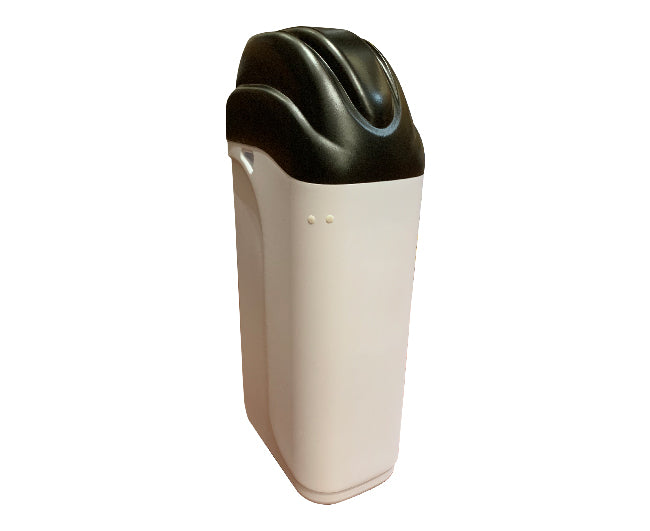

Euroacque Automatic Ion Exchange Cabinet Water Softener Model Europa M20 Flow rate 2000 Lt/hour Connections 3/4"M

General characteristics

• Brand: Europacque
• Model: Europe
• EAN: 8054602009949
• Code: M20
• Dimensions: 32X48X112 cm
• Capacity: 2000 litres/hour
• Cyclic: 102

Data sheet

• Exchange type: Ionic
• Type of use: Domestic
• Type of treatment: Drinking water
• Type of compatible waters: Waters compliant with the Legislative Decree. 31/2001
• Resin regeneration. Automatic

---

Description

Method of use
The equipment works on the principle of ion exchange using synthetic food resins
sodium cyclo.
These resins have the property of absorbing the excessive quantity of calcium and magnesium salts present in the water.
The equipment must be used on waters compliant with the legislative decree. 31/2001.
For use on non-compliant waters, consult with our specialized consultants.
Resin regeneration is completely automatic.
During regeneration, the softener automatically enters By-paa, thus guaranteeing the supply of water to the user.

---

Technical features:
The water softener is made up of n. 3 main elements (2-body softener)
1) TANK: Cylindrical fiberglass column containing resins.
2) VALVE: Automatic component that controls the following progressive work cycles.
- Softened water production (hardness level adjustable according to need);
- Counter-current washing;
- Slow rinsing of resins;
- Replenishing water in the salt vat.
All the work phases described are carried out at each regeneration (which can occur, depending on the model of
softener, by time or by volume of water).
3) VAT: Polyethylene container for preparing the brine.
NB IN THE CASE OF A CABIN SOFTENER (SPACE SAVING) THE VAT IS REPLACED BY A CABIN WITH
COVER WHICH CONTAINS BOTTLE, VALVE AND SPACE NECESSARY FOR INSERTING SALT AND
BRINE PREPARATION.
The materials constituting the equipment comply with the provisions set out in the ministerial decree of 6 April 2004,
n. 174. Together with those used by Euroacque, installation and maintenance must also be carried out

using compliant material.

---

Installation
The plumbing systems created for the installation of a water softener must be equipped with:
non-return valve system capable of ensuring that the treated water does not return to the network of a manual system or
automatic, bypass and shut-off valves that allow the supply of untreated water,
excluding the one treated.
These systems are necessary in the event of any faults present on the water softener so as not to interrupt the supply
of sanitary water.
The following points are highlighted:
1. The equipment must be installed in hygienically suitable environments and, where relevant, in compliance with
provisions provided for by the decree of the Minister of Economic Development of 22 January 2008, n.37, including those relating to
testing and maintenance.
2. The installation of equipment in line with the drinking water distribution system must be carried out
with bypass valves to guarantee the user the possibility of excluding the use of the equipment without this
leads to interruption of the drinking water supply service.

• peso: 6.0 kg
• costospedizionecad: IT15;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• litri: 20
• marca: EUROACQUE
• modello: HS_079759
