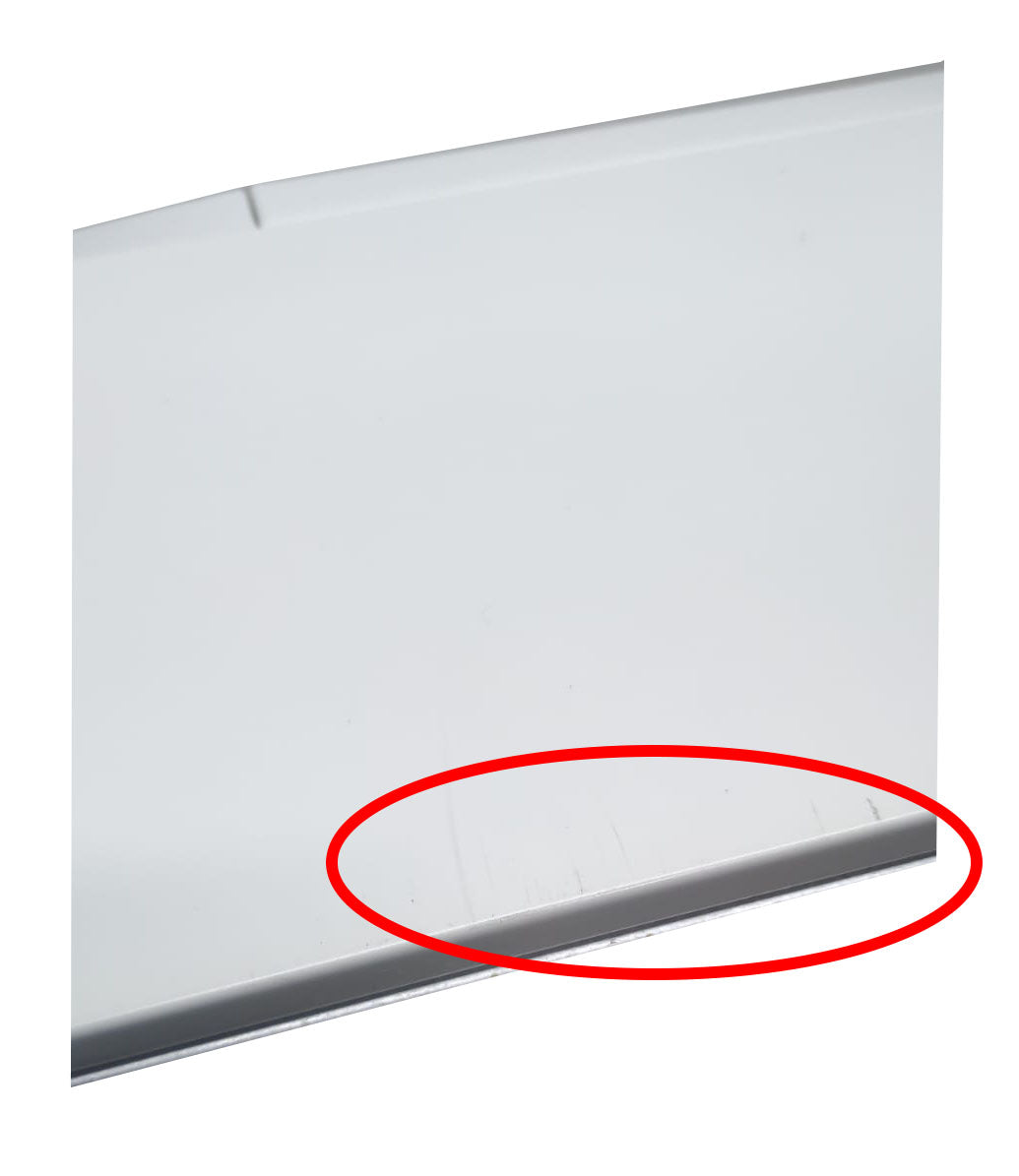

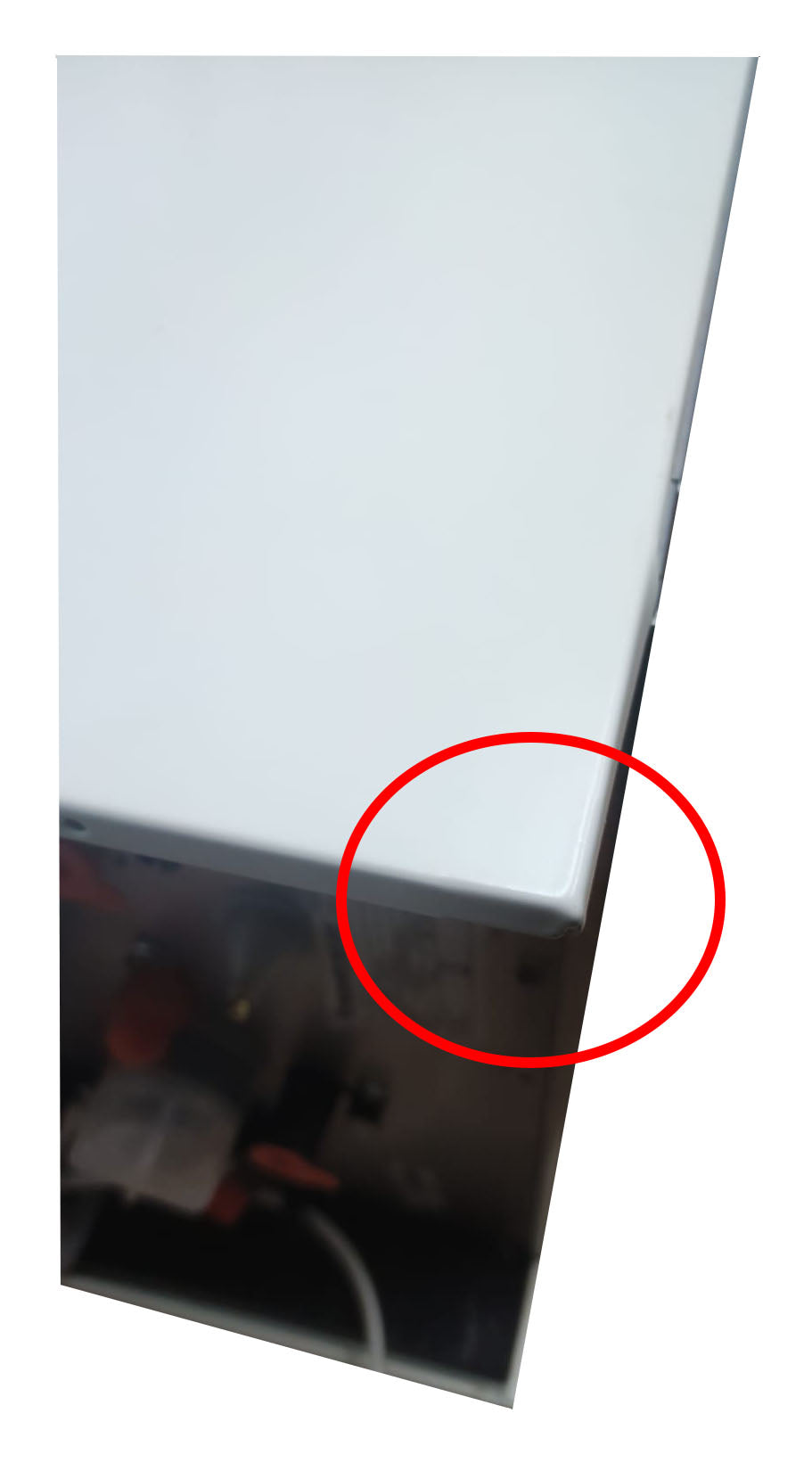

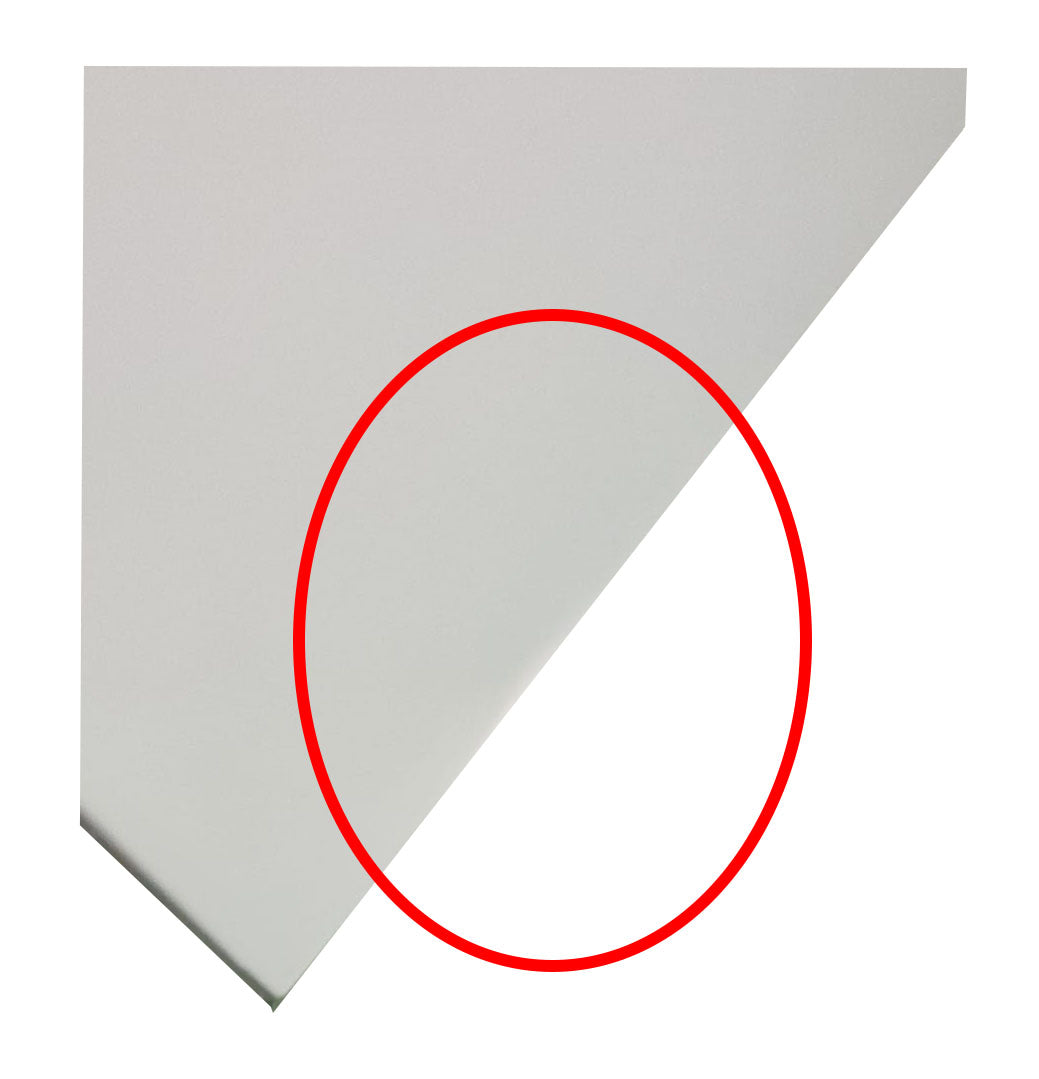

ATTENTION THE PRODUCT IS NEW AND 100% WORKING, BUT IT HAS A SLIGHT DENT ON THE LOWER RIGHT SIDE AND SLIGHT SCRATCHES AND WORN PACKAGING (SEE PHOTO NEXT TO THE MAIN IMAGE)

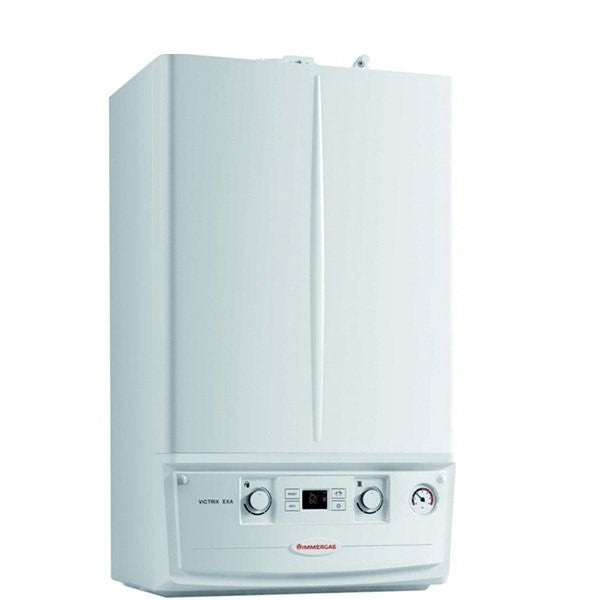

IMMERGAS VICTRIX EXA 28 KW CONDENSING ERP COMPLETE WITH SMOKE EXHAUST KIT

• Technical features
• Immergas Victrix Exa 28 kW boiler
• Capacity: 28 kW
• Useful heating power kW: 28,
• Useful domestic hot water power kW: 32.0
• Type: Snapshot
• Modulation range: 25 - 100 %
• Hot water production (∆t 30 °C) l/min: 15.3
• IPX electrical protection rating: 5D
• Dimensions (HxWxD) mm: 763 x 440 x 300; 42kg

VICTRIX EXA

• With VICTRIX EXA a generation of condensing boilers is born that offers all the advantages of condensation with maximum simplicity and economy. Designed to comply with the new European ErP and ELD Directives, it allows you to more easily reach high efficiency classes in space heating and in the production of domestic hot water in homes. The condensing module is made of stainless steel and the circulator is low consumption. The modulation range of the appliance goes from 23 to 100% of the thermal power. The user interface is simple to use, it is equipped with adjustment knobs, selection buttons and an LCD display which displays the operating status and any error codes.
• VICTRIX EXA can also be managed from smartphones, tablets and laptops (the DOMINUS App will be available from January 2016). The casing covering the hydraulic connections is standard, to better accommodate the boiler within domestic spaces. Approved for operation indoors or outdoors in a partially protected place thanks to the IPX5D electrical protection degree, the boiler is equipped with standard antifreeze protection down to -5 °C. VICTRIX EXA can also be used in GAUDIUM SOLAR BASE ErP systems. With reduced emissions of carbon monoxide (CO) and nitrogen oxides (NOX), VICTRIX EXA falls into class 5, the most ecological required by European standards (UNI 297 and 483).

•
  The VICTRIX EXA range offers all the advantages of condensation with maximum simplicity and economy. The technology most compatible with the new European Directives and with the aim of reducing energy consumption, is presented in the most economical and effective way for many new installations and replacements of existing appliances. The VICTRIX EXA are two 24 and 28 kW instantaneous boilers, capable of significantly contributing to raising the energy efficiency class in space heating and in the production of domestic hot water. Wall installation is easy both indoors and outdoors and the VICTRIX EXA range also offers the possibility of operating with propane air by choosing the dedicated conversion kit. The condensing module is made of stainless steel and the circulator is low consumption, everything is made more comfortable and easy to install thanks to the compact dimensions. The user interface is simple to use, it is equipped with adjustment knobs, selection buttons and an LCD display which displays the operating status and any error codes. The lower casing to cover the connection pipes is standard, while the connection unit is optional for all models

• ---

• SIMPLICITY OF CONTROLS The boiler also features an advanced and easy-to-use user interface with LCD display, selection buttons and adjustment knobs. The latter allow you to make temperature adjustments quickly and easily.
• ECOLOGICAL VICTRIX EXA BOILER has reduced emissions of carbon monoxide (CO) and nitrogen oxides (NOx) such that it falls into class 5, the most ecological in the classification established by the European regulations UNI EN 297 and UNI EN 483. They can therefore discharge to the wall in the cases provided for by Legislative Decree 102 of 4 July 2014.
• CLASS A CIRCULATOR The low consumption circulator allows for significant savings in electricity compared to a traditional circulator and adjusts its consumption based on variations in the system's hydraulic flow rate, for example in the presence of thermostatic valves or zone valves.

LOW POWER CONSUMPTION IN STAND-BY (LESS THAN 6 W)

IMMERGAS IS READY TO DO ITS PART FOR THE ENVIRONMENT!

This is a very important directive established by the European Union and at the same time it is a decisive path that will lead the whole of Europe to reduce pollution and improve the lives of citizens. The ErP directive (2009/125/EC) - the acronym stands for "Energy Related Products" - sets very precise reference points for the manufacturing of eco-compatible products and defines the minimum mandatory requirements of energy and environmental performance for instruments that consume energy. The goal is to reach the famous 20-20-20 by 2020. This repetition of the number 20 serves to more easily remind everyone of the three central purposes of the legislation:

INCREASE THE ENERGY EFFICIENCY OF ENERGY CONSUMPTING MACHINES BY 20%

REDUCE CARBON DIOXIDE (CO2) EMISSIONS IN THE ATMOSPHERE BY 20%

ACHIEVE A PERCENTAGE OF RENEWABLE ENERGY IN FINAL CONSUMPTION OF 20%

Two dates in particular have been established to dictate the timing of the adjustment. From 1 AUGUST 2015 it is mandatory to place on the market devices equipped with low consumption circulators. From 26 SEPTEMBER 2015, the ErP and ELD Directives officially come into force with the obligation to place devices with an energy label on the market. Placing on the market means the first invoicing by Immergas to the retailer. If the appliance was placed on the market before 1 August/26 September 2015, it can be sold, installed and put into service without time limits. The ErP and ELD provisions are not retroactive

ELD DIRECTIVE: EVERYTHING CLEAR ON THE LABEL The European Union has made the new energy labeling system mandatory to allow consumers to immediately understand the level of environmental compatibility of individual products. The Labeling Directive (2010/30/EC) in fact requires that each item subject to the ErP Directive is equipped with a label to highlight not only the energy efficiency class but also other performances such as sound power, use, thermal power . IMMERGAS PARTICIPATES WITH PARTICULAR CONVINCTION IN THESE ADJUSTMENTS, AWARE THAT ONLY A MARKET THAT STIMULATES THE MOST ENERGY EFFICIENT TECHNOLOGIES CAN BE ENVIRONMENTALLY FRIENDLY.

Product Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase and includes only the supply of spare parts.

• peso: 40.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane
• marca: IMMERSION
• metri quadri : 180
• modello: AO799_1
• potenza in kw: 28
• potenza nominale: 28
• superficie riscaldabile mq: 180
