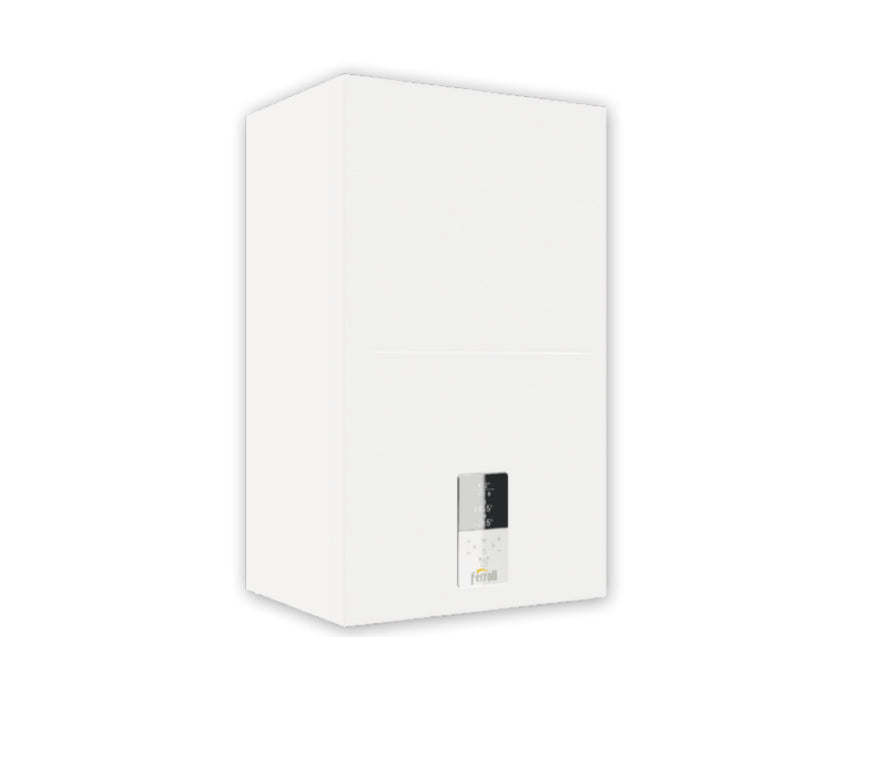

BARGAIN AREA Ferroli condensing boiler Bluehelix HiTech RRT 34C 0T4B7AWA complete with fume exhaust kit
Sold out
Sold out
€880,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
BARGAIN AREA Ferroli condensing boiler Bluehelix HiTech RRT 34C 0T4B7AWA complete with fume exhaust kit - Kit Fumi Coassiale is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description

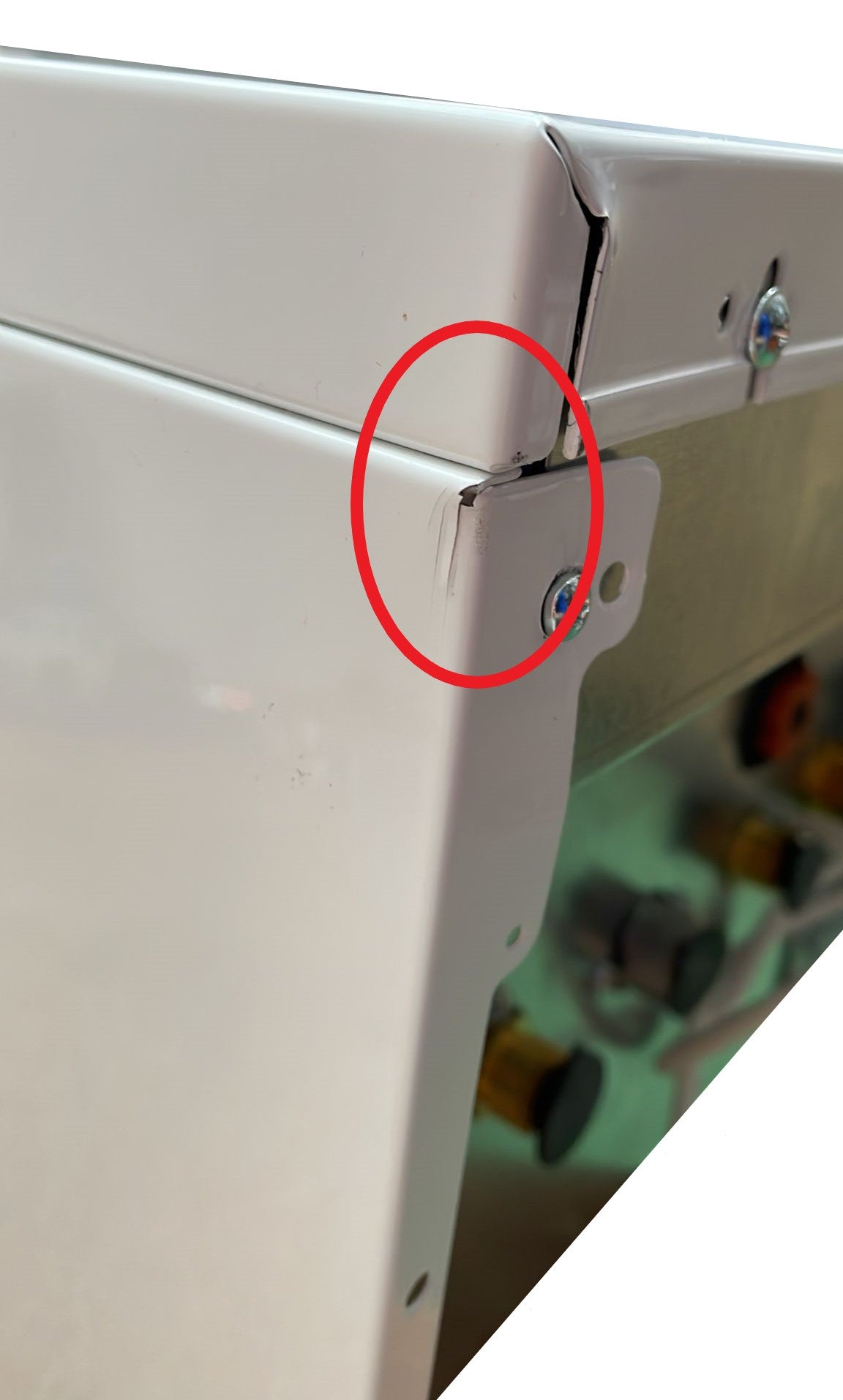

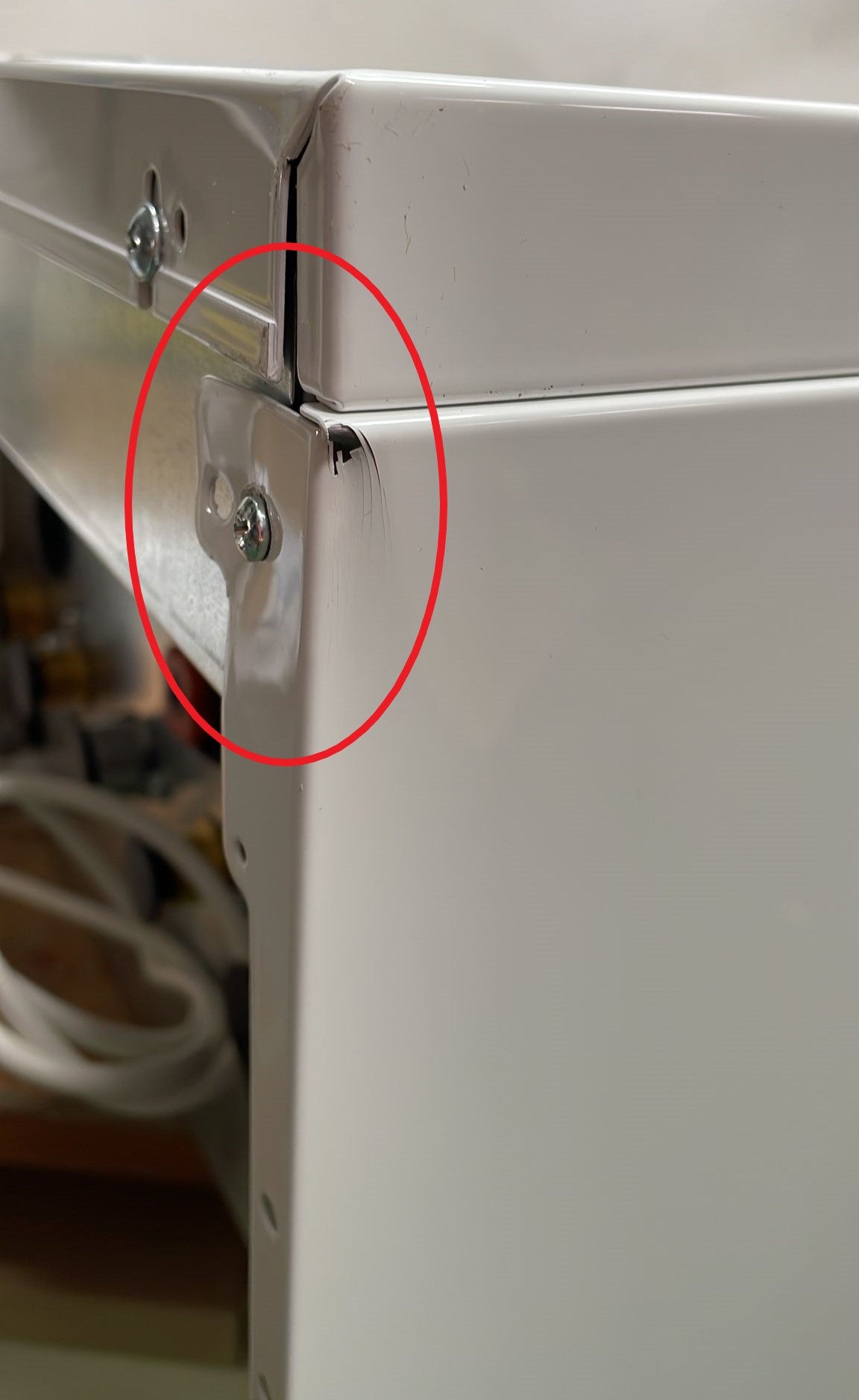

ATTENTION. THE PRODUCT IS NEW AND WORKING BUT THE ENDS ON THE BOTTOM ARE DAMAGED, THE FRONT PANEL IS SLIGHTLY DEFORMED AND THE PACKAGING IS WORN. (FOR MORE INFORMATION ON THE DAMAGE SEE THE PHOTOS NEXT TO THE MAIN IMAGE)
Technical features
- ERP Heating Class A
- Healthcare ERP Class A
- XXL load profile
- Max / min heating flow rate kW 30.6 / 3.5
- Max DHW heat output (Hi) kW 34.7
- Max / min DHW heating power kW 34.0 / 3.4
- Yield 30% % 109.5
- NOx emission class (EN 15502-1) - 6
- Heating expansion tank capacity 10 litres
- Sanitary flow rate ?t 25°C l/min 19.5
- Protection degree (IEC 60529) IP X4D
- Dimensions HxWxD mm 700x420x320
Bluehelix HiTech RRT
The new user interface with "capsense" technology, without mechanical keys and equipped with a 2.8'' graphic display, allows the user to interact with the product in an easy and extremely simple way. Thanks to the energy efficiency of the space heating ηs 94% among the highest in the category (Class A ErP, scale from G to A++) and the combination with the Connect remote control, capable of reading the external temperature directly from the internet, reaches the A+ system energy class (scale from G to A+++). It easily adapts to load conditions thanks to the wide modulation range which can reach up to 1:10 (1:10 mod. 34 C, 1:9 mod. 28 C, 1:7 mod. 24 C).
Thanks to the “Hydrogen plug-in” system, one of its most important innovations, it is already able to self-regulate to work with mixtures of natural gas and hydrogen, which will soon arrive in Europe, to fight global warming. Conceived to fully satisfy the requests for a "robust" product from every point of view thanks to the high passage primary exchanger capable of guaranteeing maximum efficiency and reliability over time also, and not only, in replacing old generators in particularly dirty systems .
Top silence
The particularly careful design of BLUEHELIX HITECH RRT has allowed it to achieve significant values in terms of silence and acoustic comfort, so much so that it would almost be difficult to distinguish the background noise of a home from the noise produced by the boiler during full operation. It will be difficult to realize whether the boiler is on or off by its noise, as on older generations of boilers, because even the on/off transients have been optimized according to acoustic comfort. The project also took care of the design, creating a precious mantle in 3 removable pieces, which comes down to cover the pipe connections
Thanks to the “Hydrogen plug-in” system, one of its most important innovations, it is already able to self-regulate to work with mixtures of natural gas and hydrogen, which will soon arrive in Europe, to fight global warming. Conceived to fully satisfy the requests for a "robust" product from every point of view thanks to the high passage primary exchanger capable of guaranteeing maximum efficiency and reliability over time also, and not only, in replacing old generators in particularly dirty systems .
Top silence
The particularly careful design of BLUEHELIX HITECH RRT has allowed it to achieve significant values in terms of silence and acoustic comfort, so much so that it would almost be difficult to distinguish the background noise of a home from the noise produced by the boiler during full operation. It will be difficult to realize whether the boiler is on or off by its noise, as on older generations of boilers, because even the on/off transients have been optimized according to acoustic comfort. The project also took care of the design, creating a precious mantle in 3 removable pieces, which comes down to cover the pipe connections
Characteristics
- Boiler with high thickness stainless steel primary exchanger , with increased passages (at the top of the category) to guarantee durability and reduced maintenance, maintains high efficiency even on old systems with oxidation and dirt
- thanks to the combination with the CONNECT modulating remote control and the reading of the external temperature directly from the internet, it reaches the maximum energy efficiency A+ (scale from G to A+++)
- Class 6 NOx: already in line with the provisions of the ErP regulation from 09.26.2018 (NOx emissions < 56mg/kWh)
- MC2: Multi Combustion Control, new combustion system with patented industrial-derived gas-adaptive technology for better adaptability of use as conditions of the gas network change (e.g. fluctuations or reduced pressures)
- MGR: Methane LPG Ready, through a simple configuration the boiler is able to operate on both methane and LPG without the use of additional conversion kits
- Exclusive exchanger-burner system with self-cooled door (without insulators): simplifies maintenance and reduces costs thanks to fewer perishable parts
- Instant production of domestic hot water with dedicated plate-type domestic hot water exchanger (only for C version)
- Hydraulic connections covered by the boiler shell
- Large multifunction backlit graphic display for easy and correct parameter setting
- By-pass as standard
- It easily adapts to load conditions thanks to the wide modulation range which can reach up to 1:10 (1:10 mod. 34 C, 1:9 mod. 28 C, 1:7 mod. 24 C).
- Particularly suitable for operation in flues that require "heavy" ducting thanks to the approval for operation with 50mm diameter smoke exhausts
- FPS: Smoke Protection System. The flue clapper valve inserted as standard on the boiler allows easy connection to pressurized collective flue systems (e.g. in renovations), in accordance with the UNI 7129 standard
- Designed to simplify and facilitate normal maintenance and cleaning operations
- Preparation for solar systems: predisposed for the production of domestic hot water combined with solar panel systems
- ECO function in domestic hot water for greater savings in periods of low use of hot water (only for version C)
- Digital flame control with three re-ignition attempts in case of functioning block due to lack of flame detection (only for methane operation)
- Installation location: also outdoors in a partially protected place up to -5°C as standard and up to -15°C with the aid of the optional antifreeze heater kit
Boiler control
The new user interface with ''capsense'' technology, without mechanical keys and equipped with a 2.8'' graphic display, allows the user to interact with the product in an easy and extremely simple way, customizing the operation of the appliance in way to manage environmental comfort according to your needs. Thanks to the remote connection via bus this can also be done directly from the CONNECT remote control, even via smartphone. The boiler is also designed to connect a second room thermostat on dedicated terminals to manage multi-zone systems.
TOP EFFICIENCY Even on old systems (replacements)
The exchanger of the THERMOBALANCE™ thermal unit of BLUEHELIX HITECH RRT (fig. A) compared with the more classic and widespread steel exchanger (fig. B) also used in the past by the Ferroli Group exclusively on a small series of boilers produced for the market English, and then immediately abandoned in favor of the evolution towards the proprietary steel exchanger used in the Bluehelix models (2012 -> ). This geometry allows the exchanger of the THERMOBALANCE thermal unit to operate almost at maximum design efficiency even in conditions of partial clogging, while for the same quantity of deposits and sediments (e.g. due to installation on old systems) the exchanger in fig . B tends to clog much more quickly in the part in contact with the flame due to the reduced fluid passage area, in which a real barrier of deposits * is formed which hinders heat exchange and reduces efficiency beyond below nominal values
MC2
Multi Combustion Control The electronics control the flame ionization current in order to guarantee optimal combustion as the air density or gas quality varies. The relationship between the air/gas ratio (λ) and the flame ionization signal is used to control the air-gas ratio itself and therefore combustion. MC2: Multi Combustion Control, the new combustion system with patented gas-adaptive technology improves the adaptability of use as the conditions of the gas network change (e.g. fluctuations or reduced pressures).
EASY MAINTENANCE Problem-free maintenance
At the time of the first maintenance, the technician can realize the care with which every detail has been designed to facilitate his work. Thanks to the maximum accessibility of the main components, the “Thermobalance”TM thermal unit allows maintenance to be carried out with maximum precision and speed. Some examples:
TOP EFFICIENCY Even on old systems (replacements)
The exchanger of the THERMOBALANCE™ thermal unit of BLUEHELIX HITECH RRT (fig. A) compared with the more classic and widespread steel exchanger (fig. B) also used in the past by the Ferroli Group exclusively on a small series of boilers produced for the market English, and then immediately abandoned in favor of the evolution towards the proprietary steel exchanger used in the Bluehelix models (2012 -> ). This geometry allows the exchanger of the THERMOBALANCE thermal unit to operate almost at maximum design efficiency even in conditions of partial clogging, while for the same quantity of deposits and sediments (e.g. due to installation on old systems) the exchanger in fig . B tends to clog much more quickly in the part in contact with the flame due to the reduced fluid passage area, in which a real barrier of deposits * is formed which hinders heat exchange and reduces efficiency beyond below nominal values
MC2
Multi Combustion Control The electronics control the flame ionization current in order to guarantee optimal combustion as the air density or gas quality varies. The relationship between the air/gas ratio (λ) and the flame ionization signal is used to control the air-gas ratio itself and therefore combustion. MC2: Multi Combustion Control, the new combustion system with patented gas-adaptive technology improves the adaptability of use as the conditions of the gas network change (e.g. fluctuations or reduced pressures).
EASY MAINTENANCE Problem-free maintenance
At the time of the first maintenance, the technician can realize the care with which every detail has been designed to facilitate his work. Thanks to the maximum accessibility of the main components, the “Thermobalance”TM thermal unit allows maintenance to be carried out with maximum precision and speed. Some examples:
- Internal accessibility is favored by the 3-piece casing with removable sides.
- The electrical box of the electronic board can be easily extracted from the chassis, leaving free access to the internal parts. - The fan, offset from the burner and placed underneath, must not be dismantled to access the steel burner-exchanger group.
- The burner door is totally self-cooled by air and therefore does not require an insulating panel, avoiding the risk of this being damaged or broken during disassembly for cleaning.
- The burner can be dismantled by loosening just 3 bolts, leaving free access to the stainless steel exchanger.
- The exchanger with extra-large passages is designed to challenge the hardest waters and is easily cleanable thanks to the non-collectorised single tube circuit.
- The domestic water inlet filter can be extracted extremely easily directly from inside without having to remove the boiler's hydraulic connections.
- Any disassembly and replacement of the plate exchanger occurs simply by removing two Allen bolts accessible from the front
Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 35.0 kg
- classe energetica produzione acs: A
- classe energetica riscaldamento: A
- gas: Methane/LPG
- marca: Ferroli
- metri quadri : 150
- modello: AO_1204
- potenza in kw: 25
- potenza nominale: 25
- superficie riscaldabile mq: 150
