With a height of 190 mm, it can be easily installed in residential false ceilings.
Built-in rear drainage tray
Garanzia Italiana
24 mesi
SKU:
AO495_COMPLETO

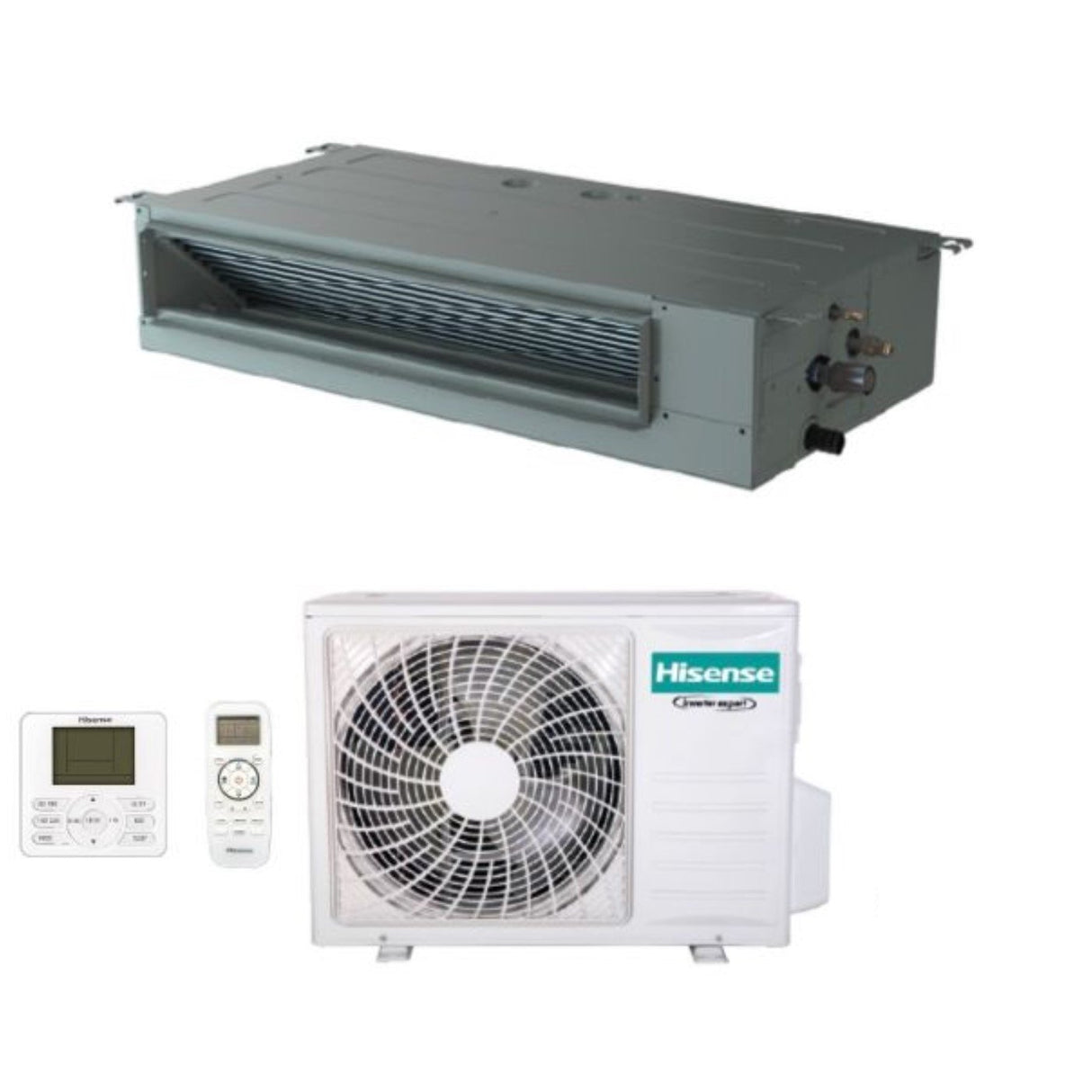

OPPORTUNITY AREA Ducted Indoor Unit Hisense 12000 Btu ADT35UX4RBL4 R-32 WI-Fi Optional
Sold out
€574,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
OPPORTUNITY AREA Ducted Indoor Unit Hisense 12000 Btu ADT35UX4RBL4 R-32 WI-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description

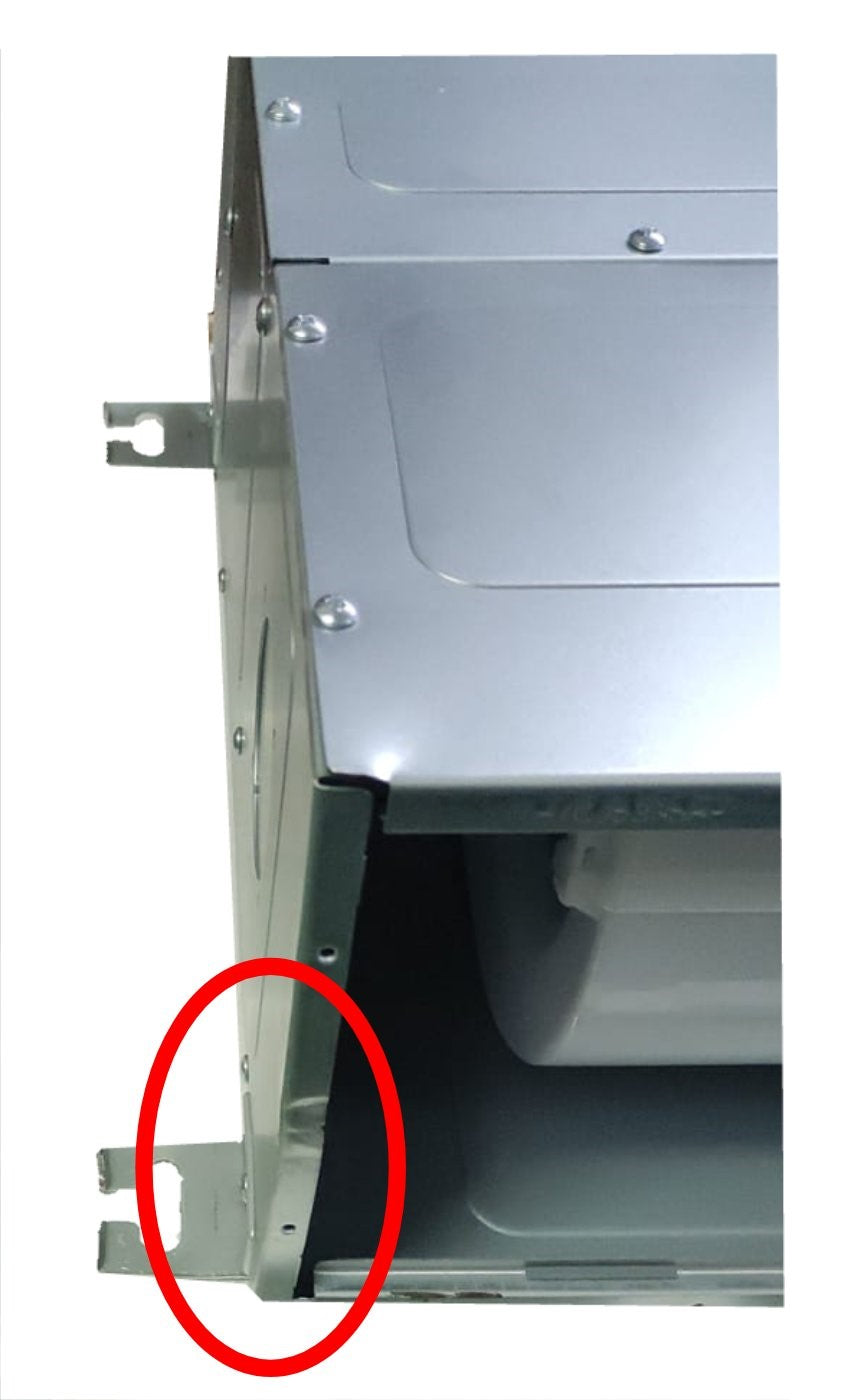

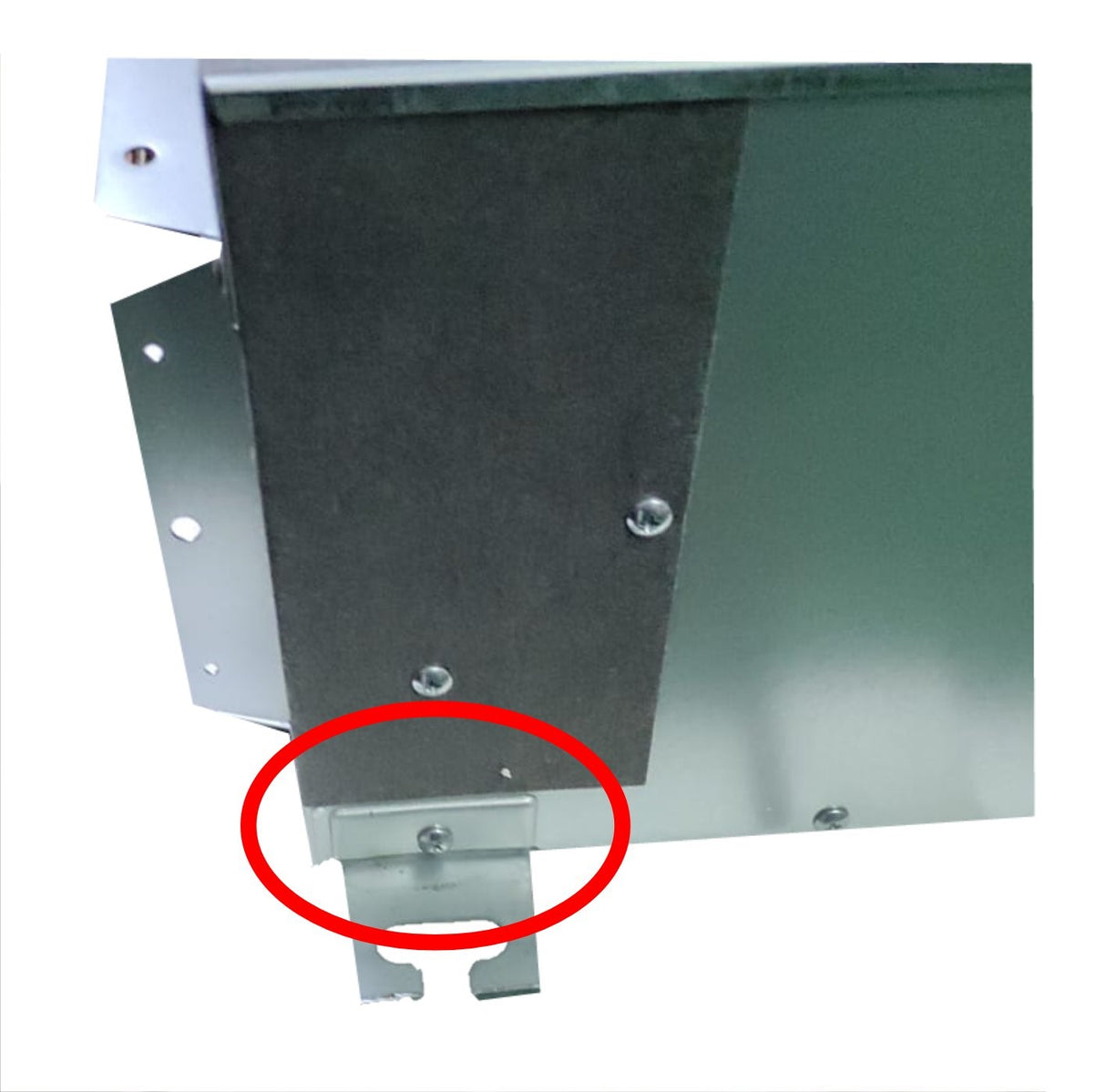

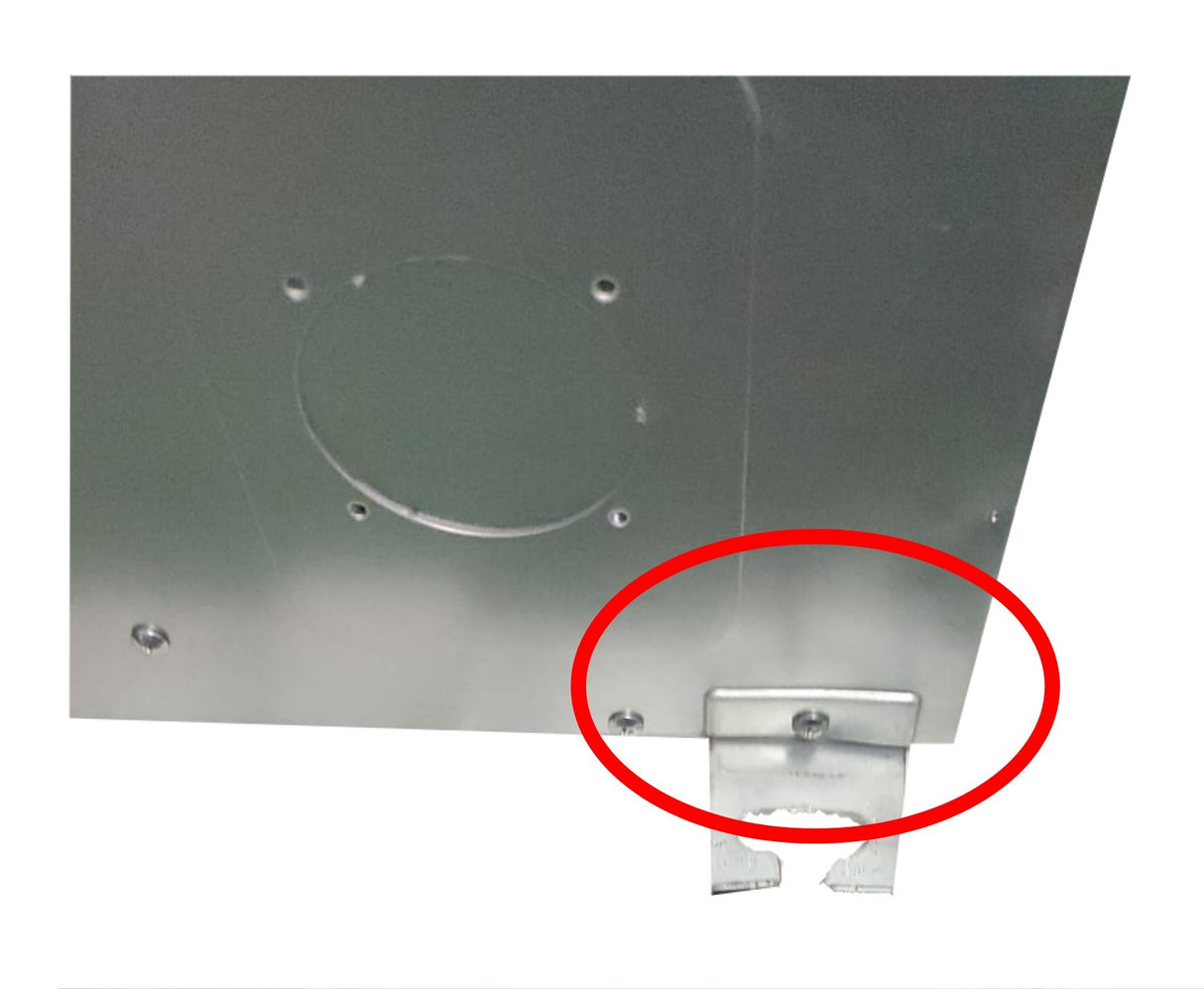

ATTENTION THE PRODUCT IS NEW AND 100% WORKING, BUT THE INTERNAL UNIT HAS SOME SLIGHT DENTS ON THE FIXING BRACKETS (SEE PHOTO NEXT TO THE MAIN IMAGE)
ATTENTION! The ducted models are supplied with standard and wired remote control
Technical features
- Indoor unit catalog code: ADT35UX4RBL4
- Outdoor unit catalog code: AUW35U4RS4
- Power: 12000 Btu
- Optional Wi-Fi card (Code AEH-W4GX )
- Optional Motorized Grill (Code DP-BA-02 )
Energy efficiency
- SEER: 6.30
- SCOP : 4.0
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual Energy Consumption in Cooling: 197 kWh/a
- Annual Energy Consumption in Heating: 1214 kWh/a
Performance
- Cooling Capacity: 3.52 kW
- Heating capacity: 3.8 kW
- Cooling absorption: 1.0 kW
- Heating absorption: 1.0 kW
- Internal Unit Treated Air: 10 m 3 /min
- Indoor Unit Sound Power Level: 50 dB(A)
- External Unit Sound Power Level: 62 dB(A)
- Indoor Unit Sound Pressure Level: 30~36 dB(A)
- External Unit Sound Pressure Level: 50 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 48°C
- - Heating: -15° ~ 24°C
Installation Data
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum length of pipes: 25 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 910×190×447 mm
- Internal Unit Weight: 18 Kg
- External Unit Dimensions (WxHxD): 810×580×280 mm
- External Unit Weight: 34 Kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase at http://www.hisenseitalia.it/clima/supporto
Ductable Hisense R-32
Variable static pressure
On the entire range of ducted models it is possible to set the static pressure to guarantee greater installation flexibility.
Dual air inlet modes
Advantages: If the distance between the unit and the wall is limited, then you can choose the lower air inlet by removing the lower panel of the unit, it will be much easier and more flexible. The noise level produced by a lower air inlet can increase by up to 5dB compared to using a rear air inlet. We therefore recommend opting for the latter solution.
ON/OFF contact for hotel room control , ON/OFF contact for fire control
Slim design
Disadvantage of an external drain pan: It easily attracts dust and bacteria which will cause long-term malfunctions.
Float and integrated condensate drain pump
If the level of condensation water inside the drainage tray increases due to a malfunction of the drain pump, the unit will automatically turn off and display the alarm to avoid damage.
Safety protection
External Unit
Hi-Smart inverter
Hisense has developed a new adaptive algorithm that controls the modulation of the compressor to improve its performance and extend its life cycle.
Smart defrost
Based on the historical data, the system adapts the conditions for activating defrost to guarantee maximum comfort in heating mode.
New corrugated fin
Newly developed corrugated fin that improves heat exchange capacity
Checking the refrigerant charge level
If the refrigerant charge level drops below a certain level, the air conditioner will go into alarm and stop working to ensure the safety of users and the machine itself.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 35.0 kg
- gas: R-32
- marca: Hisense
- modello: AO495_COMPLETO_1
- potenza btu: 12000
- superficie riscaldabile mq: 35
