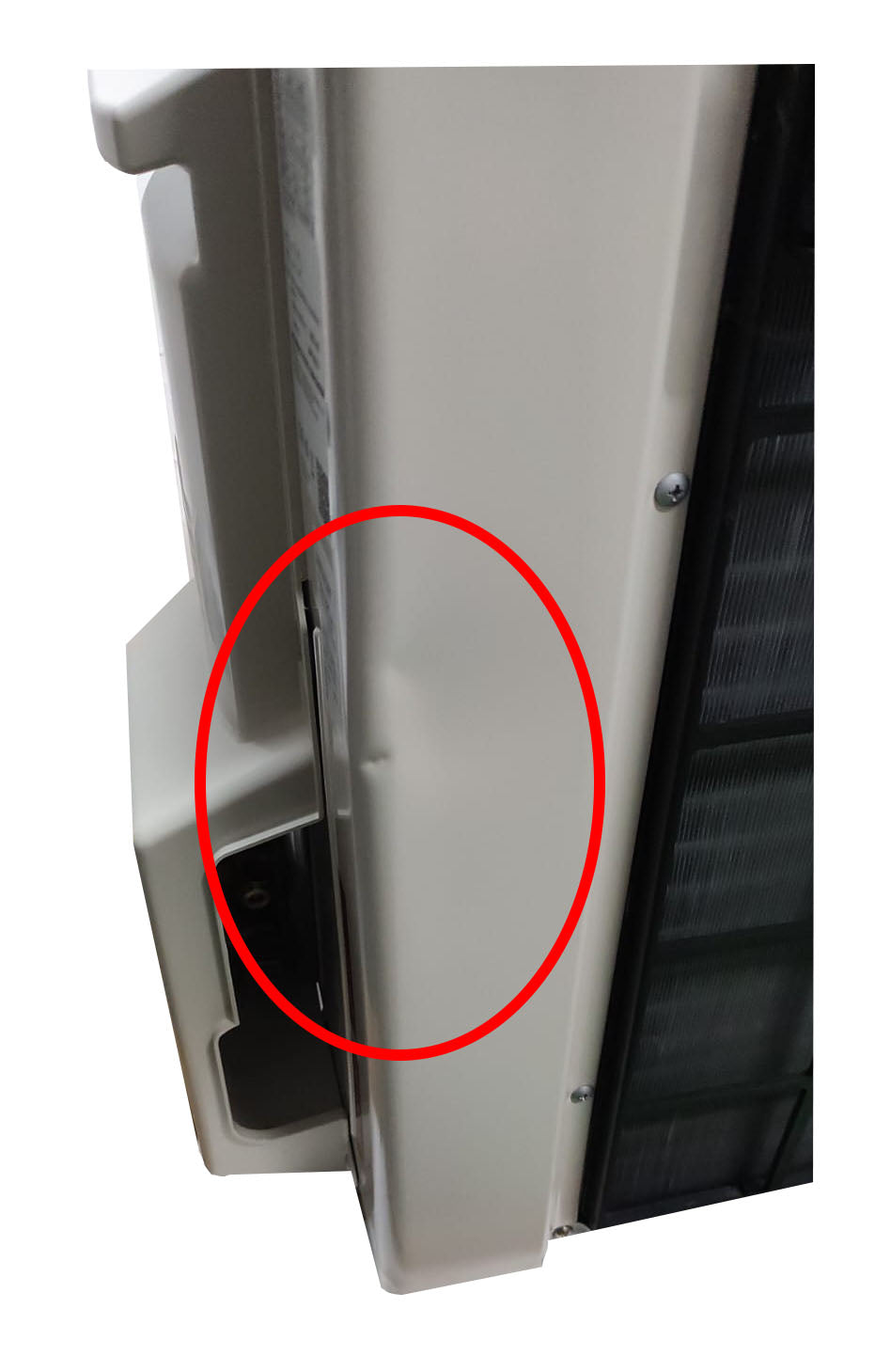

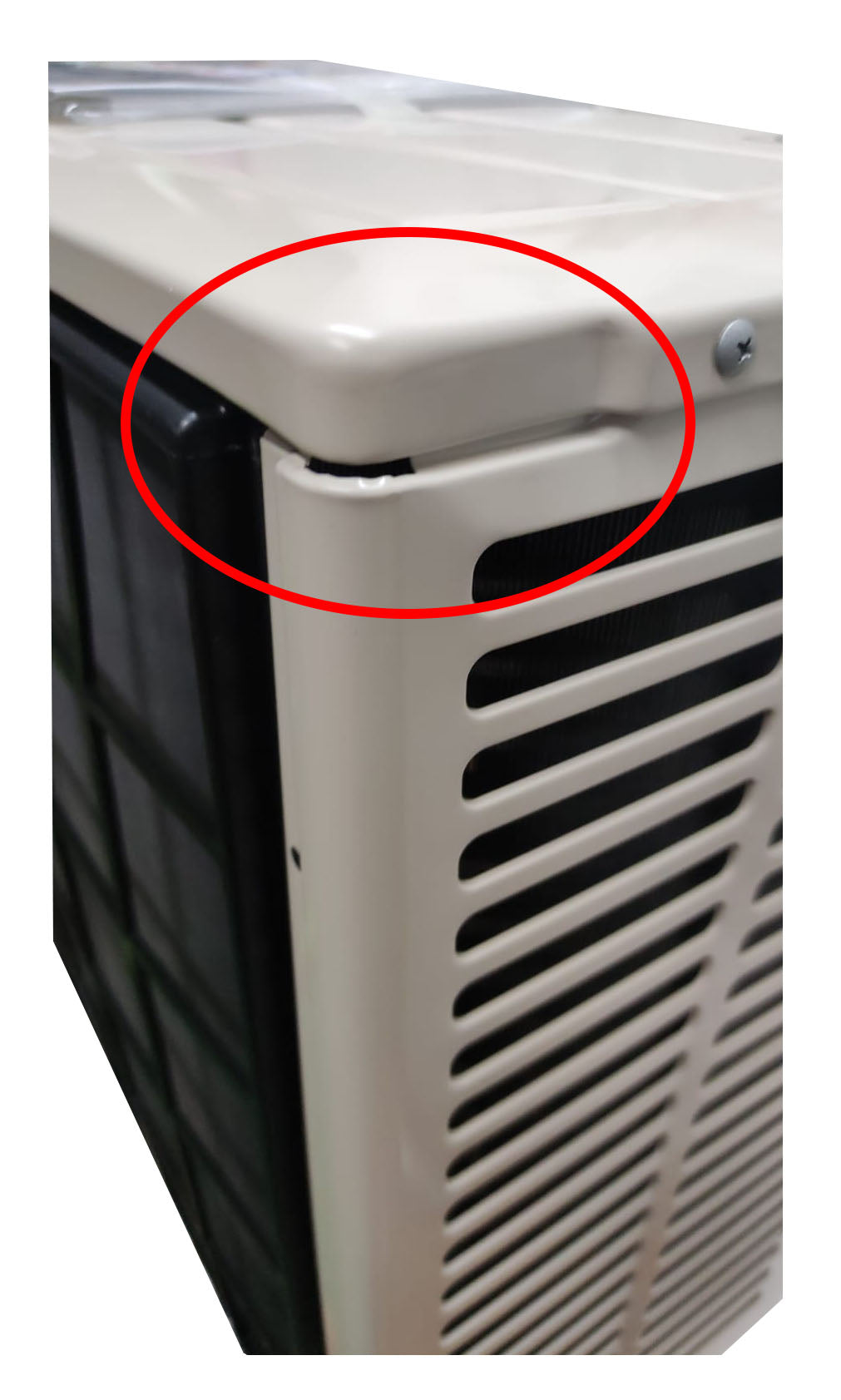

ATTENTION THE PRODUCT IS NEW AND 100% WORKING, BUT THE OUTDOOR UNIT HAS SIDE DENTS AND WORN PACKAGING (SEE PHOTO NEXT TO THE MAIN IMAGE)

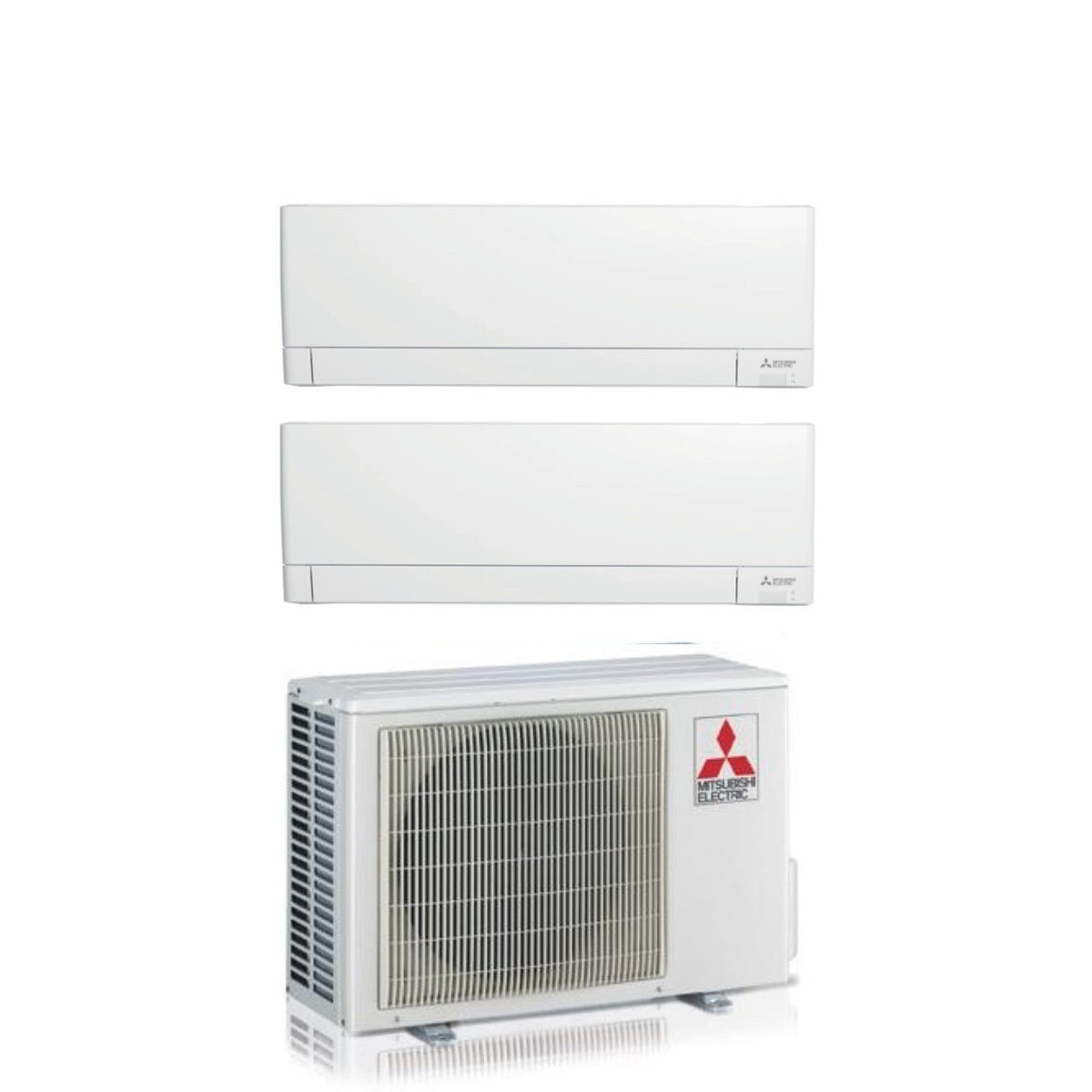

Mitsubishi Electric Dual Split Inverter Air Conditioning Plus Line MSZ-AY series 9+12 btu with MXZ-2F42VF Integrated Wi-Fi R-32 9000+12000 A++
INTERNAL UNIT
1) Model:
- Indoor Unit catalog code: MSZ-AY25VGKP
- Power: 9000 Btu
- Integrated Wi-Fi
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 299x798x245 mm
- Internal Unit Weight: 11 Kg
2) Model:
- Indoor Unit catalog code: MSZ-AY35VGKP
- Power: 12000 Btu
- Integrated Wi-Fi
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 299x798x245 mm
- Internal Unit Weight: 11 Kg
External Unit
Model:
- Outdoor Unit catalog code: MXZ-2F42VF
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER: 8.69
- SCOP: 4.6
- Cooling Energy Efficiency Class: A+++
- Heating Energy Efficiency Class: A++
- Annual energy consumption in Cooling: 169 kWh/a
- Annual energy consumption in Heating: 974 kWh/a
Performance:
- Cooling Capacity: 4.2 kW
- Heating capacity: 4.5 kW
- Cooling absorption: 0.98 kW
- Heating absorption: 0.88 kW
- Sound power level: 59 dB(A)
- Sound pressure level: 44~50 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
Installation Data:
- Pipe diameter Liquid: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 30 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 550x800x285 mm
- External Unit Weight: 37.0 Kg
Multisplit DC Inverter
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.
Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.
High seasonal efficiency
Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased,
reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and
A++ (sizes 2F42,2F53,3F54) in heating.
Maximum Silence for Maximum Comfort
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
Connectivity
The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.
Silence
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
R32: reduced environmental impact
Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.
Automatic noise reduction mode
By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.
Automatic link correction
Simply press a button (from MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure correct connection between indoor units and outdoor unit. In the event of an error in the connection, the system will automatically correct it
New MSZ-AY Series
The new MSZ-AY model represents a new standard in the world of residential air conditioning. With a renewed aesthetic, quality materials with a "velvety" finish, careful attention to comfort with its only 18dBA of sound pressure and the equipment of the "Plasma Quad Plus" active filtration device, MSZ-AY contains the best Mitsubishi Electric technology in ultra-compact dimensions.
Self clean mode
The new «Self Clean» function present on MSZ-AY allows you to dry the internal unit at the end of the cooling cycle, preventing the formation of mold and bad odors.
Quad PIUS Plasma Filter supplied
The Plasma Quad PLUS system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, mold and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.
Optional V Blocking air purifying filter
V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens
Dual Barrier Coating
With the MSZ-AY unit Mitsubishi Electric introduces another revolutionary technology: Dual Barrier Coating. During operation, the dust and impurities introduced during air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.
With Dual Barrier Coating the internal components of MSZ-AY are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit regarding this problem.
Silent operation
Environmental comfort is also linked to the sound level and is especially important in bedrooms or studies. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level virtually imperceptible to the human ear. The 18dB(A) achieved by the MSZ-AY model is quieter than the noise generated by the rustling of leaves in the wind, making the air conditioner effectively inaudible to the occupants of the room.
This is why MSZ-AY is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.
Night Mode: maximum discretion and silence
By activating the Night Mode function from the remote control it is possible to prepare the air conditioner for night-time operation:
* LED brightness reduction
* Deactivation of "beep" sound
* 3dB reduction in external unit sound emission
Air distribution
Thanks to the presence of the motorized louver it is possible to direct the air flow to achieve maximum comfort in the room in every operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying air currents towards the occupants.
Integrated MELCIoud
The new MSZ-AY offers the experience of using MelCloud integrated into the air conditioner, allowing the user to remotely manage, thanks to the Wi-Fi controller, the main functions of the air conditioner and monitoring its operation and energy consumption.
Furthermore, thanks to the new integrated wifi adapter, the connection with the router is even simpler!
Backlit remote control
The backlit remote control allows easy viewing even at night.
Installation template
The new MSZ-AY is equipped with a new installation template. The new template has a large central hole which makes installation easier especially in the presence of preparation boxes.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
