Technical features

Performance

• Cooling Capacity: 2.60 kW
• Heating Capacity: 2.63 kW
• Cooling absorption: 0.80 kW
• Heating absorption: 0.71 kW
• Internal Unit Treated Air: 560 m ³ /h
• Indoor Unit Sound Pressure Level: 22~41 dB(A)
• External Unit Sound Pressure Level: 50 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -15° ~ 53° C
• - Heating: -15° ~ 30° C

---

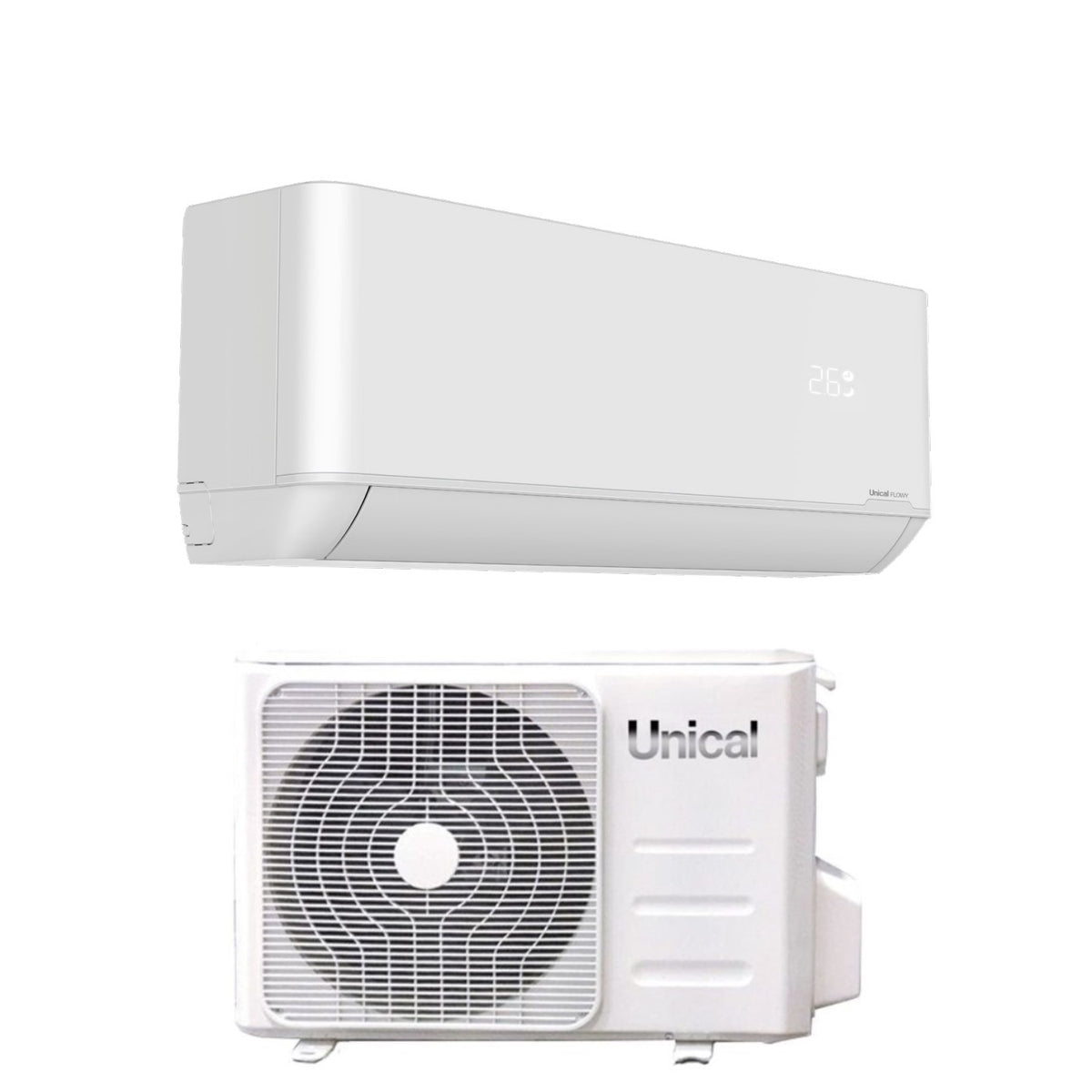

Unical Flowy The air conditioner with integrated ionizer

FLOWY is the new Unical heat pump air conditioner, a true generator of well-being with a harmonious and exclusive design and which contains the most innovative technological patents at the service of comfort and energy saving

• Integrated Bipolar Ionizer which sanitizes the air in the environment by eliminating up to 99% of suspended particles such as dust, mites, bacteria and pollen

• Vertical deflectors with patented “diffuser” holes for pleasant and effective air distribution

• “Full Inverter” technology for cost and consumption reduction

• “Easy clean” system for quick and simple maintenance and cleaning of the air conditioner

• Turbo system , for those who demand ultra-fast comfort

---

Remote control

Thanks to the electronics and the optional USB Key connected to the home Wi-Fi, with the simple and intuitive App, the user can, from a smartphone or tablet, set the operating modes at any time, program switching on and off, daily timer /weekly, check the operating consumption and the condition of the air conditioning

---

Sanitized air Why ionize the air

The combined action of the FLOWY ionizer with the electrostatic filters reduces the presence of: by up to 99%.

• Bacteria

• Allergens

• Microparticles in suspension

cause of many allergies and respiratory problems

The air we breathe in indoor and closed environments is, absurdly, much more polluted than the outside air. The importance of disinfecting hands, cleaning surfaces and constant ventilation of the environment is recognized today more than ever. But it may not be enough. Creating true comfort in the environment means providing the right temperature and, above all, the pleasure of breathing clean and healthy air: this is the mission of FLOWY, thanks to its technology with advanced functions

---

Electronic ionizer

The ionizer is a powerful electronic device integrated into the internal unit of FLOWY (unlike other air conditioners which simply use ion filters), which, thanks to emitting needles, is able to electrically charge the gas molecules present in the air.

The negative ions generated attract and bind to the positively charged microparticles suspended in the air (dust, pollen and bacteria, odors, mold spores, epithelia, etc.), neutralizing them and purifying the ambient air.

It can be activated from the remote control (HEALT function) and generates up to 3000 billion negative ions per m ³ of air in just a few minutes , sanitizing and enriching the air in the environment with oxygen ions, as well as giving a pleasant sensation of fresh air and purified

The ionizer with electrostatic filters reduces the presence of:

• Bacteria

• Allergens : Pollen, Molds, Spores, Animal dander, Epithelia, Dust mites

• Chemical Vapors : Volatile chemical compounds, Smog, Cigarette smoke

• Odors

The benefits of breathing ionized air?

• Reduction of asthma attacks, tendency to colds and flu

• Reduction of respiratory allergies

• Increased mental concentration

• Improved night sleep

• Reduction of irritability and insomnia

---

Comfort, Wellbeing, Cleanliness

Vertical air diffusers

With over 1,000 calibrated holes, the air spreads like a silent and delicate caress of well-being. Compared to traditional systems, Flowy's patented vertical air diffusers

• Avoid annoying direct air flows.

• They diffuse conditioned and ionized air better

• Avoid losses in efficiency and flow rate

• They are motorized to have a multidirectional 3D effect in combination with the horizontal flap

Simple cleaning and maintenance for always top efficiency

Technological innovation and care in design make Flowy the ideal air conditioner for ease of installation and maintenance with particular attention to the healthy maintenance of the product through:

• “Self Clean” automatic exchanger cleaning function via thermal shock and activated by remote control

• Anti-mold function , drying the exchanger to avoid the formation of mold which would otherwise cause bad smells

• Anti-mold treatment of the internal exchanger

The particular structure of Flowy allows the rapid release of the air filters positioned on the upper part of the unit and the removal of the horizontal and vertical deflectors for cleaning the fan compartment: in this way Flowy will always be efficient and sanitized to create well-being and comfort desired environment. A special support template also allows Flowy to be spaced from the wall to facilitate installation and extraordinary maintenance operations and allows optimization of intervention times and costs
