Description
Description
ARISTON GAS BOILER model CLAS X 24 CF METHANE Low NOx OPEN CHAMBER
Technical features
Product code: 3301313
- Energy label specifications according to the European ErP directive
- Class C heating energy efficiency
- Healthcare energy efficiency B
- XL withdrawal profile
Technical specifications.
- Nominal heat input max/min (heating) PCI kW 25.8-11.0
- Nominal heat input max/min (DHW) PCI kW 27-11
- Max/min useful thermal power (heating) kW 23.2-9.8
- Efficiency at PCI nominal heat input: 90.1%
- Efficiency at 30% of PCI rated flow: 89.9%
- Max/min heating temperature: 82-35°C
- Max/min domestic hot water temperature: 60-36°C
- Port. specific in healthcare. (10 min. with ΔT=30°C): 11.8 litres/min
- Quantity of hot water (ΔT=25°C): 14.2 l/min
- Quantity of hot water (ΔT=35°C): 10.2 l/min
- Minimum room temperature for use: 5°C
- Power supply voltage/frequency V/Hz 230-50
- Total electrical power absorbed: 52.1W
- Degree of protection of the electrical system IP X4D
- Dimensions 24 kW mm (HxWxD) 745 x 400 x 315
- Fuel: Methane or LPG

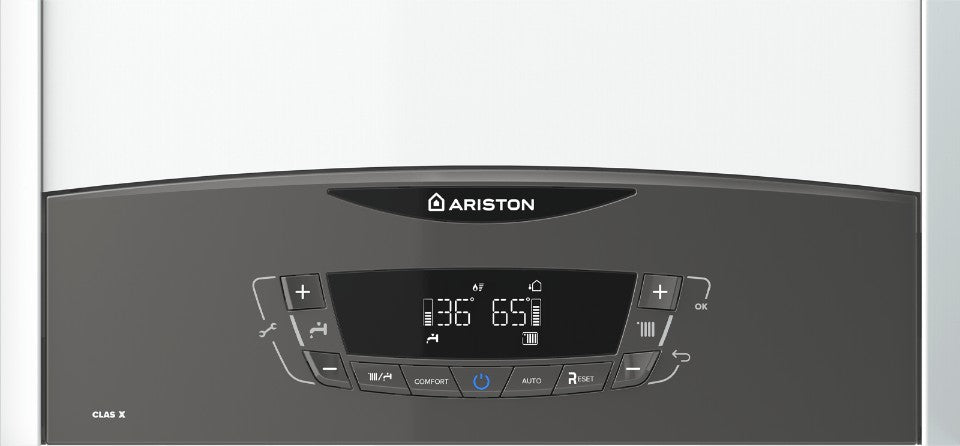

- LCD display
- Continuously modulating high efficiency circulator
- Prepared for Ariston Net connectivity
- Bridgenet® Bus communication protocol
- Provision for multi-zone and multi-temperature thermoregulation
- Preparation for management of solar systems
- Auto and comfort function
- Primary copper finned exchanger
- Cold water inlet and heating return filters
- Low NOx emissions < 56 mg/
Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 35.0 kg
- classe energetica produzione acs: C
- classe energetica riscaldamento: C
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- gas: Methane
- marca: Ariston
- metri quadri : 120
- modello: 3301313
- potenza in kw: 24
- potenza nominale: 24
- superficie riscaldabile mq: 120
