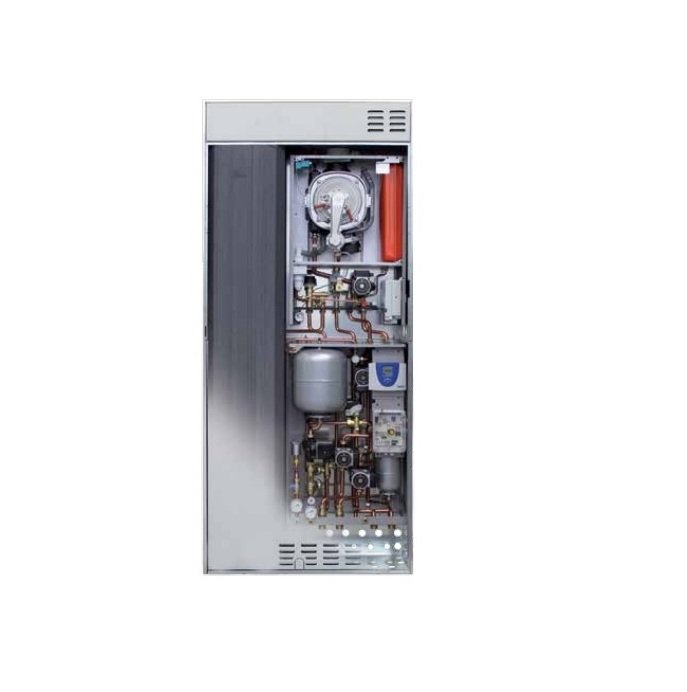

BAXI LUNA3 COMFORT IN HT SOLAR 240 B150 24 KW LPG CONDENSING BUILT-IN GAS BOILER WITH 150 LITERS TANK FOR SOLAR INTEGRATION - COMPLETE WITH SMOKE EXHAUST KIT Split smoke kit

Overview

BAXI LUNA3 COMFORT IN HT SOLAR 240 B150 24 KW BUILT-IN CONDENSING BOILER WITH 150 LITERS TANK FOR SOLAR INTEGRATION - COMPLETE WITH SMOKE EXHAUST KIT

Technical specifications

BAXI LUNA3 COMFORT IN HT SOLAR 240 B150 24 kW BUILT-IN CONDENSING BOILER with 150 liter boiler for solar integration; Gas condensing boiler for heating and DHW production with floor-standing boiler with thermal stratification, wall-mounted for solar integration.

SMOKE EXHAUST KIT INCLUDED IN THE PRICE!

By Regional Resolution in the Lombardy and Piedmont regions only boilers with the NOx 5 characteristic can be installed

Product code: HLZ71412891

Nominal sanitary heat output kW 24.7

Nominal heating heat output kW 20.5

Nominal sanitary heating power kW 24

Nominal heating power 80/60øC kW 20ÿ

Nominal heating power 50/30øC kW 21.6

Reduced heating power. 80/60øC kW 4

Reduced heating power. 50/30øC kW 4.3

Energy efficiency(92/42/EEC)ÿ4 stars

Average efficiency (DIN 4702-T8) % 109.8

Yield 30% % 107.5

NOx class (EN 483) 5

Minimum operating temperature -15C

Heating/pre-charge vasexpansion capacity l/bar 8/0.5

Solar expansion/pre-charge capacity 18/2.5 l

Kettle capacity 150 l

Continuous domestic hot water production 25øC l/min 13.8

Maximum circuit water pressure bars 3

Maximum pressure circuitsanitaribar 8

Maximum solar circuit water pressure bar 6

Maximum concentric exhaust-suction pipe length 60/100 m 10

Maximum length of split exhaust-intake pipes 80 m 80

MaxøC fume temperature 73

Dimensions (hxwxd) 2200x950x350 mm

Pesnett (without case) kg 97 - 108 (MS)

Nominal electrical power W 297/470 (MS)

IPX5D protection ratings

(*) When used, even for a short time, in places with particularly cold temperatures (below -5øC), we recommend installing the antifreeze heater accessory kit.

Main features

LUNA3 COMFORT IN HT SOLAR

Gas condensing boiler for heating and DHW production with floor-standing boiler with thermal stratification, wall-mounted for solar integration.

Ampicampdi modulation 1ú6, greater efficiency and silence

Minimum operating temperature -15ø C *

120 and 150 liter boilers in AISI 316L stainless steel with thermal stratification

Remote control with LCD display, with chronothermostat function, climate control unit supplied AS STANDARD

Configurable for different types of mixed systems, management of multiple low temperature zones

Automatic plant loading system

Standard climate control (with optional external probe)

Regulation control unit, expansion tank and hydraulic groups for the solar system integrated into the boiler structure

hydraulic system

Electric three-way diverter valve

Pre-mix burner in AISI 316Lÿ stainless steel

Water/fume exchanger in AISI 316L stainless steel with external coating in composite material

Oversized sanitary exchanger in AISI 316Lÿ stainless steel

120 and 150 liter thermal stratification boiler in AISI 316L stainless steel with solar integration via coil exchangerÿ

Modulating fan with electronic speed variation

Automatic by-pass

Low consumption heating circuit circulation pump, built-in deaerator

Pump and three-way valve anti-blocking system that intervenes every 24 hours

3 bar heating circuit safety valve

8 bar safety valve for kettle. Circulation pump for kettle

Vasd expansion sanitary ware

Solar expansion vessel

Solar hydraulic groups (pump, safety valve, flow regulator, deaerator)ÿ

Thermostatic mixing valve on the hot water outlet of the boiler. DHW recirculation provision

Thermoregulation system

Solar control unit (pump control and two temperature probes)ÿ

Climatic regulation as standard (with external probe available as an optional)ÿ

Predisposition for connection to a zone system

Room probe, heating and sanitary programmer integrated in the control panel

Control systemÿ

Safety thermostats against overtemperatures of the water/fume exchanger

Hydraulic pressure switches which block the gas in case of lack of water

NTC safety probe for controlling fume overtemperatures

Temperature control using NTC probes

Anti-legionella function

Total gel devicesÿ

Thermometerboilerÿ

Termometreelectronic boiler Manometrcircuitriheating

Examples of integrated systems consisting of a built-in condensing boiler with integrated thermal stratification boiler designed to control an autonomous solar system. Annual coverage of DHW requirements 60% due to solar integration.

Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
