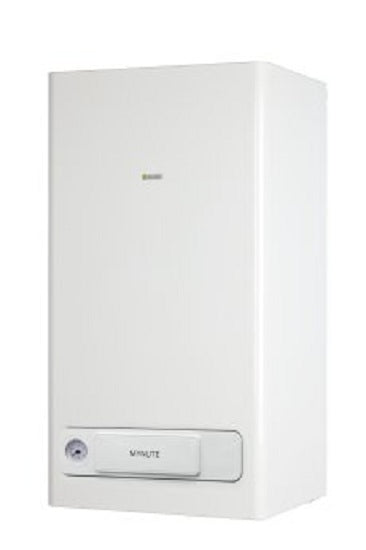

BERETTA MYNUTE S 28 CAI LPG OPEN CHAMBER GAS BOILER - NEW ErP

BERETTA MYNUTE S 28 CAI LPG OPEN CHAMBER GAS BOILER - NEW ErP

---

Technical features

Product code: 20102088
Energy label specifications according to the European ErP directive

• Class C heating energy efficiency
• DHW profile XL Class B energy efficiency
• Heating/DHW operation characteristics:

• Nominal heating/DHW thermal power: 28 kW
• Quantity of hot water with Δt=25°C: 16 l/min
• Dimensions (hxwxd) 740 x 452 x 336 mm
• METHANE fueled
• Legend:
• C (heating + domestic water),
• A (Open room)
• I (electronic ignition, ionization control).

---

MYNUTE S - ErP

The reference point for standard wall-mounted boilers.

• The innovation: Designed to facilitate replacement
• The new Mynute S, a point of reference in the Beretta Clima range of standard wall-mounted boilers, is specifically designed to make installation particularly easy, especially in the event of replacement with other products. The models in the Mynute S range comply with DL 311/06.
• The reliable: Technology at the service of quality
• The new Mynute S offers highly reliable combustion and electronics and boasts the high degree of electrical protection IPX5D. The range is therefore characterized by safety and solidity thanks to the components with which it is made which belong to a high quality standard.
• The boiler features the most innovative safety devices: control systems that monitor the presence of the flame,
• on the correct evacuation of fumes, temperatures and pressures. The anti-blocking cycles of the circulator and the anti-freeze system on the board allow the appliance to last longer. The new Mynute S also boasts the Survivor Function which allows it to continue functioning in the event of a failure of the sanitary NTC probe.
• The elegant: A modern style that integrates with any environment
• The new Mynute S is characterized by a particularly elegant aesthetic and is equipped with a simple and intuitive digital display which makes information on the status of the device immediately accessible. The modern ergonomic knobs allow you to perform all the functions necessary for using the boiler.

---

Characteristics:

• CAI boilers, ErP version, equipped with low consumption circulator (EEI20)
• Specially designed to facilitate the replacement of pre-existing wall-mounted boilers
• 9 liter expansion tank
• Simple and intuitive digital display
• Predisposition for climate thermoregulation (optional external probe)
• Can be interfaced to the REC 08 Remote Control Panel (optional)
• IPX5D electrical protection degree
• Hydraulic fittings, gas and sanitary taps (optional)
• For gas transformation, contact authorized Beretta Technical Assistance Centers

---

Product Warranty
The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: B
• classe energetica riscaldamento: C
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: Beretta
• metri quadri : 180
• modello: CALD_415G
• potenza in kw: 28
• potenza nominale: 28
• superficie riscaldabile mq: 180
