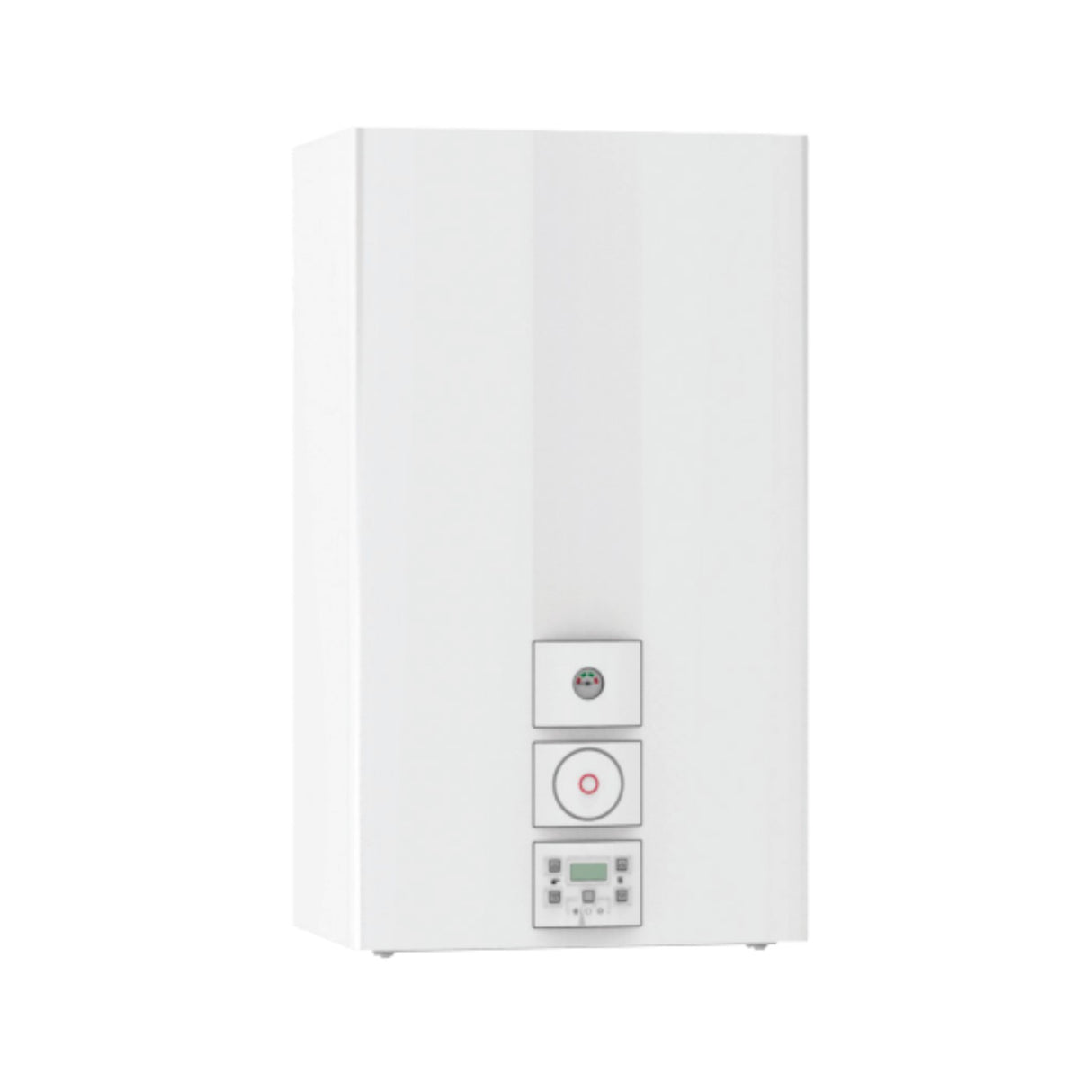

BIASI INOVIA COND PLUS 25S CONDENSING GAS BOILER COMPLETE WITH LPG FLUE EXHAUST KIT - NEW ErP Split flue kit, LPG

Overview

BIASI INOVIA COND PLUS 25S LPG CONDENSING BOILER LPG - NEW ErP, SEALED CHAMBER COMPLETE WITH SMOKE EXHAUST KIT: Inovia Cond Plus is the new BIASI range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the panel digital control with large display.

Technical specifications

Model: Inovia Cond Plus 25S

Energy label specifications according to the European ErPÿ directive

Class A heating energy efficiency

Sanitary energy efficiency Class A

Pickup profiles: XL

Characteristics of heating/sanitary operations:

Maximum useful power for heating/DHW: 19.3/25.1kW

Nominal heating/DHW heat input: 20/26 kW

Return name 60ø/80øC:ÿ96.7%

Return at 30% of load: 107.4%

High yields (compliant with yield directive 92/42 EEC and Legislative Decree 311/06)

Sanitary comfort (EN 13203)ÿ

8 liter expansion tank

Degree of protection IPX5Dÿ

Maximum flow rate (T=25 K) / (T=35 K): 14.4/10.3 l/minÿ

Specific sanitary flow rate (T=30 K): 12.0ÿl/minÿ

Dimensions hxwxd: mmÿ700 x 400 x 290; 32kg

NOx class: 6

Powered byÿLPGÿorÿLPG

Main features

Inovia Cond Plus

Wall-mounted condensing boilers

Inovia Cond Plus is the new BIASI range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with large display. Available in versions for heating and domestic hot water production and for heating only, Inovia Cond Plus presents a complete range of powers, 25 and 35 kW combi models and 25 and 35 SV models, in the same extremely compact dimensions (700 x 400 x 290 mm).

Inovia Cond Plusÿhas its strength in the innovative heat exchangerÿdesigned to provide high performance that lasts over timedigital control panel, designed to communicate with the user in an easy and comfortable way. Like the entire BIASI condensing range, Inovia Cond Plus allows you to derive maximum savings from climate thermoregulation, based on the system in which the boiler is installed.

High efficiency (compliant with efficiency directive 92/42 EEC and Legislative Decree 311/06) Health comfort (EN 13203)ÿ

Stainless steel primary condensing exchanger with aluminum coatings to offer maximum resistance to corrosion

Total premix burner, made of stainless steel (NOx class 5)

Sanitary plate exchanger in stainless steel

High efficiency pump with low energy consumption

8 liter expansion tank

Maximum power adjustable according to the system

Degree of protection IPX5Dÿ

Can be installed in partially protected places

Integration with BIASI solar systems, using a solar kit

Innovative digital control panel

Digital pressure readingÿ

Provision for external probe remote control

Possibility of managing a zone valve via remote control in multi-zone systems.

High circulation primary exchanger

Biasi produces the new Steelcoil compost exchanger from the stainless steel spiral enclosed in an aluminum shell. Thanks to the high exchange surface of the coil, greater thermal efficiency is guaranteed with less charge loss and easier cleaning. The ease of cleaning and the robustness of this exchanger are one of the main strong points of the product, which can be used on new systems but also on old systems in the case of renovations. Steelcoil integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the monspirae. Does the absence of parallel circuits guarantee an easy washing operation? of the exchanger and the elimination of any air present in the system circuit.

Thermoregulationÿ

By connecting the external probe and the remote control (optional) directly to the boiler you can take advantage of climate regulation. Inovia Cond Plus will adapt the temperature of the system water to the external climatic conditions, guaranteeing the achievement of the desired room temperature without waste and optimizing consumption. By using climate regulation, the regulation efficiency also increases, giving greater value to your home.

All ready for Energy Labeling

What it's about

From 26 September 2015 the European Commission directives regarding eco-design and energy labeling will apply.

These two directives aim to achieve savings in one of the most polluting and energy-intensive sectors: construction

For placing on the European market, the "eco-design" directive (ErP known as "Energy Related Products") imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:

generators with a capacity of less than 400 kW

water heaters with capacity less than 400 kW,

kettles with a capacity of less than 2000 litres

or

As in the household appliances sector, the energy labeling of products with a capacity of less than 70 kW will give consumers simple, recognizable information that allows comparisons on the performance and energy consumption of the product they wish to purchase.

The energy label will be included in all boilers, water heaters and kettles placed on the market starting from 26 September 2015.

It's about me too

YES, it concerns everyone: professionals and end users

The information indicated on the energy label will allow professionals to recommend the right product and individuals to benefit from the information available.

The user will be able to easily compare the performance of the products.

From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

Supplier responsibility

The company that supplies the product on the market is required to equip its equipment with the following documentation:

product energy label;ÿ

product technical data sheet;ÿ

system energy label in addition to the product one, both if it sells a system that includes the product in question, and if this, in the future, can be sold in combination with other additional devices;ÿ

technical data sheet of the system with the parts relating to the product and the system already filled in.

Responsibilities of resellers

First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and displays an equipment/system to the public. Therefore, even professionals such as plumbers, installers, designers can fall into this category. Everyone is responsible for ensuring that:

all devices and/systems have their respective labels and ensure that they are clearly visible;ÿ

all devices and/systems are always accompanied by the mandatory technical data sheets;ÿ

every type of advertising, promotional and technical material in which energy data and price indications are shown contains an indication of the energy efficiency class.

The new ErP regulations

ENERGY LABELING:

Appliances for space heating and hot water production must be equipped with the new energy label which will report the energy class and main performance data. The energy class must also be cited in the technical, commercial and advertising documentation of the appliances.

ECODESIGN (ErP):

The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

PRODUCT LABEL

Depending on the type of appliance there are different labels. Those with efficiency classes A, A+ and A++ certify products with the highest performance. Furthermore, two different classifications are foreseen for domestic heating and for hot water production services, so mixed products must show both classifications. The labels contain, in addition to the energy class, other information, so that the end customer can make his choice as informed as possible.

SYSTEM LABEL

In addition to the product label, a system label is also provided... in cases where a series of devices combined with each other is offered. This label must also be included in the technical and commercial documentation of the system. Whoever proposes such systems will have to calculate the performance using a predefined calculation algorithm to display the label in order to inform the end user in the best possible way.

Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Biasi
• metri quadri : 150
• modello: INOVIA COND PLUS 25S GPL
• potenza in kw: 25
• potenza nominale: 25
• superficie riscaldabile mq: 150
