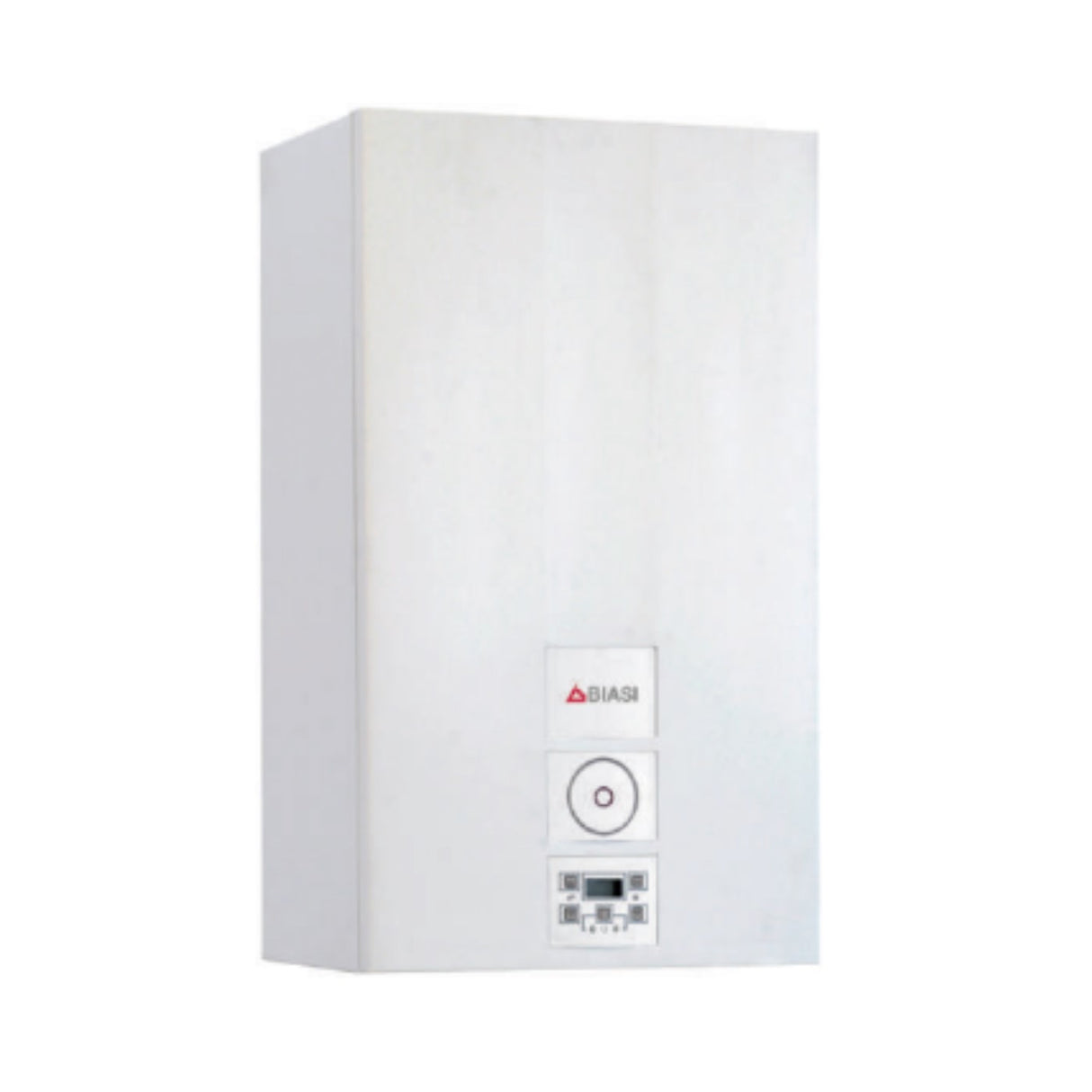

BIASI RENOVA COND

BIASI RENEWAL COND

Technical specifications:

• Energy label specifications according to the European ErPÿ directive
• Class A heating energy efficiency
• Sanitary energy efficiency Class A
• Pickup profiles: XXL
• Characteristics of heating/sanitary operations:
• Thermal powerÿuseful domestic hot waterÿ(80/60ø C)ÿkW (kcal/h)ÿ33.4 (28,724)
• Thermal powerÿuseful heatingÿ(80/60ø C)ÿkW (kcal/h)ÿ32.1 (27,606)
• Heat input(*)ÿnominalÿkW (kcal/h)ÿ34.0 (29,240)
• Thermal inputÿminimumÿkW (kcal/h)ÿ8.5 (7,309)
• Sanitary flow rateÿt =25øKÿl/minÿ21.6
• Dimensions (HxWxD) 700x400x290 mm
• Main features

RENEW CONDITION

RinNova Cond Available for heating and domestic hot water production, in the 25 and 35 kW powers and for heating only in the 16, 25 and 35 kW powers.

Characteristics:

• High yields (compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
• Sanitary comfortÿÿ(EN 13203)
• Primary condensing exchanger in stainless steel with plastic coatings to offer maximum resistance to corrosion
• Total premix burner, made of stainless steel (NOx class 5)
• Sanitary plate exchanger in stainless steel
• High efficiency pump with low energy consumption
• Maximum power adjustable according to system needs
• IPX5D protection ratings
• Installability in partially protected places
• Integration with BIASI solar systems using a solar kit
• digital control panel with backlit display
• Digital pressure reading via pressure transducer
• Provision for external probe remote control
• Four controls
• Summer/winter/off selector
• Heating temperature regulator
• Domestic hot water temperature regulator
• Digital pressure reading
• DHW temperature and heating temperature displayed
• Display of fault diagnostics, block status and fault history
• Recommended filling display
• Display of annual maintenance deadline

The display operates in the following modes:

1. INFO. The Inf mode displays the following information:

• External temperature (if external probe connected)
• K value (if external probe connected)
• DHW/heating temperatures chosen by the user
• Smoke temperatures.

2. PROGRAMMING. The programming mode allows you to modify the boiler parameters.

• In chimney sweep mode it is possible to test the boiler and make adjustments to the gas valve.
• RinNova Cond XE: Adjustable maximum power
• The adjustable maximum useful power parameter meets the needs of modern buildings without compromising comfort
• required in the production of domestic hot water. This function allows you to limit the maximum useful power in heating, regardless of the useful domestic power.
• Hot water even with the sun

RinNova Cond specific solar kit (optional). The boiler intervenes only when necessary, making the most of solar energy and guaranteeing the comfort requested by the user.

Included in the supply:

• Boiler support bracket and paper template
• Boiler power cable
• Condensation trap
• Quick user instruction.
• All ready for Energy Labeling

What it is:

From 26 September 2015 the European Commission directives regarding eco-design and energy labeling will apply.
These two directives aim to achieve savings in one of the most polluting and energy-intensive sectors: construction
For placing on the European market, the "eco-design" directive (ErP known as "Energy Related Products") imposes a minimum energy efficiency for heating devices and hot water production in domestic premises.

The directive applies to:

• generators with a capacity of less than 400 kW
• water heaters with capacity less than 400 kW,
• kettles with a capacity of less than 2000 litres

As in the household appliances sector, the energy labeling of products with a capacity of less than 70 kW will give consumers simple, recognizable information that allows comparisons on the performance and energy consumption of the product they wish to purchase.

The energy label will be included in all boilers, water heaters and kettles placed on the market starting from 26 September 2015.

It's about me too

YES, it concerns everyone: professionals and end users

The information indicated on the energy label will allow professionals to recommend the right product and individuals to benefit from the information available.

The user will be able to easily compare the performance of the products.

From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

Supplier responsibility

The company that supplies the product on the market is required to equip its equipment with the following documentation:

energy label ; system energy label in addition to the product one, both if you sell a system that includes the product in question, and if this, in the future, can be sold in combination with other additional devices

technical product sheet ; technical data sheet of the system with the parts relating to the product and the system already filled in.

Responsibilities of resellers

First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and displays an equipment/system to the public. Therefore, even professionals such as plumbers, installers, designers can fall into this category. Everyone is responsible for ensuring that:

all devices and/systems have their respective labels and ensure that they are clearly visible;ÿ

all devices and/systems are always accompanied by the mandatory technical data sheets;ÿ

every type of advertising, promotional and technical material in which energy data and price indications are shown contains an indication of the energy efficiency class.

The new ErP regulations:

ENERGY LABELING:

Appliances for space heating and hot water production must be equipped with the new energy label which will report the energy class and main performance data. The energy class must also be cited in the technical, commercial and advertising documentation of the appliances.

ECODESIGN (ErP):

The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

PRODUCT LABEL

Depending on the type of appliance there are different labels. Those with efficiency classes A, A+ and A++ certify products with the highest performance. Furthermore, two different classifications are foreseen for domestic heating and for hot water production services, so mixed products must show both classifications. The labels contain, in addition to the energy class, other information, so that the end customer can make his choice as informed as possible.

SYSTEM LABEL

In addition to the product label, a system label is also provided... in cases where a series of devices combined with each other is offered. This label must also be included in the technical and commercial documentation of the system. Whoever proposes such systems will have to calculate the performance using a predefined calculation algorithm to display the label in order to inform the end user in the best possible way.

---

Guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Biasi
• metri quadri : 250
• modello: rinNOVA COND X E 35S GPL
• potenza in kw: 35
• potenza nominale: 35
• superficie riscaldabile mq: 250
