CHAFFOTEAUX
Garanzia Italiana 24 mesi
SKU: CALD_CHAFF2

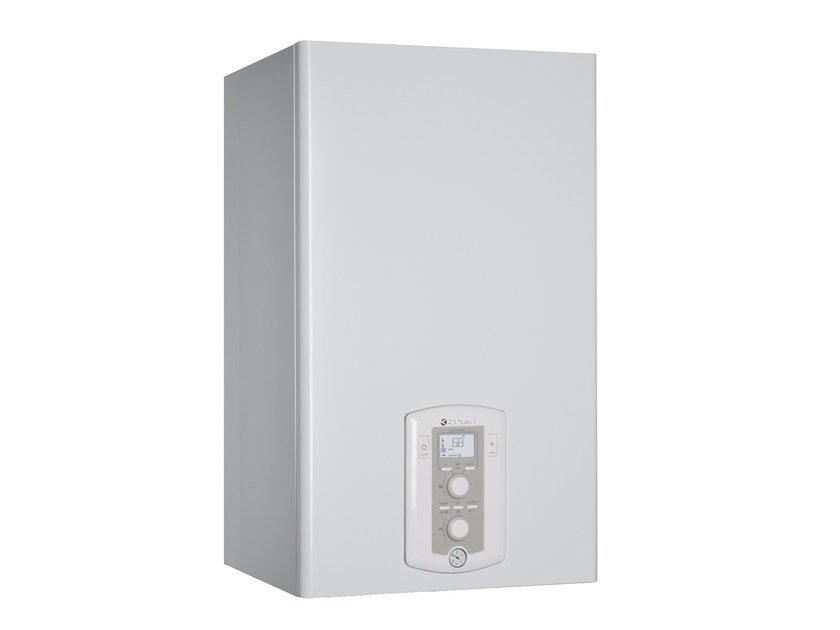

CHAFFOTEAUX URBIA GREEN LINK 35 EU INTEGRATED Wi-Fi GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT - NEW ErP Split flue kit, methane

€1.273,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features
  • Product code: 3310502
Energy label specifications according to the European ErP directive
  • Class A heating energy efficiency
  • Class A sanitary energy efficiency
  • Pickup profile: XL
Heating/DHW operation characteristics:
  • Max/min nominal heating power (Hi) 31/3.5
  • Useful heating power 80º C/ 60º C max/min 30.3/3.4 kW
  • Efficiency at 30% of nominal power (return 47 Hi) 97.8%
  • Maximum heating pressure/safety valve setting 3/3.0 bar
  • Expansion vessel capacity 8 l
  • Performance Stars ****
  • Max/min nominal heat output DHW (60/80ºC) PCI 34.5/ 7 kW
  • Specific DHW flow rate in compliance with EN 625 at Δt 30ºC 16.5 l/m
  • Hot water flow rate at ∆T 25º C l/m 19.3
  • NOx class 5
  • IP X5D electrical protection rating
Dimensions:
  • HxWxD 745 x 440 x 375; 46 kg

General characteristics

URBIA GREEN LINK EU

Reliable, designed to guarantee the best performance with minimum consumption and easy to manage, even remotely with your smartphone: Urbia Green Link by Chaffoteaux is the latest innovation in the field of efficient heating.

Not a simple condensing boiler but a truly advanced package that combines the efficiency of the new Urbia Green EU with the connectivity kit that allows the control and management of the entire system. A solution that reduces consumption by up to 40% * and obtains advantageous tax deductions of 65% , foreseen for the purchase and installation costs of home automation systems and therefore concerning the cost of the boiler but also that of accessories and labor. In this way, just over two years are enough to recover the investment linked to the new heating system.



The brain of the Chaffoteaux system is represented by the Expert Control Link chronothermostat, powered directly by the boiler and connectable to the Wi-Fi network to activate remote assistance and control functions. It is thus possible to manage the switching on, off and adjustment of the main functions with the dedicated Chaffolink App but also activate a remote assistance service for scheduled maintenance, remote repairs and real-time notification of any problems. In the event of a malfunction, the technician who will intervene on the boiler will always know in advance the real problem and the time needed to resolve it, thus avoiding unnecessary inspections. Monitoring daily, weekly and monthly consumption - from the Expert Control or directly from the App - also allows you to control how much energy is used for heating and how much for domestic hot water, thus optimizing boiler management.

Among the pluses of Chaffoteaux technology: the 4-litre micro-accumulation , which makes hot water immediately available, a constant report of energy consumption and the SRA function for automatic adjustment of the boiler parameters based on environmental conditions.
Chaffoteaux Urbia Green Link is available in versions with 25 and 35 kW condensing boiler.

> HEALTH COMFORT

  • Integrated 4 liter 316L stainless steel mini-accumulator.
  • Domestic water performance ***, maximum level foreseen by the EN 13203 standard.
  • Flow rate from 14.6 to 19.3 l/min with ΔT = 25ºC.
  • DHW production controlled by a modulating turbine to meet needs without waiting times and at a constant temperature, even when extractions are very low.
  • DHW programmer to control the heating time slots of the accumulator
  • Eco-Delta System: DHW loading system with 4 liter reserve to further improve the comfort of DHW production and new ecological functions that allow you to save energy in DHW mode.

> MAXIMUM COMFORT IN HEATING

  • Through the free APP and the connectivity service you can constantly monitor the room temperature and manage the boiler parameters.
  • Efficiency of up to 108% with energy savings of up to 35%.
  • 4 stars combustion efficiency according to EN 92/42 standard.
  • Wide modulation range, from 10% to 100% of maximum power.
  • Reduced polluting emissions, NOx Class 5.
  • Heating circuit pressure sensor with display on LCD display.
  • SRA function, automatic boiler regulation system based on heating requirements.
  • Differentiated climate thermoregulation of 2 circuits, depending on the room and/or external temperature.
  • Predisposition for integration into a heating system via the new Ebus 2 communication protocol (boilers, solar, system management modules and modulating thermoregulation accessories).
  • Multifunction LCD display with display: history, self-diagnosis, operating temperature.
  • High efficiency circulator with continuous modulation to improve acoustic comfort and reduce energy consumption.

> COMFORT OF USE AND INSTALLATION

  • Expert Control as standard : intuitive system manager for the management of 3 circuits, depending on the room and/or external temperature for greater comfort and greater energy savings.
  • New intuitive electrical connections.
  • Easier starting: automatic purge function and combustion regulation directly accessible.

> CONSCIOUS CONSUMPTION, ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT

  • Weekly, monthly and annual analysis on your smartphone .
  • Up to 25% energy savings in combination with Expert Control and the SRA function.
  • Up to 35% energy savings by combining Expert Control, the SRA function, the external probe and the radiant floor.

All ready for Energy Labeling

What is it about?

From 26 September 2015 the European Commission directives regarding eco-design and energy labeling will apply.

These two directives aim to achieve savings in one of the most polluting and energy-intensive sectors: construction

For placing on the European market, the Eco-Design Directive ( ErP known as « Energy Related Products ») imposes a minimum energy efficiency for heating and hot water production devices in domestic premises. The directive applies to:

  • generators with a capacity of less than 400 kW
  • water heaters with a capacity of less than 400 kW,
  • kettles with a capacity of less than 2000 litres

As in the household appliances sector, the energy labeling of products with a capacity of less than 70 kW will give consumers simple, recognizable information that allows comparisons. on the performance and energy consumption of the product you wish to purchase.

The energy label will be included in all boilers, water heaters and kettles placed on the market from 26 September 2015.

Does it affect me too?

YES, it concerns everyone: professionals and end users

The information indicated on the energy label will allow professionals to recommend the right product and individuals to benefit from the information available.

The user will be able to easily compare the performance of the products.

From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

Supplier responsibility

The company that supplies the product on the market is required to equip its equipment or systems with the following documentation:

  • product energy label;
  • technical product sheet;
  • system energy label in addition to the product one, both in the case of selling a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;
  • technical data sheet of the system with the parts relating to the product or system already filled in.

Responsibilities of retailers

It should first of all be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and displays an appliance and/or system to the public. Therefore, even professionals such as plumbers, installers or designers can fall into this category. Everyone is required to ensure that:

  • all devices and/or systems are equipped with their respective labels and ensure that they are clearly visible;
  • all devices and/or systems are always accompanied by the mandatory technical data sheets;
  • any type of advertising, promotional or technical material in which energy data or price indications are shown contains an indication of the energy efficiency class.

The new ErP regulations

ENERGY LABELING:

Appliances for space heating and hot water production must be equipped with the new energy label which will report the energy class and main performance data. The energy class must also be cited in the technical, commercial and advertising documentation of the appliances.

ECODESIGN (ErP) :

The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

PRODUCT LABEL

Depending on the type of appliance, there are different labels. Those with efficiency classes A, A+ and A++ certify the products with the highest performance. Furthermore, two different classifications are envisaged for domestic heating and for the hot water production service, so much so that mixed products must show both classifications. The labels contain, in addition to the energy class, other information, so that the end customer can make his choice in the most informed way possible.

SYSTEM LABEL

In addition to the product label, a system label is also provided if a series of combined equipment is offered. This label must also be included in the technical and commercial documentation of the system. Whoever proposes such systems will have to calculate the performance using a predefined calculation algorithm and display the label in order to inform the end user in the best possible way.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 35.0 kg
  • classe energetica produzione acs: A
  • classe energetica riscaldamento: A
  • gas: Methane
  • marca: CHAFFOTEAUX
  • metri quadri : 250
  • modello: URBIA GREEN LINK 35
  • potenza in kw: 35
  • potenza nominale: 35
  • superficie riscaldabile mq: 250
