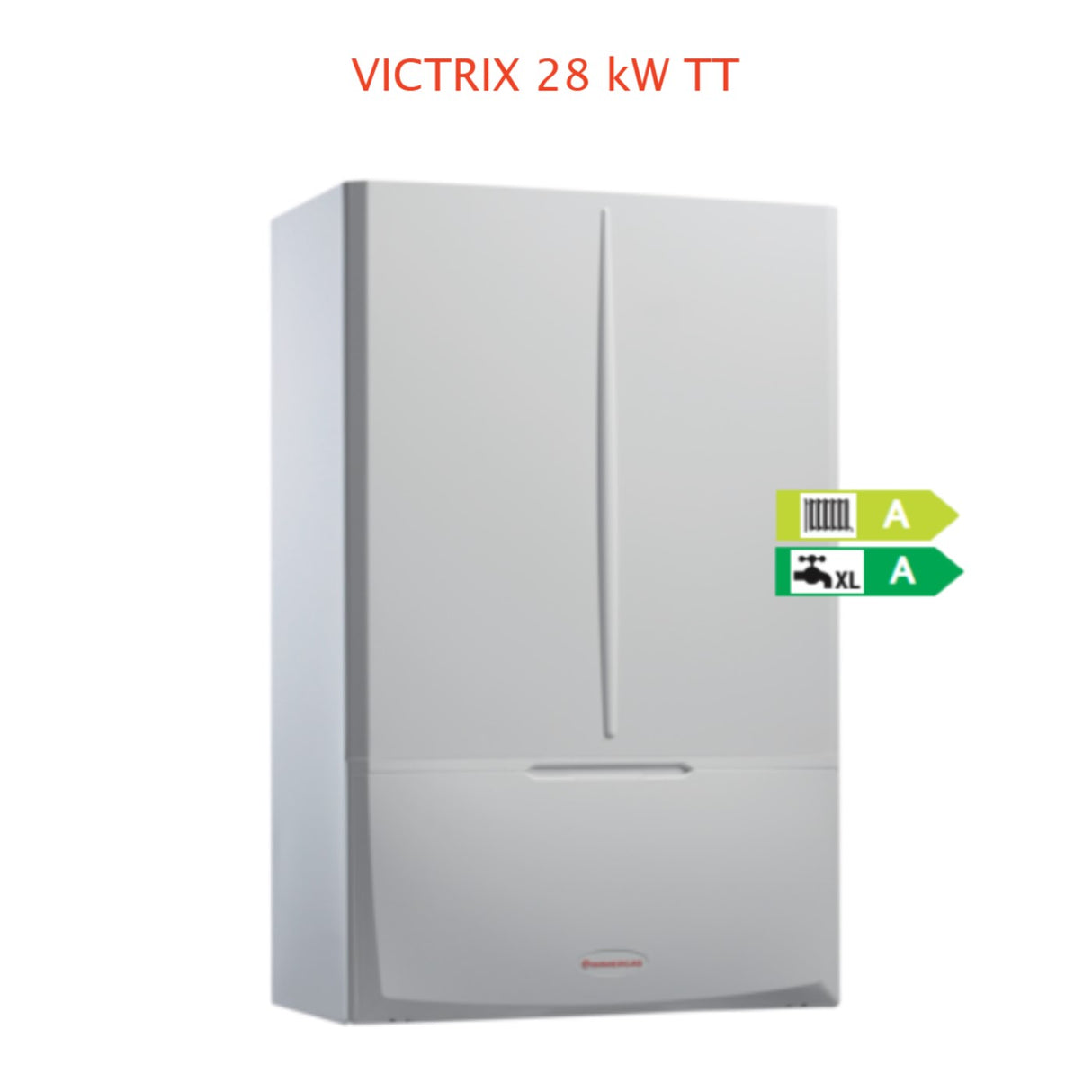

Immergas Condensing Gas Boiler Model VICTRIX 28 KW TT Methane or LPG Excluding Methane/LPG Fume Kit

AVAILABLE TO ORDER

ATTENTION: THE PRODUCT WILL BE SUPPLIED WITHOUT THE SPECIAL FLUE KIT!

Technical features

• Model: Victrix 28 KW TT
• Boiler code: 3.025511
• Template code: 2.015543
• Type: Snapshot
• Useful Heating Power: 24 kW
• Useful Sanitary Power: 28 kW
• Modulation Range: 11 - 100%
• Hot water production (∆t 30 °C): 13.4 l/min
• Dimensions (H x W x D): 748 x 440 x 255 mm
• Weight: 32.0 kg

VICTRIX 28 KW TT

Maximum energy saving, maximum flexibility

• Inside of ;
• Built-in with OMNI CONTAINER but also in SOLAR CONTAINER or DOMUS CONTAINER to add products that use solar thermal and heat pumps to the boiler in GAUDIUM SOLAR V2 or TRIO V2 applications;
• Outside in partially protected places ;
• And today also in the open air with the dedicated cover kit.

This increases the possibility of creating systems that comply with the new European Directives increasingly oriented towards condensation technology to reduce pollution and increase energy savings.

The eco-compatible VICTRIX kW TT condensing range expresses the best of Immergas technology, offering great performance thanks to the innovations introduced in the product design. Two instantaneous versions of 28 and 35 kW are available, and three heating only versions (12, 24 and 32 kW PLUS) which combine with domestic hot water tank units of various capacities.

---

HIGH HYDRAULIC PERFORMANCE

Primary condensing exchanger, made of an Aluminium-Silicon-Magnesium alloy, particularly resistant to corrosion. Designed to have high flow rate and head performance even on old heating systems thanks to the large water passages. This also means a low risk of clogging in the presence of impurities in the system water. It is important to maintain the pH of the heating system fill water, between 6.5 and 8.5 with a hardness of 15°F

REDUCTION OF ELECTRICITY CONSUMPTION

Electricity saving thanks to the low consumption, class A modulating circulator. The circulator can be set in the operating modes: constant ∆t, proportional head or constant speed . The presence of two NTC probes on the system flow and return allows constant modulation of the boiler operating conditions based on the requests of the heating system with a consequent increase in seasonal efficiency. The electrical consumption of the boiler in stand by is less than 6 W

DESIGNED TO MAKE PROFESSIONALS EASY

VICTRIX kW TT, produced on the new highly automated lines at the historic Immergas headquarters in Brescello, is a specific range of products developed on the "Top Tech" platform.

It features particular technical features designed to facilitate the work of professionals such as:

• Safety valve drain channeled into the condensate drain;
• Carter covering the hydraulic connections, to better position the boiler within domestic spaces;
• Direct accessibility to the electrical connection compartment of the main external devices (for example CARV2, external probe, CRONO 7) by simply removing the front aesthetic cover without the need to open the product.

SELF-ADAPTIVE COMBUSTION

The electronic gas valve allows air/gas control via a multifunction electrode placed inside the combustion chamber; the car electronic card adapts the combustion parameters in case of variations in air or fuel density. This allows you to power VICTRIX kW TT with any type of fuel (methane/LPG or propane air), by only intervening on the electronic board software even at a later time (for example at the first commissioning by the Authorized Assistance Centre). The boiler is therefore supplied with a single product code .

COMFORT

High hydraulic performance: the innovative condensing module guarantees high flow rate, low risk of clogging due to impurities in the system water, greater resistance to corrosion thanks to the special alloy.

High seasonal yields: the boiler's wide modulation range allows high seasonal yields with consequent reduction in gas consumption .

Thermoregulators: optional. They improve comfort and increase energy savings.

DOMINUS app: optional. Simple and intuitive , it allows you to check the operation and temperature of the boiler, activate it on and off from anywhere via smartphone or tablet.

Formula Comfort EXTRA: uses the most complete maintenance program that allows you to extend 5 years with free activation of the conventional warranty which, in collaboration with the Immergas Authorized Assistance Centre, can be activated during the initial check.

ENVIRONMENTAL COMPATIBILITY

Eco-compatible technology: complies with the European ErP and ELD Directives, allowing high energy efficiency classes to be achieved in heating and hot water production.

Ecological class 5 (European Standards UNI 297 and 483): the best for reduced emissions of nitrogen oxides ( NOX ).

Renewable energy: can be combined with solar systems and hybrid systems with heat pump.

INSTALLATION

Maximum flexibility: approved to work indoors, built-in and outdoors, even in the open air . IPX5D electrical protection. Antifreeze as standard down to -5 °C.

Maximum compactness: only 25 cm deep.

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane/LPG
• marca: IMMERSION
• metri quadri : 180
• modello: Victrix 28 KW TT Escluso KF
• potenza in kw: 28
• potenza nominale: 28
• superficie riscaldabile mq: 180
