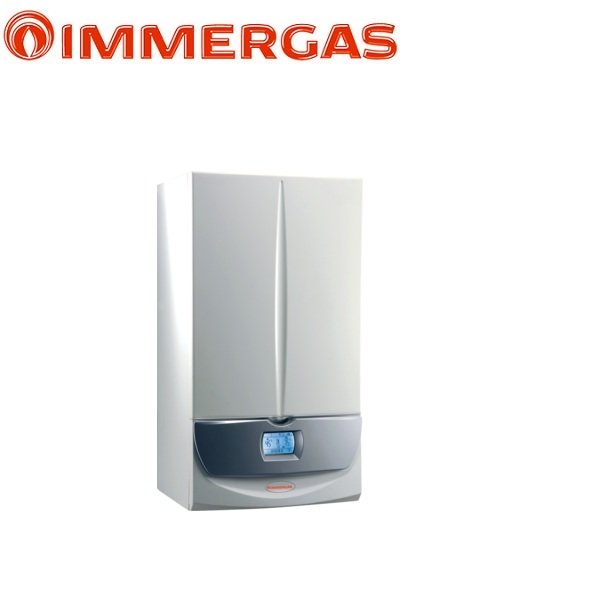

IMMERGAS VICTRIX SUPERIOR 32 KW CONDENSING GAS BOILER COMPLETE WITH KIT FOR METHANE FLUE EXHAUST - NEW ERP Split flue kit, methane

AVAILABLE TO ORDER

IMMERGAS VICTRIX SUPERIOR 32 KW CONDENSING COMPLETE WITH KIT FOR METHANE SMOKE EXHAUST - NEW ERP

Technical features

• Product Code: 3.025503
• Type: INSTANTANEOUS wall-mounted condensing boiler

• Energy efficiency
• Class A heating energy efficiency
• Class A sanitary energy efficiency
• Sanitary load profile: XL
• Rated useful power: 32 kW
• Hot water production (∆t 30 °C) l/min: 15.3

• Nominal system expansion tank capacity / (real) liters 8.0 / (5.8)
• System expansion vessel pre-charge pressure 1.0 bar
• Head available with flow rate 1000 l/h kPa (m ca) 31.0 (3.16)
• Useful thermal power for hot water production kW (kcal/h) 32.0 (27,520)
• Adjustable DHW temperature °C 30 - 60
• Minimum dynamic pressure in the domestic hot water circuit 0.3 bar
• Max DHW circuit pressure bar 10
• Min domestic hot water withdrawal litres/min 1.5

Characteristics

• Electrical supply V/Hz 230 - 50
• Nominal absorption A 0.78
• Power consumption in stand-by W 5.5
• IP X5D electrical insulation rating

Dimensions
Dimensions (HxWxD): 835 x 440 x 350

VICTRIX SUPERIOR

• Low consumption: the modulating circulator automatically adapts operation to the conditions of use and reduces electricity consumption.
• Maximum sanitary comfort: the 2 liter micro-accumulation speeds up the supply of hot water and reduces waiting times compared to other instantaneous boilers.
• High seasonal yields: the boiler's wide modulation range allows high seasonal yields with consequent reduction in gas consumption.
• Display: large, backlit liquid crystal, provides the main operating information.
• Thermoregulators: optional. They improve comfort and increase energy savings.
• Eco-compatible technology: complies with the European ErP and ELD Directives, allowing high energy efficiency classes to be achieved in heating and hot water production.
• Ecological class 5 (European Standards UNI 297 and 483): the best for reduced emissions of nitrogen oxides (NOX).
• Renewable energy: can be combined with solar systems.
• High flexibility: approved to operate indoors and outdoors in partially protected locations. IPX5D electrical protection. Antifreeze as standard down to -3 °C.

OTHER CHARACTERISTICS:

• HIGH HYDRAULIC PERFORMANCE With the low energy consumption modulating circulator and the possibility of setting the ∆t on the system, these boilers are ideal on systems equipped with zone and thermostatic valves, to enhance the condensation operation of the appliance, reducing consumption energy.
• HIGH EFFICIENCY IN ALL SEASONS Even in mid-seasons, when energy absorption is limited, the efficiency is still high and operating costs are reduced thanks to the modulation range from 12.5% ​​to 100% of power.
• TECHNOLOGY AND EASE OF USE The large and functional backlit liquid crystal display allows easy reading of all the main information relating to operation. Two practical knobs allow you to control the appliance. §
• INSTALLATION FLEXIBILITY With 19 cm of space between hydraulic connections and the wall, it can be easily installed in any replacement; furthermore the boilers are designed for internal or external installation in partially protected places. The standard antifreeze protection is up to -3 °C and can be extended, with an appropriate optional kit, up to -15 °C.

Warranty

The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane
• marca: IMMERSION
• metri quadri : 220
• modello: VICTRIX SUPERIOR 32 METANO
• potenza in kw: 32
• potenza nominale: 32
• superficie riscaldabile mq: 220
