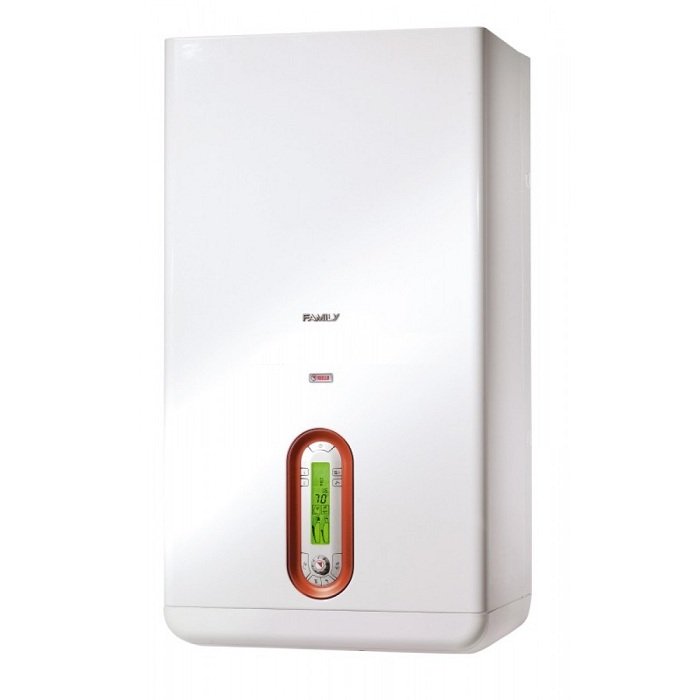

RIELLO FAMILY AR 29 KIS METHANE CONDENSING BOILER COMPLETE WITH FLUE KIT - NEW ErP

Overview

RIELLO FAMILY AR 29 KIS METHANE CONDENSING BOILER COMPLETE WITH SMOKE KIT - NEW ErP 2015: Family AR the new generation condensing boiler specifically designed to operate with high temperatures (delivery 80øC and return 60øC) and therefore in radiator systems

Technical specifications

Product code:ÿ20100511

Energy label specifications according to the European ErP directive

Class B heating energy efficiency

Energy efficiency sanitarywareprofilXL Class A

Characteristics of heating/sanitary operations:

Fireplace thermal power (heating)ÿmin-max: 9.9ú29.0ÿkW

Useful thermal power (DHW) min-max: 9.9ú29.0ÿkW

Energy efficiency(92/42/EEC)ÿ****

Efficiency at Pn* (50øC-30øC): 97.1%

30% return (47ø return): 96.2%

Sealed chamber, forced draft

Quantity of hot water at t 25øC: 16.6 l/min

Minimum domestic water flow rate: 2ÿl/min

Dimensions (hxwxd) mmÿ845 x 450 x 332; 44 kg

Electrical protection ratings: IP X5D

NOx class: 2

Fuel: METHANE

List features

FAMILY AR

Yield****ÿ

Combined models for heating and domestic hot water production

Family AR is the new generation condensing boiler specifically designed to operate at high temperatures (delivery 80øC and return 60øC) and therefore in radiator systems. Family AR includes Altaresa condensing technology in the Family aesthetics and special functions. Family AR features Air/Gas combustion (patented): thanks to the modulating fan, the mixture of air and gas is kept optimal and constant across the entire power range, always maintaining high efficiency. Thanks to the post-exchanger in treated aluminium, very high final efficiency of 102.9% is achieved. The climatic regulation managed directly by the boiler control unit, via the external probe (accessory), allows the temperature of the heating system to be appropriately adapted to the external climatic conditions. The equipment is completed by anti-freeze systems (up to -3øC), circulator anti-blocking, vie, TastBenessere and Tastrapid which reduces waiting times for domestic hot water.

Family AR available with powers of 25, 29 and 35 kW.

Features:ÿ

Technology, ease of management controls:

,¶½ TastMemory: Enable machine intelligence.

- in sanitary: hot water always ready and without waste, according to the family's usage habits.

- in heating: reduction of home heating times.

,¶½ TastBenessere: keeps the hot water supply at the ideal temperature for the shower (40øC customizable +/- 5øC).

,¶½ Touch&Go function: directly from the tap, activates preheating for a single water draw.

,¶½ Intelligent system filling: allows you to fill the system completely autonomously.

Air/gas combustion (patent): optimal mixture of gas and air to obtain high and constant efficiency across the entire power range with final efficiency of 102.9%.

Condensing exchanger located downstream of the fan for further recovery of the heat contained in the exhaust fumes.

ÿAdvantages for installation

Yield secondDir. 92/42/EEC.

Low consumption circulator (IEE0.20)

Climatic regulation managed directly by the boiler control unit

Family special functions: TastBenessere, TastMemory, Touch&Go function

Intelligent implant fillings

Mounting template, hydraulic fittings, electrical power cables supplied

ErP: Energy related Products

Is ErP the acronym for Energy related Products? (products connected to the use of energy) and the abbreviation that identifies the European ErP Directive 2009/125/EC, defined by the EEC with the intention of reducing the energy consumption of products through eco-design (or eco-design?).

The scope of action of this European Directive is extremely broad and up to now has affected products such as light bulbs, air conditioners, washing machines, fans, etc. Following the publication in September 2013 of a series of implementing regulations, starting from 26 September 2015 it will also apply to heating products and domestic hot water production.

From the same date, other regulations will also become effective which will implement the energy labeling of the same product families. The transitional period between the publication of the regulations and their activation throughout the European Community is necessary to allow full transposition of the contents by companies and market players.

The regulations issued require that all products intended for heating and/or the production of domestic water, with a nominal thermal power lower than or equal to 70 kW, are placed on the market with an "energy label" which highlights their efficiency class.

Note: the regulation provides for the mandatory presence of the energy label for the release of the product from the factories to the market. All products previously placed, for example present near distribution warehouses, can be regularly marketed even if they do not have an energy label. Different energy labels have been provided based on the use of the generator used: for heating from A++ to G; for the production of domestic water from A to G.

The purpose of energy labels is to allow the consumer to easily identify the level of efficiency of a product and to be able to carry out a homogeneous comparison between products that use different technologies. For products whose transformation efficiency is influenced by external conditions, such as heat pump products, as well as air conditioners, the efficiency data reported for the average climate range.

In addition to product energy labels, European regulations also provide for the creation of a "system label" when you create a system in which various devices, components and controls operate.

This labelling, thanks to the combinations of the data of the different elements used in the system, will allow the creation of systems capable of reaching efficiency levels even higher than those of the individual generators. The European regulation provides that the system label must be made available by those who supply and/operate the system (sellers-installers); this faculty is also granted to builders.

Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: B
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: Riello
• metri quadri : 180
• modello: CALD_336
• potenza in kw: 29
• potenza nominale: 29
• superficie riscaldabile mq: 180
