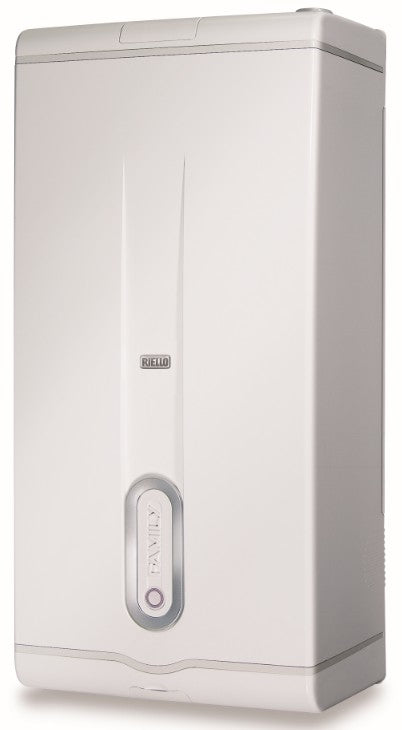

RIELLO FAMILY EXTERNA CONDENS 3.0 KIS METHANE CONDENSING BOILER COMPLETE WITH FLUE KIT - NEW ErP

RIELLO FAMILY EXTERNA CONDENS 3.0 KIS METHANE CONDENSING BOILER COMPLETE WITH FLUE KIT - NEW ErP

---

Technical features

• Product code: 20102940
• Energy label specifications according to the European ErP directive

• Class A heating energy efficiency
• DHW energy efficiency profile XL Class A
• Heating/DHW operation characteristics:
• Fireplace thermal power (heating) min-max: 3.2÷25 kW
• Useful thermal power (DHW) min-max: 3.2÷30 kW
• Energy efficiency (92/42/EEC) ****
• Useful efficiency at Pn* (50°C-30°C): 106.8%
• 30% Profit Yield (47th Return): 107.9%
• Sealed chamber, forced draft
• Quantity of hot water with Δt 25°C: 17.2 l/min
• Minimum domestic water flow rate: 2 l/min
• Dimensions (hxwxd) 1002 x 475 x 311 mm; 50 kg
• Electrical protection degree: IP X5D
• NOx class: 5
• Fuel: METHANE

Family Remote Control, supplied as standard

---

FAMILY EXTERNAL CONDENS

• Yield ****
• Low polluting emissions
• Aluminum condensation, with premixed burner
• Combined instantaneous and storage heating models
• For outdoor installations in the open air

Family Externa Condens is an outdoor wall-mounted boiler that can be installed completely in the open air. The new primary heat exchanger completely made of aluminum with front accessibility to the combustion chamber guarantees better efficiency and durability. It is available with powers from 3.2 to 30 kW.

---

Characteristics:

• Modulation ratio 1:10 (minimum power 3.2 kW) which allows the boiler to respond to all heat requests
• Modulating circulator, low consumption (EEI≤0.20)
• 3 Stars in sanitary comfort according to EN 13203
• Family Remote Control, supplied as standard, allows the management of all boiler functions directly from inside the home
• Antifreeze up to -15°C
• Remote alarm system that allows remote signaling of the boiler lockout status
• Family special functions: Wellbeing button, Memory button, Touch&Go function,
• Intelligent system filling
• External probe as standard.

The FAMILY Remote Control kit (remote control panel) is the tool that allows you to manage the boiler remotely. The panel controls the temperatures of the boiler, storage tank and room, controls and supervises the operating regimes, the activation times and reports any anomalies.

---

The remote control panel can be configured as:

Chronothermostat (factory confi guration): it will work according to the standard heating program or according to the customized one. In this confi guration the control panel tries to maintain the environment at two temperature levels (comfort and reduced), switching from one to the other at times established by the user.
Thermostat: heating is activated when the temperature detected by the room probe (contained in the control panel) is lower than that set regardless of the stored heating program.

---

Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: Riello
• metri quadri : 220
• modello: CALD_341
• potenza in kw: 30
• potenza nominale: 30
• superficie riscaldabile mq: 220
