Description
Description

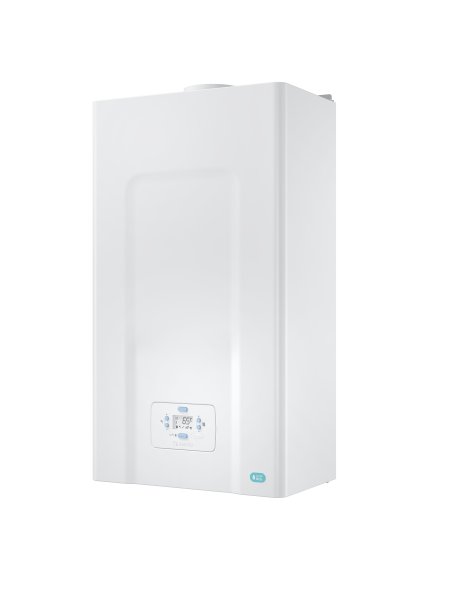

Beretta CIAO AT 25 C LOW NOx condensing boiler Complete with flue kit 20176941 LPG - NEW
Technical specifications according to ErP directives
- Class B heating energy efficiency
- Class A sanitary energy efficiency
- Sanitary load profile - XL
Technical features:
- Nominal heat input kW 25.00
- NOx Class 6.00
- Total electrical power 102.00 Watts
- IP electrical protection degree IPX5D
- Expansion tank capacity 8 litres
- Maximum pressure bar 8
- Quantity of hot water with Δt=25°C litres/min 14.3
Dimensions
- Boiler size (HxWxD) 715x405x250 mm
CIAO AT with stainless steel exchanger
BERETTA PRESENTS THE NEW CIAO AT , THE SPECIFIC CONDENSING BOILER FOR REPLACEMENT IN TRADITIONAL HIGH TEMPERATURE SYSTEMS
The new CIAO AT range comes in two combined models with 25 kW of power, powered by methane and LPG respectively. Both models are equipped with hydraulic connections with DIN standards, to allow easy replacement even of boilers with hydraulic standards different from Beretta. Many new features compared to the previous range. First of all, the new post-exchanger in stainless steel and composite material, which allows it to pre-heat the water returning from the primary circuit using the residual heat of the exhaust fumes. The cooled burner, the new electronics and interface, the reduced depth of the boiler which allows it to be installed even in small recesses, complete the innovative profile of this product, which is preparing to become the reference in the specific segment of replacement of radiator systems . The simple and linear design, in line with the Beretta style, the compact dimensions and the installation flexibility make CIAO AT easily integrated into any living context, both inside homes and outside (in partially protected places) or built-in, also through dedicated accessories.
The Technical Characteristics
- New layout with compact dimensions and reduced weight (only 31 kg!) to facilitate transport and built-in installation
- Traditional copper primary exchanger
- New and robust post-exchanger with finned pack in stainless steel with taste and composite material
- Sanitary plate exchanger with the possibility of pre-heating
- Innovative gas-air combustion supervision system
- Sealed chamber and forced draft boiler with cooled low NOx burner
- Automatic by-pass as standard
- Modulation range 1:3
- Low consumption circulator (EEI ≤ 0.20), 6 m, with anti-blocking
- Standard analog hydrometer
- Low NOx emissions: CLASS 6 (EN 15502-1)
- Innovative gas valve adjustment procedure
- DIN type hydraulic connections sequence, ideal for replacing products with the same type of connections
- Maximum installation flexibility: Indoor, outdoor and built-in installation (in a partially protected place)
- Antifreeze resistor kit, hydraulic connections and external probe available as accessories
- New flue flange with click fit connection: Fast and safe, without the need for an external collar
- IPX5D electrical protection degree
- AA boiler support template supplied
- Compatible with BeSmart command
- Thermostat
CIAO AT is able to satisfy the most demanding requirements in terms of low emissions, in order to make heating appliances less polluting. Thanks to the innovative CIAO AT burner, of the hyperstoichiometric type, a very low flame temperature is obtained. From this characteristic, in combination with the cooling of the burner through the water of the heating circuit, comes a significant lowering of the polluting values of carbon monoxide and nitrogen produced by combustion, such as to fully satisfy the new limits imposed by the legislation ( EU Regulation 814/2013).
NEW INTERFACE
The new CIAO AT digital interface, designed with particular attention to ease of use, is equipped with a modern backlit display that allows immediate and complete reading of information on the operating status of the machine, both for the user and for the installer or maintenance technician. Using six buttons with intuitive functionality, it is possible to easily adjust both the heating and domestic hot water temperatures and access the configuration of the machine parameters, rather than resetting the alarm states.
UNIVERSAL INSTALLATION
Ciao AT is designed to also be installed outdoors in partially protected places or contained recesses (e.g. Edilbox Beretta), thanks to the board's antifreeze protection up to 0°C. In colder temperature conditions it is possible to extend the protection down to -10°C using the appropriate antifreeze heater kit.
Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 35.0 kg
- classe energetica produzione acs: A
- classe energetica riscaldamento: B
- gas: LPG
- marca: BERETTA
- metri quadri : 150
- modello: 20176941
- potenza in kw: 25
- potenza nominale: 25
- superficie riscaldabile mq: 150
