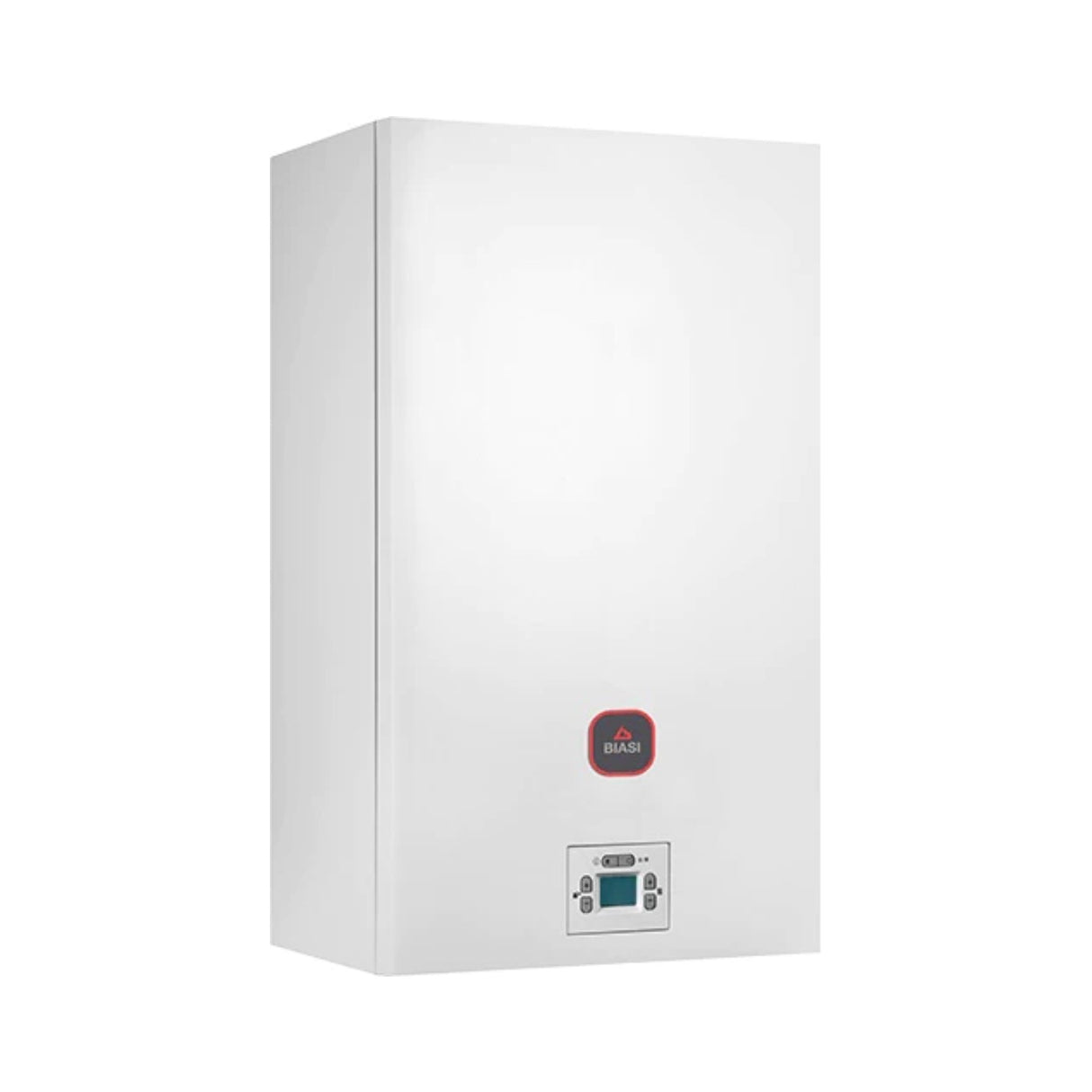

Biasi RinNOVA COND 24S condensing boiler Low NOx class A Complete with methane fume exhaust kit
Biasi RinNOVA COND 24S condensing boiler Low NOx class A Complete with methane fume exhaust kit - Kit Fumi Coassiale is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso dell'ordine.
Consulta le tabelle con i pesi per l'Italia e per le Isole Minori e Zone Disagiate.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Biasi RinNOVA COND 24S condensing boiler Low NOx class A Complete with methane fume exhaust kit
- Technical data
- Nominal heat input for heating/DHW kW 21.0 / 25.0
- Minimum heating/DHW heat output kW 5.1
- Maximum useful power for heating/DHW 60°/80°C * kW 20.6 / 24.6
- Minimum useful power for heating/DHW 60°/80°C * kW 4.8
- Maximum useful power for heating/DHW 30°/50°C ** kW 22.6 / 26.9
- Minimum useful power for heating/DHW 30°/50°C ** kW 5.3
- Condensate quantity at Q.nom. 30°/50°C (in heating) ** l/h 4
- Condensation quantity at Q.min. 30°/50°C (in heating) ** l/h 0.8
- Condensate pH 4.0
- Return name 60°/80°C * % 98.2
- Return min. 60°/80°C * % 94.1
- Return name 30°/50°C ** 107.5
- Return min. 30°/50°C ** % 104.9
- NOx class 6
- Minimum/maximum heating temperature ****°C 25 / 85
- Minimum/maximum heating pressure bar 0.3 / 3.0
- Expansion tank capacity 7 l
- IPX5D protection rating
- Height x Width x Depth mm700 x 400 x 300
RinNova Cond completes the BIASI premixed condensation range: perfect for radiator systems and suitable for radiant systems with mixing units.
RinNova Cond is the compact condensing boiler that ensures high efficiency, low consumption and respect for the environment.
Available for heating and domestic hot water production, in 24, 28 and 32 kW powers.
RinNova Cond is in class A, therefore it benefits from the tax deduction according to current legislation.
- Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
- Total premix burner, stainless steel (NOx Class 6)
- 1:5 methane and also LPG modulation
- Stainless steel plate sanitary exchanger
- 7 liter expansion tank
- High efficiency pump with low energy consumption
- Integration with BIASI solar systems, using a solar kit
- Digital readout in the pressure display
- Provision for remote control and external probe
Compact brass hydraulic unit. Delivery group with integrated motorized diverter, by-pass and system filling tap. ERP circulator with manual pump release on return group.
Remote commands
The RinNova Cond range has the choice of 2 class V remote controls (allowing a 65% deduction), in the Base and Top versions with weekly chronothermostat functions with up to 4 programmable periods with independent temperatures, in addition to the remote control of all the information on the boiler display.
Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 40.0 kg
- classe energetica produzione acs: A
- classe energetica riscaldamento: A
- gas: Methane
- marca: Biasi
- metri quadri : 150
- modello: 10312.0228.0
- potenza in kw: 25
- potenza nominale: 25
- superficie riscaldabile mq: 150
