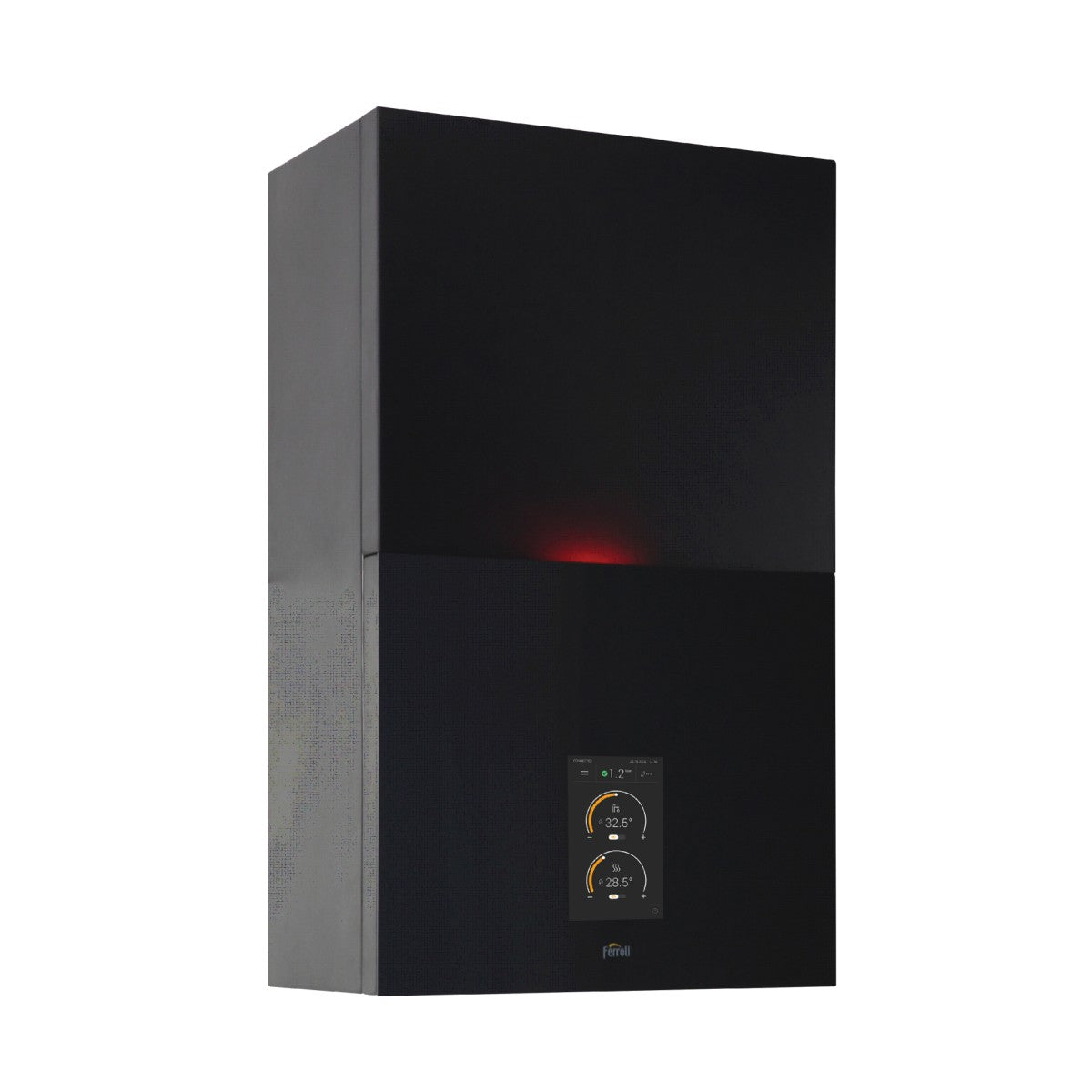

Ferroli Bluehelix Sublime 34C condensing boiler cod. 0TSB7AWA complete with IOt connect fume exhaust kit with remote control and external methane or LPG probe - News

Ferroli Bluehelix Sublime 34C condensing boiler cod. 0TSB7AWA complete with IOt connect fume exhaust kit with remote control and external methane or LPG probe - News

• ERP heating class A+
• Healthcare ERP class A
• XXL load profile
• Max / min heating flow rate (Hs) kW 30.6 / 2.9
• Max / min heating power (80/60°C) kW 30 / 2.8
• Max / min heating power (50/30°C) kW 32.5 / 3.1
• Max / min DHW heat output (Hi) kW 34.7 / 2.9
• Max / min DHW heating power kW 34.0 / 2.8
• Efficiency 30% (Hi) % 109.5
• Max / min heating operating pressure bar 3 / 0.8
• Sanitary flow rate ∆t 25°C l/min 19.5
• Dimensions HxWxD 700x420x320

BLUEHELIX

The most beautiful boiler ever

BLUEHELIX SUBLIME, the most beautiful wall-mounted boiler ever with an exclusive design (Patented) has finally arrived on the market. Its exclusive lines radically innovate the aesthetic concept proposed so far, through the use of crystal and the revolutionary use of curved shapes. A multicolored ambient LED, set in a central position, allows you to perceive the status and operating modes of the boiler on a visual chromatic level. The large 7'' full color touch screen display integrated into the front surface of tempered black glass allows the user to interact with the product in a totally smart way. A rich series of accessories is supplied such as: smart remote control manageable from iOS and Android apps, hydraulic connection kit complete with taps and cover, external temperature probe, router with integrated mobile network connectivity. Designed to fully satisfy the requests for a "robust" product from every point of view: high passage primary heat exchanger , enhanced 20 plate secondary sanitary exchanger, high prevalence circulator, new control electronics with integrated connectivity on the VODAFONE mobile network BUSINESS that does not require a home wifi network. All elements designed to guarantee maximum efficiency and reliability over time.

INNOVATION

Developing sustainable and low environmental impact solutions capable of combating global warming is now a reality! BLUEHELIX SUBLIME is already able to self-regulate autonomously (plug-in) and function correctly in total safety with natural gas mixtures enriched with hydrogen already available for distribution in Europe (*).

BLUEHELIX SUBLIME is not only beautiful but achieves one of the highest room heating energy efficiency in the boiler category: ηs 94% and when combined with the remote timer control and the external probe (supplied as standard) it reaches the energy class system rating A+ (scale from G to A+++).

TOP SILENCE: ONLY 45 dB*

The particularly careful design of BLUEHELIX SUBLIME has allowed it to achieve significant values ​​in terms of silence and acoustic comfort , so much so that it would almost be difficult to distinguish the background noise of a home from the noise produced by the boiler during full operation. Even the boiler on/off transients have been optimized according to acoustic comfort, so that the customer will no longer have to worry about understanding whether the boiler is on or off by its noise as on older generations of boilers.

THE CONNECTION REVOLUTION!

BLUEHELIX SUBLIME is the first connected boiler that uses IoT technology integrated on a mobile network powered by Vodafone Business. (*) Finally an intelligent boiler capable of communicating with the user both via App, with smartphone devices, but also through text messages or voice messages (Patent Pending) to all other telephone devices, without the need for a home wifi network! More than easy, easy! Thanks to the self-configured "mobile" gateway which requires no intervention from the user.

BOILER CONTROL

Interacting with a boiler has never been so SMART. The innovative control and management electronics of BLUEHELIX SUBLIME are at the highest levels in the category. The large 7'' full touch screen color graphic display allows real-time viewing of operating information thanks to simple and intuitive graphic screens. With a simple touch you can set the temperature set points for heating and domestic hot water . Thanks to the contextual help, BLUEHELIX SUBLIME directly informs the user of the possible causes of the anomaly while providing the authorized technician with indications on possible solutions to be undertaken. If necessary, thanks to the Vodafone Business IoT connectivity integrated as standard, it is possible to directly request intervention from the authorized technical assistance centre. Even the system pressure is no longer a problem because thanks to the semi-automatic system electrocharging function, a simple ''touch'' is enough and the boiler automatically restores the adequate pressure without requiring manual user intervention


WIDE EQUIPMENT OF ACCESSORIES

• Wired remote control for managing home comfort also from a smartphone
• APP available for turning the boiler on/off and managing domestic heating/sanitary comfort remotely via Smartphone (iOS and Android)
• Maximization of room comfort with modulating regulation of the delivery temperature via the Room Climatic Compensation (CCA) and External Climatic Compensation (CCE) functions
• Improves the average seasonal space heating efficiency by +4%.
• Weekly time programming in 30 minute intervals via app
• Alarm display also via app
• Operating modes: Off, Holiday, Automatic, Manual
• Three adjustable temperature levels: Comfort, Economy, Antifreeze

MANAGEMENT VIA APP

The new FERROLI digital platform allows you to manage home comfort in an extremely simple and intuitive way and to take advantage of the remote connectivity services of the Authorized Assistance Centre. Through the FERROLI SMART CONNECT smartphone App it is possible to check the operating status of BLUEHELIX SUBLIME and change its settings to obtain the best possible room comfort. Likewise, the innovative EASY SERVICE management platform created for Authorized Assistance Centers allows you to remotely monitor the product, guaranteeing comfort and assistance at all times.

HYDRAULIC ACCESSORIES

The attention paid to aesthetics for BLUEHELIX SUBLIME has no limits. The boiler is equipped as standard with a fitting cover matching the product to cover the hydraulic kit (5 pipes + 4 taps). Finally, for the most demanding and design-conscious customers, a complete series of optional flue accessories in a color coordinated with the boiler is available.



THE FERROLI THERMOBALANCE TM THERMAL GROUP IN ITS 5 ELEMENTS

The BLUEHELIX SUBLIME combustion cell and exchanger maximize functional advantages and construction robustness. The single-circuit design ensures that any air bubbles in the system do not remain trapped in the exchanger, and makes cleaning with chemical washing as easy as possible.

• Single-circuit stainless steel exchanger with high passages, resistant to clogging and easy to clean
• Self-cooled burner door without insulating panel
• Exclusive special hemispherical stainless steel burner with long-life gasket
• Intelligent “Gas-adaptive” system derived from industrial boilers, which monitors and self-stabilizes combustion as gas + fume conditions vary

THE ENGINE: COMBUSTION CELL

The tube that makes up the BLUEHELIX SUBLIME exchanger is made of stainless steel, a material that allows for an extremely smooth surface, therefore less susceptible to attack by encrusting agents and deposits.

THE ENHANCED HYDRAULIC GROUP

All models in the BLUEHELIX SUBLIME series are equipped with an enhanced 20-plate domestic hot plate exchanger and an enhanced heating circulator with a prevalence of 7.5 mca. The notable increase in the passage section of the 20-plate exchanger compared to a traditional one (e.g. a 14 plates) strongly reduces clogging over time, even in the presence of particularly hard water, greatly increasing its average life and reducing maintenance costs to a minimum. The enhanced system circulation pump with 7.5 meters of prevalence allows all BLUEHELIX SUBLIME models to function correctly by providing all the necessary power even in systems with high pressure drops (particularly large new systems or old systems in the presence of encrustations ).

MC2 : MULTI COMBUSTION CONTROL

The electronics control the flame ionization current in order to guarantee optimal combustion as the air density or gas quality varies. The relationship between the air/gas ratio (λ) and the flame ionization signal is used to control the air-gas ratio itself and therefore combustion. MC2: Multi Combustion Control, the new combustion system with patented gas-adaptive technology improves the adaptability of use as the conditions of the gas network change (e.g. fluctuations or reduced pressures).

Furthermore, the new control electronics allows high modulation fields to be achieved which can reach up to 1:12 for the 34C model. In this way BLUEHELIX SUBLIME is able to adapt to the actual power required by the system with extreme ease and efficiency, avoiding annoying on/off type operations which increase operating costs and reduce the average life of the product.

IDENTITY CARD

• Aesthetics with exclusive lines (Patent) that radically innovate the design concept through the use of tempered glass and curved shapes
• IoT CONNECT: advanced Vodafone Business connectivity on the standard mobile network capable of interacting with the user via App/Sms with smartphone devices, but also through voice messages to any telephone device
• Wide range of accessories supplied as standard: wired remote control manageable via App, external probe, router for mobile network connectivity, hydraulic connection kits, connection cover
• Boiler with high thickness stainless steel primary exchanger, with increased passages to guarantee durability and reduced maintenance
• Enhanced modulating heating circulator with high head on all models capable of adapting even to particularly resistant systems > Electrocharging as standard
• Enhanced sanitary exchanger with a high number of plates, particularly immune to clogging and capable of maintaining the domestic hot water production capacity constant over time
• thanks to the combination with the modulating remote control and the external temperature probe, supplied as standard, it reaches the maximum energy efficiency A+ (scale from G to A+++)
• It easily adapts to load conditions thanks to the wide modulation range which can reach up to 1:12 (mod. 34C, 1:10 mod. 28C)
• MC2:Multi Combustion Control, new combustion system with patented gas-adaptive technology for better adaptability of use as conditions of the gas network change
• Thanks to the standard mobile network connectivity, it does not require the user to purchase additional components/contracts to create a home WiFi network.
• 7-inch color graphic touch screen display
• Immediate display of the operating status thanks to the front multicolor LED
• Particularly suitable for operation in flues that require "heavy" ducting
• Designed to simplify and facilitate normal maintenance and cleaning operations
• Simplified electrical wiring that does not require the removal of the boiler shell thanks to direct access to the external connection terminal block available on the bottom of the product
• EASY SERVICE: thanks to the continuous monitoring of operating parameters it is possible to activate remote technical assistance contracts via Authorized Assistance Centers

Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A+
• gas: Methane/LPG
• marca: Ferroli
• metri quadri : 250
• modello: 0TSB7AWA
• potenza in kw: 34
• potenza nominale: 34
• superficie riscaldabile mq: 250
