NB: THE BEND AND THE PIPE FOR THE COAXIAL KIT MUST BE PURCHASED SEPARATELY

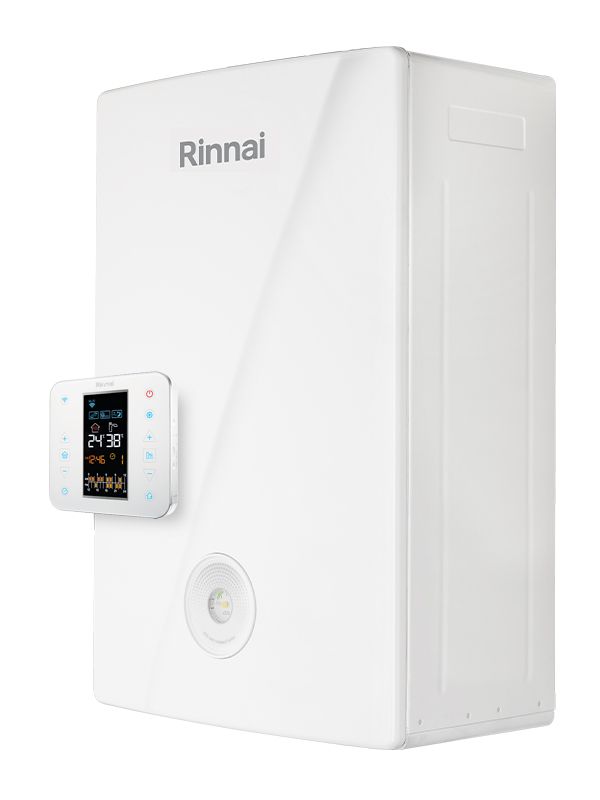

Rinnai Condensing Boiler Momiji 24 kW Complete with Fume Exhaust Kit with Integrated Wi-Fi Chronothermostat

• Code REB-KAI2024FF
• Heating energy class A
• XL load profile
• Nominal heat output kW 20
• EN677 efficiency on PCI (80-60°C) % 96.1
• Nominal power modulation (80-60°C) Heating kW 6.7 - 19.5
• NOx class 6
• Maximum electrical power absorbed in heating W 97
• Electrical power in stand by W < 3
• Supply voltage V/Hz 230 / 50
• IPX5D protection rating
• Domestic hot water supply (ΔT=35°C) l/min 9.6
• Domestic hot water supply (ΔT=25°C) l/min 13.5
• Dimensions (H x W x D) (mm)660x440x285

MOMIJGI

The warm embrace of autumn

MOMIJI are the red maples typical of the East, whose leaves color autumn red, a season that the Japanese experience as "comfortable". Thanks to the mild climate and the temperatures that are becoming welcoming again (no longer the scorching heat of summer, not yet the freezing climate of winter), taking time is even more pleasant. Enjoying your home, as well as the foliage, gives you well-being. Momiji best interprets the union between traditional systems and condensation technology. In fact, although it integrates perfectly with different systems, it is designed to optimize the condensation technology on radiator systems, responding in a concrete way to the savings and eco-sustainability needs of this type of heating, extremely widespread but often unable to fully exploit the advantages of condensation.

Heating is smart

Momiji offers the standard Wi-Fi chronothermostat (which can also be installed in a room other than that of the generator) to manage and control the boiler anytime, anywhere, in complete freedom. Consumption reports, weekly programming, changing settings and management of multiple boilers (such as your own and that of your elderly parents, or your house in the mountains) from the same "My Rinnai" APP, available for Android and iOS smartphones. All this and much more to offer you totally smart management.

The integrated climate probe is a standard of Rinnai heat generators: the internal positioning allows you who use it and you who install it to avoid building work and electrical connections. Thanks to this sensor, you can forget about regulating the temperature of your home and let the generator take care of everything, intelligently adapting its operation depending on the weather, more or less cold. So while the boiler operates in climate regulation at a sliding temperature, you can enjoy a perfect balance between comfort and savings, and no worries.


Momiji Comfort has never been easier

Easy, anywhere

Like the Rinnai Infinity water heaters, the Momiji boilers are also specifically designed to facilitate the installer's work. The device is small, light and compact. It is ready to use and does not need to be configured. The flue system is split Ø80/80 and, thanks to the high prevalence of the fan, it is possible to reach up to 30 equivalent linear metres.

Heat exchange

Momiji features a copper heat exchange, with a large passage section: this facilitates integration into existing radiator systems and simplifies cleaning operations. This range of boilers is the perfect solution for often imperfect traditional systems.

Can also be installed outdoors

Momiji is IPX5D certified and has the antifreeze kit as standard up to -20°C. Thanks to these characteristics it can also be installed outdoors without the need for additional protections

Integrated condensate neutralizer

The Momiji series features the condensate siphon integrated inside the generator, already added with granulate and immediately ready for use. This allows you to simplify installation, always, even when replacing a traditional high-temperature generator. The integrated neutralizer, in fact, allows you to eliminate the acidity of the condensate (water with an acidic pH produced by the normal operation of the heat generator, which is corrosive for the pipes) without having to deal with the costs of purchasing and maintaining an external accessory that performs this function. otherwise indispensable.

Product Warranty: The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: Rinnai
• metri quadri : 120
• modello: REB-KAI2024FF-GPL
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
