Description
Description

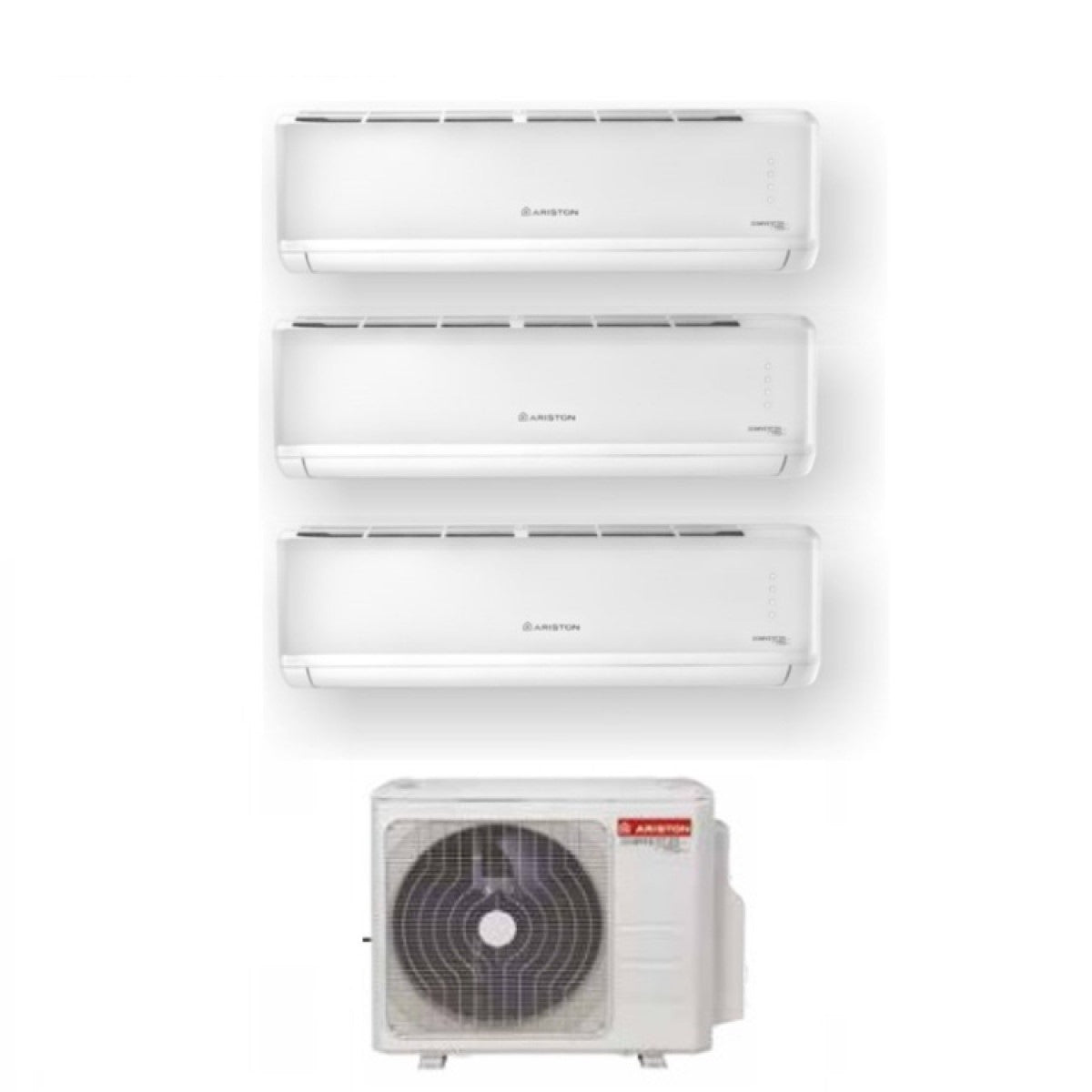

Ariston Trial Split Inverter Air Conditioner ALYS 9+12+18 series with QUAD 110 XD0C-O R-32 Wi-Fi Optional 9000+12000+18000
Internal units
1) Model
- Indoor Unit Catalog Code: ALYS 25 UD0-I (3381251)
- Power: 9000 btu/h
- Capacity: 2.5 kW
- Internal Unit Dimensions: 805x194x285 mm
- Internal Unit Weight: 7.5 Kg
- Wi-Fi Optional
2) Model:
- Catalog code: ALYS 35 UD0-I (3381252)
- Power: 12000 btu
- Dimensions LxHxD (mm): 800x285x194; 7.5kg
3) Model
- Indoor Unit Catalog Code: 1x ALYS 50 UD0-I (3381253)
- Power: 18000 btu/h
- Internal Unit Dimensions: 957x213x302 mm
- Internal Unit Weight: 9.0 Kg
- Wi-Fi Optional
External Unit
Model:
- Outdoor Unit catalog code: QUAD 110 XD0C-O (3381262)
- Max indoor units: up to 4 indoor units
Energy efficiency:
- SEER : 6.1 (W/W)
- SCOP : 4.0 (W/W)
- Annual Energy Consumption in Cooling: 607.8 kW/a
- Annual Energy Consumption in Heating: 2939 kW/a
Performance:
- Cooling Capacity: 10.6 kW
- Heating Capacity: 11.0 kW
- Sound power level: 65.4 dB(A)
- Sound pressure level: 63 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Liquid tube diameter: 6.35 mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x3 + 12.70 mm (1/2")
- Maximum length of pipes: 35 m
- Maximum height difference Internal Unit / External Unit: 15 m
- Guaranteed temperature range:
- - Cooling: -15° ~ 50° C
- - Heating: -25° ~ 30° C
Dimensions:
- External Unit Dimensions: 946x410x810 mm
- External Unit Weight: 68.8 Kg
Alys R-32 Quad
12 Speed
The product has 12 speeds in total: three settable speeds in addition to the three sublevels and the speeds of the dehumidifier, turbo and silence functions.
Low Ambient
Low Ambient Cooling function for cooling
1W Stand-By
Stand-by mode to optimize consumption by up to 80%
Characteristics
- Refrigerant gas R32
- 2D INVERTER technology
- Compatible with ARISTON CLIMA R32 Wi-Fi KIT
- Memory function
- BOOSTER function
- Refrigerant leak sensor
- SELF-CLEANING function
- Auto-matching function for multisplits, for correct hydraulic connection, automatically and in every situation
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 75.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Ariston
- modello: 9+12+18Alys_110
- potenza btu: 9000+12000+18000
- superficie riscaldabile mq: 25/35/50
