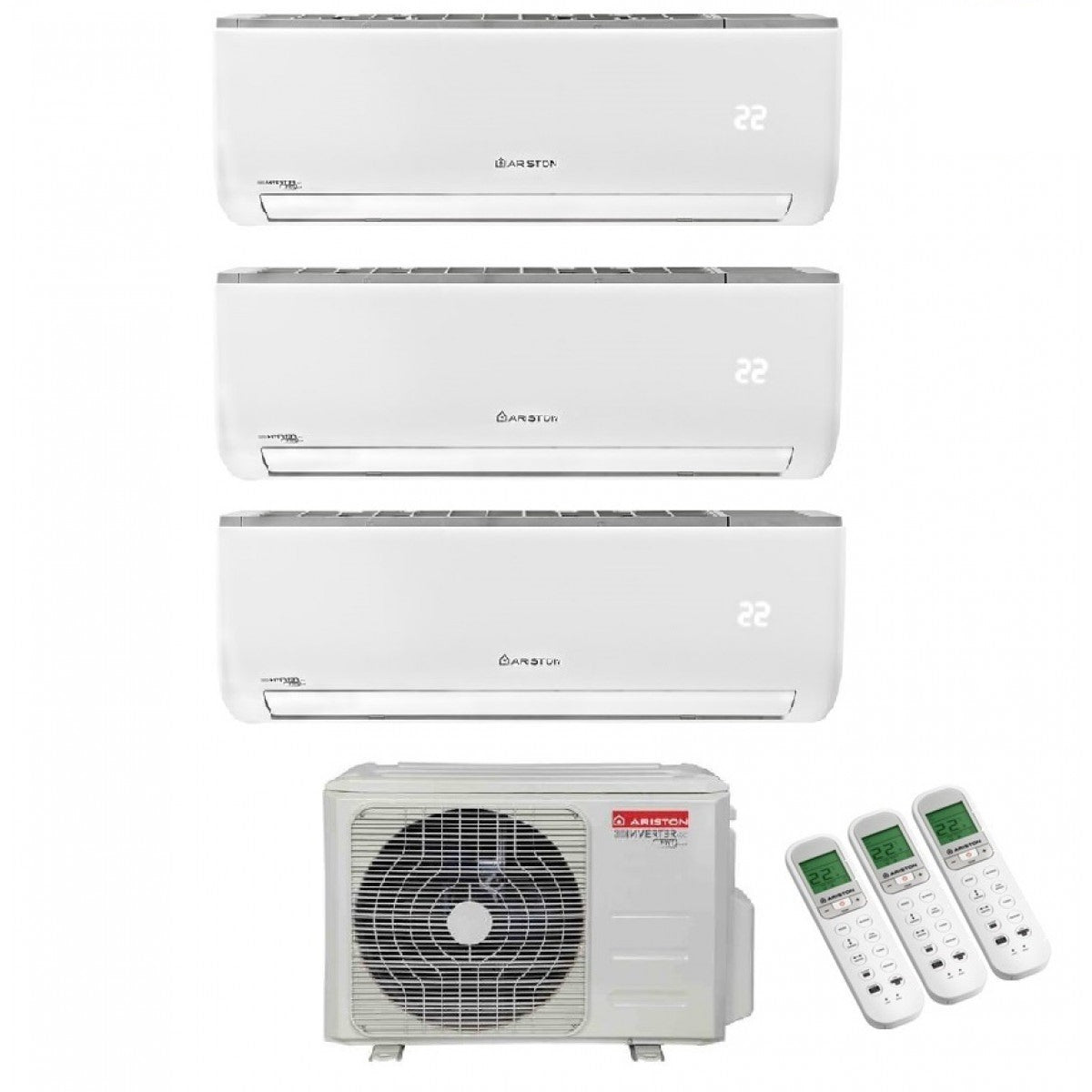

ARISTON TRIAL SPLIT INVERTER AIR CONDITIONER NEVIS 9+9+9 series with TRIAL 80 XD0B-O 9000+9000+9000

Technical features

Internal Units

Model:

• Catalog code: 3 x NEVIS 25 UD0-I
• 25 = 2.5 kW (approximately 9,000 BTU/h)
• U = internal multi
• D0 = SCOP 4.0
• internal unit sound pressure level (silence/min/med/max) dB(A) 20/28/33/39
• internal unit air flow m3/h 549
• outdoor unit air flow m3/h 2100
• dehumidification capacity l/h 1
• Dimensions LxHxD (mm):716x300x193; 7kg

External Unit

Model:

• Catalog code: TRIAL 80 XD0B-O
• Gas: R410A
• TRIAL = 3 internal units
• 80 = 8.0 kW (approximately 27,000 BTU/h)
• X = Multi
• D0 = SCOP 4.0
• O = external unit

Seasonal Performance:

• SEER 6.61
• SCOP (warmest season) 5.18
• SCOP (average season) 4.00
• Cooling energy class A++
• Heating energy class (hot season) A+++
• Heating energy class (average season) A+
• annual cooling energy consumption kwh/a 373
• annual heating energy consumption (hottest season) kwh/a 1645
• annual heating energy consumption (average season) kwh/a 2013
• cooling / heating function YES
• average/warmest reference heating season
• internal unit / external unit sound power level dB(A) 54/68.2

Performance:

• nominal cooling capacity (min - max) BTU/h 24083 (7847 - 27089)
• nominal heating capacity (min - max) BTU/h 19632 (5490 - 30420)
• rated power absorbed in cooling (min - max) W 2183 (162 - 3037)
• rated power absorbed in heating (min - max) W 1549 (286 - 2747)

Electrical data:

• Power (V/Hz/Φ): 220~240/50/1
• Maximum connection length with standard charge m 2x5
• Maximum connection length (total / each unit) m 3x15 / 25
• Maximum difference in height between internal unit and external unit 10 m
• External temperature range in cooling °C -15/50
• External temperature range in heating °C -15/30

Dimensions:

• External Unit HxWxD (mm): 845x363x702; 52.7kg

General characteristics

NEVIS

Nevis, the record-breaking air conditioner, awarded by the Japan Industrial Design Priomotion Organization for the best design up to Class A+++:
ECO function, to further reduce consumption during the cooling phase. SMART DISPLAY to keep you informed in an intuitive and immediate way on the functioning of your air conditioner. BOOSTER function to reach the desired temperature more quickly. Highly silent: the top of the Ariston range.

ECO function The ECO function minimizes electricity consumption, to enjoy maximum comfort with an overall saving of approximately 70% of consumption. The ECO function is only available in cooling mode and is particularly effective if used during the night.

Self-Cleaning Function The Self-Cleaning function reverses the direction of rotation of the fan in the outdoor unit. This reversal of the air flow cleans the external exchanger of impurities, ensuring better maintenance and efficiency of the entire system.

Follow Me function With the Follow Me function, more precise temperature control is possible. With the remote control, by sending a signal to the air conditioner, it is possible to perfectly adjust the desired temperature in the exact point of the room where the remote control is located.

Memory function This function allows you to set and memorize both the temperature and the fan speed (also the sleep function if activated) to guarantee greater comfort the next time you turn it on.

Easy installation and maintenance

Easy cleaning The easy accessibility makes cleaning operations inside the machine very simple. The filter, located in the upper part of the air conditioner, can be removed horizontally with a single gesture.

Easy installation The large space for inserting the support hooks allows for easy attachment to the template. The innovative rotating front panel, which can be dismantled if necessary, facilitates access to the unit. Two rear support brackets, 168 mm long, allow convenient connection of the tubing.

Easy maintenance Quick replacement of the electronic board, without the need to dismantle the front panel / Replacing the fan motor has never been so fast: the operation is done by leaving the air conditioner hanging on the wall.

• Energy class up to A+++
• Backlit display
• Rotating front panel
• Elegant sandblasted surface
• Filter can be removed horizontally with a single gesture
• Reduction of installation time by up to 20%
• Reduction of time for changing the electronic board by up to 60%
• Reduction of fan motor replacement time by up to 80%
• Auto-matching function for multisplits, for correct hydraulic connection, automatically and in every situation
• Awarded as "best designed product 2015" by the Japan Promotion Organization

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
