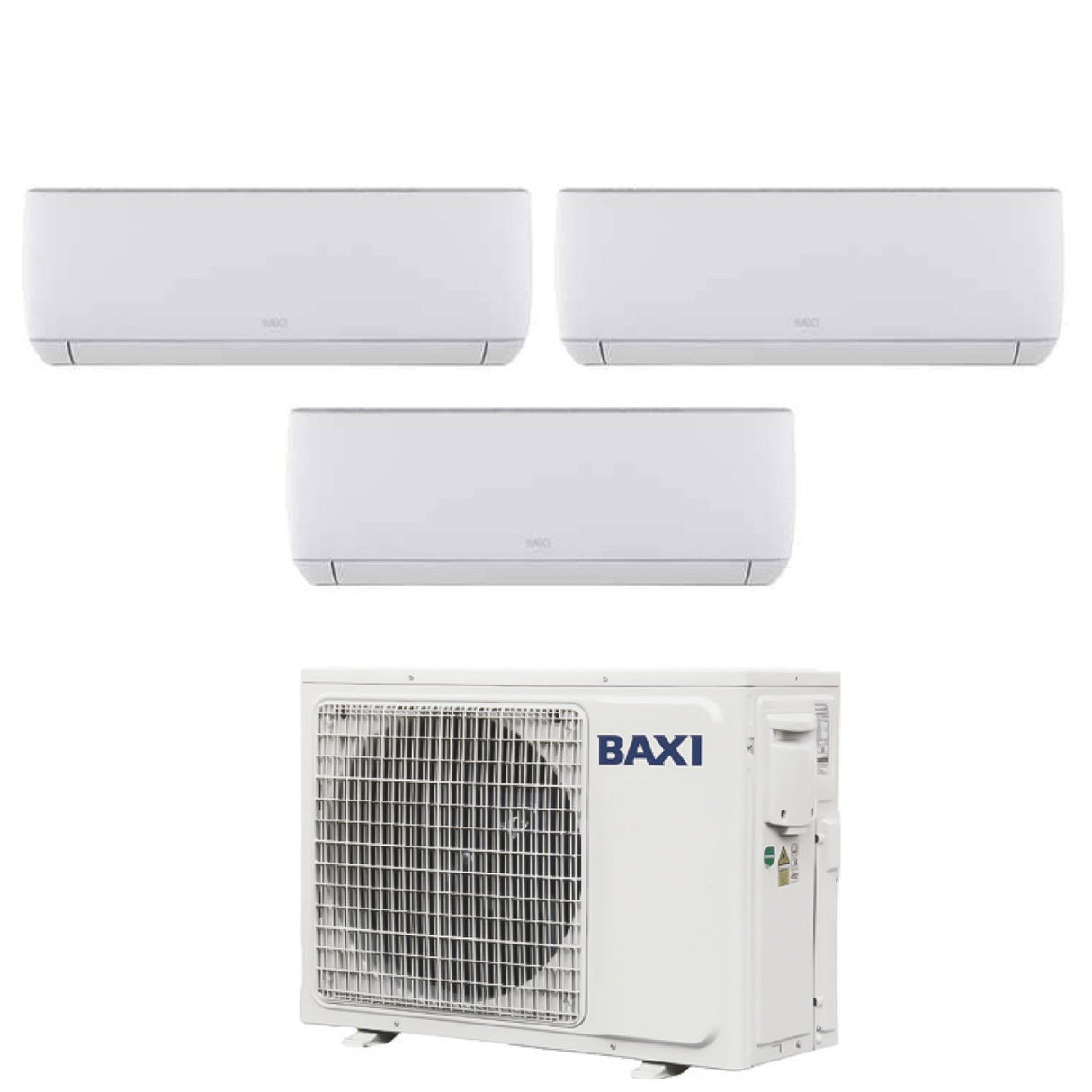

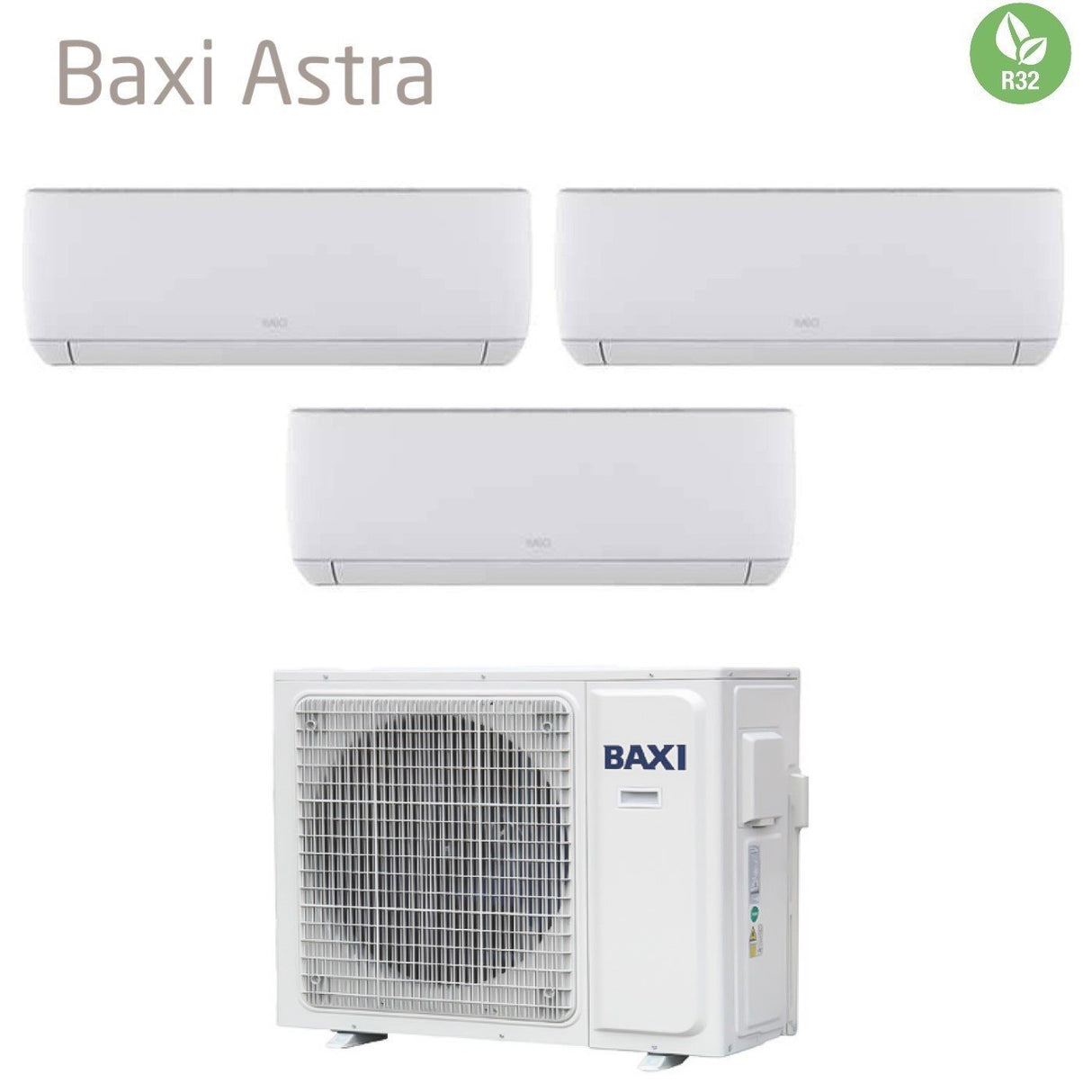

Baxi Trial Split Inverter Air Conditioner ASTRA 9+9+9 series with LSGT60-3M R-32 Wi-Fi Optional 9000+9000+9000 - New

Technical features

Internal Units

Model :

• Indoor Unit Catalog Code: 3x JSGNW25
• Power: 9000 Btu
• Nominal Power in Cooling: 2.55 kW
• Nominal Heating Power: 2.65 kW
• Air flow: 600 m ³ /h
• Sound Power: 53 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions: 792x292x201 mm
• Internal Unit Weight: 8 Kg
• Wi-Fi Optional ( Air Connect )

External Unit

Model:

• Indoor Unit catalog code: LSGT60-3M
• Max indoor units: up to 3 indoor units

Energy efficiency:

• SEER : 6.5 (W/W)
• SCOP : 4.3 (W/W)
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+

Performance:

• Cooling Capacity: 6.20 kW
• Heating Capacity: 6.60 kW
• Std Cooling absorption: 1.89 kW
• Std Heating absorption: 1.77 kW
• Sound power level: 65 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Guaranteed temperature range:
• - Cooling: -10 ~ +46 °C
• - Heating: -15° ~ 24°C

Dimensions:

• External Unit Dimensions (WxHxD): 834x655x328 mm
• External Unit Weight: 44 Kg

BAXI Astra

New matt white and modern design

Totally new, minimal and elegant design with matt white surfaces. The front panel has a strongly vertical cut which makes the design harmonious and exclusive.

Structure of the new Baxi Astra

Lower attacks

It is possible to mount the internal unit on the wall before connecting the pipes, without having to dismantle the entire casing; Furthermore, there is no need to tilt the unit to make connections. This reduces installation times.

Fins

Baxi Astra is equipped with a double set of vertical and horizontal fins, with leaf-shaped fins for uniform air distribution.

Knobs instead of locking screws

Instead of traditional screws, there are locking knobs for dismantling the plastic casing

Total climate control

Easy and intuitive comfort management

Comfort is managed locally thanks to the remote control with liquid crystal display supplied as standard and complete with double keyboard with quick menu on the surface.

Richness of exploitable functions

Smart comfort with Air Connect comfort within reach of your smartphone

The Air Connect App and the WI-FI module allow you to remotely control Baxi Astra air conditioners.

The WI-FI module of the Baxi Astra range consists of a Plug & Play USB device that is extremely simple to install.

Air Connect is the application that allows you to have full control of the temperature and comfort of your home, at any time and from wherever you are.

For the Baxi Astra range, the WI-FI module is available as an accessory. Therefore, after installing the WI-FI module and downloading the App, you can communicate with your Baxi air conditioner directly from your Smartphone and Tablet devices (iOs and Android).

With a simple touch you can: turn the air conditioner on/off, set operating modes, fan speed, vertical and horizontal oscillation of the louvers, active functions, timer, etc.

Air Connect means practicality and ease of use:

• No visual impact: the WI-FI module is inserted in the appropriate housing behind the front panel of the air conditioner

• Easy and intuitive time programming that allows the combination of comfort and high energy savings

• Possibility of controlling multiple appliances with the same App, in the case of Multi Split air conditioners (Dual Split, Trial Split, etc.) equipped with the WI-FI module

• Presence of all the remote control functions directly on your device, such as: Turbo, Sleep, iClean, etc

WI-FI module packaging

The package contains: physical WI-FI module, manual and warranty certificate

Terms of Use

This application is able to manage more than one device (air conditioner) as long as they are Baxi air conditioners, equipped with the appropriate WI-FI module.

---

Cutting-edge technology

DC inverter technology, managing the air supply based on the real needs of the environment, guarantees the optimization of consumption and the reduction of noise thanks to:

• Internal DC fan
• External DC fan
• DC compressor
• Machine controller

Silent

Baxi Astra air conditioners are designed for highly silent operation (up to max 20 dBA) to guarantee quality comfort in the environment in which we stay.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: BAXI
• modello: Astra 9+9+9 60
• potenza btu: 9000+9000+9000
• superficie riscaldabile mq: 25/25/25
