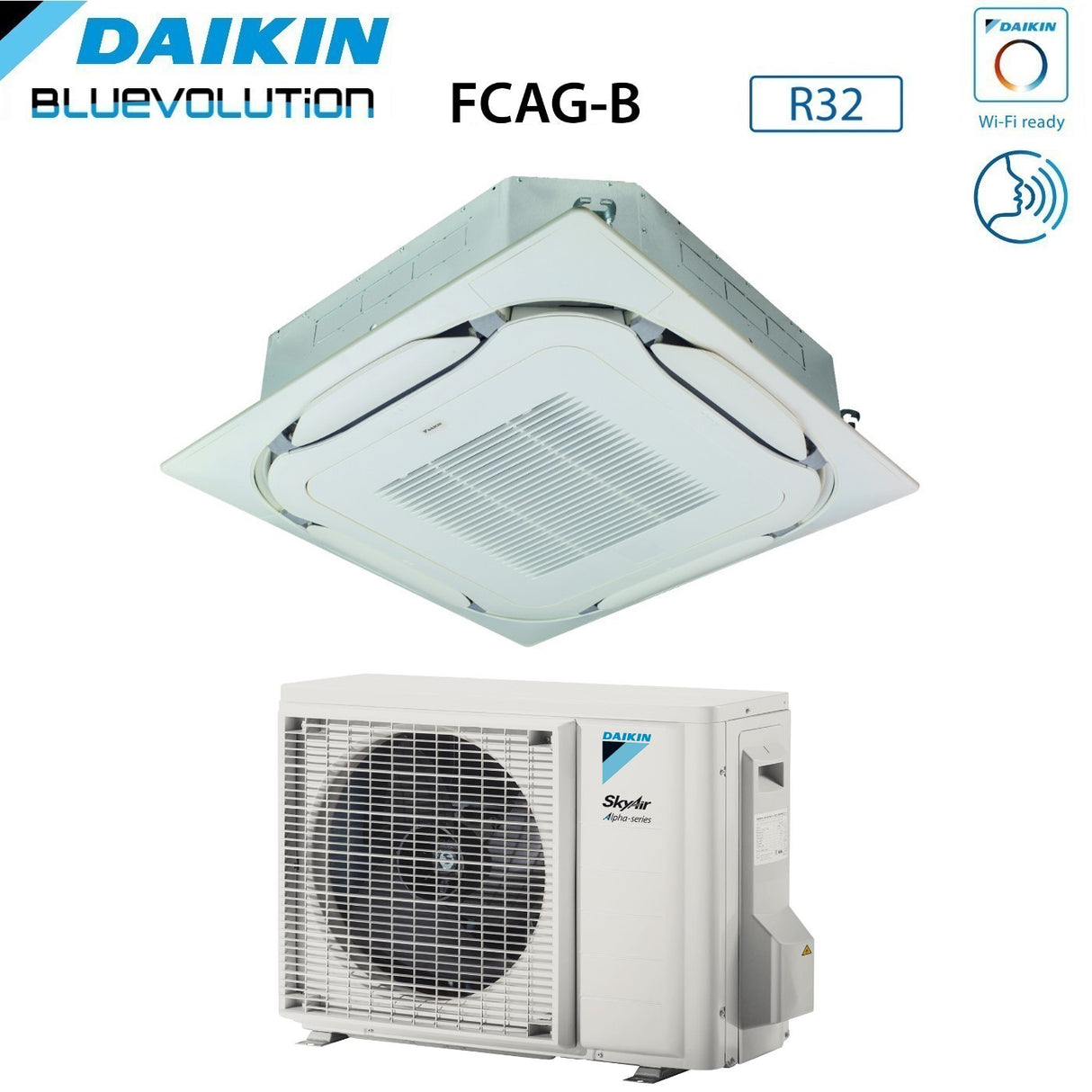

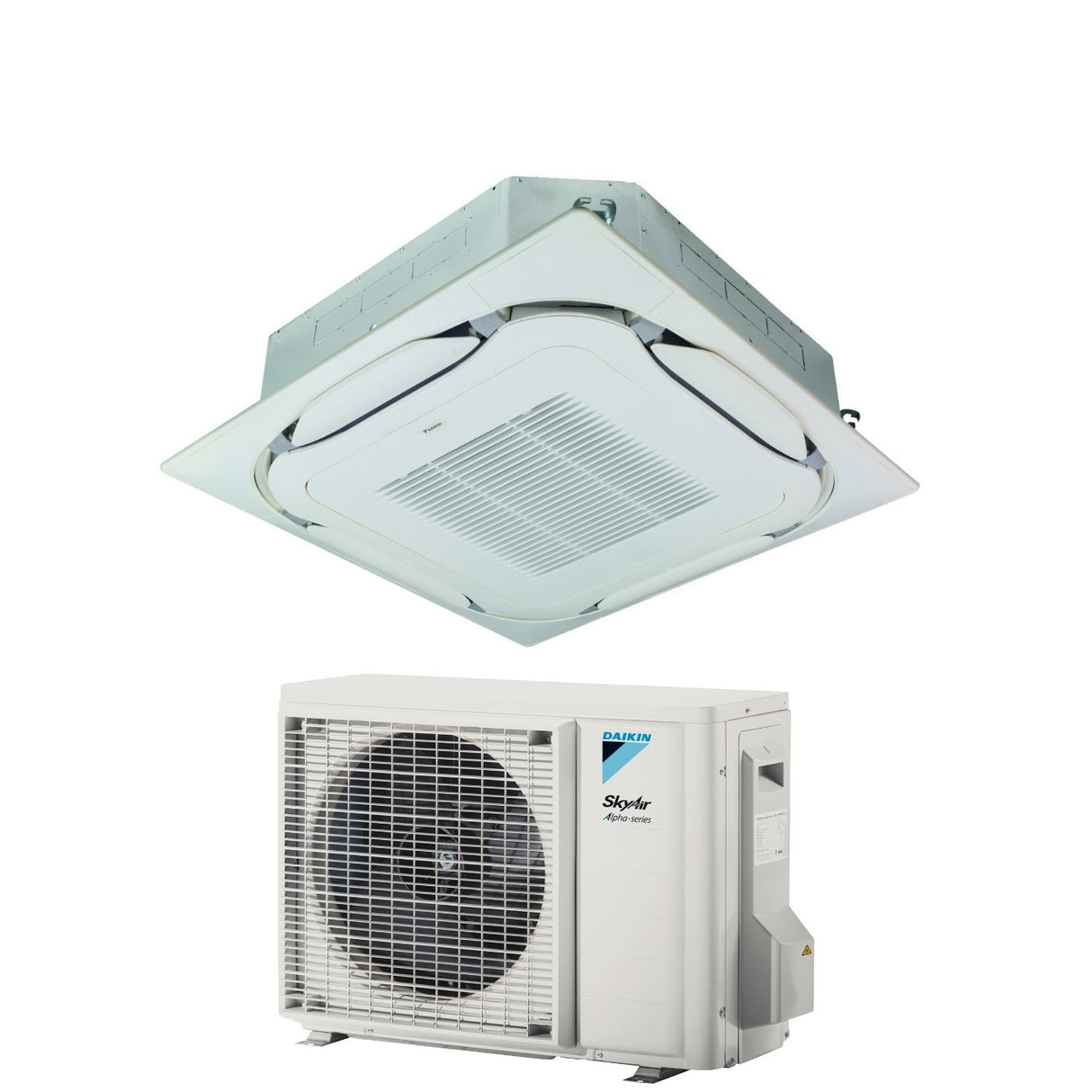

Daikin Bluevolution Round Flow Cassette Air Conditioner 12000 Btu FCAG35B + RZAG35A R-32 Wi-Fi Optional With Standard Grille Included

Technical features

Model:

• Indoor unit catalog code: FCAG35B
• Outdoor unit catalog code: RZAG35A
• Standard grill code: BYCQ140E
• Power: 12000 Btu
• Optional Wi-Fi card (Code BRP069B82  )
• Optional infrared remote control (Code BRC7FA532F )
• Optional Madoka White Wired Control (Code BRC1H519W )
• Optional Madoka Silver Wired Control (Code BRC1H519S )
• Optional Madoka Black Wired Control (Code BRC1H519K )

Energy efficiency

• SEER: 7.30
• SCOP: 4.30
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+
• Annual Energy Consumption in Cooling: 168 kWh/a
• Annual Energy Consumption in Heating: 1074 kWh/a

Performance

• Cooling Capacity: 3.5 kW
• Heating Capacity: 4.0 kW
• Indoor Unit air flow: 10.6 m ³ /min
• Internal Unit Sound Power Level: 49 dB(A)
• External Unit Sound Power Level: 62 dB(A)
• Indoor Unit Sound Pressure Level: 27~31 dB(A)
• External Unit Sound Pressure Level: 48 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Operating range
• - Cooling: -20° ~ 52° C
• - Heating: -20° ~ 24° C

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Maximum length of pipes: 50 m
• Maximum height difference Internal Unit / External Unit: 30 m

Dimensions and weight

• Internal Unit Dimensions (HxWxD): 204x840x840 mm
• Internal Unit Weight: 18 Kg
• External Unit Dimensions (HxWxD): 734x870x373 mm
• External Unit Weight: 52 Kg
• Grid dimensions (HxWxD): 50x950x950 mm
• Grill weight: 5.4 kg

Why choose SkyAir A-series The better the control, the greater the well-being

› Intuitive control via Residential Controller App

› Variable coolant temperature for optimal comfort

› Customization based on the needs of your customers

At the heart of the system

› Equipped with exclusive Daikin technologies, tested and reliable

› Low environmental impact, the GWP value of R32 refrigerant is 68% lower than that of R410A

Flexibility in design

› More compact

> Quieter

› Extended operating range in all climatic conditions

Designed for you

› Faster and easier installation and use

› Quick and reliable replacement

R32 is the future. Join us!

› R32 is more eco-friendly than previously used refrigerants

› Daikin is the market leader and has been driving technological innovation for years

› First complete range on the market with R32 for small commercial applications

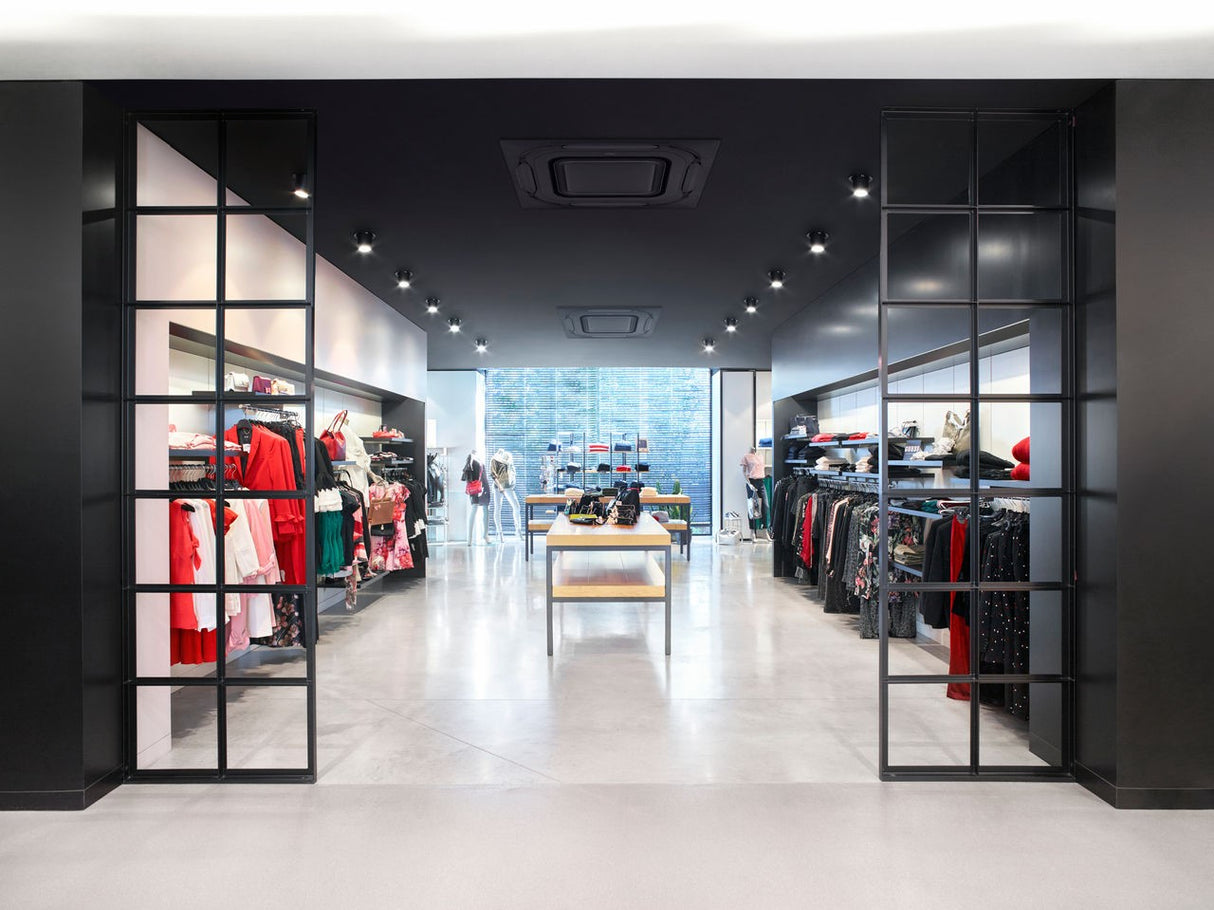

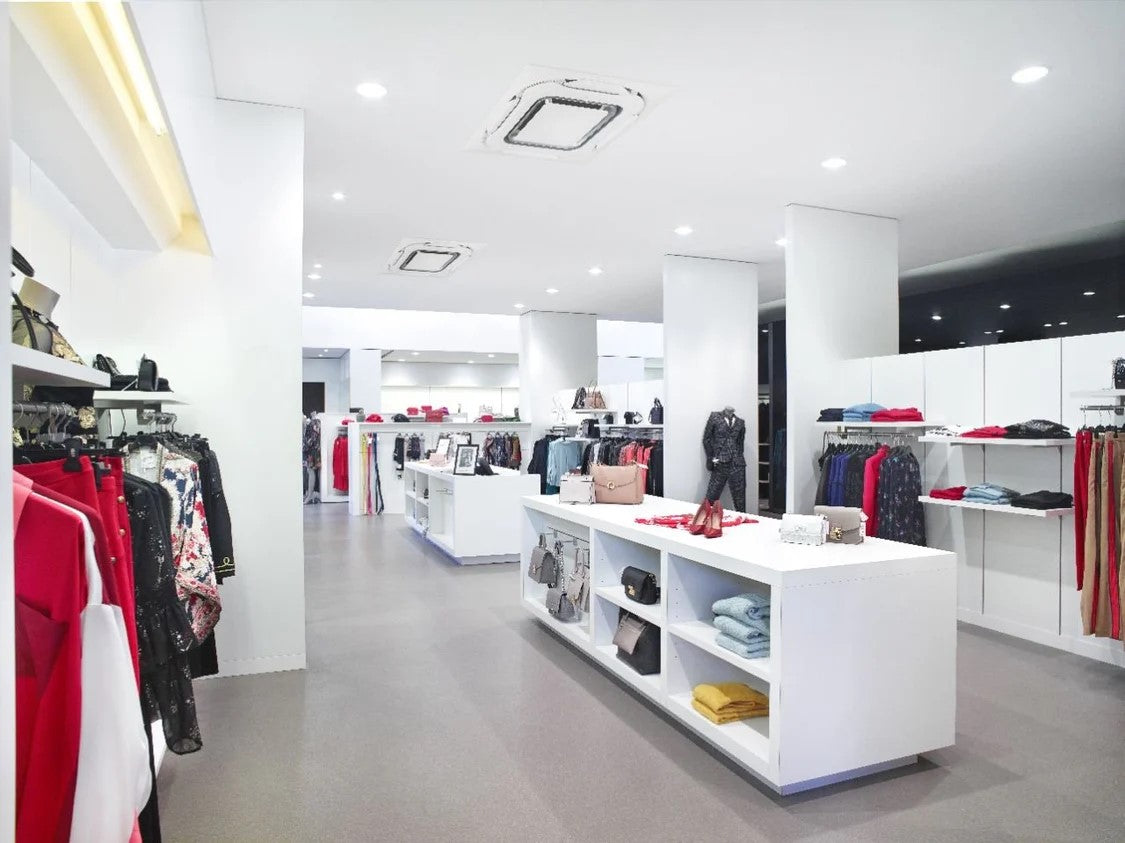

The new Sky Air A series range is ideal for any small-commercial application

Lighter and more compact units for simple on-site installation. Special range with single fans up to 14 kW

New replacement technology

A faster, easier and more reliable approach when replacing old, obsolete systems

› Reduction of any inconvenience and obtaining a system capable of significantly reducing consumption and energy bills

› Hepta filtration able to guarantee reliable operation without having to clean the pipes

› Effective solution in terms of costs and time, as it is sufficient to replace the internal and external units without modifying the pipes

Advantages

› Pipe length increased up to 85 m

› The widest operating range: Cooling mode from -20°C to 52°C, heating mode up to -20°C

› Full range of indoor units available with R32: Over 45 different options for indoor units

› Faster installation with pre-charged piping up to 40 m: 60% of applications can be installed without additional refrigerant charge

› Tilting front panel: new design for easy access to system components

› New 7-segment display: To view any errors and system settings

› Reliability: guaranteed in all climatic conditions, to reduce requests for on-site assistance

› New refrigerant passages: The bottom of the outdoor unit heat exchanger and drain holes are left completely open, allowing freezing water to drain freely, eliminating the risk of ice build-up

› Refrigerant-cooled electronic boards: Stable and reliable cooling, regardless of external conditions

› Integrated leakage control function: for maximum reliability and minimum on-site checks

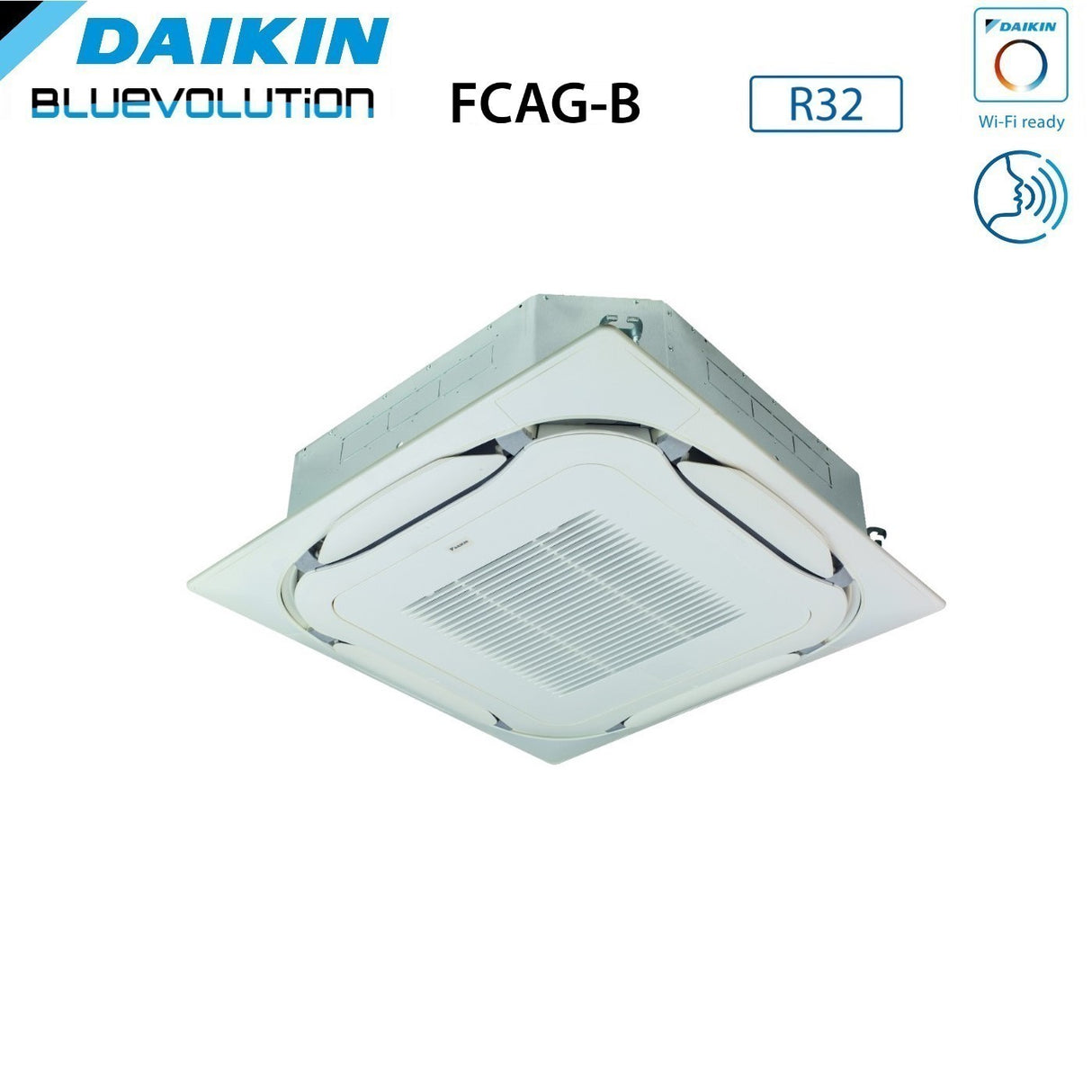

Daikin Round Flow Cassette

Daikin Italy , the Italian branch of the Japanese multinational world leader in air conditioning and heating systems, as well as for the entire cold chain in the refrigeration sector, announces the new Round Flow Cassette , recognized as the most efficient on the market thanks to the technology the avant-garde and excellent design that distinguishes it.

To develop the new Round Flow Cassette, Daikin started from research that revealed the three most important aspects for users: small size , comfort level and aesthetics .

---

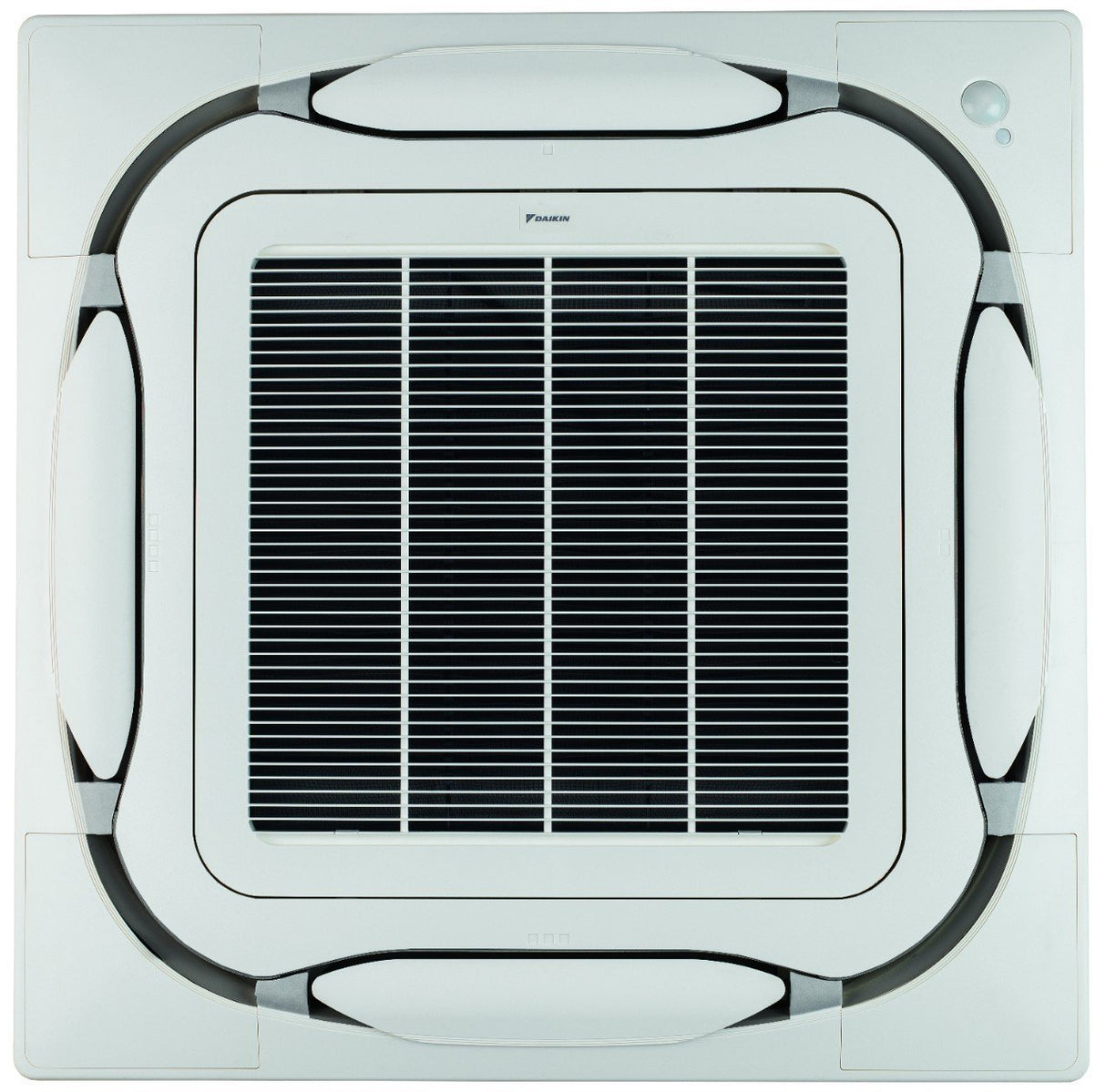

Compact and attractive design

In response to customer needs, the new panel expresses elegance and high technology; It is essential in appearance and easily adapts to any type of furniture. The air intake grilles are invisible and give it a very refined look.

With a height of 204 mm , the new Daikin Round Flow Cassette is the most compact available on the market and offers greater design flexibility to adapt to the environment and different structural constraints

---

The greatest possible comfort

Starting from the proven design of the Round Flow cassette, Daikin has applied new technology, increasing the comfort that can be achieved in an environment and energy efficiency.

Its significant 360° air jet and smart sensors guarantee homogeneous temperatures and air distribution in every point of the room (operating only when necessary and thus avoiding energy waste). Thanks to the new larger deflectors and the Coanda effect, the air flow is more uniform.

Individual control and/or closing via wired remote control allows the device to be customized so that it can adapt to specific room configurations.

The new Active Circulating Air Flow logic was then added. Activated when the device starts, this new function allows you to reach the set temperature as quickly and efficiently as possible. Active Circulating Air Flow also allows for faster start-up and energy savings of 5% in cooling mode and up to 15% in heating mode

The Round Flow Cassette, with a 360° air jet, offers the best comfort available on the market and increases efficiency by up to 50% thanks to self-cleaning technology.

---

Intelligent technologies for a comfortable climate

The 360° air jet of the Daikin Round Flow Cassette eliminates the problem of cold air currents or uneven air distribution. The Intelligent Eye sensor detects the presence of people and directs the air away from them, while the floor sensors ensure a consistent temperature from floor to ceiling.

Daikin's Round Flow cassette, with 23 possible airflow configurations , can adapt to any room layout. The remote control, adjustable baffles and optional locking kit help create 2,3 or 4-way configurations that allow installation in corners, near walls or in irregularly shaped environments . This feature is particularly useful when rearranging rooms, because it allows you to change the air flow without moving the unit .

---

Greater energy efficiency increases savings

The Daikin Round Flow Cassette is equipped with the exclusive self-cleaning filter panel which reduces maintenance costs and increases savings thanks to an energy efficiency up to 50% higher than normal cassettes. The intelligent Eye sensor automatically switches the cassette into energy saving mode or turns it off when it detects no people in the environment, reducing energy costs by up to 27% .

---

Easy maintenance

Daikin's self-cleaning Round Flow Cassette is equipped with the exclusive self-cleaning filter panel, which reduces maintenance times and costs. Furthermore, an always clean filter improves energy efficiency by up to 50% compared to normal cassettes, guaranteeing significant savings. The Intelligent Eye sensor detects the presence of people and directs the air away from them, as well as reducing energy costs by 27% when it automatically switches to energy saving mode or turns the unit off if there are no people in the room.

Forget the ladders and the cleaning technician: all you have to do to remove dust from the collection box is connect it to a regular vacuum cleaner.

---

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

---

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

• peso: 35.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A++/A+
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: R-32
• marca: Daikin
• metri quadri : 25-40 m2
• modello: FCAG35B + RZAG35A
• potenza btu: 12000
• potenza in kw: 12000
• superficie riscaldabile mq: 35
