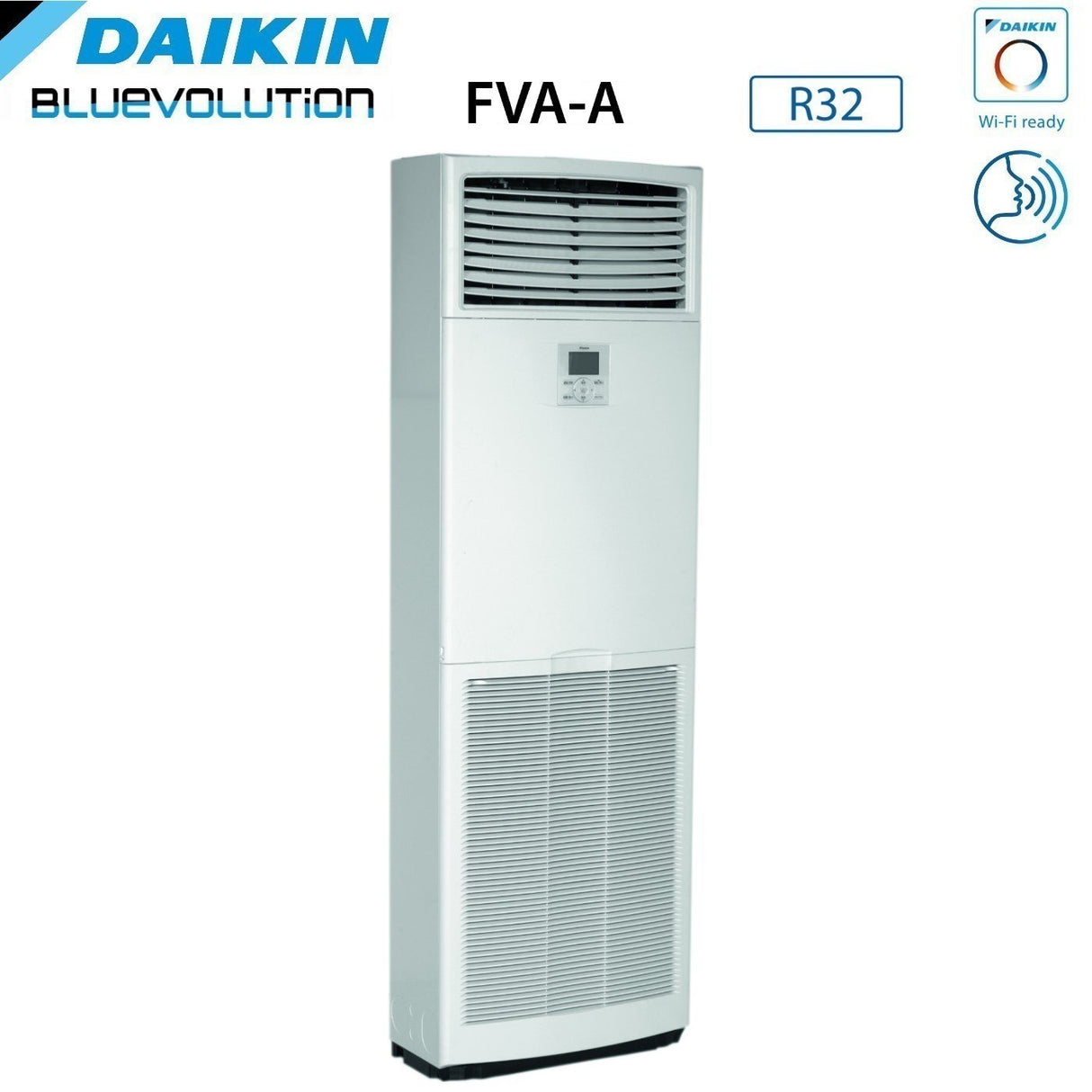

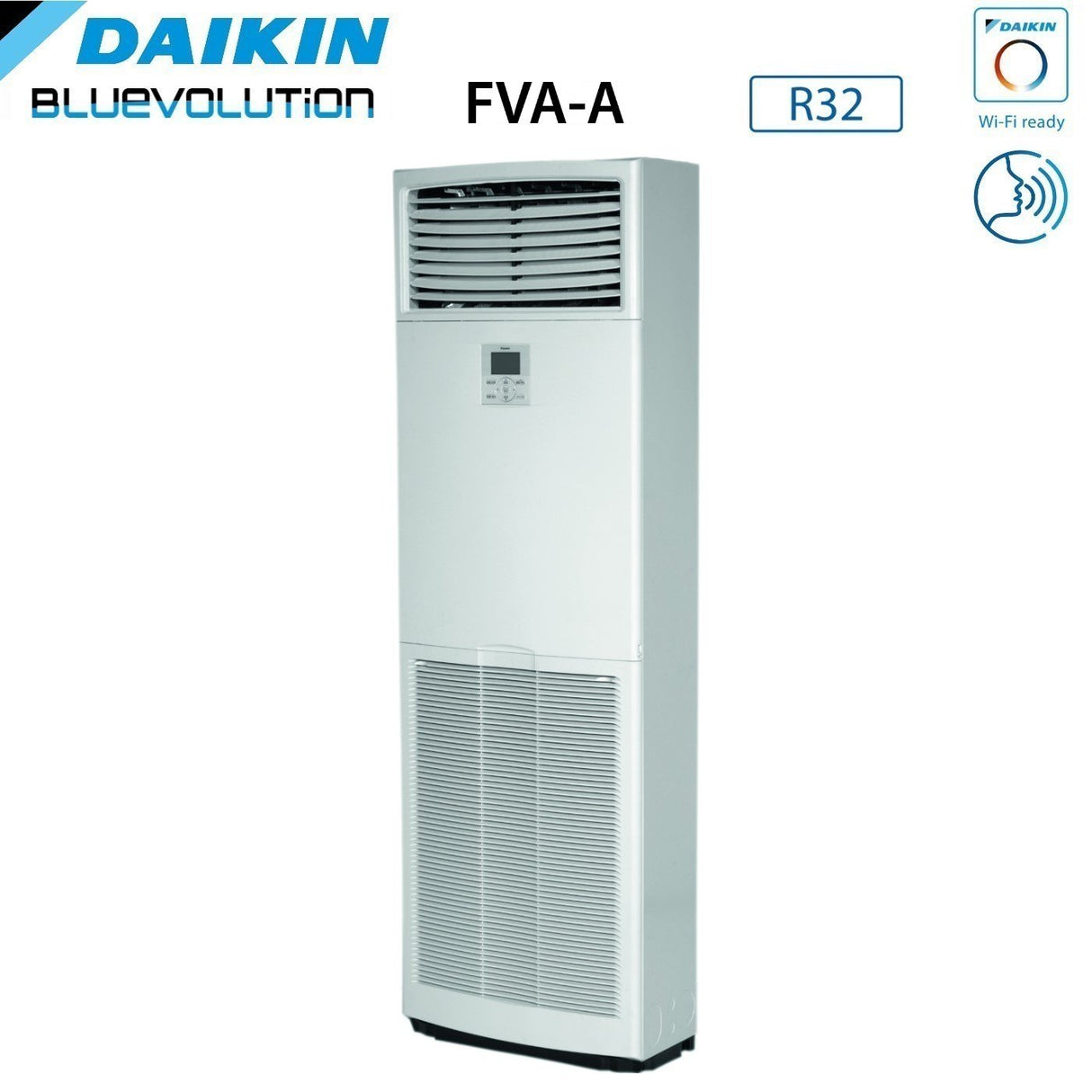

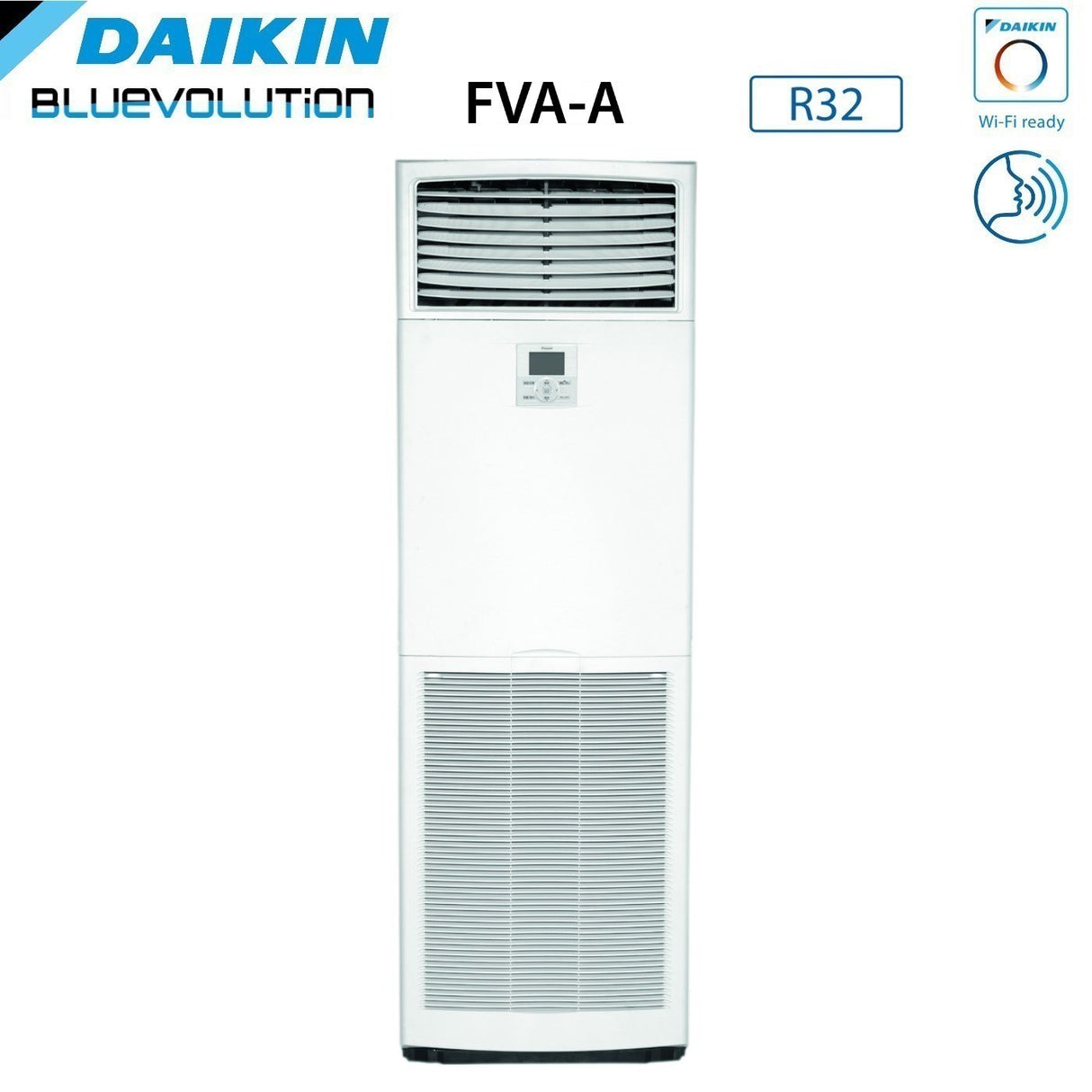

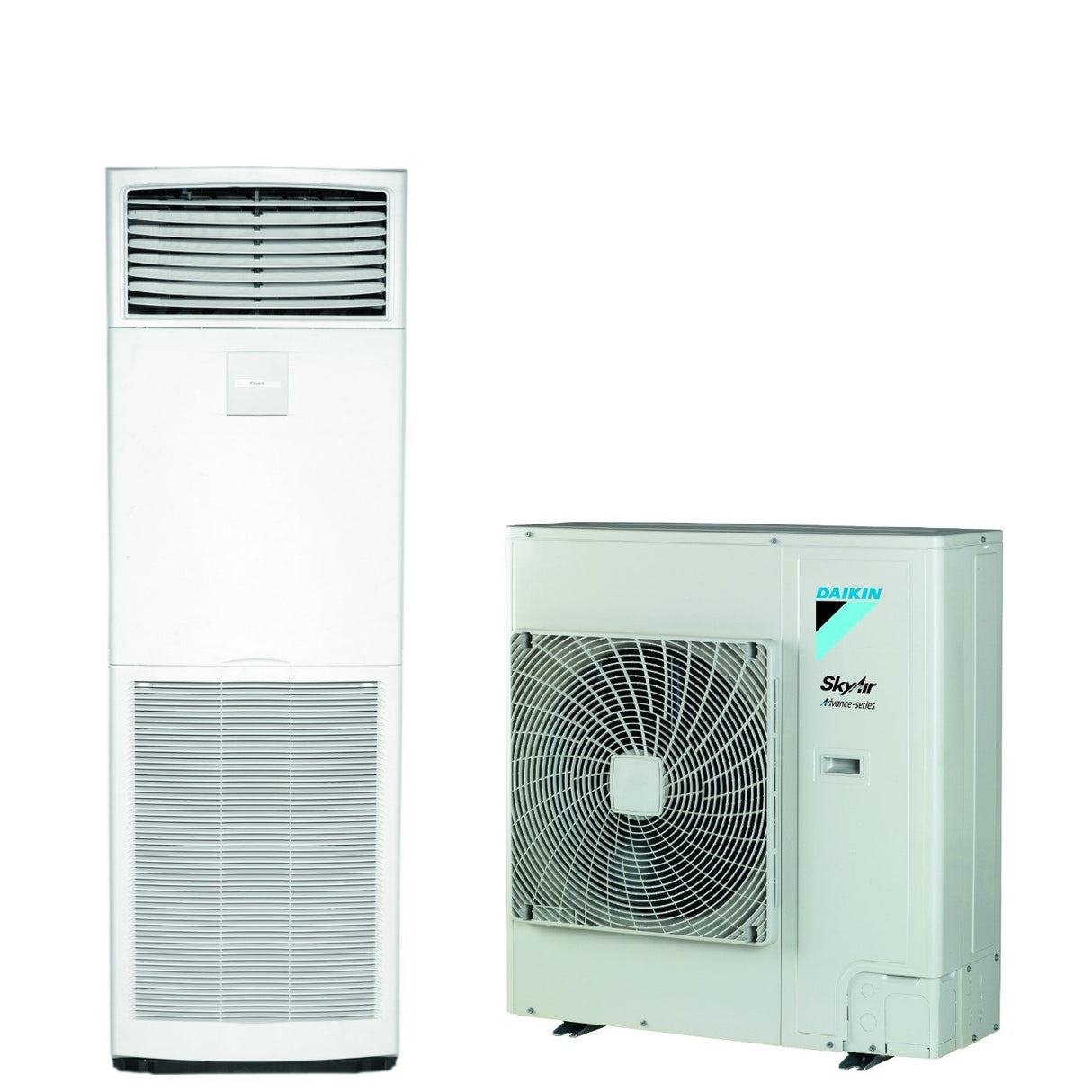

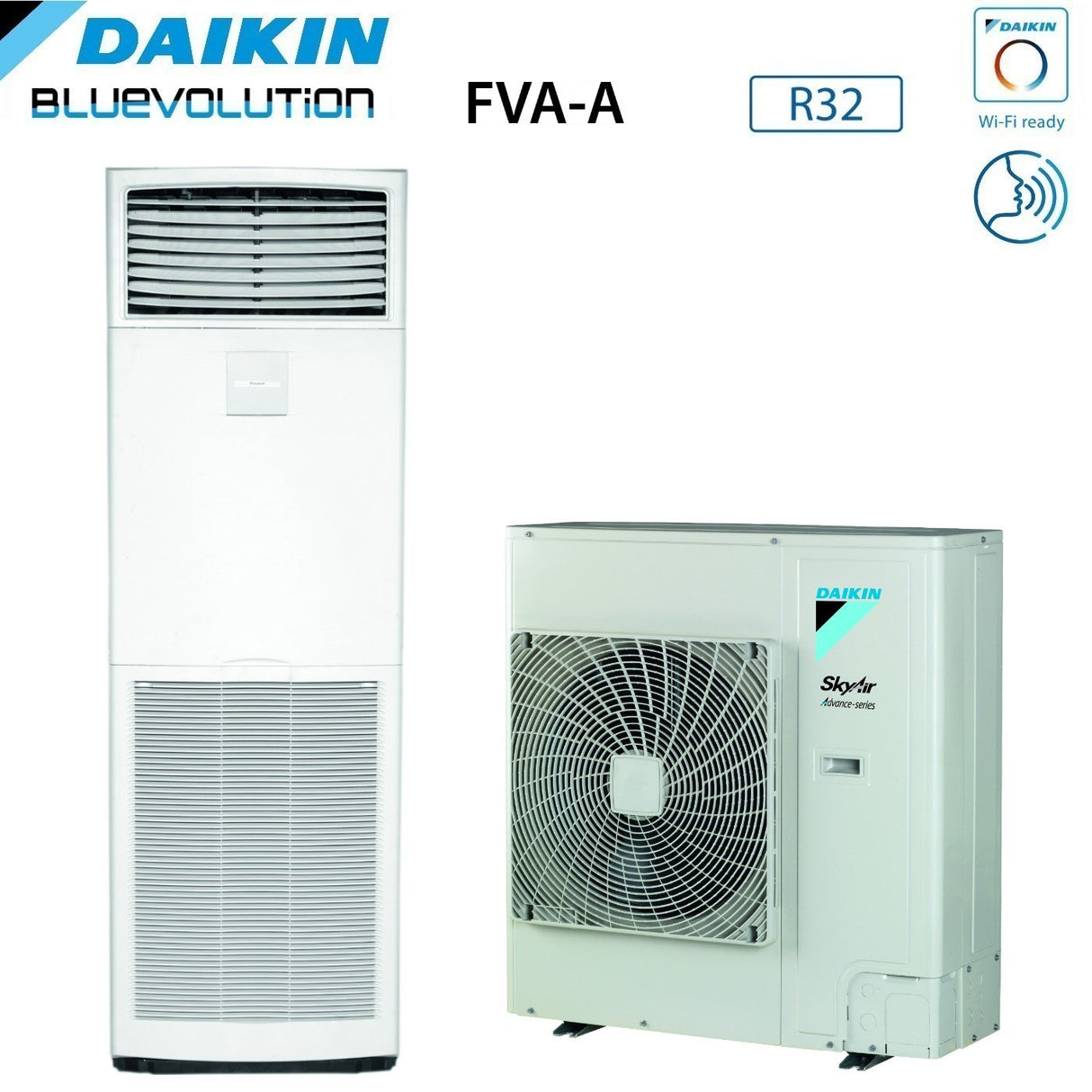

Daikin Bluevolution Column Air Conditioner 36000 Btu FVA100A + RZASG100MY1 Three-phase R-32 Wi-Fi Optional Class A+/A

ATTENTION, COMING IN OCTOBER!

Technical features

Model:

• Indoor unit catalog code: FVA100A
• Outdoor unit catalog code: RZASG100MY1
• Power: 36000 Btu

• Optional Wi-Fi card (Code BRP069A81/C81 )
• White Modoka Wire Control (Code BRC1H52W )
• Modoka Silver Wired Control Optional (Code BRC1H52S )
• Optional Black Modoka Wire Control (Code BRC1H52K )

Energy efficiency

• SEER: 5.72
• SCOP: 3.83
• Cooling Energy Efficiency Class: A+
• Heating Energy Efficiency Class: A
• Annual Energy Consumption in Cooling: 581 kWh/a
• Annual Energy Consumption in Heating: 2193 kWh/a

Performance

• Cooling Capacity: 9.50 kW
• Heating Capacity: 10.80 kW
• Indoor unit air flow: 22 ~ 28 m ³ /min
• Indoor unit sound power level: 62 dB(A)
• External unit sound power level: 70 dB(A)
• Indoor unit sound pressure level: 44 ~ 50 dB(A)
• External unit sound pressure level: 53 ~ 57 dB(A)

Characteristics:

• Power (V/Hz/Φ): 380~415/50/3
• Refrigerant gas: R-32
• Operating range
• - Cooling: -15° ~ 46° C
• - Heating: -15° ~ 15.5° C

• Liquid pipe diameter: 9.52 mm (3/8")
• Gas pipe diameter: 15.88 mm (5/8")
• Maximum length of pipes: 70 m
• Maximum height difference internal unit / external unit: 30 m

Dimensions and weight

• Indoor unit dimensions (HxWxD): 1850x600x350 mm
• Indoor unit weight: 50.0 kg
• External unit dimensions (HxWxD): 990x940x320 mm
• External unit weight: 70.0 kg

Daikin Column For commercial spaces with high ceilings

• The combination with the Sky Air Advance series ensures good value for money for all types of commercial applications

• Reduction of temperature variation by automatic selection of fan speed or thanks to the freely selectable 3 fan speeds

• Even more comfortable environment thanks to the better air distribution with vertical outlet which allows manual adjustment of the air outlet flaps in the upper part of the unit

• Possibility of directing the air flow horizontally to better adapt to the environment

• Daikin Residential Controller: Control the indoor climate from anywhere via smartphone or tablet

Why choose Sky Air A-Series? Super-efficient, compact, silent, easy and quick to install in all applications

The better the control, the greater the well-being

• Intuitive control via Residential Controller App
• Variable coolant temperature for optimal comfort
• Customization based on the needs of your customers

Flexibility in design

• More compact
• Quieter
• Extended operating range in all climatic conditions

Designed for you

• Faster and easier installation and use
• Quick and reliable replacement

At the heart of the system

• Equipped with exclusive Daikin technologies, tested and reliable
• Exceptionally low operating costs, SEER up to 8.02
• Low environmental impact, the GWP value of R32 refrigerant is 68% lower than that of R410A

R32 is the future. Join us!

• R32 is more eco-friendly than previously used refrigerants
• Daikin is the market leader and has been driving technological innovation for years
• First complete range on the market with R32 for small commercial applications

Better control, greater comfort and minimal environmental impact

First system for small commercial applications with R32 refrigerant

• Global Warming Potential (GWP) of R32 refrigerant 68% lower than that of R410A
• Highest efficiency on the market (SEER up to 8.02)
• It does not require annual checks for refrigerant leaks, thus reducing maintenance costs
• Refrigerant charge reduced by 16%

Unparalleled comfort

• With the highest levels of efficiency, Sky Air A series uses Daikin VRT (variable refrigerant temperature) technology to optimize comfort and flexibility, adapting to the needs of each customer
• Absence of cold air currents
• Variable setting based on climatic conditions

The new Sky Air A series range, ideal for any small-commercial application

• Lighter and more compact units for simple on-site installation. Special range with single fans up to 14 kW

New Replacement Technology A faster, easier and more reliable approach when replacing old, obsolete systems

• Reduction of any inconveniences and obtaining a system capable of significantly reducing consumption and energy bills
• Hepta filtration can ensure reliable operation without having to clean the pipes
• Effective solution in terms of costs and time, as it is sufficient to replace the internal and external units without modifying the pipes

Full range of indoor units available with R32

• Over 45 different internal drive options

Onecta App Full control, wherever you are

Are not you at home? Thanks to the Onecta app, this is not a problem. The app allows you to instantly access all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.

• Control all the features of your Daikin Emura air conditioner

• Create different programs and operating modes

• Track your energy consumption on a daily, weekly or annual basis

• Identify the room in your home to easily control different units

Simply connect to the WLAN and download the Onecta app to start creating the perfect climate for your home

The Onecta app allows you to connect Daikin to your Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you are not at home you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner . It's very simple

Voice Control

To further increase comfort and convenience, the Daikin Onecta - Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Onecta - Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 120.0 kg
• alimentazione: Three-phase
• classe efficienza energetica: A+
• classe energetica raffreddamento: A+
• classe energetica riscaldamento: A
• gas: R-32
• marca: Daikin
• metri quadri : 100 - 130 m2
• modello: FVA100A + RZASG100MY1_1
• potenza btu: 36000
• superficie riscaldabile mq: 100
