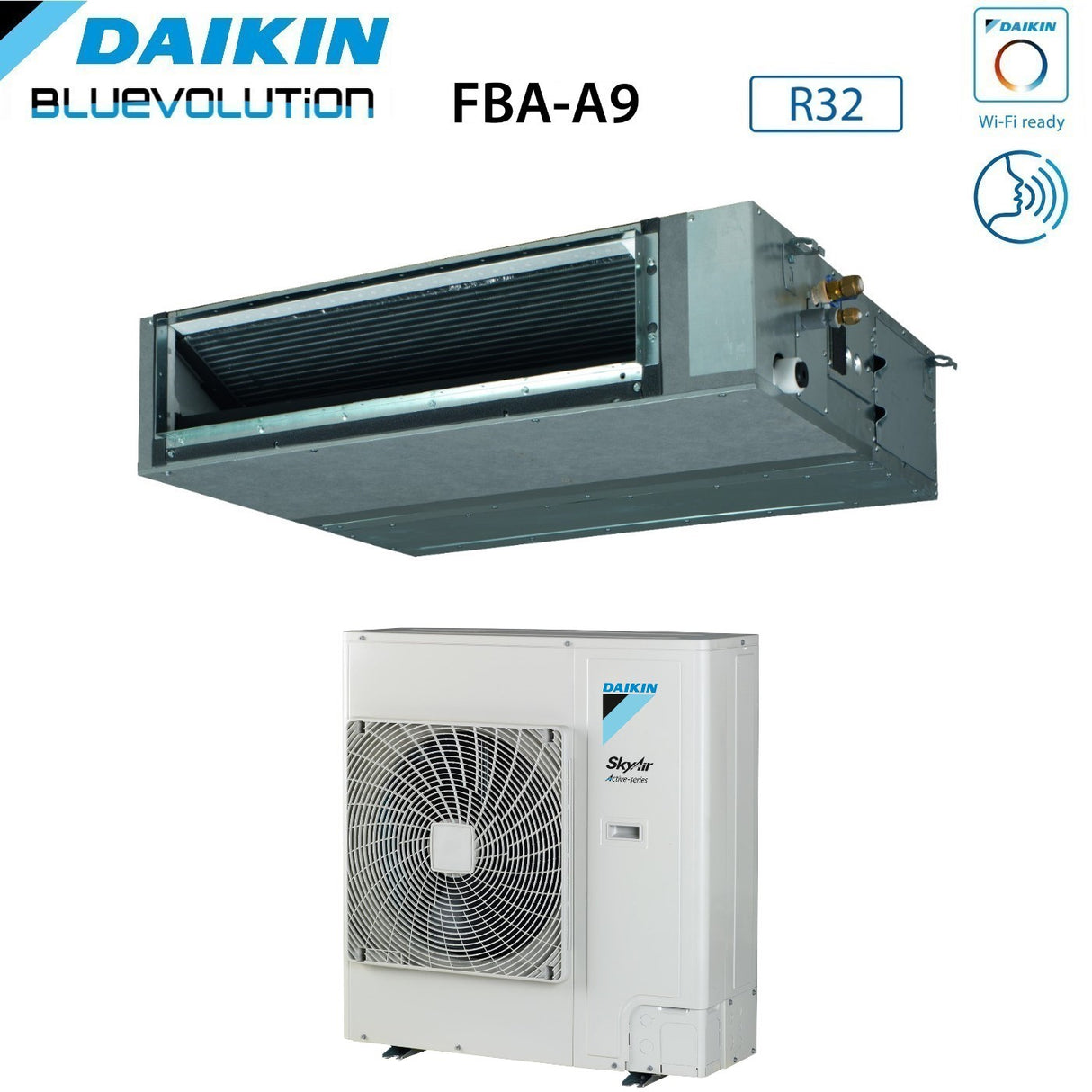

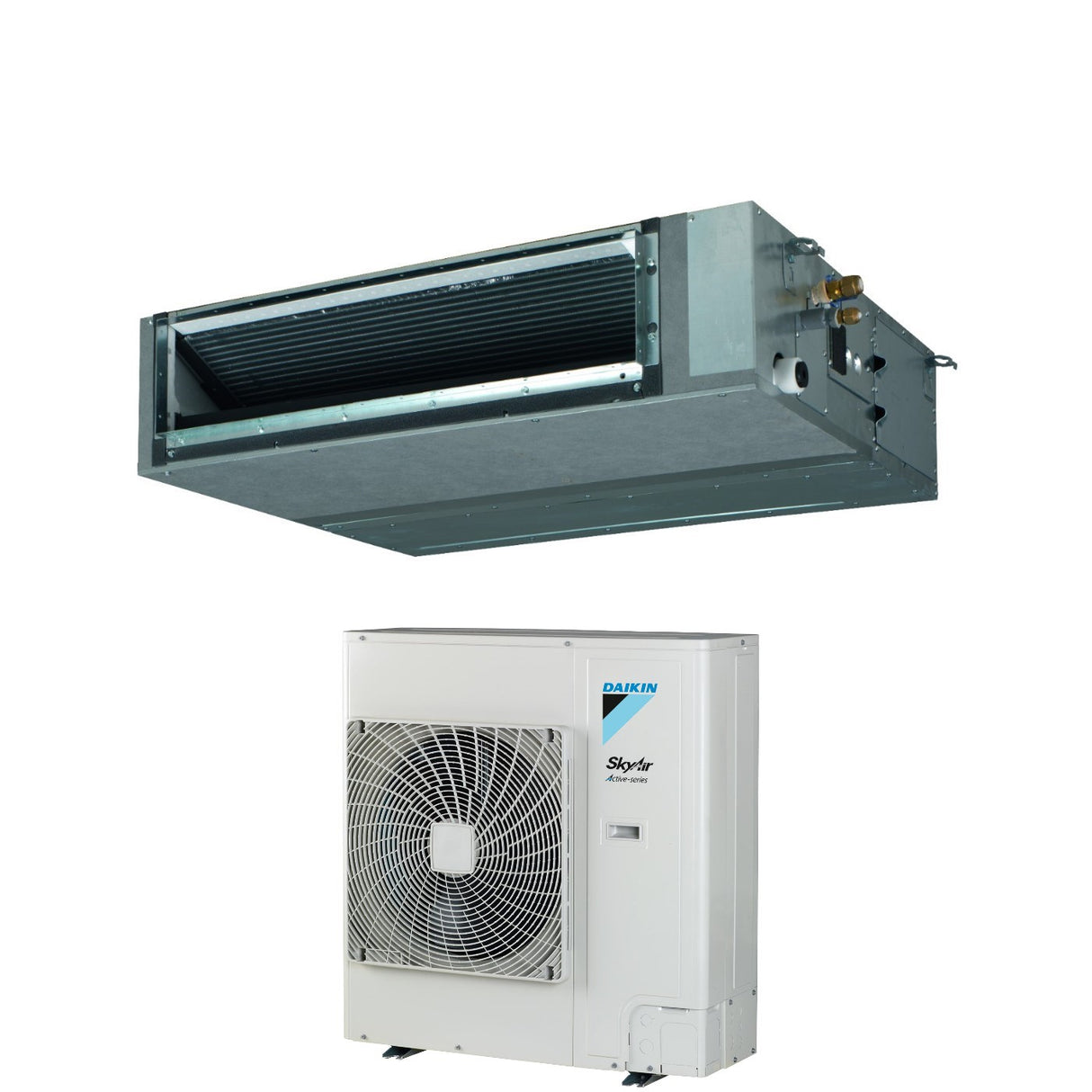

Daikin Bluevolution Ducted Air Conditioner Medium Head 42000 Btu FBA125A + RZASG125MV1 Single Phase R-32 Wi-Fi Optional

Technical features

• Indoor unit catalog code: FBA125A
• Outdoor unit catalog code: RZASG125MV1
• Power: 42000 Btu

Optional accessories

• Wi-Fi card: BRP069A81
• White Modoka wired control: BRC1H52W
• Modoka silver wire control: BRC1H52S
• Black Modoka wired control: BRC1H52K
• Infrared remote control: BRC4C65

Energy efficiency

• SEER: 5.49
• SCOP: 3.63
• Energy efficiency class in cooling: -
• Heating energy efficiency class: -
• Annual energy consumption in cooling: 1322 kWh/a
• Annual energy consumption in heating: 2314 kWh/a

Performance

• Cooling capacity: 12.1 kW
• Heating capacity: 13.5 kW
• Indoor unit air flow: 29 m ³ /min
• Indoor unit sound power level: 62 dB(A)
• External unit sound power level: 71 dB(A)
• Indoor unit sound pressure level: 32~38 dB(A)
• Outdoor unit sound pressure level: 53~57 dB(A)

Characteristics

• Power (V/Hz/F): 220~240/50/1
• Refrigerant gas: R-32
• Operating range
• - Cooling: -15°C ~ 46°C
• - Heating: -15°C ~ 15.5°C

• Liquid pipe diameter: 9.52 mm (3/8")
• Gas pipe diameter: 15.88 mm (5/8")
• Maximum pipe length: 50 m
• Maximum height difference internal unit / external unit: 30 m

Dimensions and weight

• Indoor unit dimensions (HxWxD): 245x1400x800 mm
• Indoor unit weight: 46.0 kg
• External unit dimensions (HxWxD): 990x940x320 mm
• External unit weight: 70.0 kg

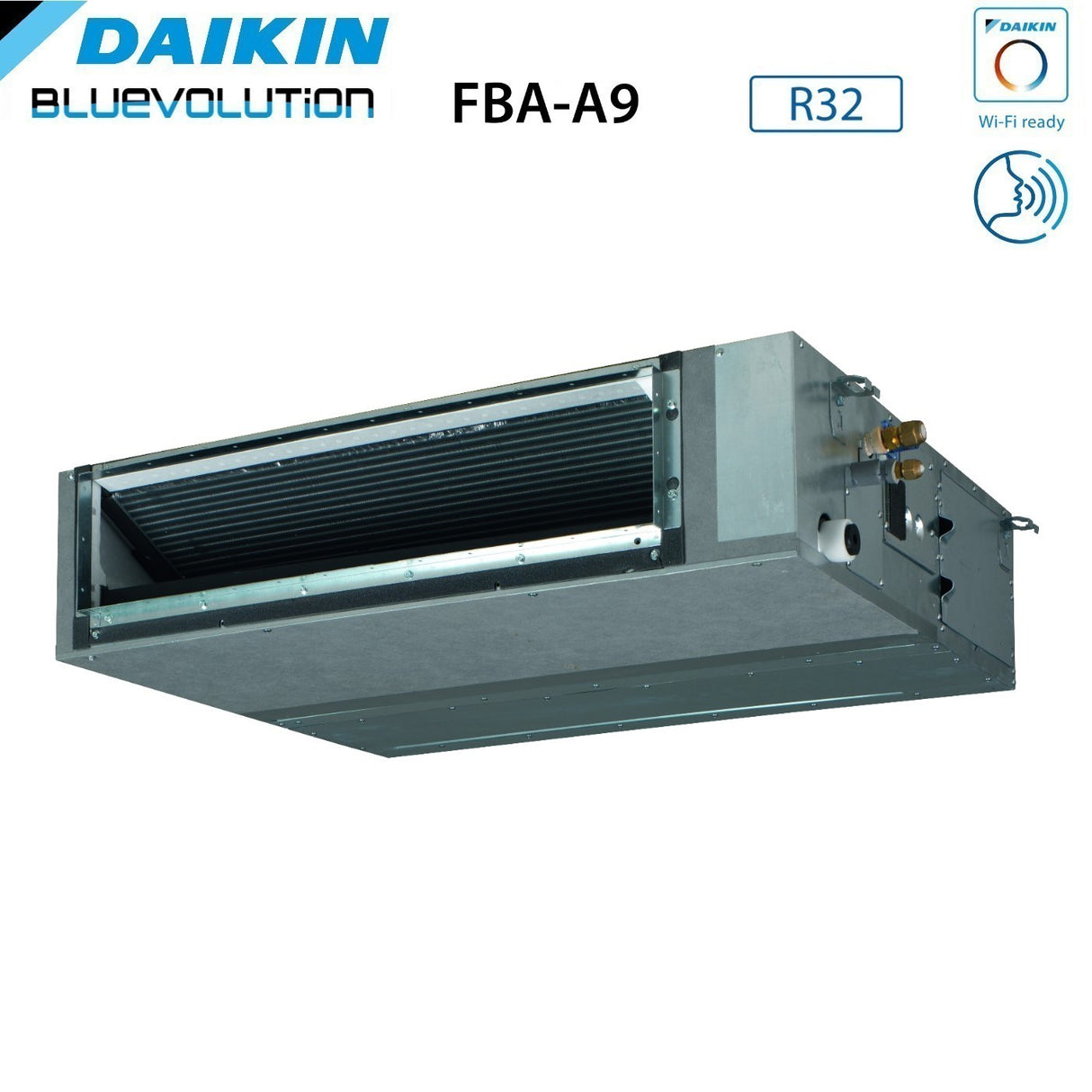

Ducted Daikin FBA-A Medium head ductable unit from the false ceiling

Slim unit with the most powerful medium head available on the market.

" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.

Ductable from false ceiling with inverter driven fan

• Highly energy efficient units: up to energy class A

• Reduction in energy consumption thanks to inverter-controlled fans

• It adapts perfectly to any type of furniture. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• The head of up to 150 Pa allows the use of the unit with flexible ducts of various lengths: ideal for medium-sized shops and offices

• The possibility of changing the prevalence via wired remote control allows you to optimize the air flow rate introduced

• Extremely silent operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to automatic flow adjustment and a height of just 245 mm

• The standard air filter eliminates airborne dust particles, thus ensuring a constant supply of clean air

• The integrated condensate drain pump included in the standard equipment increases the reliability of the drain system

• No optional adapter is required for DIII connection

Onecta App Full control, wherever you are

Are not you at home? Thanks to the Onecta app, this is not a problem. The app allows you to instantly access all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.

• Control all the features of your Daikin Emura air conditioner

• Create different programs and operating modes

• Track your energy consumption on a daily, weekly or annual basis

• Identify the room in your home to easily control different units

Simply connect to the WLAN and download the Onecta app to start creating the perfect climate for your home

The Onecta app allows you to connect Daikin to your Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you are not at home you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner . It's very simple

Voice Control

To further increase comfort and convenience, the Daikin Onecta - Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Onecta - Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 120.0 kg
• alimentazione: Single phase
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: DAIKIN
• metri quadri : 130 - 160 m2
• modello: FBA125A + RZASG125MV1_1
• potenza btu: 42000
