Daikin
Garanzia Italiana 24 mesi
Heating energy class: A+
Cooling energy class: A++
SKU: FBA35A + BRC1H519W

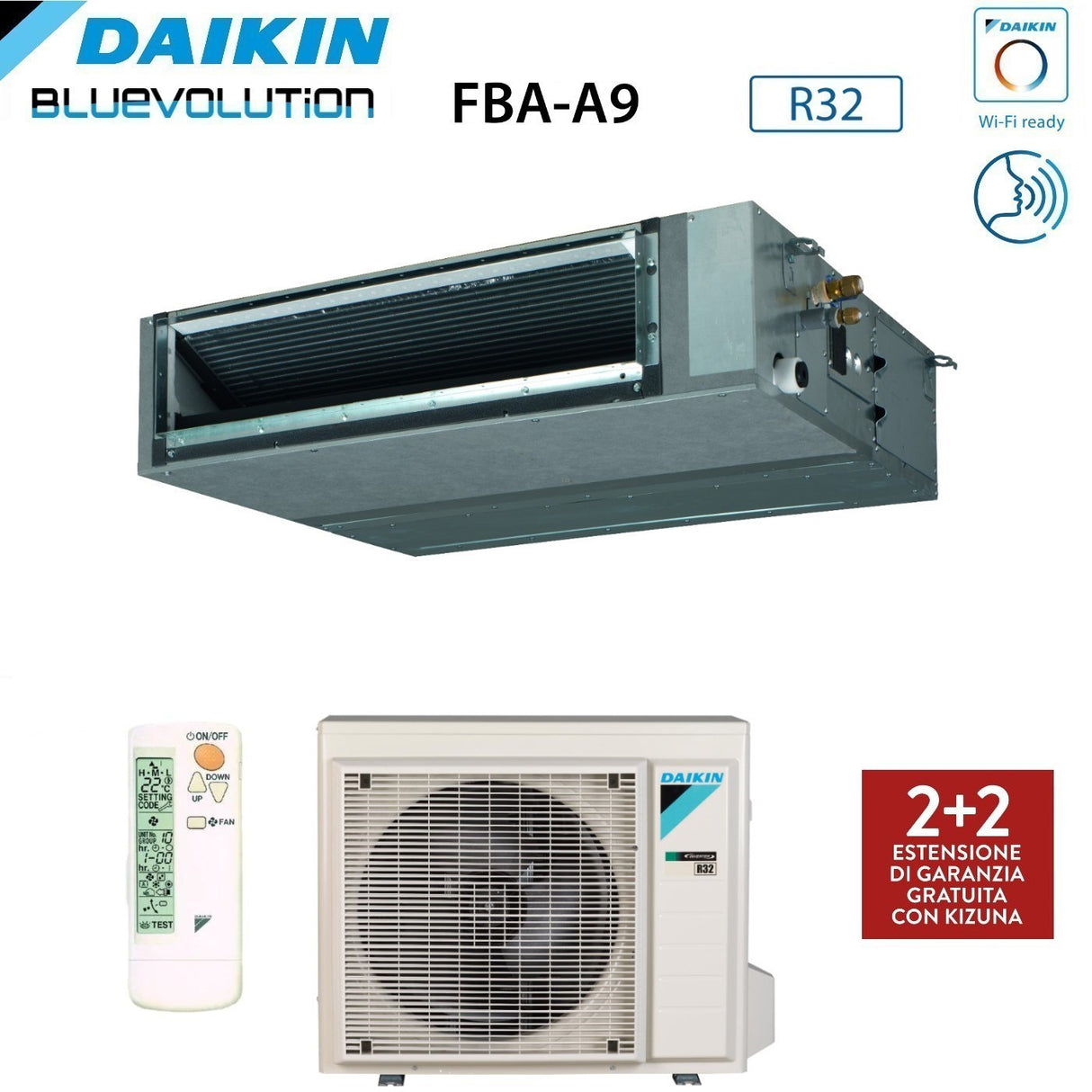

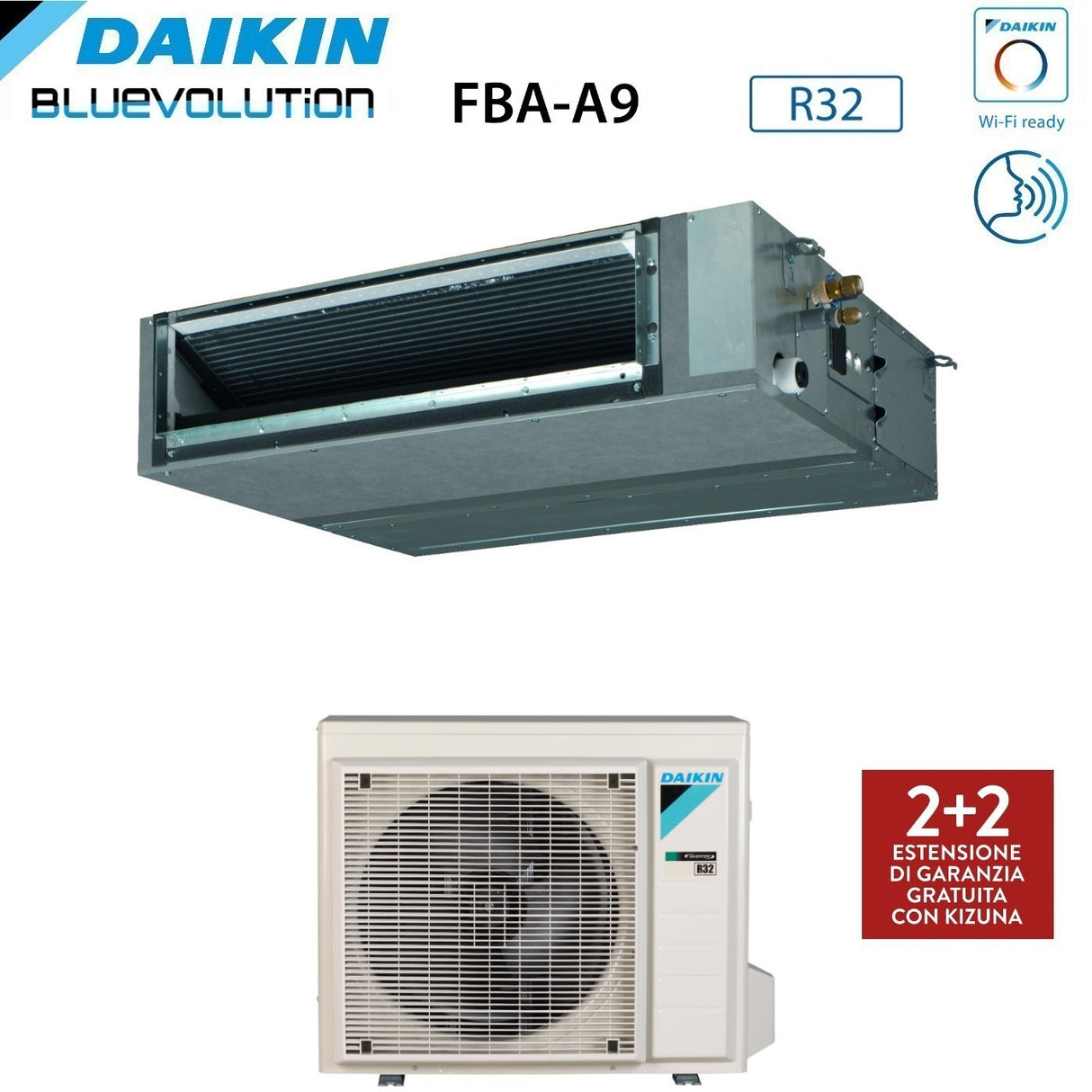

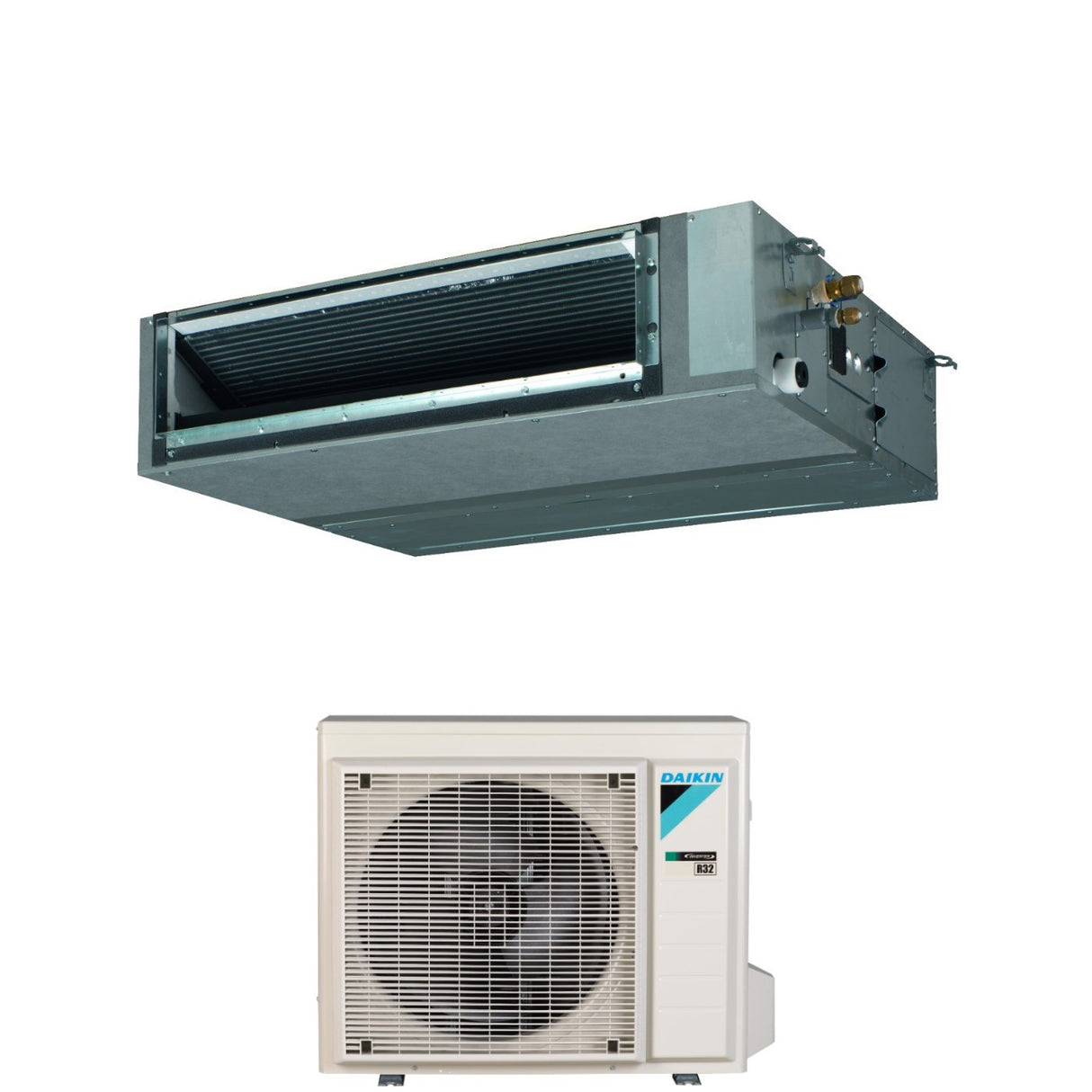

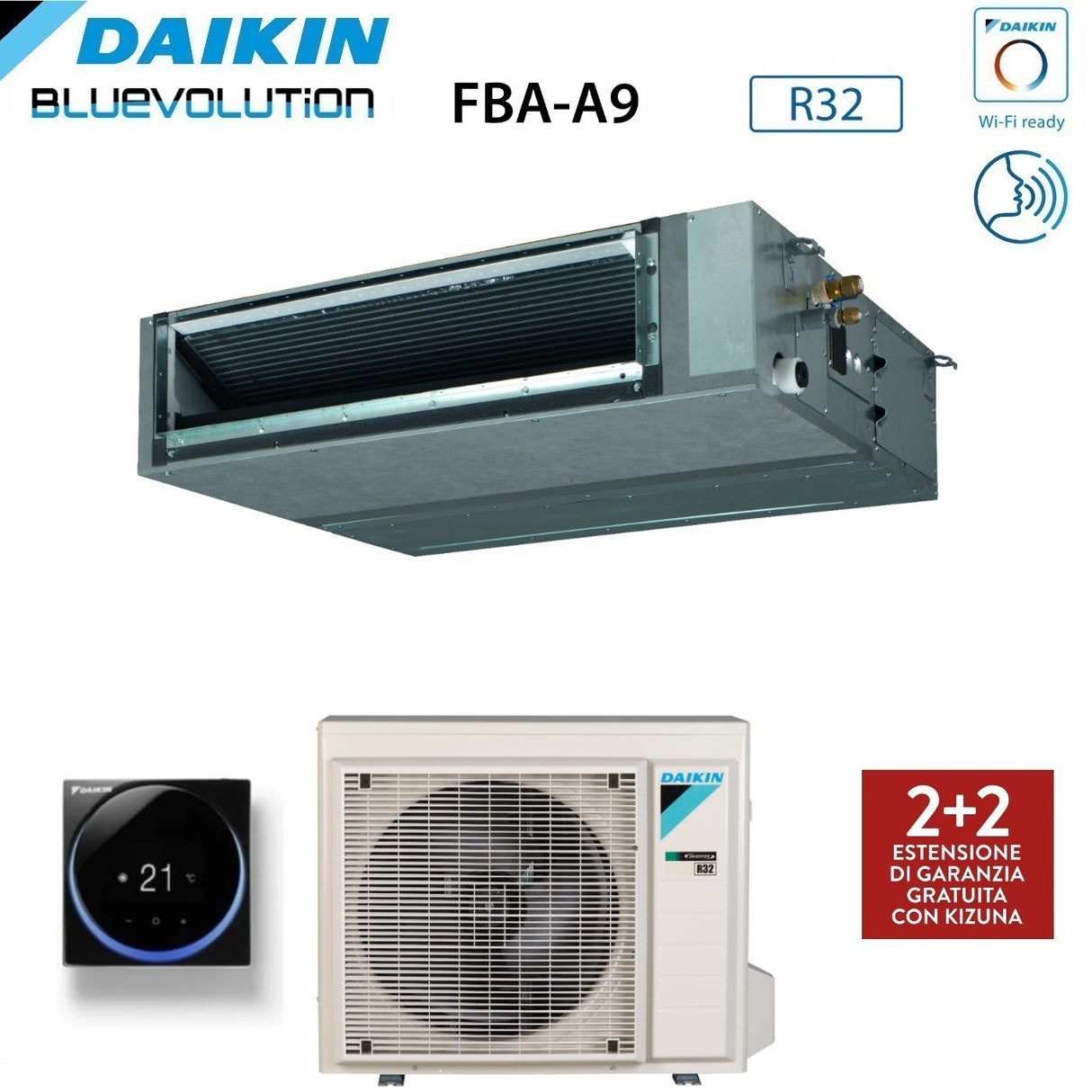

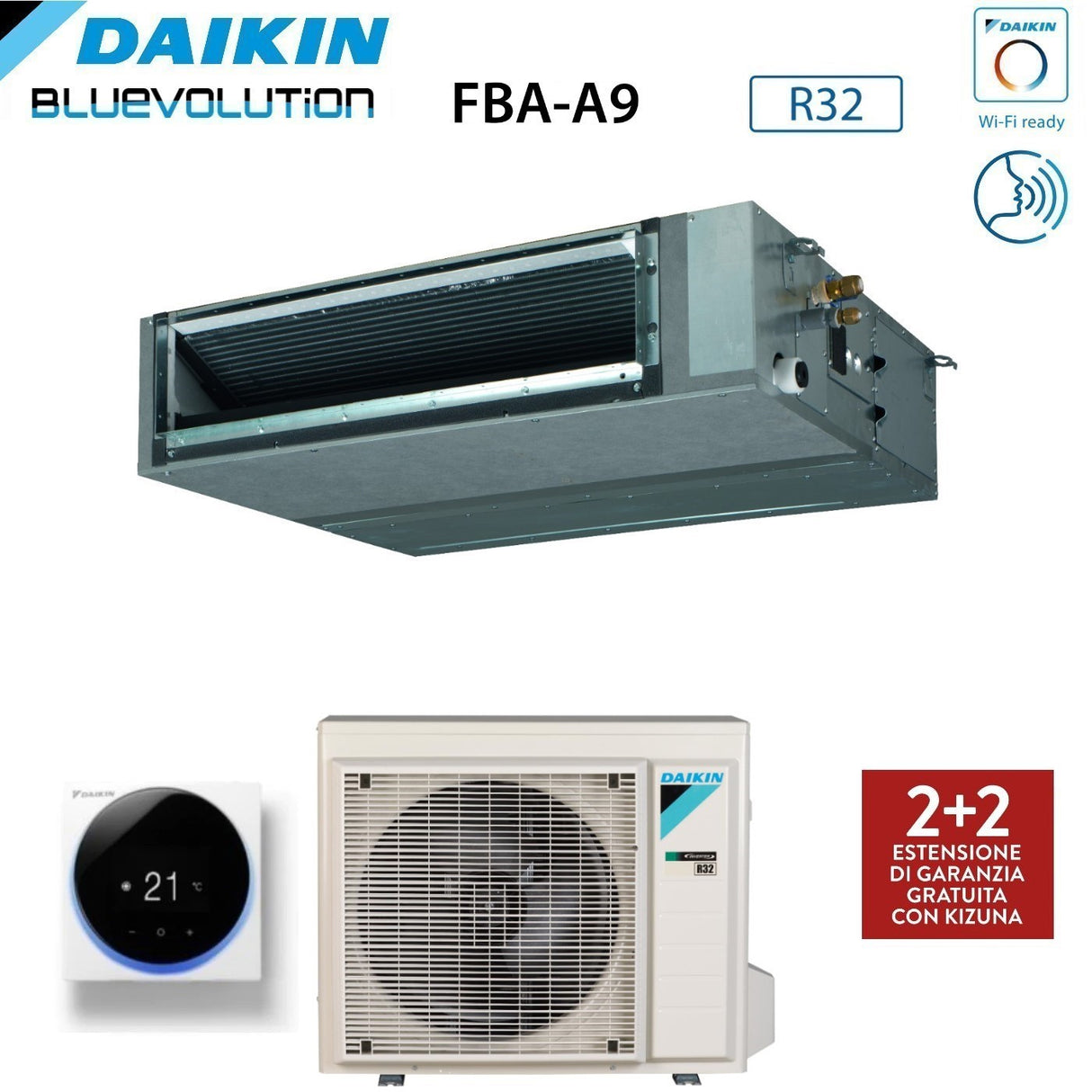

Daikin Bluevolution Ducted Air Conditioner Medium Head 12000 Btu FBA35A Single Phase R-32 Wi-Fi Optional - Italian Warranty

€1.733,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

Shipping costs vary depending on the weight and shipping method of the order.

Our shipping services

Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours

Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.


For further details on Premium Shipping, please see the Premium Shipping page.

Customer service

Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.

Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.

Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.

Description

Technical features

  • Indoor unit catalog code: FBA35A9
  • Outdoor unit catalog code: RXM35R9
  • Power: 12000 Btu
Optional commands

Energy efficiency

  • SEER: 6.23
  • SCOP: 4.07
  • Cooling energy efficiency class: A++
  • Heating energy efficiency class: A+
  • Annual energy consumption in cooling: 191 kWh/a
  • Annual energy consumption in heating: 996 kWh/a

Performance

  • Cooling capacity: 3.4 kW
  • Heating capacity: 4.0 kW
  • Cooling absorption: 0.85 kW
  • Heating absorption: 1.00 kW
  • Indoor unit treated air: 10.5 ~ 15.0 m 3 /min
  • Indoor unit sound power level: 60 dB(A)
  • External unit sound power level: 61 dB(A)
  • Indoor unit sound pressure level: 29 ~ 37 dB(A)
  • External unit sound pressure level: 49 dB(A)

Electrical data

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Operating range
  • - Cooling: -10° ~ 50°C
  • - Heating: -20° ~ 24°C
Installation data
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum pipe length: 20 m
  • Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

  • Indoor unit dimensions (WxHxD): 245x700x800 mm
  • Indoor unit weight: 28.0 kg
  • External unit dimensions (WxHxD): 552x828x329 mm
  • External unit weight: 32.0 kg

Kizuna 2+2 guarantee

KIZUNA

The Daikin Italia warranty can be activated within 1 month from the date of purchase at https://standbyme.daikin.it/it/


Daikin Ducted FBA-A The most compact unit and with the most powerful average head on the market

Split FBA


" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.


R-32 More Efficiency and Eco-Friendly

Daikin uses R-32 , a refrigerant that leads to lower CO 2 emissions. This means the units have a lower global warming potential and are generally more efficient. For the benefit of the environment!


Onecta App Full control, wherever you are

Are not you at home? Thanks to the Onecta app, this is not a problem. The app allows you to instantly access all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.

  • Control all the features of your Daikin Emura air conditioner
  • Create different programs and operating modes
  • Track your energy consumption on a daily, weekly or annual basis
  • Identify the room in your home to easily control different units

Simply connect to the WLAN and download the Onecta app to start creating the perfect climate for your home

The Onecta app allows you to connect Daikin to your Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you are not at home you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner . It's very simple

Voice control

To further increase comfort and convenience, the Daikin Onecta - Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit always connected

The unit can be managed via the new Daikin Onecta - Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

FTXM-R Alexa

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Spunta Program the room temperature and operating mode

Spunta Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Spunta Check the system status

Spunta Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Spunta Change the room temperature

Spunta Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Onecta App


Ductable from false ceiling with inverter driven fan

• Highly energy efficient units: up to energy class A

• Reduction in energy consumption thanks to inverter-controlled fans

• It adapts perfectly to any type of furniture. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• The head of up to 150 Pa allows the use of the unit with flexible ducts of various lengths: ideal for medium-sized shops and offices

• The possibility of changing the prevalence via wired remote control allows you to optimize the air flow rate introduced

• Extremely silent operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to automatic flow adjustment and a height of just 245 mm

• The standard air filter eliminates airborne dust particles, thus ensuring a constant supply of clean air

• The integrated condensate drain pump included in the standard equipment increases the reliability of the drain system

• No optional adapter is required for DIII connection


Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Specifications

  • peso: 35.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
  • gas: R-32
  • marca: Daikin
  • metri quadri : 25-40 mq
  • modello: FBA35A
  • potenza btu: 12000
  • superficie riscaldabile mq: 35
