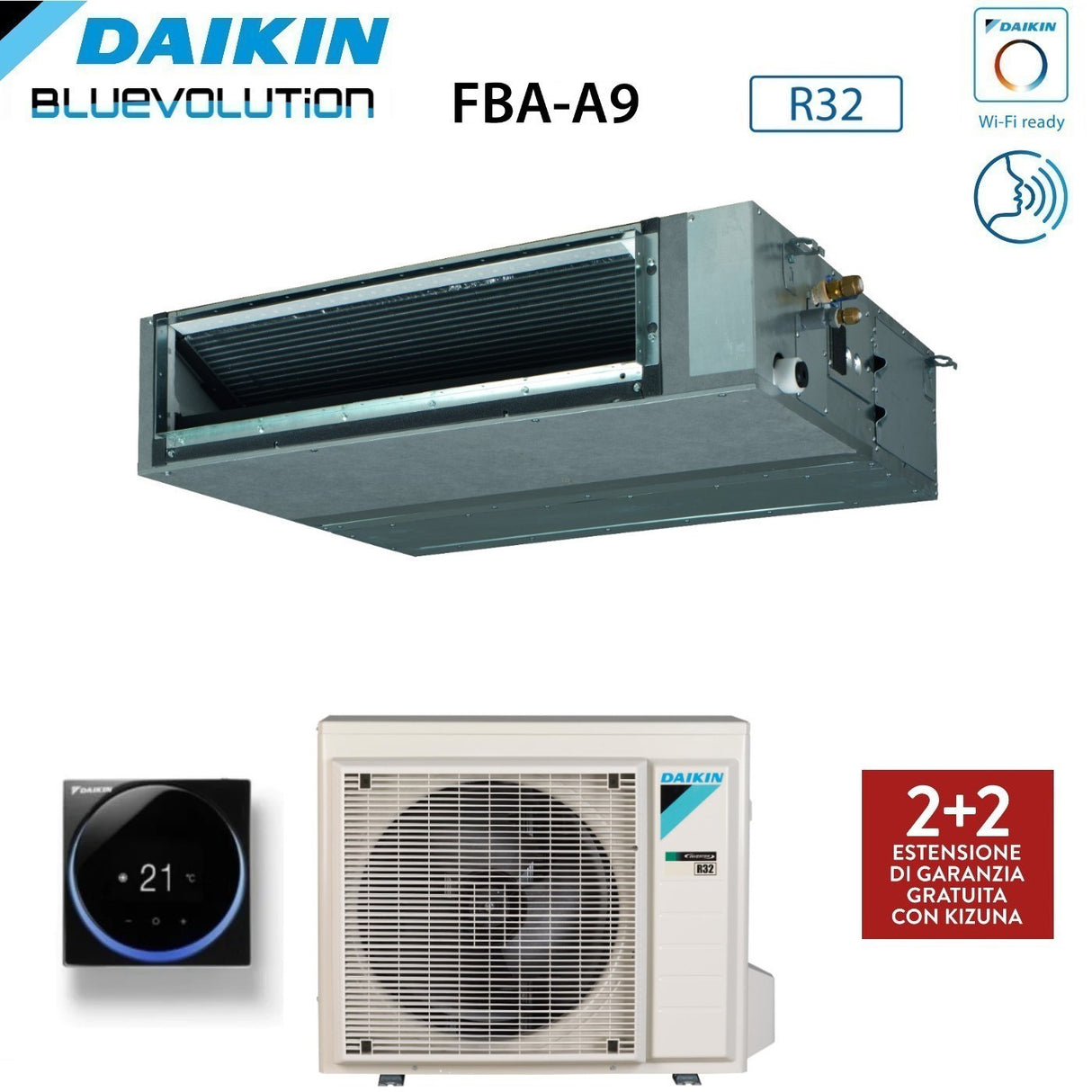

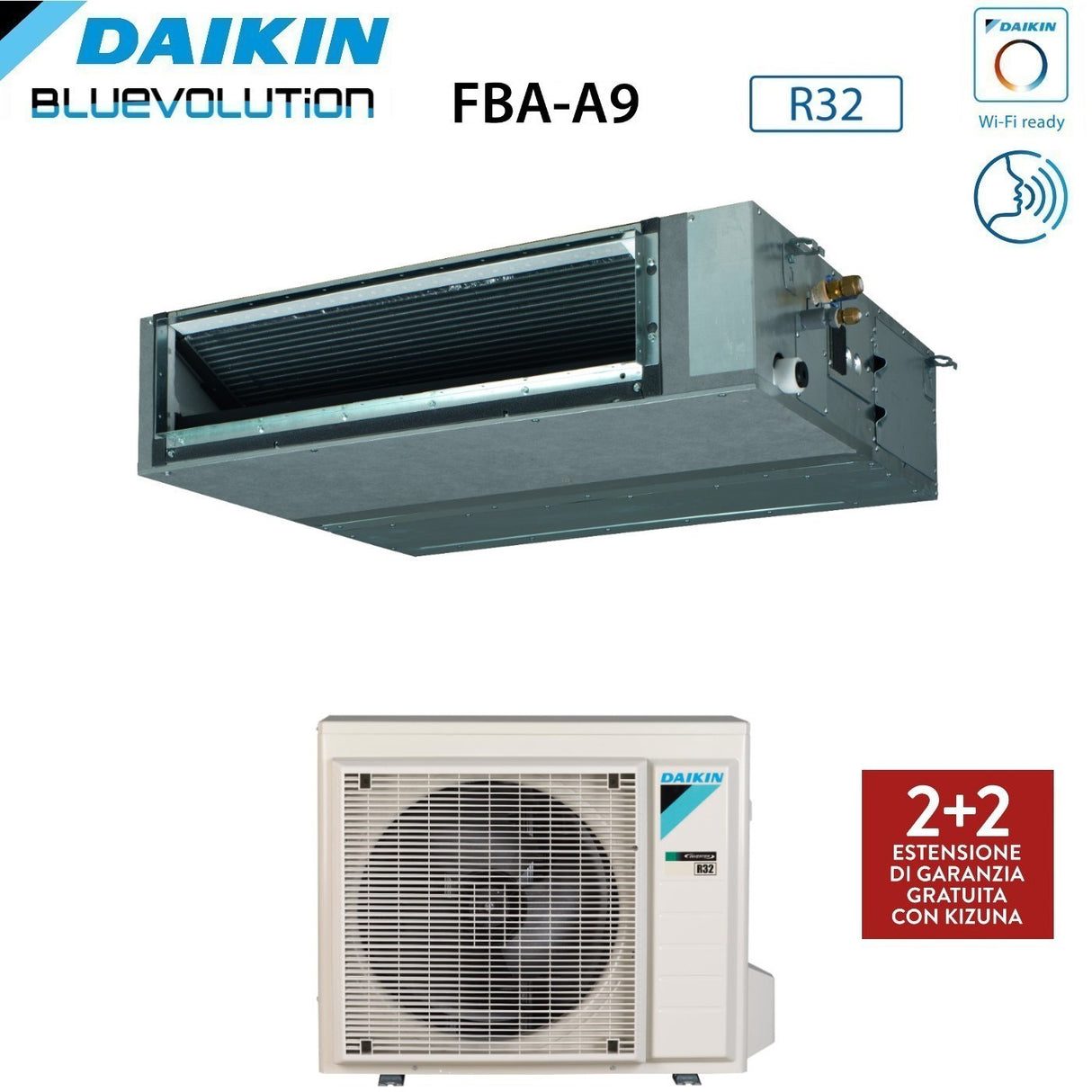

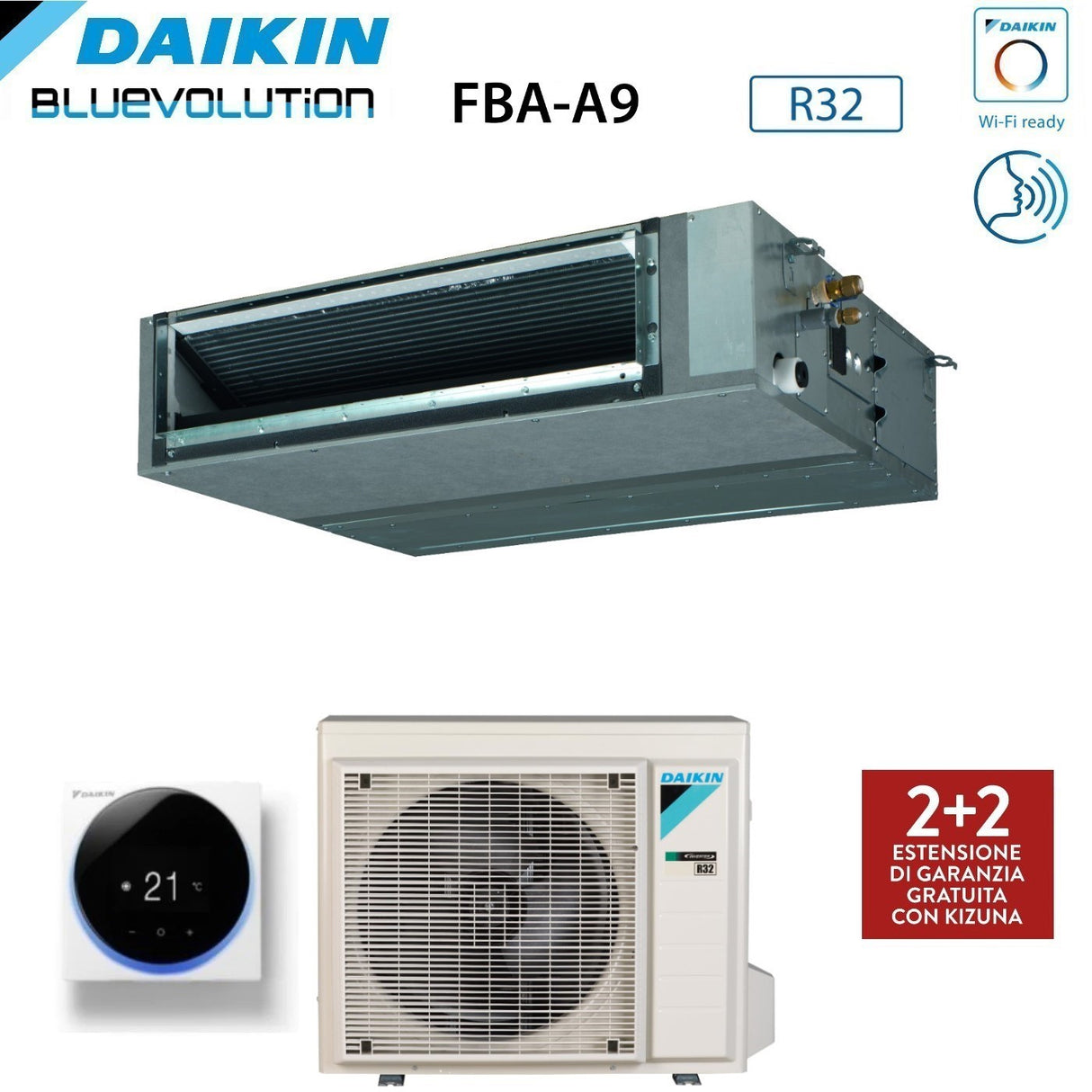

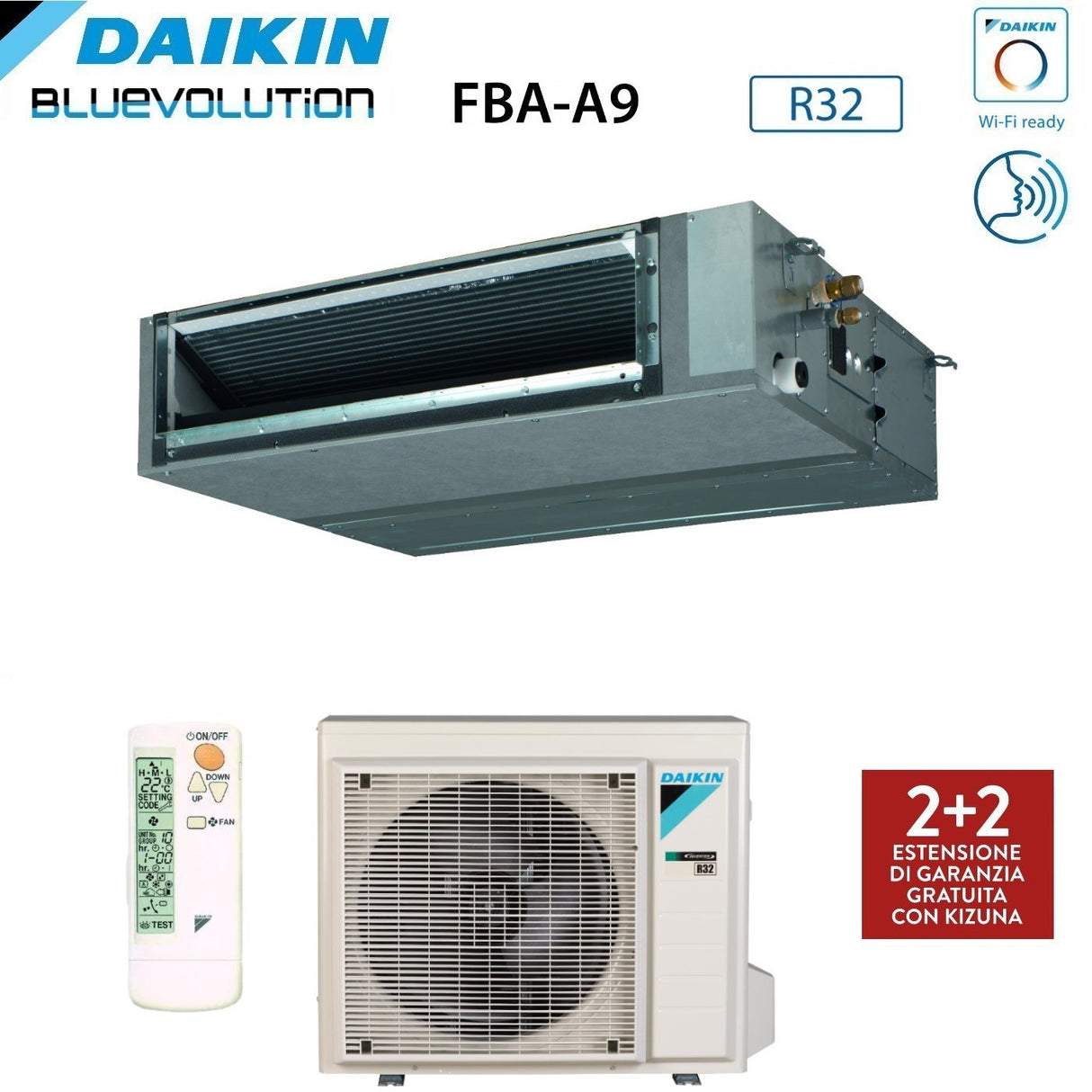

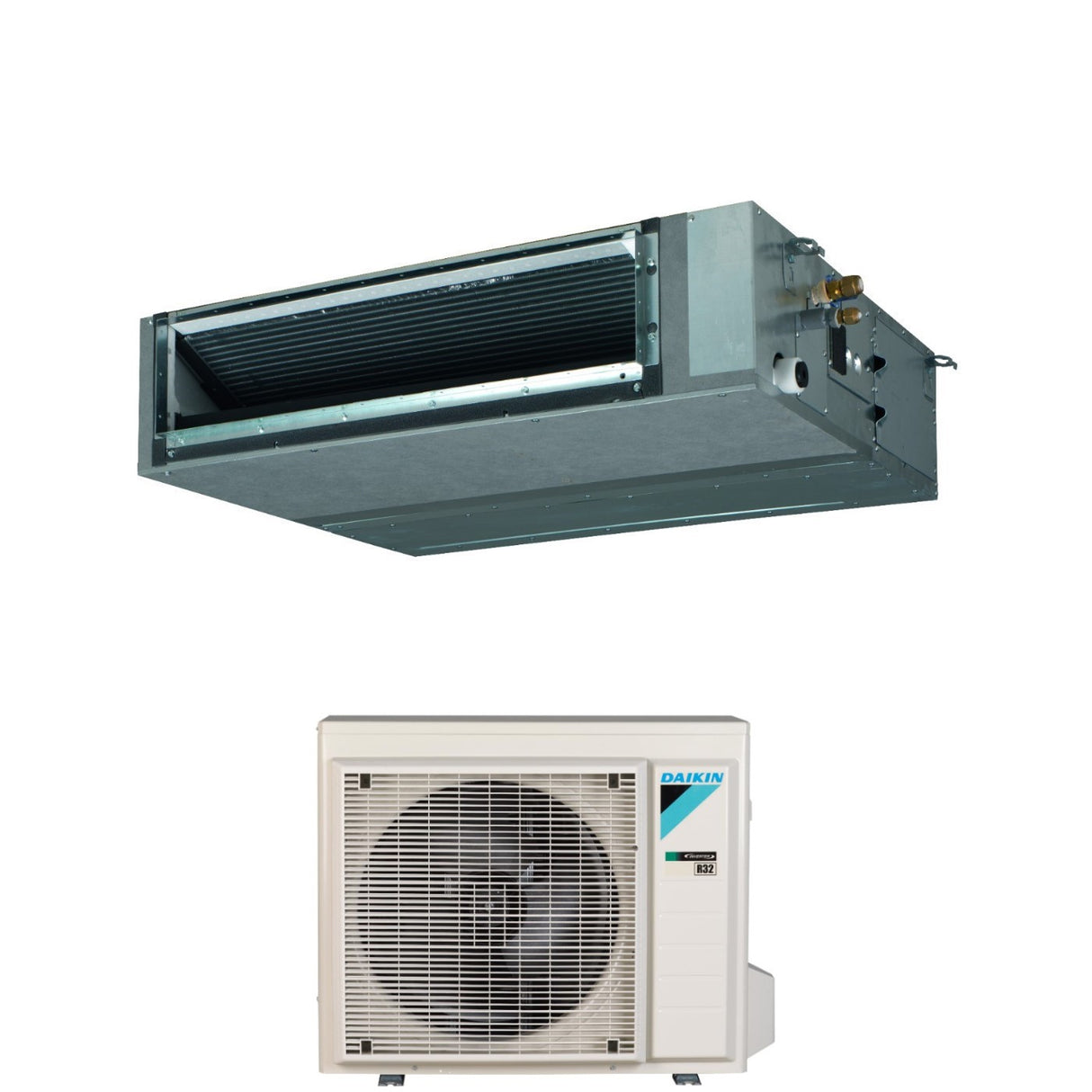

Daikin Bluevolution Ducted Air Conditioner Medium Head 21000 BTU FBA60A Single Phase R-32 Wi-Fi Optional - Italian Warranty

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Technical features

Model:

• Indoor unit catalog code: FBA60A
• Outdoor unit catalog code: RXM60N9/R(9)
• Power: 21000 Btu

• Optional infrared remote control (Code BRC4C65 )
• White Modoka Wire Control (Code BRC1H519W )
• Modoka Silver Wired Control Optional (Code BRC1H519S )
• Optional Black Modoka Wire Control (Code BRC1H519K )
• Optional Wi-Fi card (Code BRP069C81 )

Energy efficiency

• SEER: 5.91
• SCOP: 4.01
• Cooling Energy Efficiency Class: A+
• Heating Energy Efficiency Class: A+
• Annual Energy Consumption in Cooling: 337 kWh/a
• Annual Energy Consumption in Heating: 1607 kWh/a

Performance

• Cooling Capacity: 5.7 kW
• Heating Capacity: 7.0 kW
• Indoor Unit air flow: 15 m ³ /min
• Indoor Unit Sound Power Level: 56 dB(A)
• External Unit Sound Power Level: 63 dB(A)
• Indoor Unit Sound Pressure Level: 25~30 dB(A)
• External Unit Sound Pressure Level: 48 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Operating range
• - Cooling: -10° ~ 50°C
• - Heating: -21° ~ 18°C

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 12.7 mm (1/2")
• Maximum length of pipes: 30 m
• Maximum height difference Internal Unit / External Unit: 20 m

Dimensions and weight

• Internal Unit Dimensions (WxHxD): 245x1000x800 mm
• Internal Unit Weight: 35 Kg
• External Unit Dimensions (WxHxD): 734x940x376 mm
• External Unit Weight: 50 Kg

---

Daikin Ducted FBA-A

The most compact unit with the most powerful average head on the market.

---

" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.

---

R-32 More Efficiency and Eco-Friendly

Daikin uses R-32 , a refrigerant that leads to lower CO ₂ emissions. This means the units have a lower global warming potential and are generally more efficient. For the benefit of the environment!

---

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

---

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

---

Ductable from false ceiling with inverter driven fan

• Highly energy efficient units: up to energy class A

• Reduction in energy consumption thanks to inverter-controlled fans

• It adapts perfectly to any type of furniture. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• The head of up to 150 Pa allows the use of the unit with flexible ducts of various lengths: ideal for medium-sized shops and offices

• The possibility of changing the prevalence via wired remote control allows you to optimize the air flow rate introduced

• Extremely silent operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to automatic flow adjustment and a height of just 245 mm

• The standard air filter eliminates airborne dust particles, thus ensuring a constant supply of clean air

• The integrated condensate drain pump included in the standard equipment increases the reliability of the drain system

• No optional adapter is required for DIII connection

---

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 50.0 kg
• classe energetica raffreddamento: A+
• classe energetica riscaldamento: A+
• gas: R-32
• marca: DAIKIN
• metri quadri : 60 - 80 m2
• modello: FBA60A
• potenza btu: 21000
