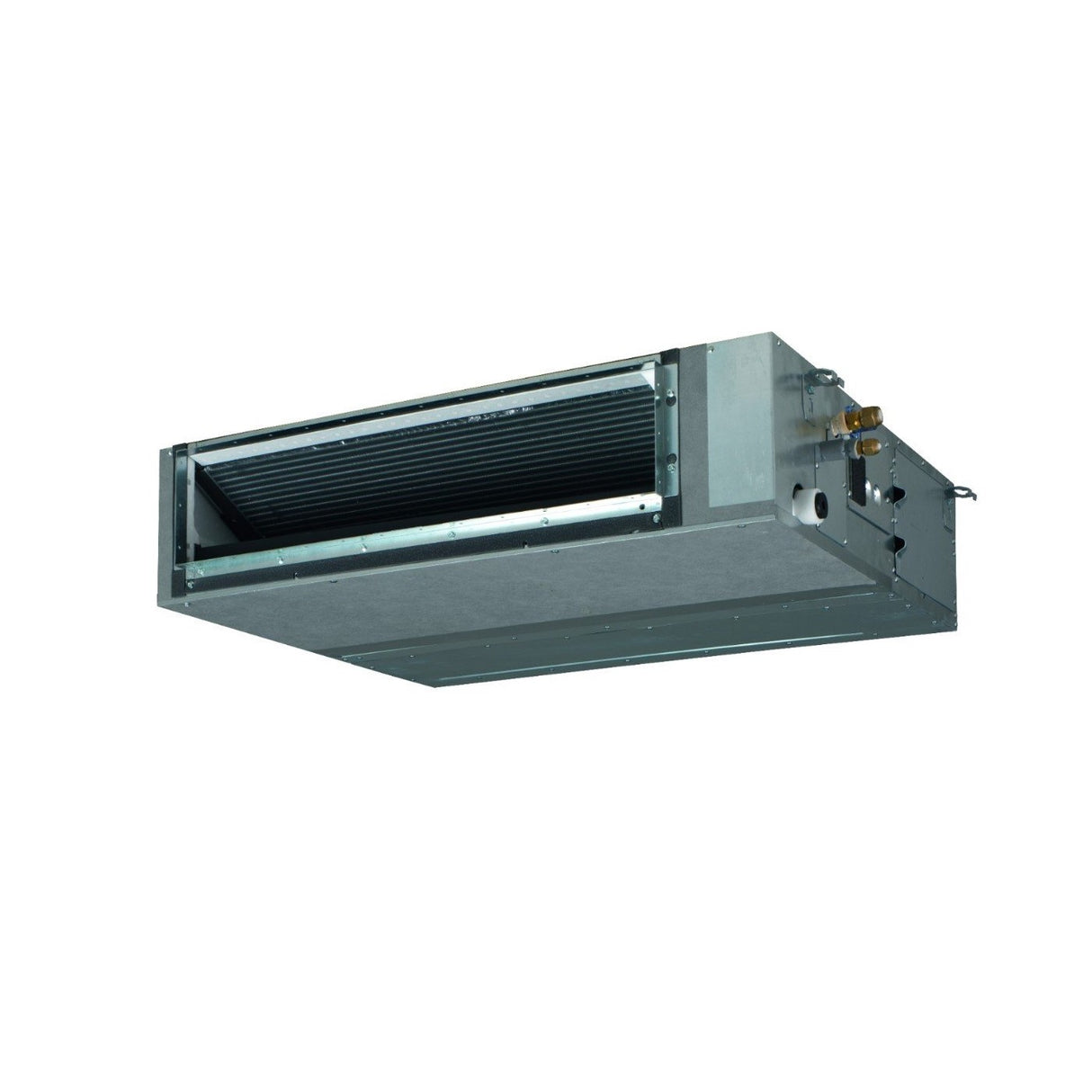

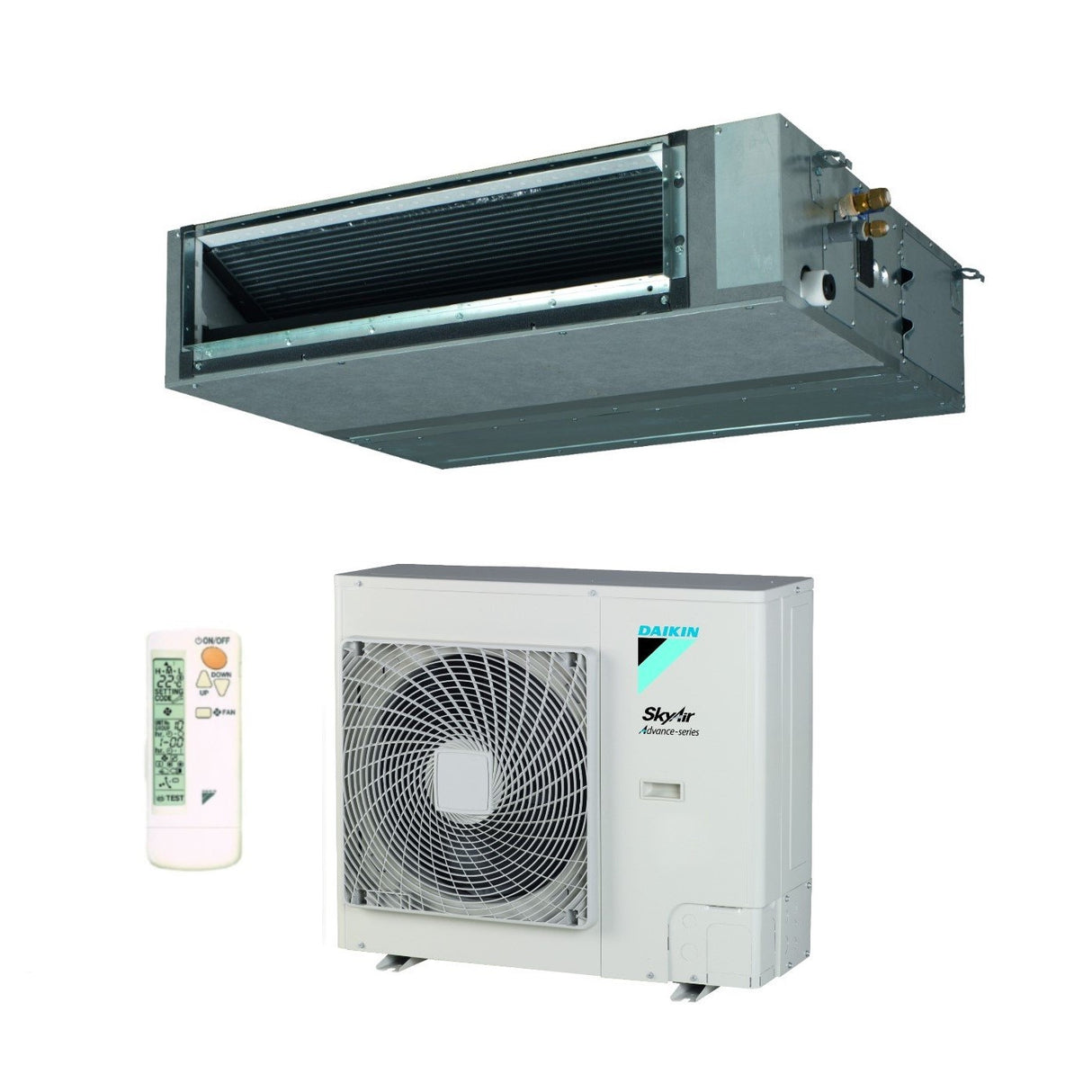

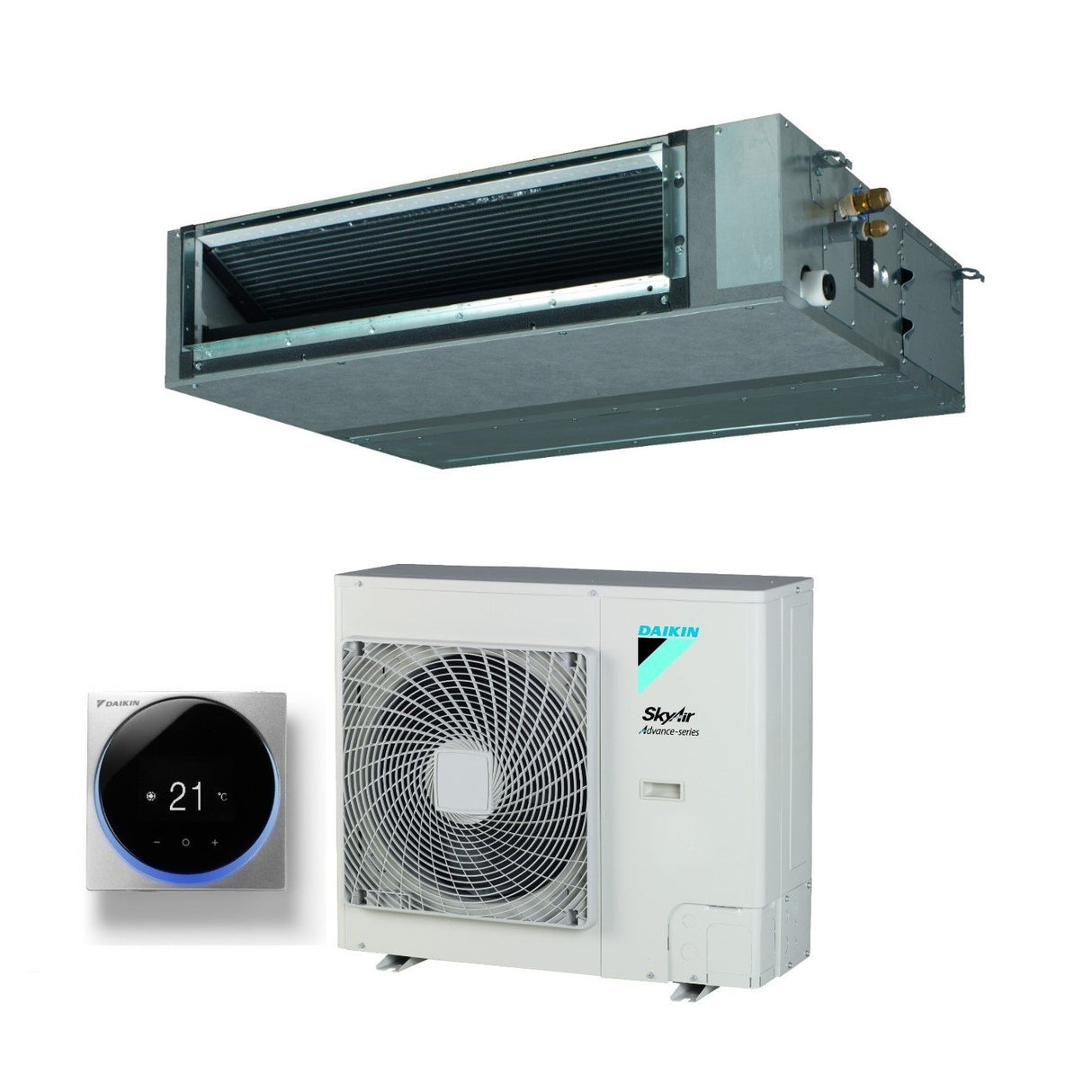

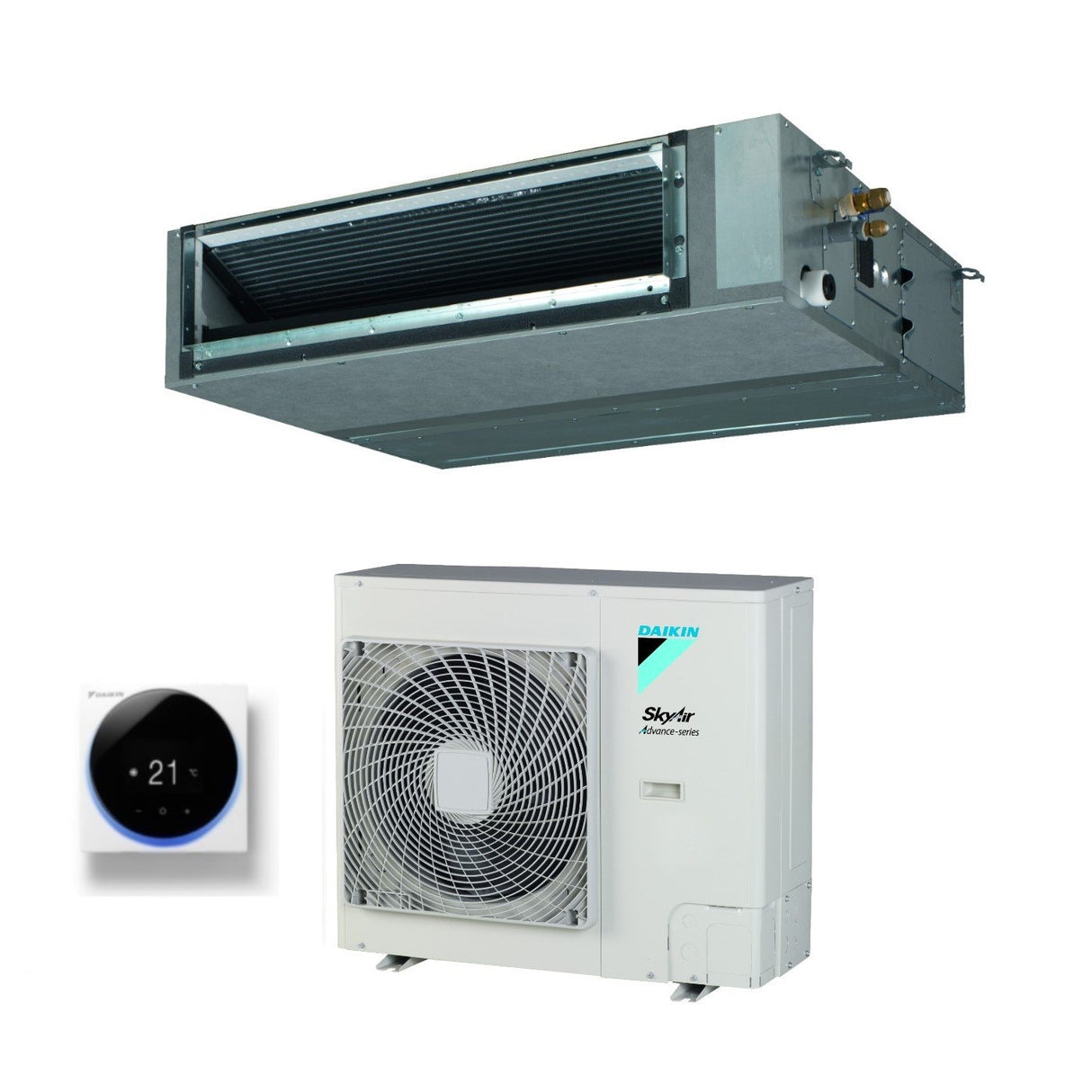

Daikin Bluevolution Ducted Air Conditioner Medium Head 24000 BTU FBA71A + AZAS71MV1 Single Phase R-32 Wi-Fi Optional with Wired Control

Technical features

Model:

• Indoor unit catalog code: FBA71A
• Outdoor unit catalog code: AZAS71MV1
• Power: 24000 Btu
• Optional Wi-Fi card (Code BRP069A81 )
• Optional infrared remote control (Code BRC4C65 )
• White Modoka Wire Control (Code BRC1H519W )
• Modoka Silver Wired Control Optional (Code BRC1H519S )
• Optional Black Modoka Wire Control (Code BRC1H519K )

Energy efficiency

• SEER: 5.25
• SCOP: 3.81
• Cooling Energy Efficiency Class: A
• Heating Energy Efficiency Class: A
• Annual Energy Consumption in Cooling: 633 kWh/a
• Annual Energy Consumption in Heating: 2205 kWh/a

Performance

• Cooling Capacity: 9.50 kW
• Heating Capacity: 10.8 kW
• Indoor Unit air flow: 26 m ³ /min
• Internal Unit Sound Power Level: 58 dB(A)
• External Unit Sound Power Level: 70 dB(A)
• Indoor Unit Sound Pressure Level: 25~30 dB(A)
• External Unit Sound Pressure Level: 53 dB(A)

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R-32
• Operating range
• - Cooling: -5° ~ 46°C
• - Heating: -15° ~ 15.5°C

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 15.87 mm (5/8")
• Maximum length of pipes: 30 m
• Maximum height difference Internal Unit / External Unit: 30 m

Dimensions and weight

• Internal Unit Dimensions (HxWxD): 245x1000x800 mm
• Internal Unit Weight: 35 Kg
• External Unit Dimensions (WxHxD): 770x900x320 mm
• External Unit Weight: 60 Kg

Daikin Ducted FBA-A

The most compact unit with the most powerful average head on the market.

" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.

Optimized intake air volume

Automatically selects the most suitable fan characteristic curve to obtain the nominal flow rate of the unit, with a tolerance of ±10%

Why?

After installation, actual ductwork typically has a different airflow resistance than initially calculated, the actual flow rate may be much lower or higher than the rated value, resulting in lack of capacity or uncomfortable air temperature The automatic airflow adjustment function will automatically adapt the unit's fan speed to any ductwork (10 or more fan curves available for each model), significantly speeding up installation

Ductable from false ceiling

• It adapts perfectly to any type of furniture. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• The head of up to 150 Pa allows the use of the unit with flexible ducts of various lengths: ideal for medium-sized shops and offices

• The possibility of changing the prevalence via wired remote control allows you to optimize the air flow rate introduced

• Extremely silent operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to automatic flow adjustment and a height of just 245 mm

• The standard air filter eliminates airborne dust particles, thus ensuring a constant supply of clean air

• The integrated condensate drain pump included in the standard equipment increases the reliability of the drain system

• No optional adapter is required for DIII connection

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 100.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A
• gas: R-32
• marca: DAIKIN
• metri quadri : 60 - 80 m2
• modello: FBA71A + AZAS71MV1
• potenza btu: 24000
• superficie riscaldabile mq: 70
