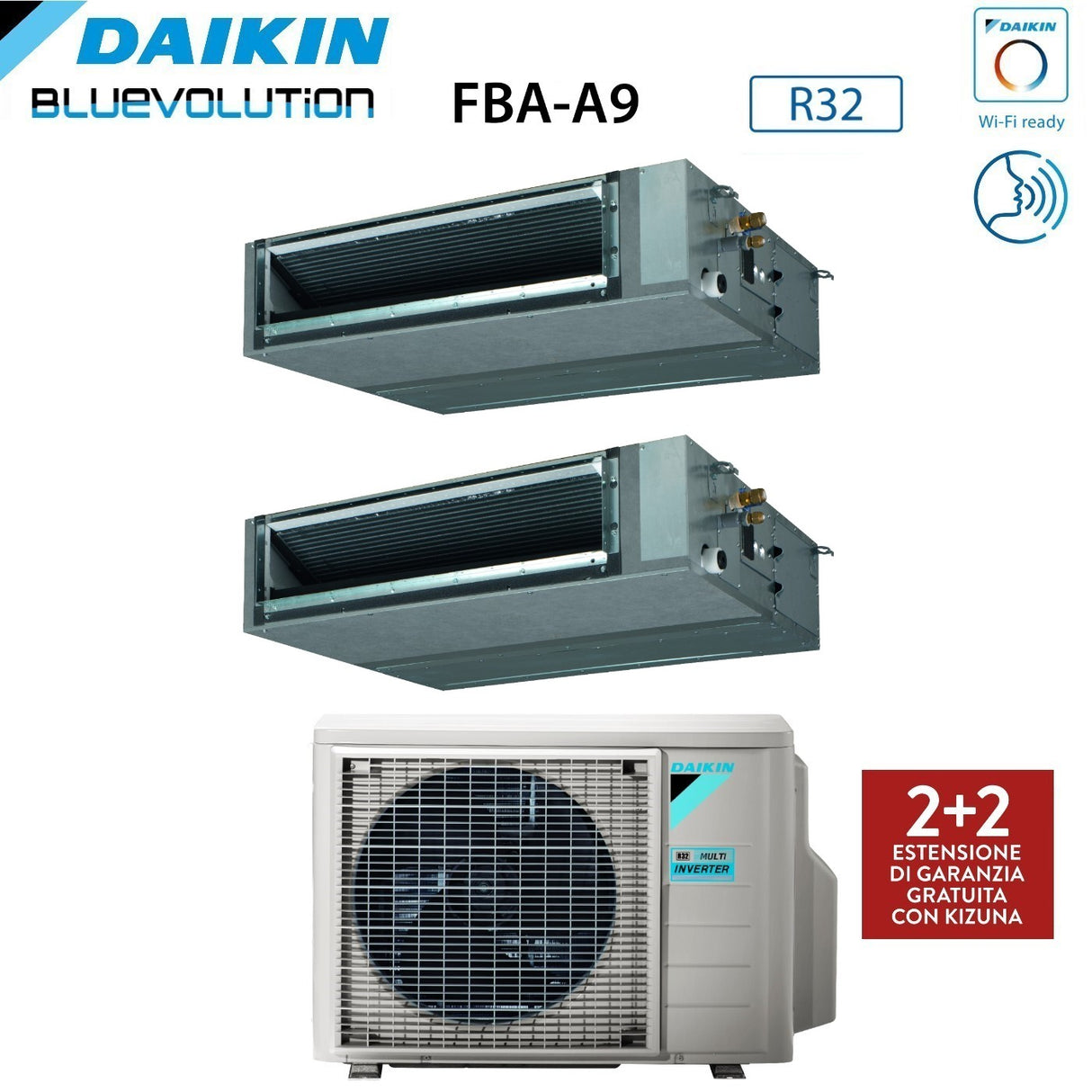

Daikin Bluevolution Dual Split Ducted Ducted Inverter Air Conditioner FBA-A 18+18 series with 3MXM68N R-32 Wi-Fi Optional 18000+18000 - Italian Warranty
Daikin Bluevolution Dual Split Ducted Ducted Inverter Air Conditioner FBA-A 18+18 series with 3MXM68N R-32 Wi-Fi Optional 18000+18000 - Italian Warranty is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
Technical features
Internal Units
Model:
- Indoor unit catalog code: 2x FBA50A
- Power: 18000 Btu
- Cooling Capacity: 5.00 kW
- Heating capacity: 5.50 kW
- Treated air: 12.5 m 3 /min
- Sound power level: 60 dB(A)
- Sound pressure level: 29~37 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Internal Unit Dimensions (HxWxD): 245x700x800 mm
- Internal Unit Weight: 28 Kg
Optional Commands:
- Wi-Fi card: BRP069A81
- White Wire Control: BRC1H519W
- Modoka Silver Cord Control: BRC1H519S
- Modoka Black Wire Control: BRC1H519K
- Infrared remote control: BRC4C65
- Control to be purchased separately
- Catalog code: 3MXM68N
- Max combinable internal units: 3
Energy efficiency:
- SEER: 7.76
- SCOP: 4.09
- Cooling Energy Efficiency Class: A+++
- Heating Energy Efficiency Class: A++
Performance:
- Cooling Capacity: 6.80 kW
- Heating Capacity: 8.60 kW
- Power absorbed Cooling: 1.63 kW
- Power absorbed Heating: 1.83 kW
- Sound power level Cooling: 61 dB(A)
- Sound power level Heating: 61 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 18° C
Installation Data:
- Pipe diameter Liquid: 6.35 mm (1/4") 3x
- Gas pipe diameter: 9.52 mm (3/8") 3x
- Maximum pipe length: 50 m
- Maximum internal unit / external unit height difference: 15 m
Dimensions and weight:
- External Unit Dimensions (HxWxD): 734x958x384 mm
- External Unit Weight: 62.0 kg
Kizuna 2+2 guarantee
The Daikin Italia warranty can be activated within 1 month from the date of purchase at https://standbyme.daikin.it/it/
Multisplit Systems Superior efficiency
The range of new Multisplits includes 8 external units with 2 to 5 connections, with power from 4 to 9 kW, which can be combined with Daikin internal units. Designed with highly energy-efficient refrigerants and compressors that guarantee optimal performance, all multisplit units allow you to cut consumption by up to 80%. All Bluevolution multis are in class A+++/A++.
All in even more compact dimensions. Compared to the previous range, significant improvements have also been achieved in terms of silence .
You can connect up to five indoor units to a single multi outdoor unit . The ideal solution to meet the needs of those who want to heat and cool multiple rooms
" Daikin Bluevolution redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."
Discover the well-being of the future
Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.
Is your air conditioner more than 10/15 years old?
Discover the advantages of replacing it with a new Daikin Bluevolution. Here are the main benefits:
- Consumption halved by saving on energy costs. This way you are good for the environment and your wallet
- Absolute silence with a product 10 decibels less noisy, practically imperceptible: to sleep, listen to music and study without any disturbance
- 4 year warranty the free 2 year Daikin Kizuna warranty extension will be reserved for the new BLUEVOLUTION residential range.
- Pure air thanks to the patented Flash Streamer TM system, to remove dust, pollen, mites, mold and many other allergens; even bad odors, viruses and bacteria
- New design with products designed to make the air conditioner a furnishing element.
Why choose Daikin?
- Seasonal efficiency in heating and cooling
Creating a pleasant climate in your home is not just a question of comfort. Daikin systems are also friendly to the environment and your wallet. Daikin's advanced energy saving technologies guarantee high levels of seasonal efficiency in both heating and cooling, up to class A+++ . Consider that a class A+++ product is up to 40% more efficient than a class A++ product. Seasonal efficiency is a new way of classifying heating and cooling products based on their energy efficiency throughout the year.
- R-32 More Efficiency and Eco-Friendly
Daikin uses R-32, a refrigerant that leads to lower CO 2 emissions. This means the units have a lower global warming potential and are generally more efficient. For the benefit of the environment!
- Extreme silence
Noisy units are now a thing of the past. Daikin systems are so quiet as to be inaudible. You can read, study and sleep without any background noise.
- Control via app Not at home?
Thanks to Daikin's Onecta App the problem is solved. You can adjust the internal temperature, air flow and operating mode from your device, whenever and wherever you want. Furthermore, you can keep energy consumption under control, managing your climate responsibly.

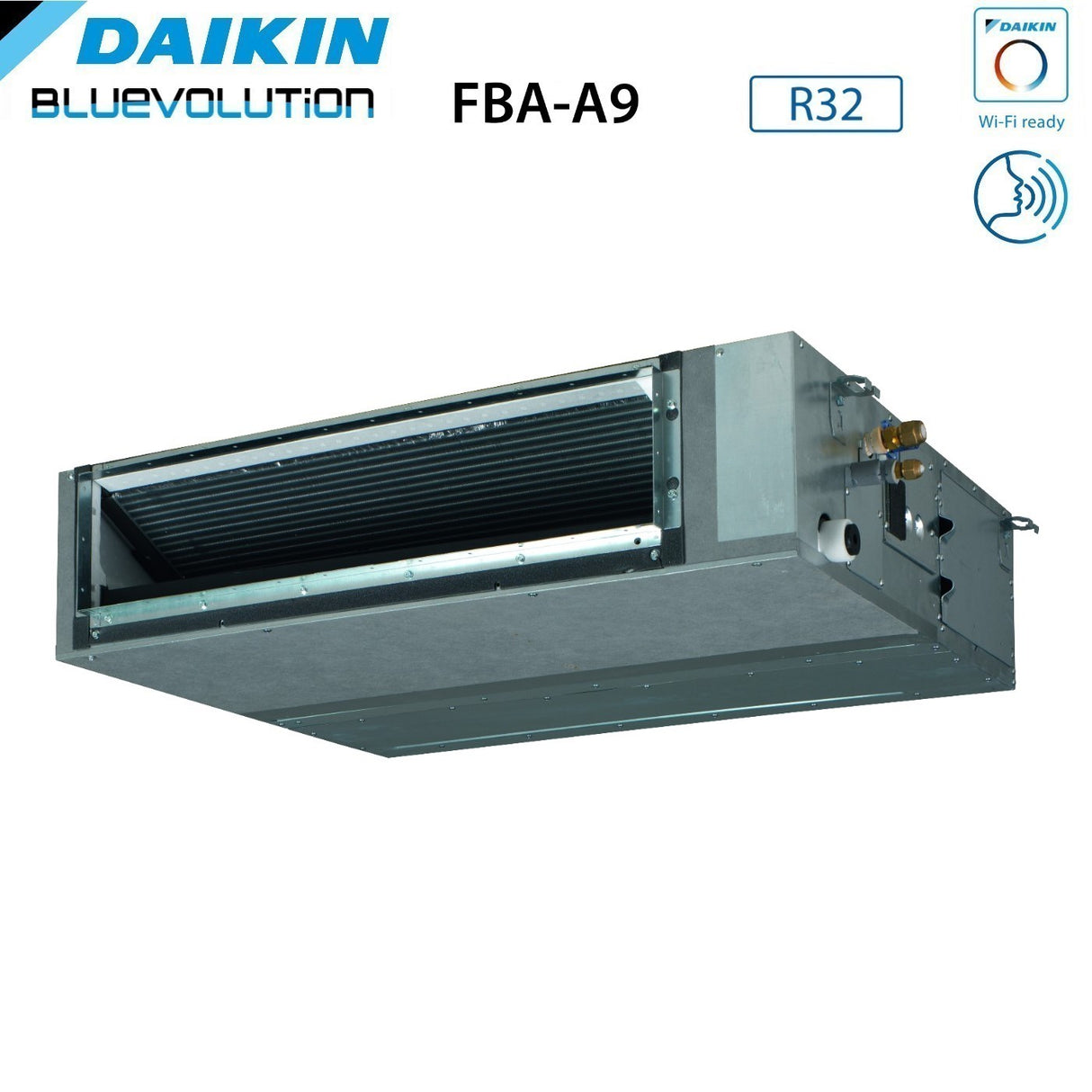

Daikin Ducted FBA-A
The most compact unit with the most powerful average head on the market.
" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."
Discover the well-being of the future
Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.
Optimized intake air volume
Automatically selects the most suitable fan characteristic curve to obtain the nominal flow rate of the unit, with a tolerance of ±10%
Why?
After installation, actual ductwork typically has a different airflow resistance than initially calculated, the actual flow rate may be much lower or higher than the rated value, resulting in lack of capacity or uncomfortable air temperature The automatic airflow adjustment function will automatically adapt the unit's fan speed to any ductwork (10 or more fan curves available for each model), significantly speeding up installation
Ductable from false ceiling
• It adapts perfectly to any type of furniture. Only the intake and delivery grilles are visible
• Greater comfort thanks to 3-step airflow control
• The head of up to 150 Pa allows the use of the unit with flexible ducts of various lengths: ideal for medium-sized shops and offices
• The possibility of changing the prevalence via wired remote control allows you to optimize the air flow rate introduced
• Extremely silent operation: sound pressure reduced to 29 dBA
• Simplified installation thanks to automatic flow adjustment and a height of just 245 mm
• The standard air filter eliminates airborne dust particles, thus ensuring a constant supply of clean air
• The integrated condensate drain pump included in the standard equipment increases the reliability of the drain system
• No optional adapter is required for DIII connection
“Home Leave” mode
It manages the internal temperature during your absence with energy savings, while still guaranteeing room comfort.
External unit silent function
The “Silent” button on the remote control reduces the operating sound level of the outdoor unit by 3dB(A) so as not to disturb the neighborhood.
Inverter
Inverter-driven compressors regulate the speed of the compressor, adapting its operation to actual needs. This allows you to limit stops and starts, reducing energy consumption (up to 30%) while maintaining more stable temperatures.
Ventilation only
The unit can also be used in ventilation only mode, without cooling or heating.
Automatic switching mode of operation
Automatically selects cooling or heating mode to maintain the set temperature
Multiple zoning
Allows up to 6 individual climate zones with one indoor unit.
Absolute silence
Daikin internal units are very quiet. Furthermore, the outdoor units are designed not to disturb the peace of the neighborhood.
Step fan speed
Allows you to select different fan speed values (2 steps).
Dehumidification program
Reduces air humidity by avoiding excessive cooling.
Air filter
Eliminates airborne dust particles, improving air quality.
Infrastructure cooling
The heat constantly produced by IT equipment and servers can be eliminated reliably, efficiently and flexibly ensuring maximum durability and at the same time offering the best return on investment.
Weekly timer
It can be set to start cooling or heating at any time, on a daily or weekly basis.
Wired remote control
Allows control of the air conditioning functions.
Centralized remote control
It allows the management of the air conditioning functions from a centralized control.
Auto restart function
After a power failure, the unit automatically restarts with the original settings.
Self-diagnosis
Simplifies maintenance by indicating system malfunctions or operating anomalies.
Drain pump kit
Facilitates the evacuation of condensation from the internal unit.
Twin/triple/double twin application
Possibility of connecting 2, 3 or 4 internal units, even if of different capacities, to a single external unit. All indoor units operate in the same mode (cooling or heating), which can be activated using a single remote control.
Multi Application
Possibility of connecting up to 5 internal units, even if of different capacities, to a single external unit. Each of the indoor units can be operated individually within the same cooling or heating mode.
Onecta App Full control, wherever you are
Are not you at home? Thanks to the Onecta app, this is not a problem. The app allows you to instantly access all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.
- Control all the features of your Daikin Emura air conditioner
- Create different programs and operating modes
- Track your energy consumption on a daily, weekly or annual basis
- Identify the room in your home to easily control different units
Simply connect to the WLAN and download the Onecta app to start creating the perfect climate for your home
The Onecta app allows you to connect Daikin to your Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you are not at home you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner . It's very simple
Voice Control
To further increase comfort and convenience, the app Daikin Onecta - Residential Controller It is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, the voice control can be combined with smart speakers, such as Google Assistant And Amazon Alexa
Unit Always Connected
The unit can be managed via the new Daikin Onecta - Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit
Programming
Set a schedule to define system operating times, and create up to six different actions per day
Program the room temperature and operating mode
Enable vacation mode to save on energy costs
Monitoring
Get a complete overview of system performance and energy consumption
Access energy consumption graphs (daily, weekly, monthly)
Check
Customize the system to fit your lifestyle and year-round comfort needs
Activate Powerful mode to enhance operation
The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: DAIKIN
- metri quadri : 50/50
- modello: FBA 18+18 68
- potenza btu: 18000+18000
- superficie riscaldabile mq: 50/50
