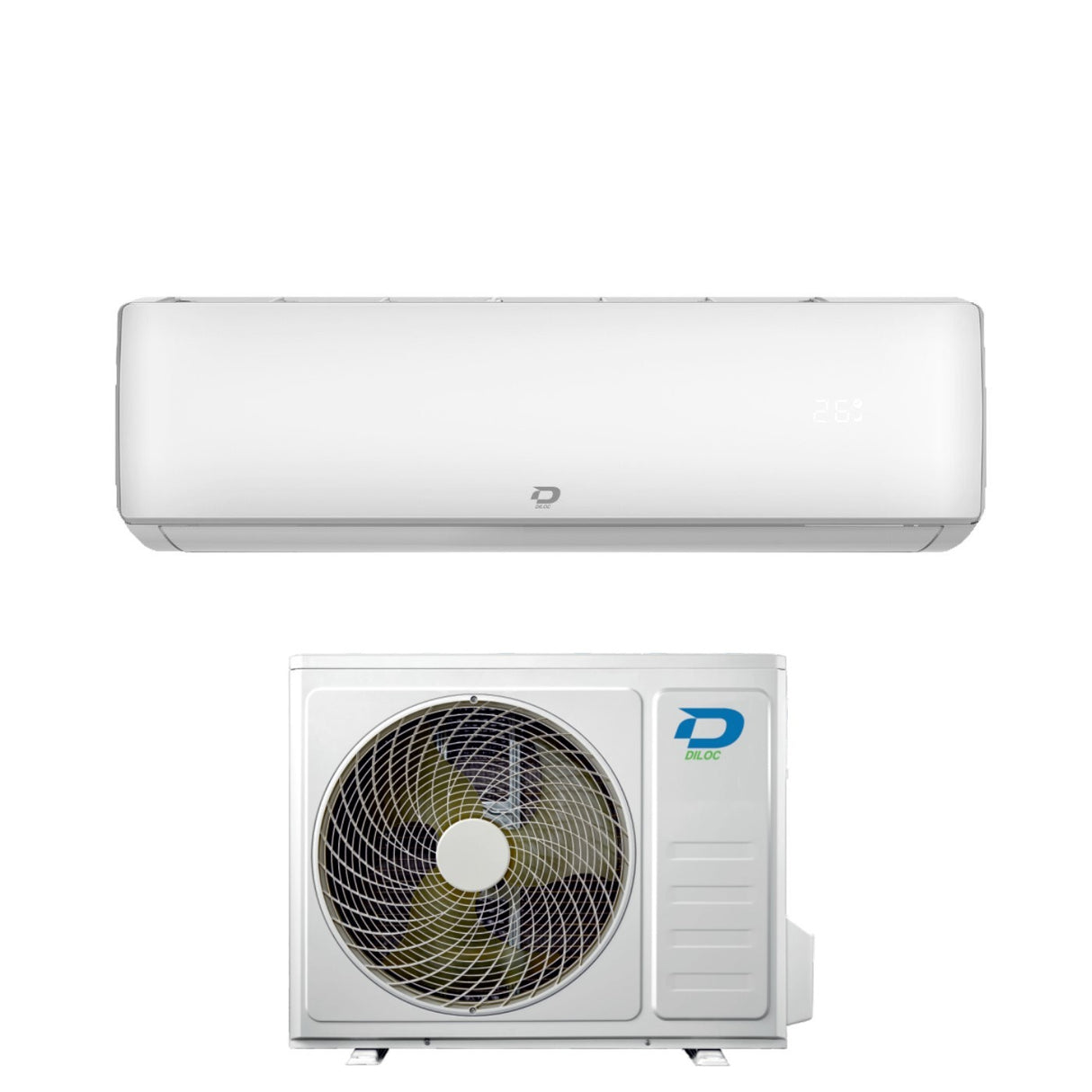

Diloc Inverter Air Conditioner SKY PLUS series 24000 Btu D.SKY24000PLUS R-32 Integrated Wi-Fi Class A++/A+ - New

• Cooling Capacity: 6.8 kW
• Heating Capacity: 6.9 kW
• Cooling absorption: 2,257 kW
• Heating absorption: 2,063 kW
• Internal Unit Treated Air: 980 m ³ /h
• Indoor Unit Sound Power Level: 40~54 dB(A)
• External Unit Sound Power Level: 67 dB(A)
• Indoor Unit Sound Pressure Level: 30~44 dB(A)
• External Unit Sound Pressure Level: 57 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -15° ~ 53° C
• - Heating: -20° ~ 30° C

Diloc Air Conditioning Systems

DILOC is the division of NAICON that proposes and identifies itself as a PARTNER for your daily well-being and for a better quality of life without losing sight of the environment and energy efficiency. DILOC offers the right solution for residential, commercial and industrial environments by offering air conditioning systems characterized by high quality standards that offer an excellent quality/price ratio. DILOC offers latest generation models up to 60,000 BTU with low environmental impact, built not only to guarantee maximum comfort and extreme silence but also to reduce electricity consumption and overall dimensions to a minimum.

DILOC has constantly worked to obtain maximum efficiency from Japanese technology, reducing electricity consumption and consequently product management costs. With the DC INVERTER DILOC technology, savings of more than 25% are guaranteed and with the two gases in the range, R410A and R32, we have achieved high levels of efficiency even in the heat pump at low temperatures without penalizing the feeling of well-being.
DILOC offers Air Conditioning Systems that can be used both in Summer and Winter and, in mid-seasons, they can also be used as a dehumidification function when the humidity level in the rooms is high.
DILOC offers a new range of air conditioners without an external motor, the EASY DESIGN model, suitable for historic centres, condominiums, commercial establishments and in all situations where an external motor cannot be installed.

In addition to the product, DILOC has always paid attention to the guaranteed service, through an efficient Technical Assistance network it guarantees prompt and extremely professional intervention in the event of a fault.
DILOC is used by qualified installers capable of satisfying the most complex assembly needs to guarantee the satisfaction of the end user.
The customer is always at the center of the company's attention: Let yourself be influenced by DILOC !

Choose Diloc!

The DILOC 2022 DC INVERTER range has a high efficiency capable of saving up to 50% of energy consumption . The entire range is in class A++ / A+++, both during cooling and heat pump. The noise level has been further improved according to the new regulations. Attention to detail allows us to offer a product with low environmental impact (R410A ecological gas and R32 ecological gas) and high efficiency SCOP = > 4.

Accurate controls, reliable tests

• Noise measurement in maximum operation.
• Ventilation air flow test.
• Checks of all electrical consents in hot and cold operation.
• Aesthetic and finishing control.
• Flap flap movement control.
• Checking the condensate drain pipe.
• Final aesthetic check.
• Checking the packaging

Environment

DILOC, in accordance with the new directives to protect the environment, proposes with the range of FROZEN single and multi air conditioners high-performance products with low energy consumption, ecological refrigerant gas R32, with performance coefficient SCOP = > 4 valid as energy class A+/ A++/A+++.

NAICON's objective is to contribute to the reduction of CO2 emissions, guaranteeing a climate of well-being in homes, offices and buildings for public use. NAICON has developed, in agreement with the main manufacturers of air conditioning systems, a range capable of satisfying the needs of every type of installation. Innovative design, functionality, ease of installation and energy efficiency make the NAICON range an air conditioning system for any environment and for any surface, with an excellent quality-price ratio. Our DC INVERTER Air Conditioning Systems have been designed to guarantee maximum comfort with minimum energy consumption, helping to safeguard the future of the Earth

Diloc SKY PLUS series

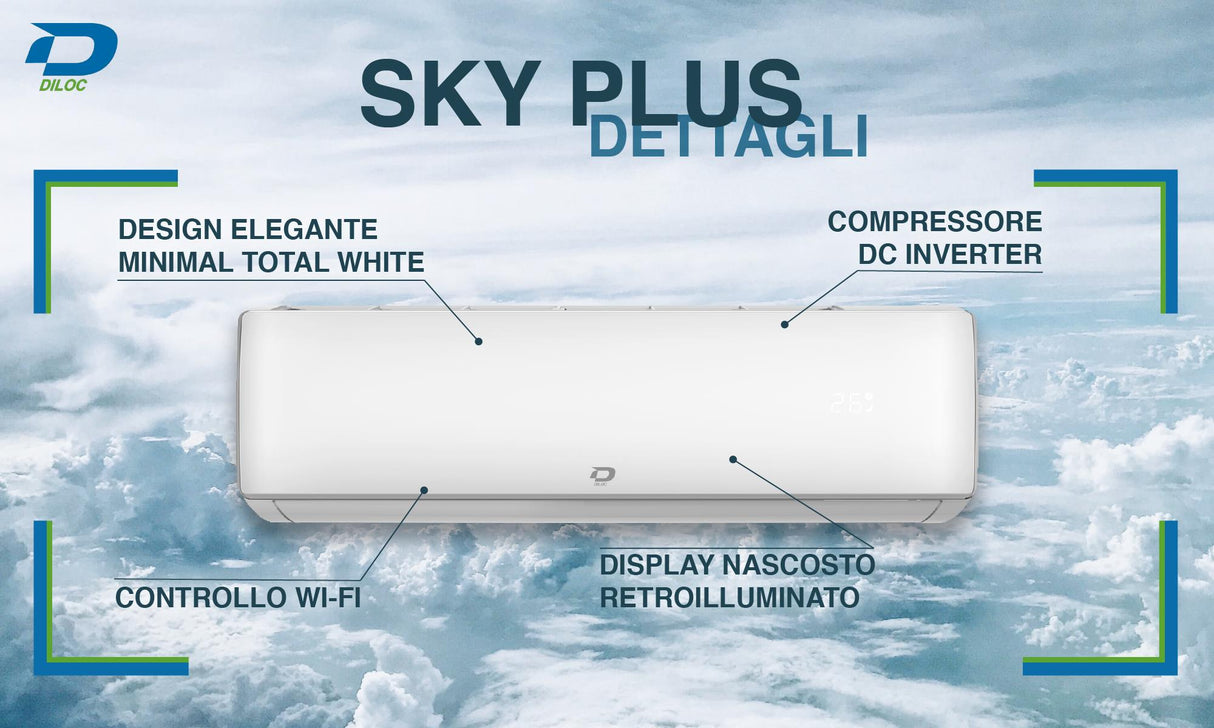

The range of SKY PLUS air conditioners by Diloc is made up of total white devices designed with a minimal, but at the same time elegant and modern design.

The A++ energy class guarantees the best performance, while the ecological gas allows you to reduce consumption and gas emissions. A backlit display hidden in the total white front panel allows you to view the temperature data, while the DC Inverter compressor is among the best and most innovative around.

To complete the extremely technological structure of the air conditioner, a series of functions can be listed:
1. Wi-Fi function: the internal units of the system are set up to be controlled remotely via the NAICON app. The Wi-Fi dongle is integrated into the indoor unit.
2. “Sleep” function: the fan speed is automatically reduced for greater comfort and silence during the night.
3. “”Auto Swing”” function: the horizontal fins can be activated automatically in three positions while the vertical ones can be adjusted manually.
