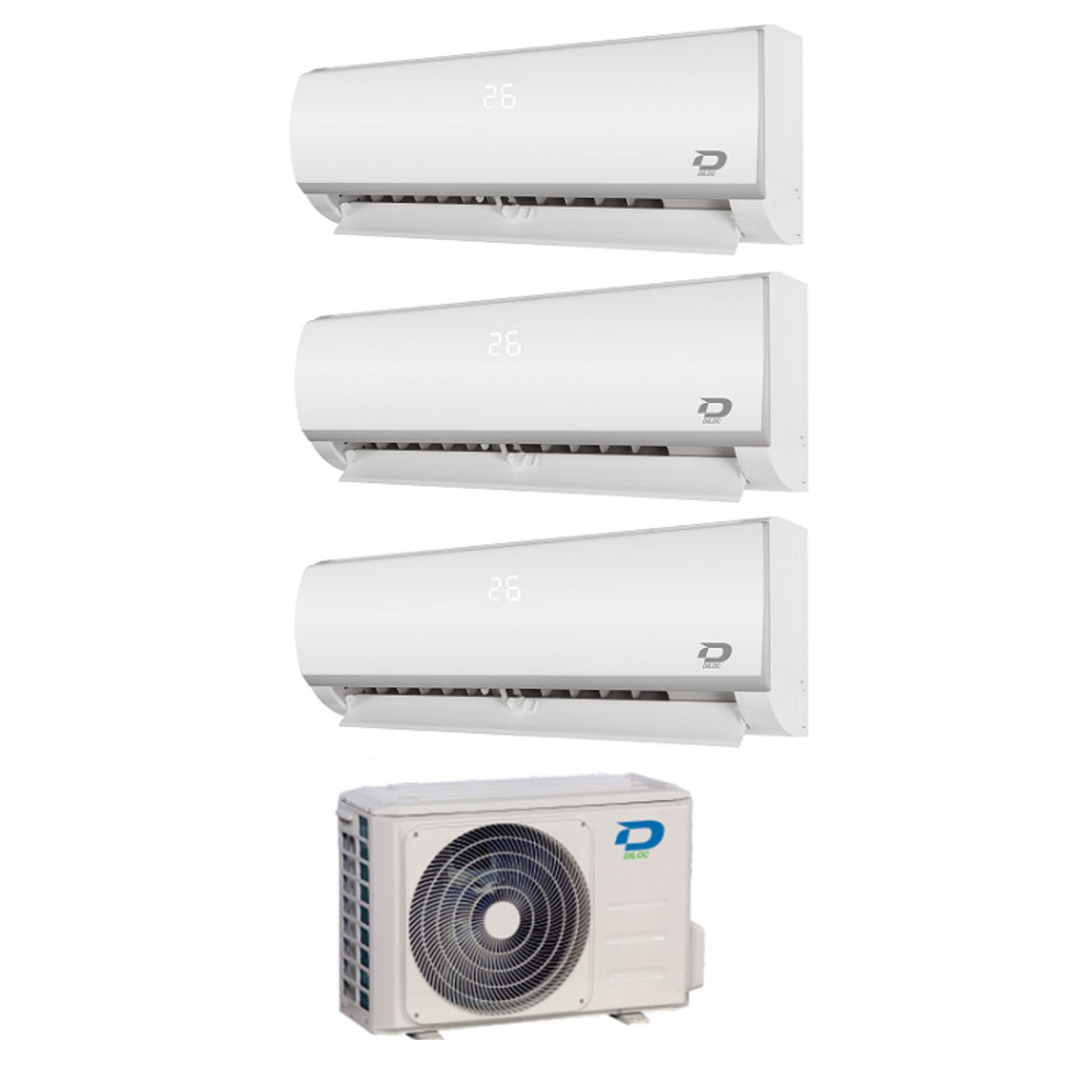

DILOC Trial Split INVERTER Air Conditioning FROZEN 9+12+12 series with D.FROZEN360 R-32 class A++ 9000+12000+12000 BTU Wi-Fi OPTIONAL

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

DILOC Trial Split INVERTER Air Conditioning FROZEN 9+12+12 series with D.FROZEN300 R-32 class A++ 9000+12000+12000 BTU Wi-Fi OPTIONAL

---

Technical features

Combination Consisting of:

1) Model

• D.FROZEN9
• Power 9000 btu
• Dimensions WxDxH 805x194x285 mm

OUTDOOR UNIT

• Code D.FROZEN300

Seasonal cooling

• Capacity 7.0 (2.2 - 7.8) kW
• SEER 6.1
• Energy class A++

Seasonal heating

• Capacity 7.0 (2.2 - 7.8)
• SCOP 4.1
• Energy class A+

Performance

• External unit sound power 63 dba

Dimensions

• WxDxH 800x333x554 39 Kg

---

General characteristics

DILOC

Air conditioning systems

DILOC is the division of NAICON that proposes and identifies itself as a PARTNER for your daily well-being and for a better quality of life without losing sight of the environment and energy efficiency. DILOC offers the right solution for residential, commercial and industrial environments by offering air conditioning systems characterized by high quality standards that offer an excellent quality/price ratio. DILOC offers latest generation models up to 60,000 BTU with low environmental impact, built not only to guarantee maximum comfort and extreme silence but also to reduce electricity consumption and overall dimensions to a minimum.

With the DC INVERTER DILOC technology, savings of more than 25% are guaranteed and with R410A gas we have achieved high levels of efficiency even in the heat pump at low temperatures without penalizing the feeling of well-being.

Save up to 50% of consumption

The DILOC 2016 DC INVERTER range for domestic use has high energy efficiency capable of saving up to 50% of energy consumption . The entire range is at least in class A both during cooling and heat pump. The noise level has been further improved according to the new regulations. Attention to detail allows us to offer a product with low environmental impact (ecological gas R410A) and high efficiency SCOP = > 3.8. The EASY DESIGN model without external motor, with the new regulations guarantees class A+ for a further reduction in consumption. The ideal air conditioner to avoid installing external units outside the home

Wall-I Mono and Multi Series

The DC INVERTER DILOC air conditioner produces, right from the start-up phase, the exact power necessary to produce the desired effect: warm in autumn and cool in summer. This feature allows you to reach the set comfort temperature in a quarter of the time required by a conventional air conditioner.



Characteristics:



The Wall-In internal units can be combined in the 9,000, 12,000 and 18,000 BTU versions with all mono and multi DC INVERTER external units;

Wall-I air conditioners are in class A++ in cold and A+ in heat with SCOP greater than 4.00;

Wall-In indoor units are equipped with an easy-to-use remote control included in the product;

The Wall-Out external units with two, three and four connections guarantee class A++ operation, reducing operating consumption. In stand-by mode consumption is reduced to just 0.5 watts. The compressor uses high-efficiency Japanese DC Inverter technology.

• Wi-Fi function: it is possible to request the entire Wall-In range with the Wi-Fi function and the possibility of controlling the air conditioners via tablet, iPad and smartphone. You can manage all the functions of the product.

• Wall controller: (OPTIONAL): if you don't want the classic remote control, the Wall-I system allows you to manage the main functions of the air conditioner via a Remote Controller.

• Heat pump: Wall-I air conditioners are equipped with a heat pump function for use in the colder months.

• Dehumidification: on those very humid days, in the autumn and spring seasons, the Wall-I air conditioner allows you to reduce that annoying feeling of humidity thanks to a cutting-edge system for reducing humidity in closed places.

• Slee p function : Wall-I air conditioners modify night-time operation taking into account the reduction in body temperature, as well as increasing silent operation.

• Auto Swing: automatic oscillation of the air flow management flaps.

• 5-year warranty : The compressor has a free 5-year warranty extension, demonstrating the quality of the air conditioner engine.

• Backlit display: Wall-I air conditioners display the set data with a modern backlit display. For those who wish to further reduce the lighting of the product, it is possible to turn off the display.

---

Product Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Diloc
• modello: 9+12+12dfrozen-WALL300
• potenza btu: 9000+12000+12000
• superficie riscaldabile mq: 25/35/35
