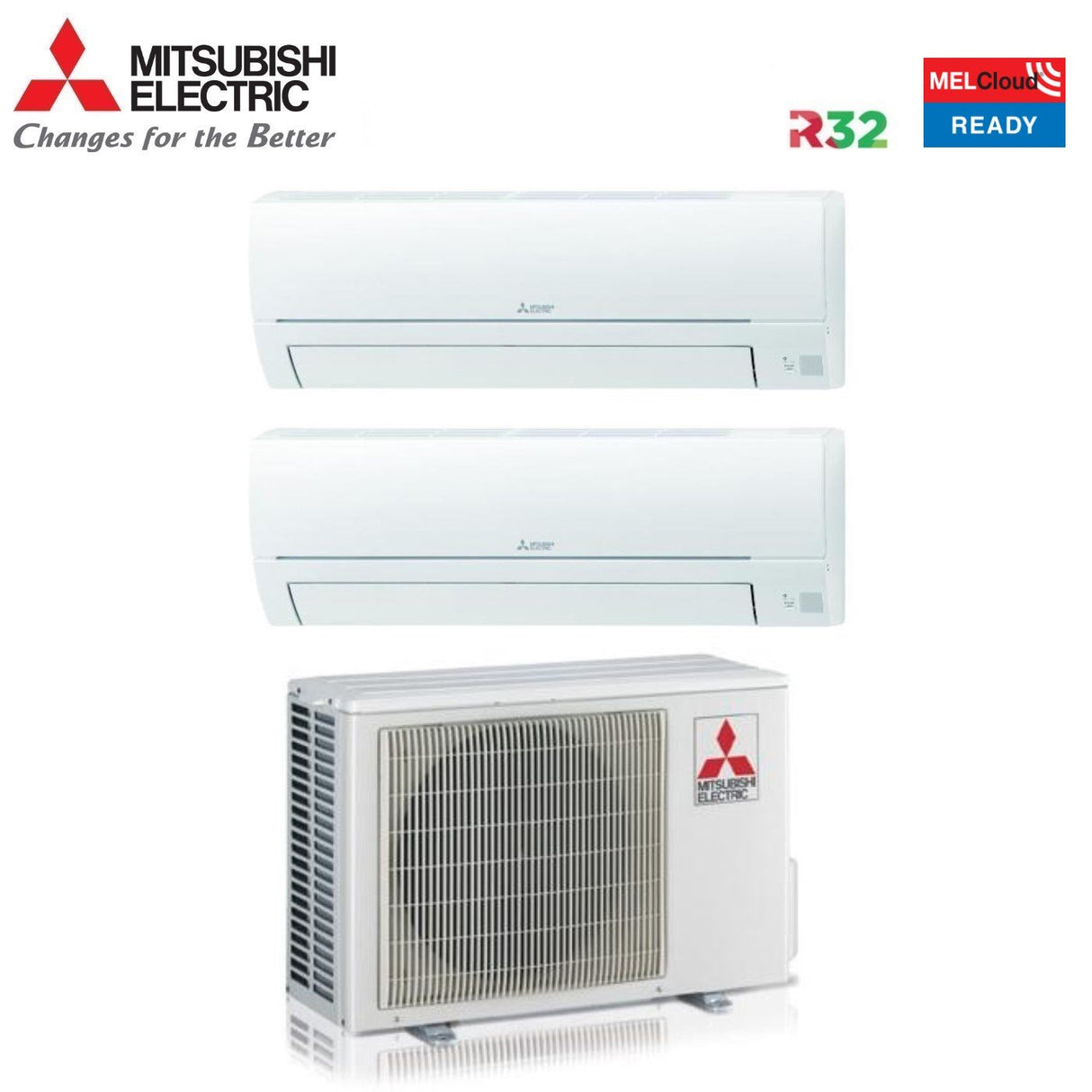

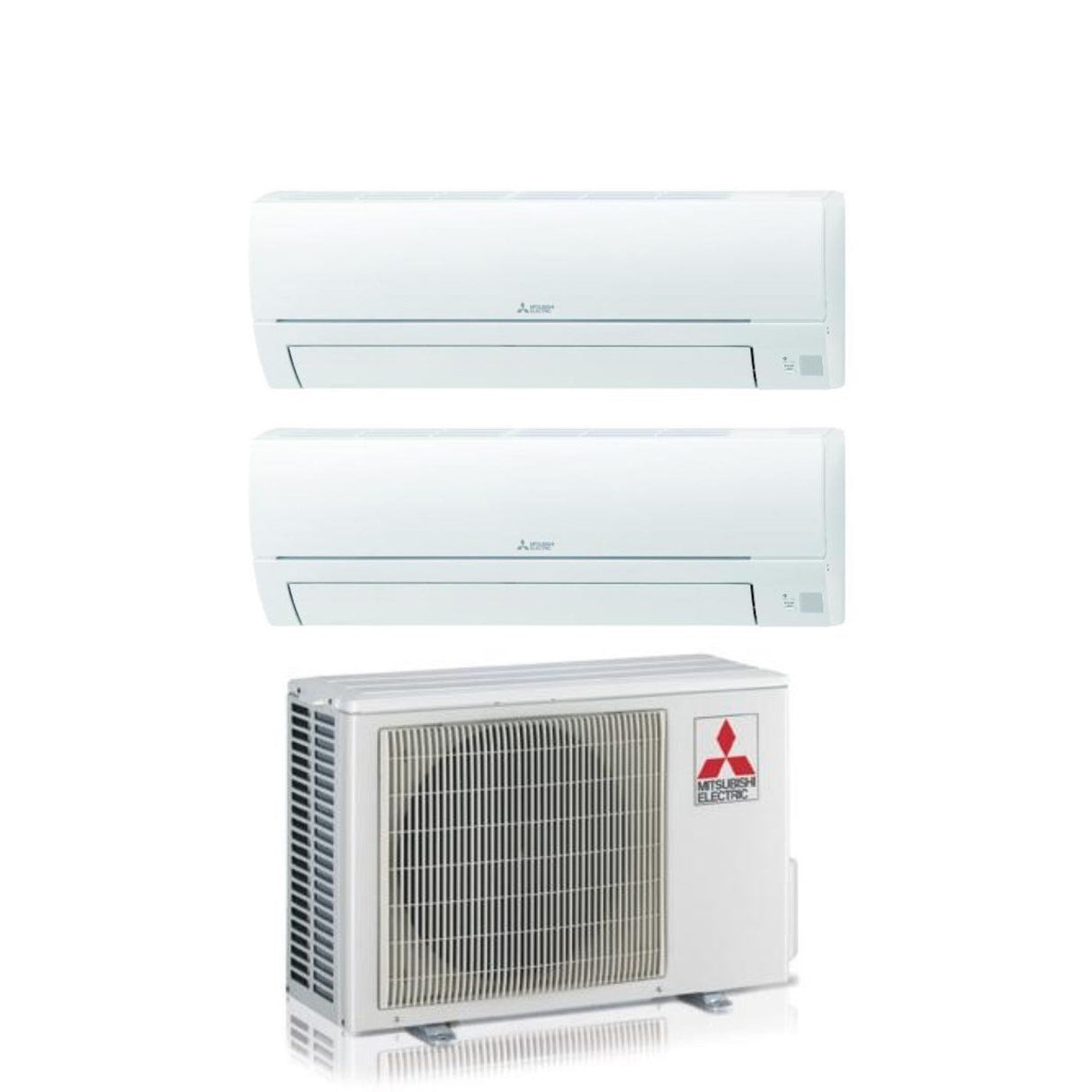

Mitsubishi Electric Dual Split Inverter Air Conditioning SMART MSZ-HR 9+18 series with MXZ-2HA50VF R-32 Wi-Fi Optional 9000+18000

Internal units

1) Model

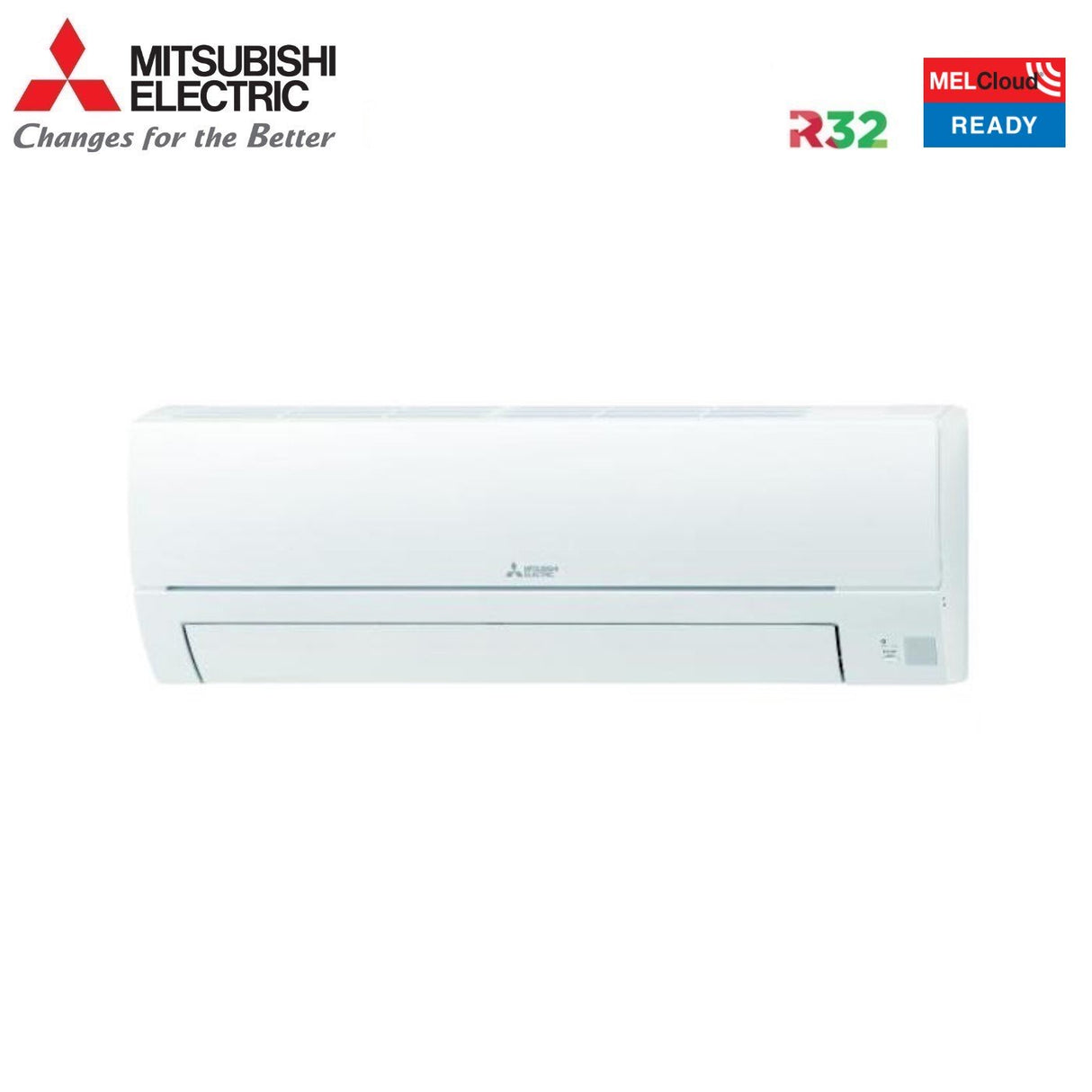

• Indoor unit catalog code: 1x MSZ-HR25VF
• Power: 9000 Btu
• Cooling capacity: 2.5 kW
• Heating capacity: 2.3 kW
• Air flow rate: 3.3 ~ 10.1 m³/min
• Sound power level: 57 dB(A)
• Sound pressure level: 21 ~ 43 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")

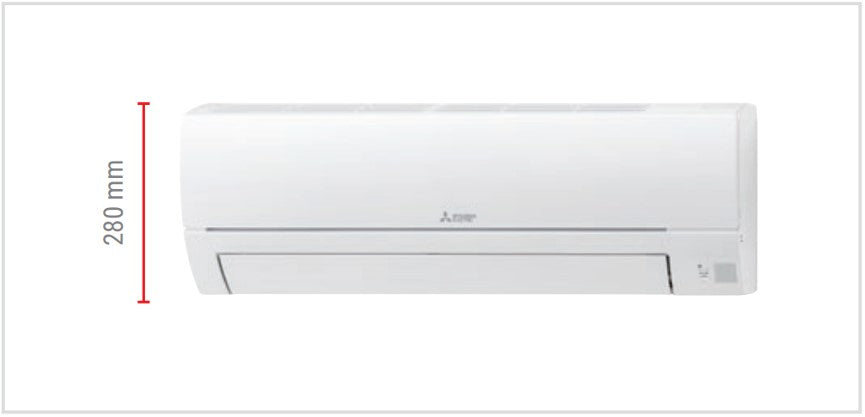

• Indoor unit dimensions (HxWxD): 280x838x228 mm
• Indoor unit weight; 8.5 kg
• Wi-Fi Optional: MAC-587IF-E

External unit

• Outdoor unit catalog code: MXZ-2HA50VF
• Number of connectable internal units: 2

Energy efficiency

• SEER: 7.78
• SCOP: 4.3
• Cooling energy efficiency class: A++
• Heating energy efficiency class: A+
• Annual energy consumption in cooling: 225 kWh/a
• Annual energy consumption in heating: 1043 kWh/a

Performance

• Cooling capacity: 5.0 kW
• Heating capacity: 6.0 kW
• Cooling absorption: 1.52 kW
• Heating absorption: 1.54 kW
• Sound power level: 64 dB(A)
• Sound pressure level: 47~51 dB(A)

Characteristics

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Installation data

• Liquid tube diameter: 6.35 mm (1/4") x2
• Gas pipe diameter: 9.52 mm (3/8") x2
• Maximum pipe length: 30 m
• Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

• External unit dimensions (HxWxD): 550x800(+69)x285(+59.5) mm
• External unit weight: 37.0 kg

Mitsubishi Electric Smart HR Series A compact line designed for small spaces

DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner based on the cooling or heating request. Compared to traditional fixed speed air conditioners (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

R-32

The R32 refrigerant gas complies with European directives on the reduction of the greenhouse effect, presenting a lower GWP than R410A and not damaging the ozone layer. The advantages?

• High energy efficiency
• Reduction in the amount of refrigerant gas used
• Reduced environmental impact
• Easily chargeable and recoverable as pure gas
• Low toxicity and flammability

A compact line designed for small spaces

The MSZ-HR units guarantee comfort and low electricity consumption, with minimal noise emissions without sacrificing compact dimensions.

Compact indoor units

The dimensions of the internal units of the entire range are particularly compact.

This allows installation even in rooms where the space available is limited.

Maximum silence for maximum comfort

The quality of the environment in which we stay also depends on the perceived noise level. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum.

MELCloud, Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud (the "Cloud") to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-567IF-E), you can easily control your system wherever you are via your PC, tablet or the smartphone; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.

Beyond the A++/A+ class

Operating economy is the great advantage of Mitsubishi Electric air conditioners.

Thanks to the careful design of all components and the use of cutting-edge technologies, energy efficiency reaches extraordinary levels even on a seasonal basis.

In particular, the Smart Line obtains SEER and SCOP (seasonal efficiency indices) values ​​which allow it to reach values ​​beyond Class A++/A+ across the entire range .

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: MITSUBISHI ELECTRIC
• metri quadri : 25/50
• modello: 9+18MSZ-HR+MXZ-2HA50VF
• potenza btu: 9000+18000
• superficie riscaldabile mq: 25/50
