Ferroli
Garanzia Italiana 24 mesi
SKU: Diamant M 7+9+12

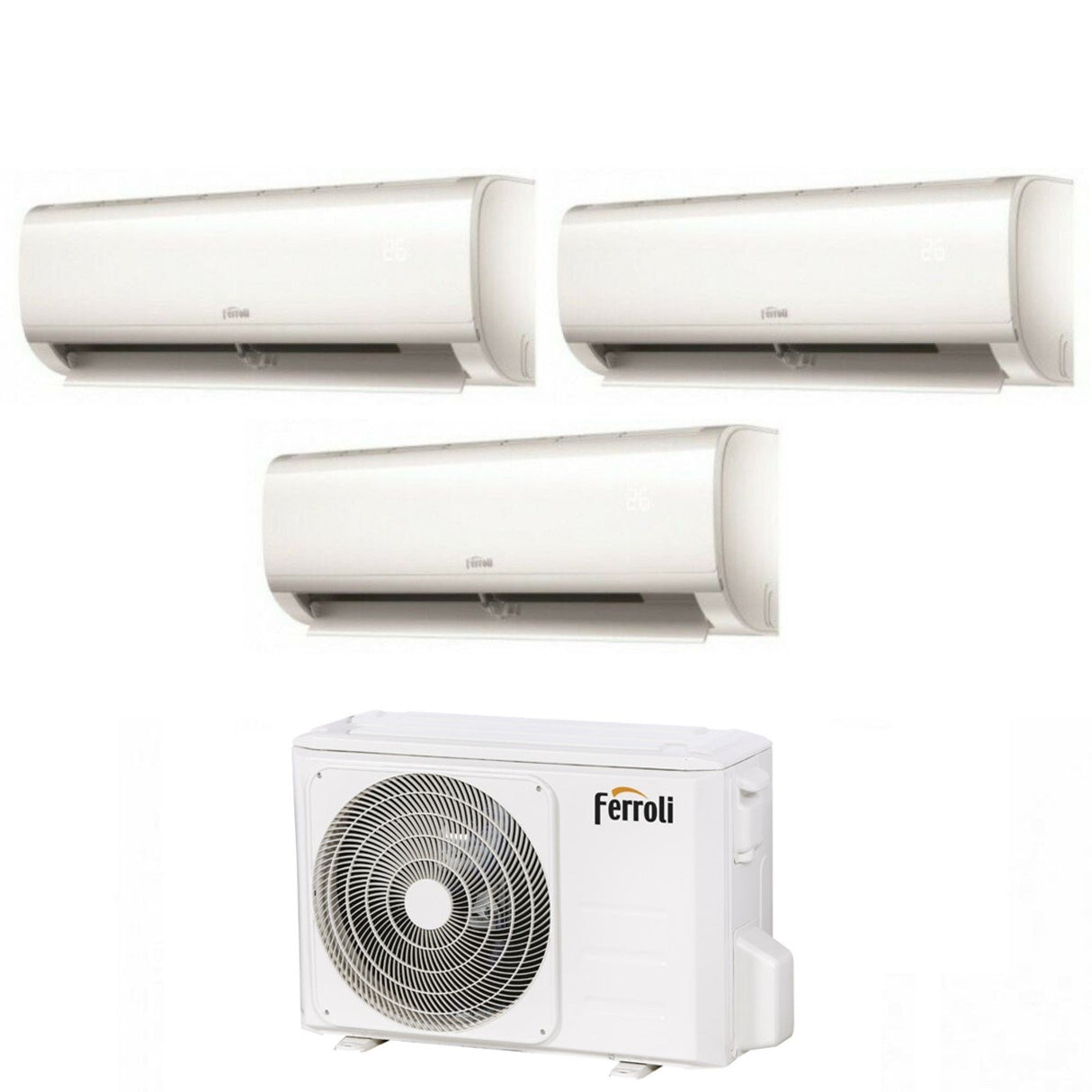

Ferroli Trial Split Inverter Air Conditioner DIAMANT M 7+9+12 series with 27-3 R-32 Integrated Wi-Fi 7000+9000+12000 - New

Trustpilot
€1.549,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

Internal Units

1) Model

  • Internal Unit Catalog Code: 1x 2C09A00F
  • Power: 7000 Btu/h
  • Refrigeration output: 2050 W
  • Thermal output: 2350 W
  • Maximum Electrical Consumption: 20 W
  • Air flow: 520/460/340 m 3 /h
  • Sound Pressure: 40/30/26 dB(A)
  • Sound Power: 54 dB(A)
  • Liquid Pipe Diameter: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
  • Internal Unit Weight: 7.5 Kg

2) Model

  • Internal Unit Catalog Code: 1x 2C09A01F
  • Power: 9000 Btu/h
  • Cooling capacity: 2640 W
  • Thermal output: 2930 W
  • Maximum Electrical Consumption: 20 W
  • Air flow: 520/460/340 m 3 /h
  • Sound Pressure: 40/30/26 dB(A)
  • Sound Power: 54 dB(A)
  • Liquid Pipe Diameter: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
  • Internal Unit Weight: 7.5 Kg

3) Model

  • Indoor Unit Catalog Code: 1x 2C09A02F
  • Power: 12000 Btu/h
  • Cooling capacity: 3520 W
  • Thermal output: 3810 W
  • Maximum Electrical Consumption: 20 W
  • Air flow: 600/500/360 m 3 /h
  • Sound Pressure: 40/34/26 dB(A)
  • Sound Power: 53 dB(A)
  • Liquid Pipe Diameter: 6.35 mm (1/4")
  • Gas Pipe Diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
  • Internal Unit Weight: 7.5 Kg
External Unit
Model
  • Outdoor Unit Catalog Code: 27-3
  • Connectable Internal Units: 3

Characteristics:

  • Power (V/Hz/Φ): 230/50/1
  • Refrigerant gas: R-32
Installation Data
  • Liquid Pipe Diameter: 6.35 mm (1/4") 3x
  • Gas Pipe Diameter: 9.52 mm (3/8") 3x
  • Maximum total length: 30 m
Dimensions and weight
  • External Unit Dimensions (HxWxD): 702x845x363 mm
  • External Unit Dimensions Weight: 51.5 Kg
Performance combination 7000+9000+12000

Energy efficiency
  • SEER : 6.1 (W/W)
  • SCOP : 4 (W/W)
  • Energy Efficiency Class (Cooling): A++
  • Energy Efficiency Class (Heating): A+

Performance

  • Cooling Capacity: 7.92 kW
  • Heating Capacity: 8.21 kW
  • Std Cooling absorption: 2.45 kW
  • Std Heating absorption: 2.10 kW

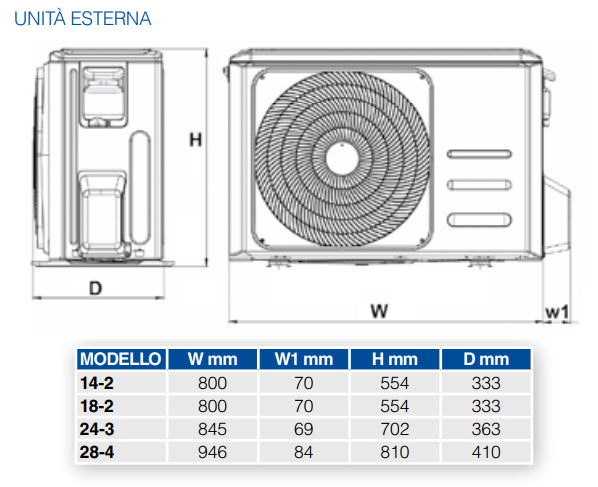

Unità Esterna
Ferroli DIAMANT M There is new air in Ferroli
Diamant M The latest proposal from Ferroli in terms of wall multisplits is particularly appreciated for its elegant lines and the compactness of the unit . It combines great performance, energy efficiency and silent operation. This equipment perfectly combines respect for the environment with the importance of energy saving where, Ferroli has always been at the forefront.

Limits on the length and height difference of the refrigeration pipes
The length of the refrigerant pipes between the internal and external units must be as short as possible, and is in any case limited by respecting the maximum height differences between the units. By decreasing the difference in height between the units and the length of the pipes, pressure losses will be limited, consequently increasing the overall efficiency of the machine.

Functions
• AUTO operation, automatically activates Cool/Heat operation based on the room temperature and Set Point
• Cooling operation
• DRY operating mode, accentuates the phenomenon of summer dehumidification
• Heating operation
• FAN operation, activates the internal unit in ventilation only
• SWING function (motorized deflector flap)
• TURBO Timer function, brings operation to maximum speed for rapid achievement of the SET POINT
• Night operation ( SLEEP ). Increases night-time comfort
• Timers
• Memory retention and automatic restart in the event of power failures
• Self-diagnosis system and description of any anomalies
• Remote control with dedicated smartphone app
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica
  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Ferroli
  • modello: Diamant M 7+9+12
  • potenza btu: 7000+9000+12000
  • superficie riscaldabile mq: 20/25/35
