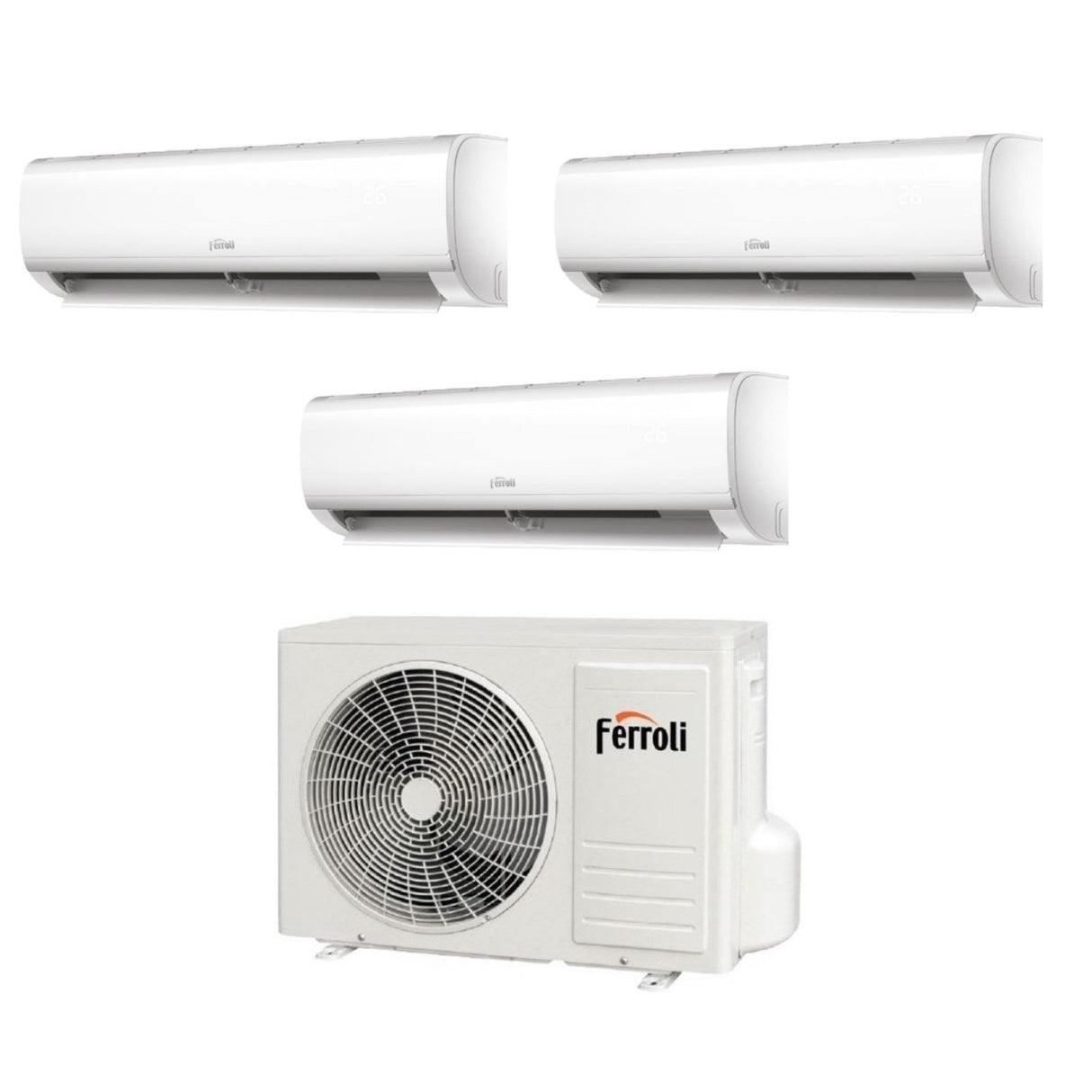

Ferroli Trial Split Inverter Air Conditioner DIAMANT PLUS Series M 9+9+12 with 28-4 R-32 Integrated Wi-Fi 9000+9000+12000 - New
Ferroli Trial Split Inverter Air Conditioner DIAMANT PLUS Series M 9+9+12 with 28-4 R-32 Integrated Wi-Fi 9000+9000+12000 - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features

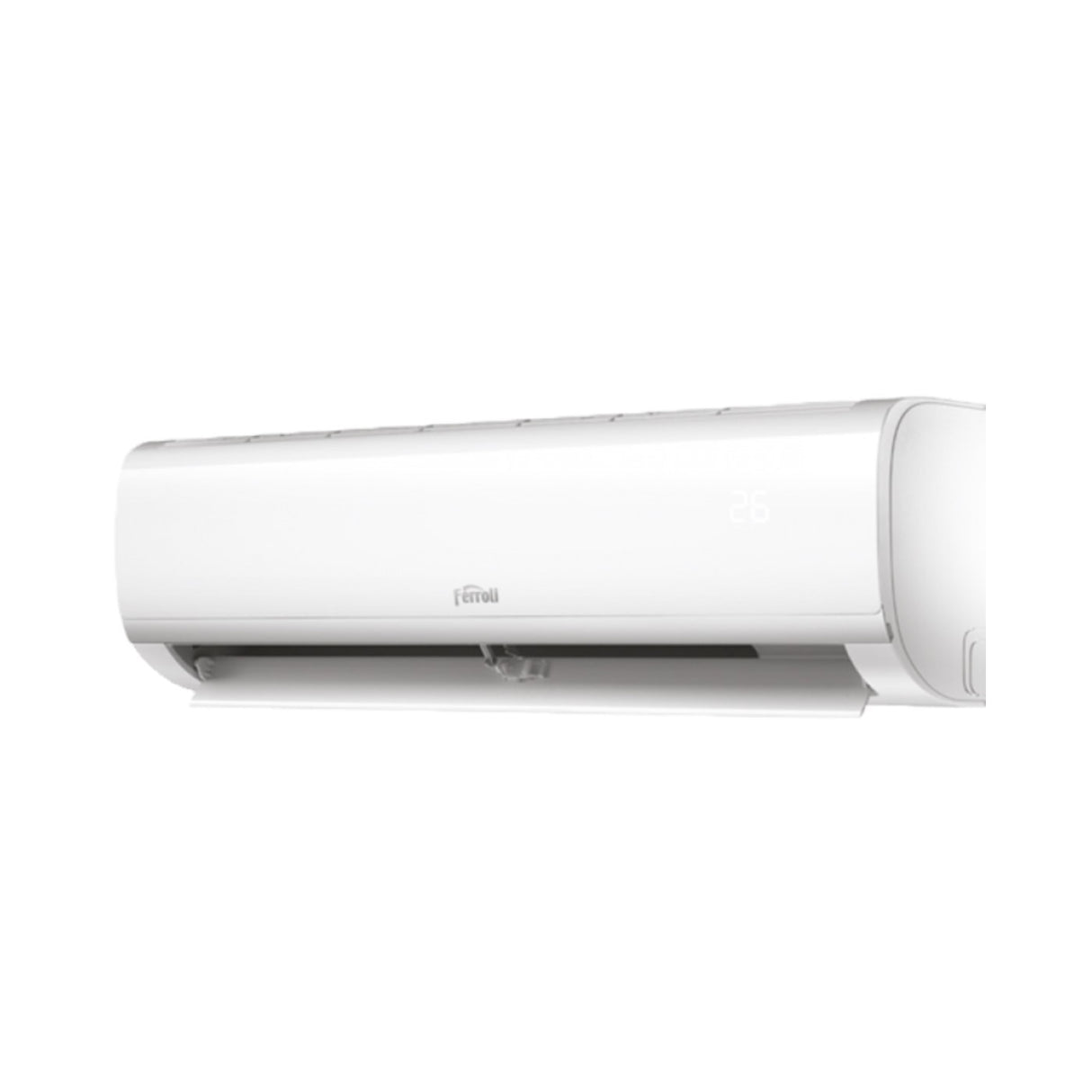

Internal Units
1) Model
- Internal Unit Catalog Code: 2x 2CO9B01F
- Power: 9000 btu/h
- Cooling Capacity: 2.64 kW
- Heating Capacity: 2.93 kW
- Treated air: 460 m 3 /h
- Sound pressure level: 21~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 805x285x194 mm
- Internal Unit Weight: 7.5 Kg
- Integrated Wi-Fi
2) Model
- Indoor Unit Catalog Code: 1x 2CO9B02F
- Power: 12000 btu/h
- Cooling Capacity: 3.52 kW
- Heating Capacity: 3.81 kW
- Treated air: 500 m 3 /h
- Sound pressure level: 22~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 805x285x194 mm
- Internal Unit Weight: 7.5 Kg
- Integrated Wi-Fi
External Unit
Model:
- Internal Unit catalog code: 28-4 ( 2CO9AA2F )
- Max indoor units: up to 4 indoor units
Energy efficiency:
- SEER : 6.1
- SCOP: 3.8
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A
Performance:
- Cooling Capacity: 8.2 kW
- Heating Capacity: 8.8 kW
- Cooling absorption: 2.54 kW
- Heating absorption: 2.20 kW
- Sound power level: 67 dB(A)
- Sound pressure level: 61.5 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
- Liquid tube diameter: 6.35 mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x3 + 12.70 mm (1/2") x1
- Maximum length of pipes: 80 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (WxHxD): 946(84)x810x420 mm
- External Unit Weight: 62.0 Kg
Ferroli DIAMANT PLUS Climatic Comfort and Elegance in Shapes
New and Clean Air in Ferroli
The latest proposal from Ferroli is appreciated for its elegant lines and the compactness of the camera body. It combines design, technology, energy saving, respect for the external environment and that of the home, where Ferroli has always been at the forefront.
Features and Functions
• R-32: Ecological refrigerant R32. It complies with the Montreal protocol, does not damage the ozone layer as it is free of HCFCs
• 2 year European guarantee
• Universal internal units that can be combined with mono or multi split external units
• ROHS: The products are all ROHS compatible according to Directive 2002/95/EC
• Direct current (DC) inverter technology
• Infrared remote control: for controlling all air conditioner functions
• AUTO function: automatically activates Cool/Heat operation based on the room temperature and Set Point
• SWING function: motorized deflector flap
• DRY function: accentuates the summer dehumidification phenomenon
• TURBO function: brings operation to maximum speed for rapid achievement of the SET POINT
• SLEEP function: Increases night-time comfort
• FAN function: activates the internal unit in ventilation only
• FROST PROTECTION function: Sets a minimum anti-freeze safety set point of 8°C
• Self-diagnosis: Self-diagnosis system and description of any anomalies
• Memory retention and automatic restart in the event of power failures
• Double Filtering: “Cold Catalyst” and “Biohepa”
• Cooling operation
• Cooling operation
• Timers
• Remote control with dedicated smartphone app
• External Unit that can be combined with different types of internal units
• External Unit equipped with connection cover and sound-absorbing hood
• Suction grille and filters easily removable to allow quick cleaning
• Outdoor Unit treated with anti-rust protective substances
Product Guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 75.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Ferroli
- metri quadri : 25-40 m2
- modello: DIAMANT+ 9+9+12 28
- potenza btu: 9000+9000+12000
- superficie riscaldabile mq: 25/25/35
