Fujitsu Ducted Air Conditioning ECO KM series 36000 btu R-32 ARXG36KMLA A++ - NEW
Fujitsu Ducted Air Conditioning ECO KM series 36000 btu R-32 ARXG36KMLA A++ - NEW is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description

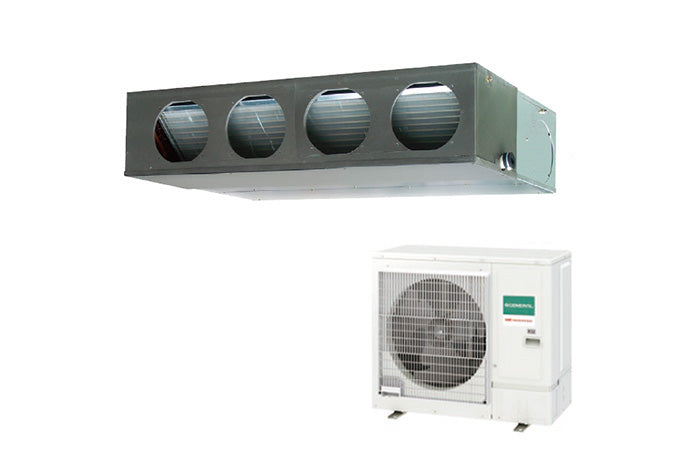

Fujitsu Ducted Air Conditioning ECO KM series 36000 btu R-32 ARXG36KMLA A++ - NEW
- Indoor unit: ARXG36KMLA
- Outdoor unit: AOHG36KBTB
- Single-phase power supply
- Voltage 230 V Frequency 50 Hz
- Cooling Power 9.5 (2.8 - 11.2) kW
- Heating 10.8 (2.7 - 12.7) kW
- Power absorbed Cooling 2,970 kW
- Heating 2,880 kW
- EER Cooling 3.20 W/W
- COP Heating 3.75 W/W
- Heating (-10 °C) 8.7 kW
- SEER Cooling 6.10 W/W
- SCOP Heating (Average) 4.00 W/W
- Energy efficiency class Cooling A++
- Heating (Average) A+
- Maximum operating current Cooling 22.6 A
- Heating 22.6 A
- Annual energy consumption Cooling 545 kWh/a
- Heating 3044 kWh/a
- Dehumidification 3.0 l/h
- Sound pressure level*2 Indoor (Cooling) High 39 dB(A)
- Average 35 dB(A)
- Low 30 dB(A)
- Silent 26 dB(A)
- Indoor (Heating) High 42 dB(A)
- Average 35 dB(A)
- Low 30 dB(A)
- Silent 26 dB(A)
- Static pressure range (standard) 30 - 150 (47) Pa
- Net dimensions Internal ì270 mm Width 1135 mm Depth 700 mm
- Net dimensions External Weight 788 mm Width 940 mm Depth 320 mm
- Connection diameter Liquid φ9.52 mm Gas φ15.88 mm
- Max. Piping length (Pre-charge) 50 (30.0) m
- Max. Maximum height difference 30 m
- Operating range Cooling -15 to 46 °C DB
- Heating -15 to 24 °C DB
- Refrigerant Type R32
KM series
Compact and slim models
The extremely limited thickness of the internal units allows installation in all those cases where the space in the false ceiling is very limited. Additionally, the location of the card compartment allows for easy access to connections
Easy maintenance
The structural refinement of these models includes the division of the bottom panel into two parts (front and rear). This makes maintenance of the motor and fan easier and can be done completely from the bottom of the unit.
1. Control panel
2. Fan cover
3. Fan
4. Engine
Condensate drain connection on both sides
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Specifications
Specifications
- peso: 80.0 kg
- costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Fujitsu
- modello: ARXG36KMLA
