Description
Description

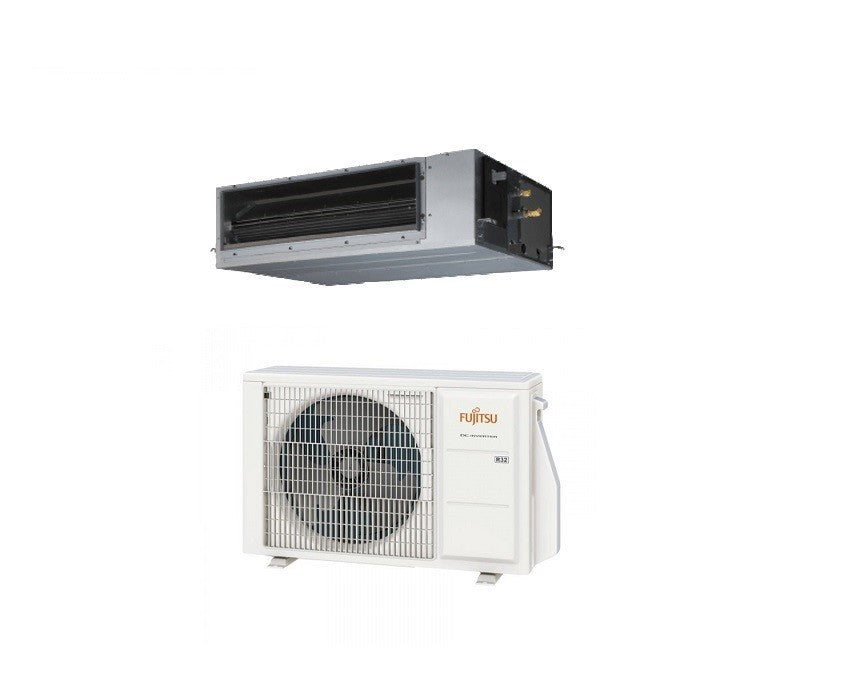

Fujitsu Ducted Air Conditioner Ducted KHT series 24000 Btu R-32 cod. 3NGF89485 A++ ARXG24KHTAP - NEW
Model:
- Indoor unit catalog code: ARXG24KHTAP
- Outdoor unit catalog code: AOYG24KBTB
- Kit code: 3NGF89485
Energy efficiency:
- Cold power (kW) 6.8 (0.9-8.0)
- Heating power (kW) 7.5 (0.9-9.1)
- SEER 6.5
- SCOP 4.1
- class A++
- class A+
Performance:
- Dehumidification l/h: 1.8
- Power absorbed in cooling/heating (kW): 1.89/1.85
- Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 32/28/24/21
- Indoor unit sound power dB(A): 57/57 6
- External unit sound pressure (max) dB(A): 53/54
- External unit sound power (max) dB(A): 65/66
Electrical data:
- Power (V/Hz/Φ): 230/50/1
Characteristics:
- Refrigerant gas: R-32
- Liquid/gas connection pipes (mm): 6.35/12.70
- Pipes Max. length IU/EU: 30 (20)
- Pipes Max height difference: 25 metres
- Operation range:
-Cooling: -15~46°C
-Heating: -15~24°C
Dimensions:
- Internal Unit HxWxD (mm): 300x1000x700; 35kg
- External Unit HxWxD (mm): 716x820x315; 42kg
KHT series
High efficiency and silence
The combination of the V-shaped heat exchanger, the air stabilizer, and the high-efficiency DC fan motor allows high efficiency and silence to be achieved despite the small structural dimensions.
External unit with reduced dimensions and weight
This model is more compact than the conventional outdoor unit, for easier installation
Great installation flexibility
- The possibility of changing the head from 30 Pa to 200 Pa allows installation in different types of environments.
- Condensate pump included: lifts condensate up to 850 mm
- The same height and depth dimensions for all models
Easy maintenance
- Easily inspectable condensate pump
- Easy access to electronic boards
- Error history
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Specifications
Specifications
- peso: 60.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Fujitsu
- metri quadri : 60 - 80 m2
- modello: 3NGF89065
- potenza btu: 24000
- superficie riscaldabile mq: 70
