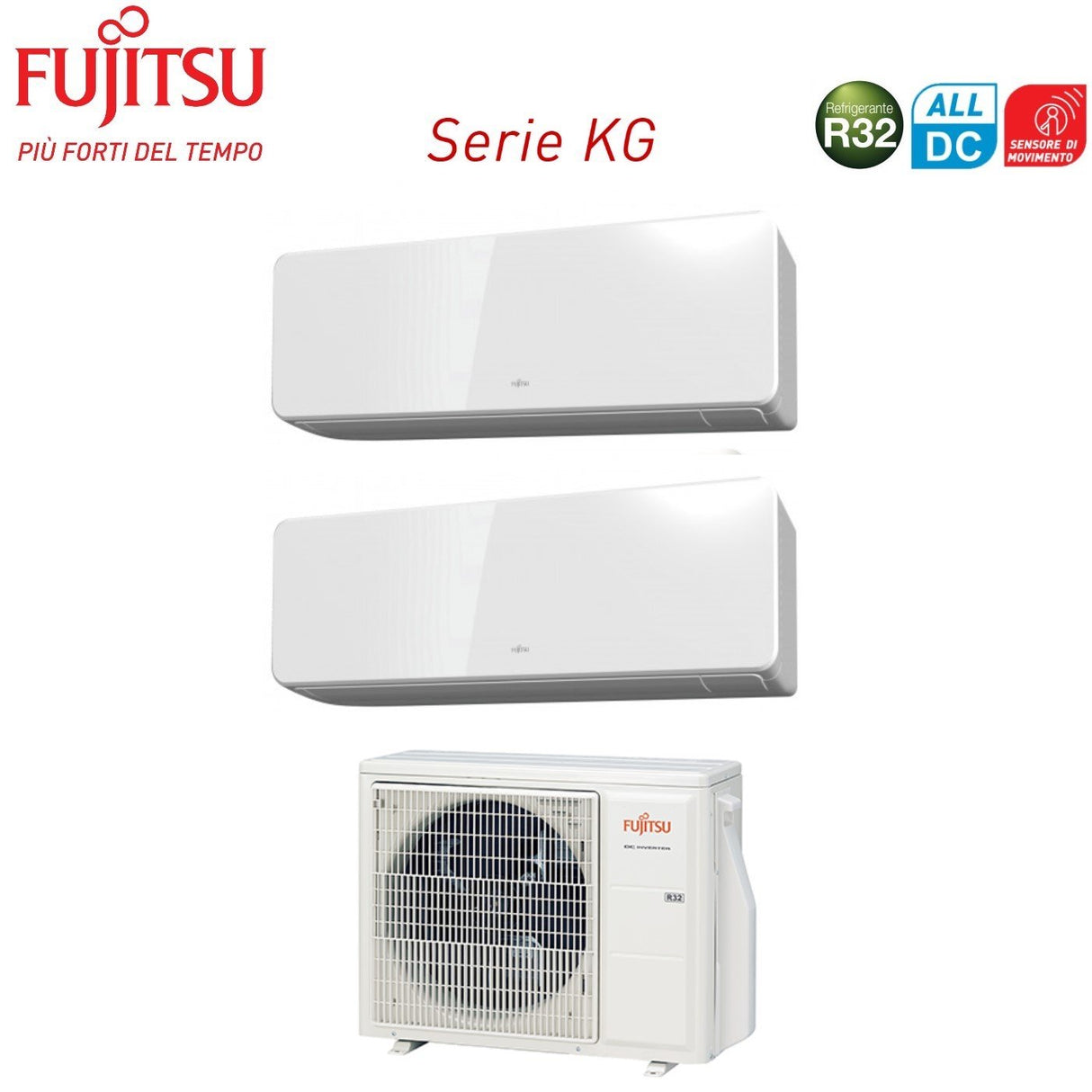

Fujitsu Dual Split Inverter Air Conditioning KG 9+12 series with AOHG18KBTA2 R-32 Wi-Fi Optional 9000+12000
Fujitsu Dual Split Inverter Air Conditioning KG 9+12 series with AOHG18KBTA2 R-32 Wi-Fi Optional 9000+12000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
Technical features
Internal Units
1) Model
- Indoor Unit Catalog Code: 1x ASYG09KGTB
- Internal Unit Code: 3NGF7092
- Power: 9000 btu/h
- Cooling Capacity: 2.5 kW
- Heating Capacity: 2.8 kW
- Indoor Unit Air Flow Rate: 700 m 3 /h
- Sound Power Level: 55~57 dB(A)
- Sound pressure level: 21~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x215 mm
- Internal Unit Weight: 10 Kg
- Wi-Fi Optional: (Code UTY-TFSXW1 )
2) Model
- Indoor Unit Catalog Code: 1x ASYG12KGTB
- Internal Unit Code: 3NGF7098
- Power: 12000 btu/h
- Cooling Capacity: 3.4 kW
- Heating Capacity: 4.0 kW
- Indoor Unit Air Flow Rate: 700 m 3 /h
- Sound Power Level: 55~58 dB(A)
- Sound pressure level: 21~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x215 mm
- Internal Unit Weight: 10 Kg
- Wi-Fi Optional: (Code UTY-TFSXW1 )
Model
- Outdoor Unit catalog code: AOYG18KBTA2
- Connectable Internal Units: 2
Energy efficiency:
- SEER: 8.6
- SCOP: 4.7
- Cooling Energy Efficiency Class: A+++
- Heating Energy Efficiency Class: A++
Performance:
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.60 kW
- Std Cooling absorption: 1.24 kW
- Std Heating absorption: 1.22 kW
- Sound power level Cooling: 60 dB(A)
- Sound power level Heating: 62 dB(A)
- Sound pressure level Cooling: 47 dB(A)
- Sound pressure level Heating: 50 dB(A)
Characteristics:
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Pipe diameter Liquid: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Guaranteed temperature range:
- - Cooling: -10°~46°C
- - Heating: -15°~24°C
Dimensions:
- External Unit Dimensions (WxHxD): 632×799×290 mm
- External Unit Weight: 37 Kg
Fujitsu KG series
Comfortable ventilation and quiet operation
The large baffle and new diffusion structure allow for comfortable airflow that spreads wider to the user's feet and quiet operation.
Motion sensor
The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.
Functions
- Presence sensor The sensor detects the presence of people inside the room
- Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
- Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns
- 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
- Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling
- Maximum power Function that allows you to activate the air conditioning at maximum power for rapid comfort
- Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
- Automatic switch-off Sleep Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
- Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows control of filter cleaning
High energy saving
High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: Fujitsu
- metri quadri : 25/35
- modello: Fujitsu KGTB 9+12 18
- potenza btu: 9000+12000
- superficie riscaldabile mq: 25/35
