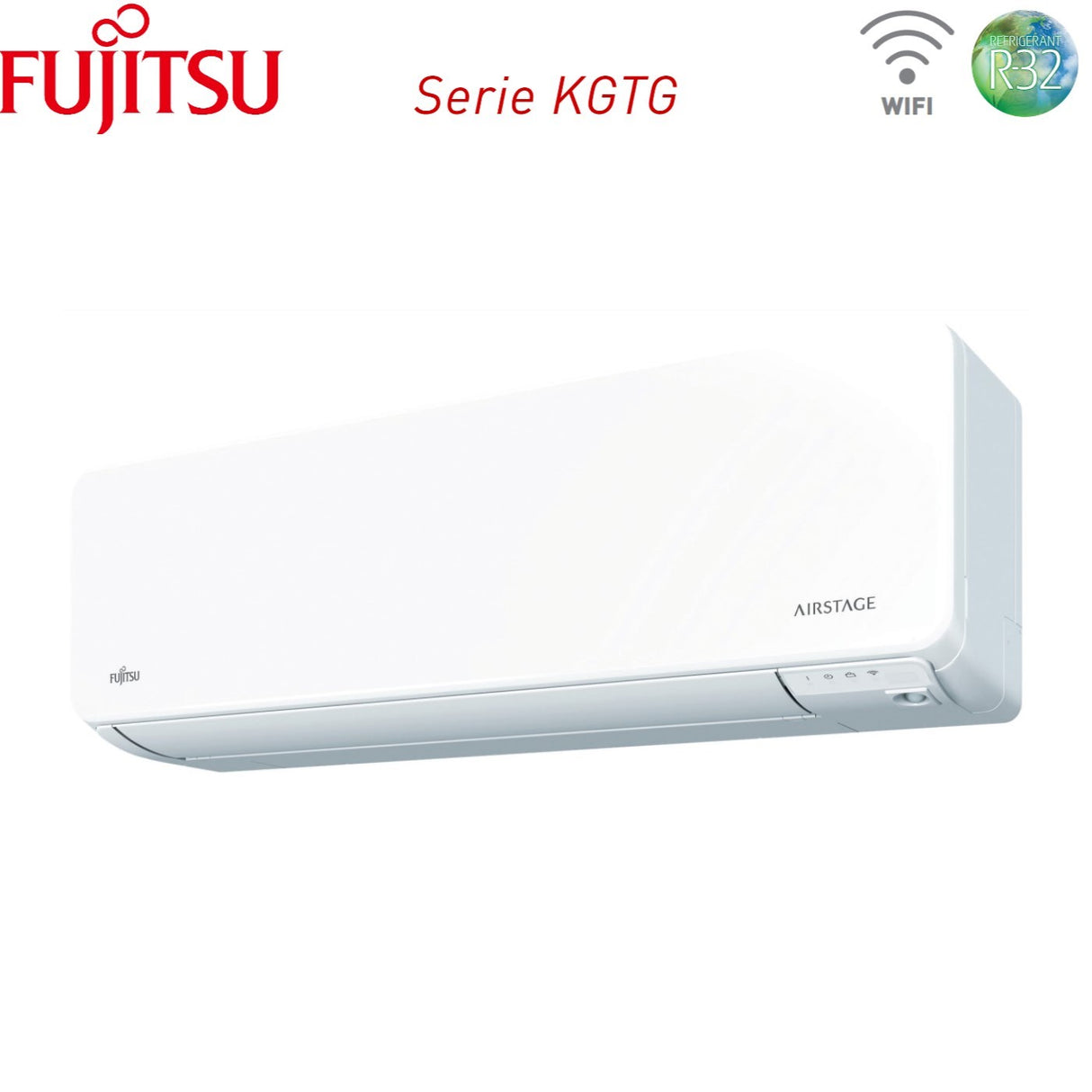

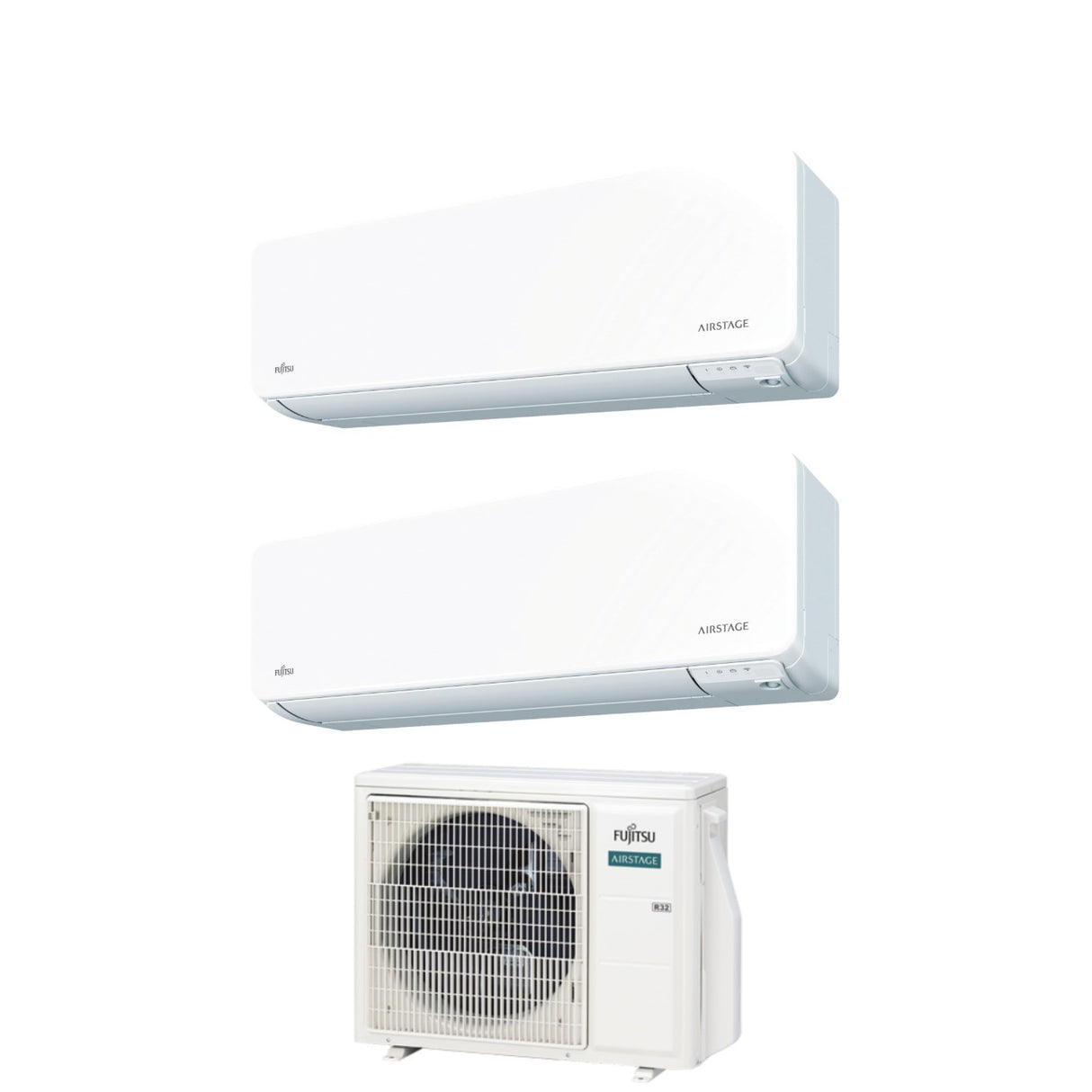

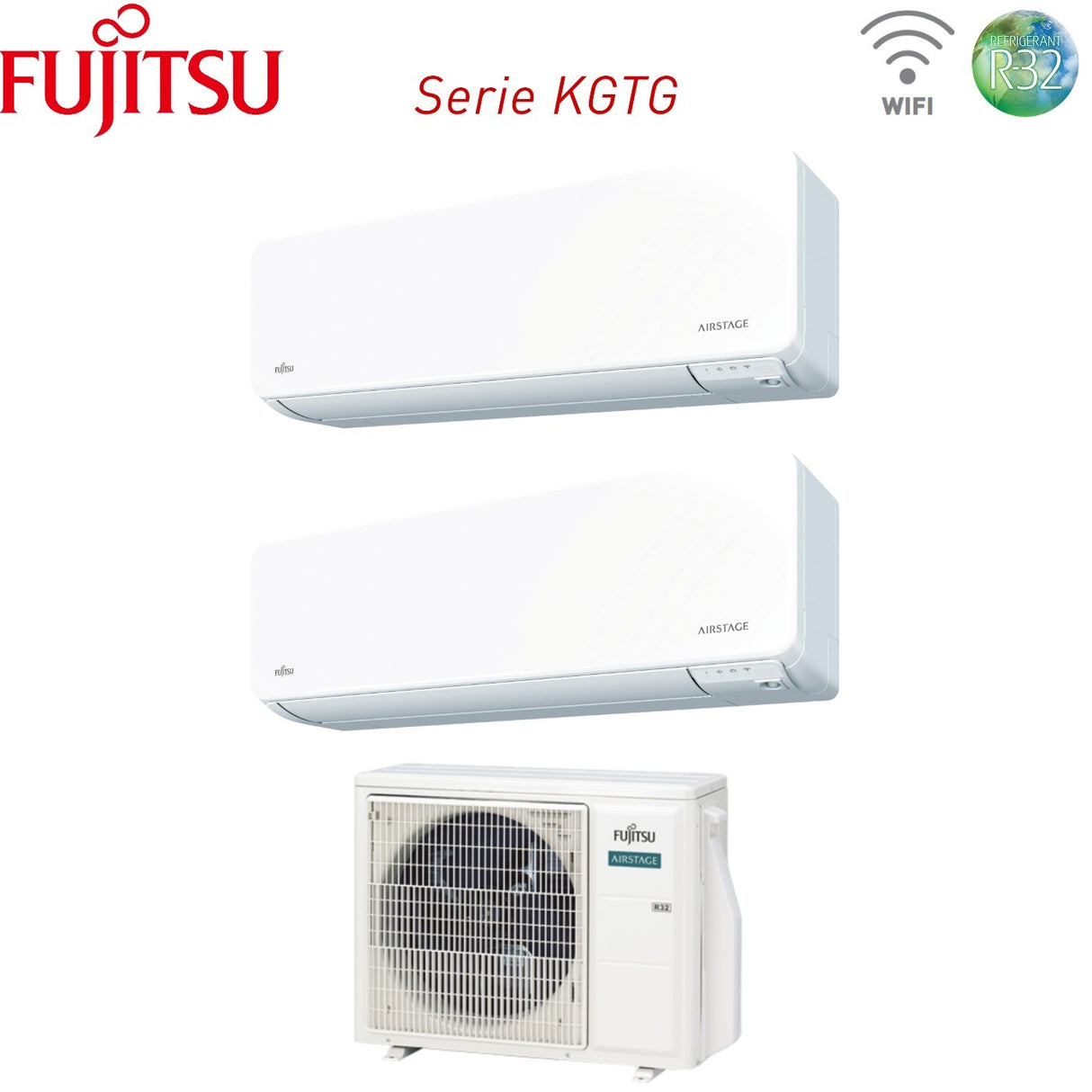

Fujitsu Dual Split Inverter Air Conditioner KG 7+7 series with AOYG14KBTA2 R-32 Integrated Wi-Fi 7000+7000

• Outdoor unit catalog code: AOYG14KBTA2
• Outdoor unit code: 3NGF7088
• Number of connectable internal units: Up to 2 internal units

Energy efficiency

• SEER : 8.7
• SCOP: 4.7
• Cooling energy efficiency class: A+++
• Heating energy efficiency class: A++

Performance

• Cooling capacity: 4.0 kW
• Heating capacity: 4.4 kW
• Sound power level: 60~62 dB(A)
• Sound pressure level: 47~49 dB(A)

Electrical data

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46°C
• - Heating: -15° ~ 24°C

Installation data

• Liquid tube diameter: 6.35 mm (1/4") x2
• Gas pipe diameter: 9.52 mm (3/8") x2
• Maximum pipe length: 30 m
• Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

• External unit dimensions (HxWxD): 542×799×290 mm
• External unit weight: 33.0 kg

High energy saving

High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant.

New R32 refrigerant

Its low global warming potential (GWP) of one third compared to the most common refrigerant used for air conditioning represents an advantage for protecting the environment

Fujitsu KG series

Comfortable ventilation and quiet operation

The large baffle and new diffusion structure allow for comfortable airflow that spreads wider to the user's feet and quiet operation.

Ø 107 large fan

Thanks to the large diameter fan, it is possible to obtain an efficient air volume even at low powers.

Motion sensor

The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.

Intelligent control device included

The air conditioner can be controlled from anywhere using the built-in wireless LAN interface. The wireless LAN interface is installed in the indoor unit.

Thanks to the AIRSTAGE Mobile App, you can control the air conditioner anytime, anywhere.

Functions

• Presence sensor The sensor detects the presence of people inside the room

• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room

• Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns

• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating

• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling

• Maximum power Function that allows you to activate the air conditioning at maximum power for rapid comfort

• Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON

• Automatic switch-off Sleep Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
• Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows control of filter cleaning

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
