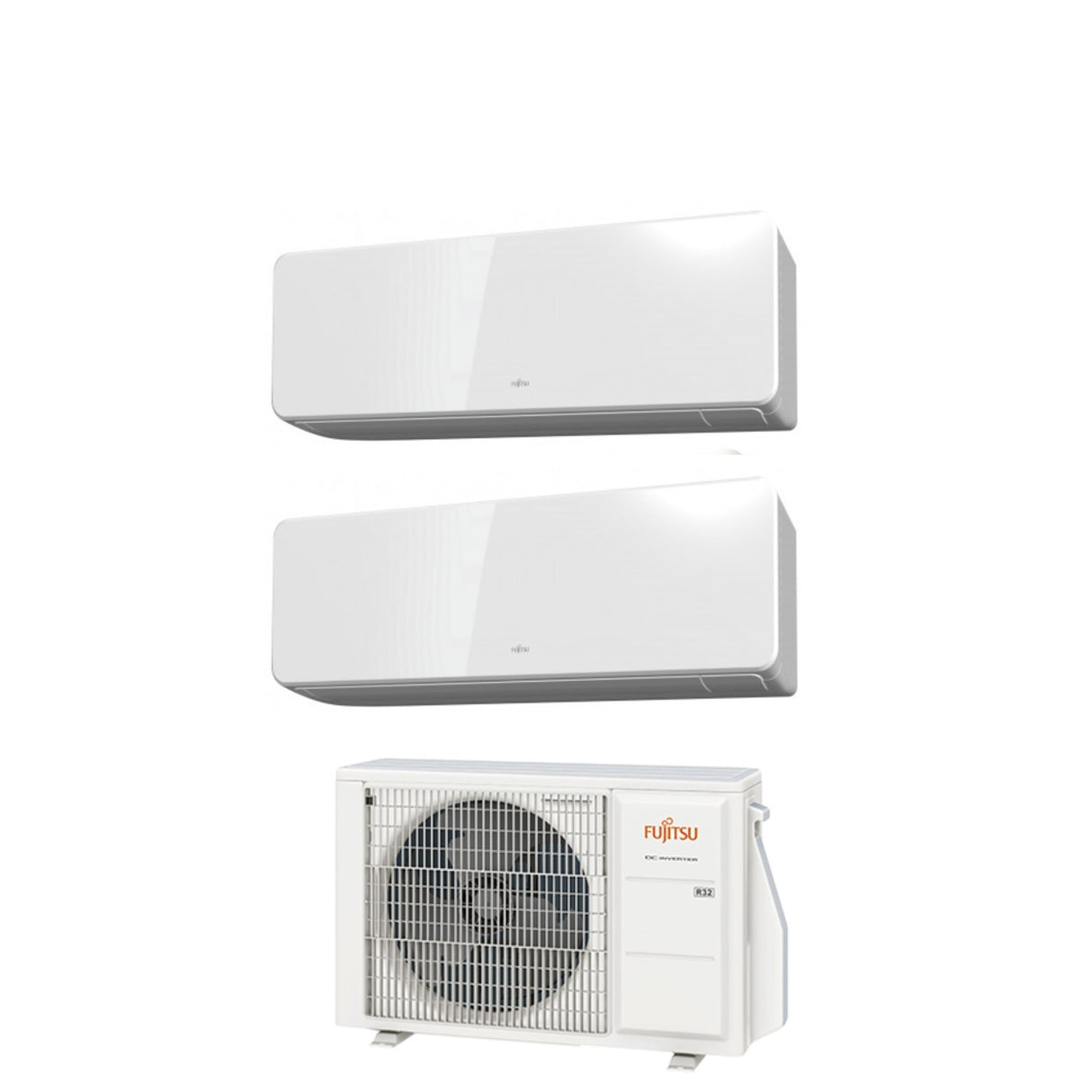

Fujitsu Dual Split Inverter Air Conditioning KG 7+9 series with AOYG18KBTA2R-32 Wi-Fi Optional 7000+9000
Fujitsu Dual Split Inverter Air Conditioning KG 7+9 series with AOYG18KBTA2R-32 Wi-Fi Optional 7000+9000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
Internal Units
1) Model
- Indoor Unit Catalog Code: 1x ASYG07KGTB
- Internal Unit Code: 3NGF7091
- Power: 7000 btu/h
- Cooling Capacity: 2.0 kW
- Heating Capacity: 2.5 kW
- Indoor Unit Air Flow Rate: 650 m 3 /h
- Sound Power Level: 54~56 dB(A)
- Sound pressure level: 21~38 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x215 mm
- Internal Unit Weight: 10 Kg
- Wi-Fi Optional: (Code UTY-TFSXW1 )
2) Model
- Indoor Unit Catalog Code: 1x ASYG09KGTB
- Internal Unit Code: 3NGF7092
- Power: 9000 btu/h
- Cooling Capacity: 2.5 kW
- Heating Capacity: 2.8 kW
- Indoor Unit Air Flow Rate: 700 m 3 /h
- Sound Power Level: 55~57 dB(A)
- Sound pressure level: 21~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x215 mm
- Internal Unit Weight: 10 Kg
- Wi-Fi Optional: (Code UTY-TFSXW1 )
Model:
- Indoor Unit catalog code: AOYG18KBTA2
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER:8,6
- SCOP:4,7
- Cooling energy efficiency class: A+++
- Heating energy efficiency class: A++
Performance:
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.60kW
- Cooling sound power level: 60 dB(A)
- Heating sound power level:62 db(A)
- Sound pressure level: 47 dB(A)
- Heating sound pressure level: 50db(A)
Characteristics:
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Pipe diameter Liquid: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24°C
Dimensions:
- External Unit Dimensions (HxWxD): 632×799×290 mm
- External Unit Weight: 37 Kg
Fujitsu KG series
Comfortable ventilation and quiet operation
The large baffle and new diffusion structure allow for comfortable airflow that spreads wider to the user's feet and quiet operation.
Motion sensor
The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.
Functions
- Presence sensor The sensor detects the presence of people inside the room
- Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
- Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns
- 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
- Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling
- Maximum power Function that allows you to activate the air conditioning at maximum power for rapid comfort
- Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
- Automatic switch-off Sleep Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
- Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows control of filter cleaning
High energy saving
High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Fujitsu
- metri quadri : 20/25
- modello: Fujitsu KGTB 7+9 18
- potenza btu: 7000+9000
- superficie riscaldabile mq: 20/25
